| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_199T01_9000002040_13838cztM0_level2.evt | modeM0/AS1A04_199T01_9000002040_13838cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,688,320 | 75,651,840 |
| Size | 438.4 MB | 72.1 MB |
| Events in quadrant A | 3,300,098 | 470,255 |
| Events in quadrant B | 3,332,031 | 479,739 |
| Events in quadrant C | 3,099,407 | 465,356 |
| Events in quadrant D | 3,763,049 | 436,426 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13677 | 3 |
| B | 0 | 13623 | 2 |
| C | 0 | 13056 | 2 |
| D | 0 | 15245 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6287 | 72 | 1.145220% |
| B | 6287 | 99 | 1.574678% |
| C | 6287 | 24 | 0.381740% |
| D | 6287 | 85 | 1.351996% |

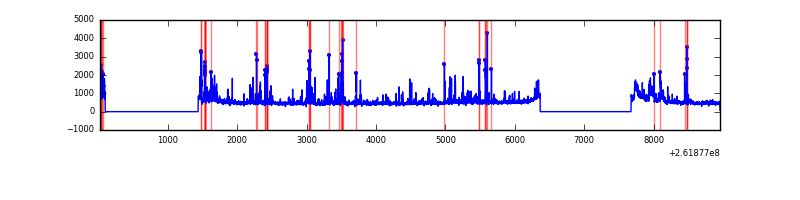

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8938 | 6289 | 25 | 25 | 0.28% | 0.40% |  |
| B | 8938 | 6290 | 19 | 19 | 0.21% | 0.30% |  |
| C | 8938 | 6290 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8938 | 6290 | 52 | 52 | 0.58% | 0.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 203923 | 1252.08 | 800 | 784 | 162.2 |
| A | 1 | 162 | 11958 | 68.87 | 800 | 784 | 162.2 |
| A | 0 | 226 | 7300 | 40.16 | 800 | 784 | 162.2 |
| B | 3 | 64 | 54533 | 353.38 | 807 | 789 | 152.1 |
| B | 4 | 80 | 34059 | 218.76 | 807 | 789 | 152.1 |
| B | 0 | 219 | 23987 | 152.53 | 807 | 789 | 152.1 |
| C | 3 | 233 | 74956 | 415.95 | 776 | 781 | 178.3 |
| C | 13 | 61 | 5486 | 26.38 | 776 | 781 | 178.3 |
| C | 3 | 202 | 1802 | 5.73 | 776 | 781 | 178.3 |
| D | 1 | 52 | 389984 | 1926.74 | 755 | 741 | 202.0 |
| D | 10 | 157 | 244273 | 1205.47 | 755 | 741 | 202.0 |
| D | 5 | 222 | 197420 | 973.55 | 755 | 741 | 202.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

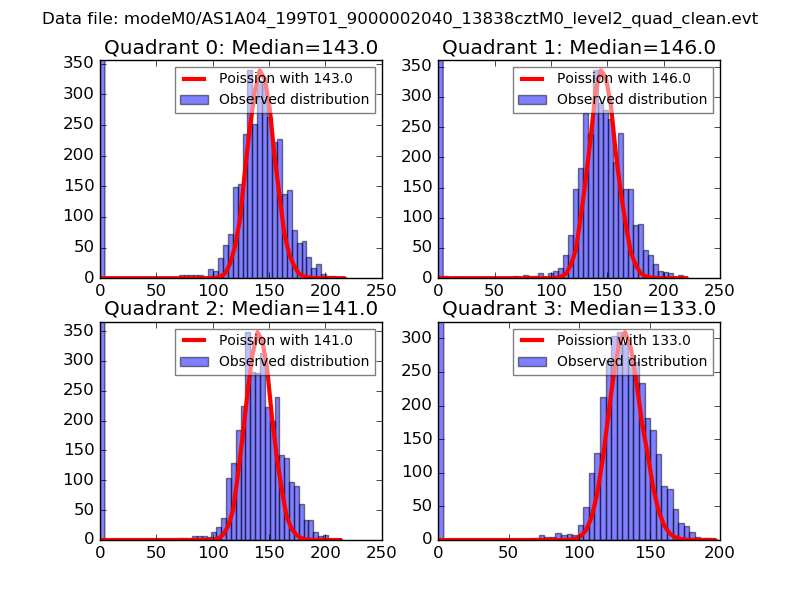

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

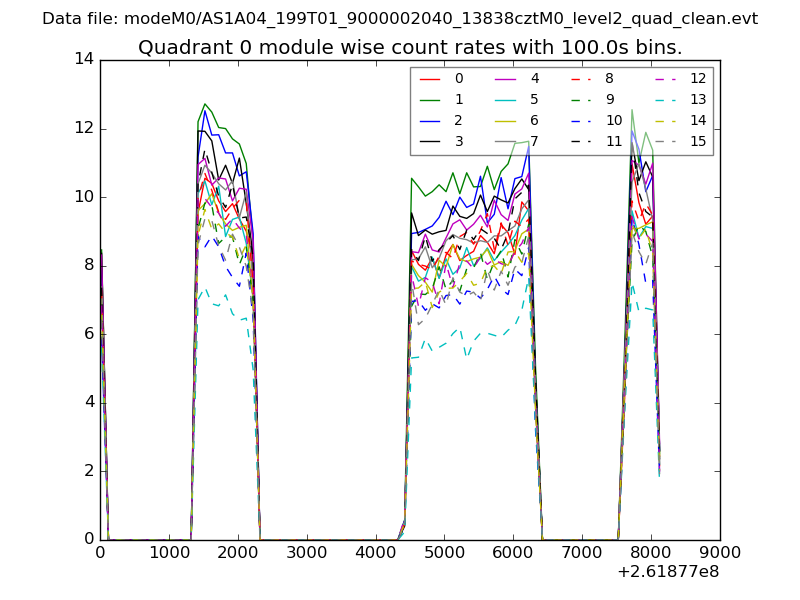

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

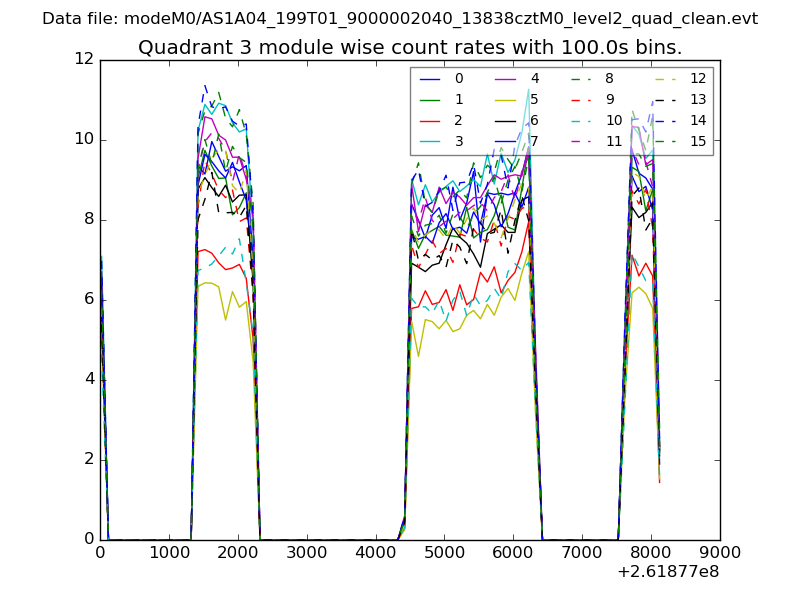

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

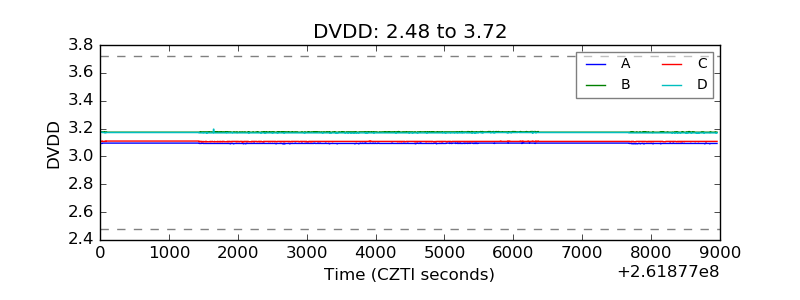

| D_VDD |  |
| Temperature 1 |  |

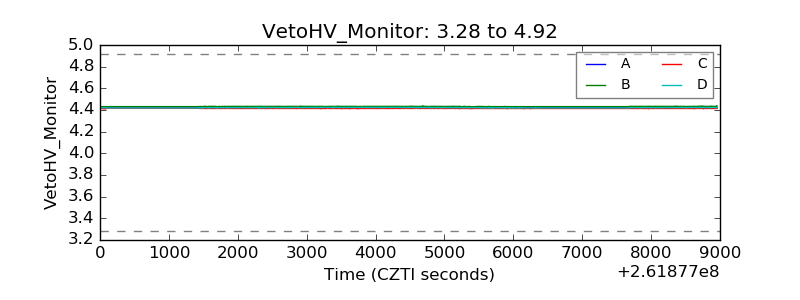

| Veto HV Monitor |  |
| Veto LLD |  |

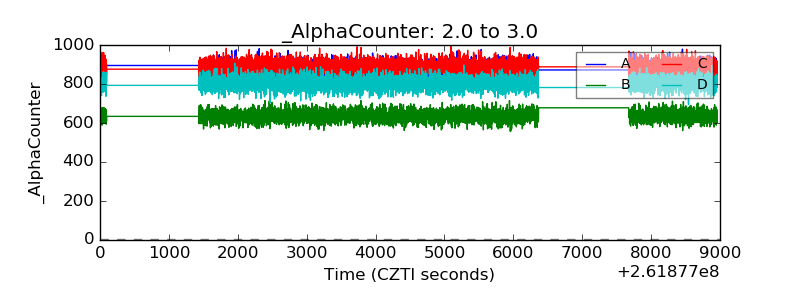

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
