| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_199T01_9000002040_13840cztM0_level2.evt | modeM0/AS1A04_199T01_9000002040_13840cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,860,480 | 70,096,320 |
| Size | 499.6 MB | 66.8 MB |
| Events in quadrant A | 3,396,583 | 419,474 |
| Events in quadrant B | 3,466,568 | 425,705 |
| Events in quadrant C | 3,324,915 | 416,455 |
| Events in quadrant D | 5,204,161 | 375,275 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14619 | 3 |
| B | 0 | 14644 | 2 |
| C | 0 | 14420 | 2 |
| D | 0 | 20188 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6971 | 118 | 1.692727% |
| B | 6971 | 166 | 2.381294% |
| C | 6971 | 70 | 1.004160% |
| D | 6971 | 471 | 6.756563% |

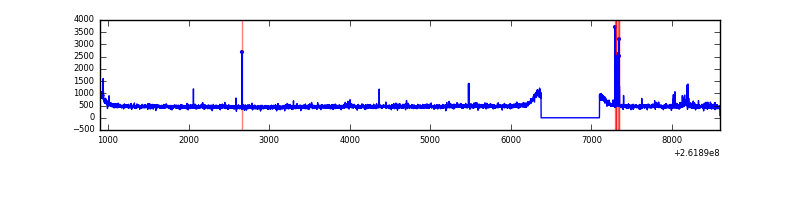

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7697 | 6972 | 8 | 8 | 0.10% | 0.11% |  |
| B | 7697 | 6972 | 10 | 10 | 0.13% | 0.14% |  |
| C | 7697 | 6972 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7697 | 6972 | 400 | 400 | 5.20% | 5.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 74037 | 416.44 | 860 | 840 | 175.8 |
| A | 1 | 162 | 8799 | 45.28 | 860 | 840 | 175.8 |
| A | 0 | 226 | 7701 | 39.03 | 860 | 840 | 175.8 |
| B | 4 | 80 | 36706 | 215.94 | 862 | 841 | 166.1 |
| B | 12 | 111 | 19807 | 114.19 | 862 | 841 | 166.1 |
| B | 3 | 64 | 16701 | 95.49 | 862 | 841 | 166.1 |
| C | 3 | 233 | 48751 | 244.18 | 838 | 844 | 196.2 |
| C | 14 | 234 | 9683 | 45.05 | 838 | 844 | 196.2 |
| C | 13 | 61 | 6130 | 26.94 | 838 | 844 | 196.2 |
| D | 1 | 52 | 1552213 | 7341.45 | 811 | 790 | 211.3 |
| D | 10 | 157 | 278427 | 1313.8 | 811 | 790 | 211.3 |
| D | 13 | 122 | 92969 | 436.2 | 811 | 790 | 211.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

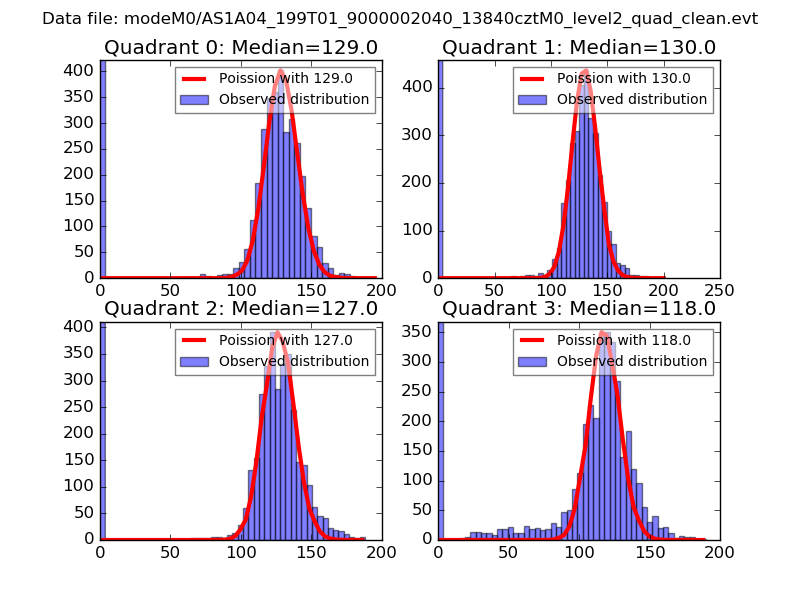

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

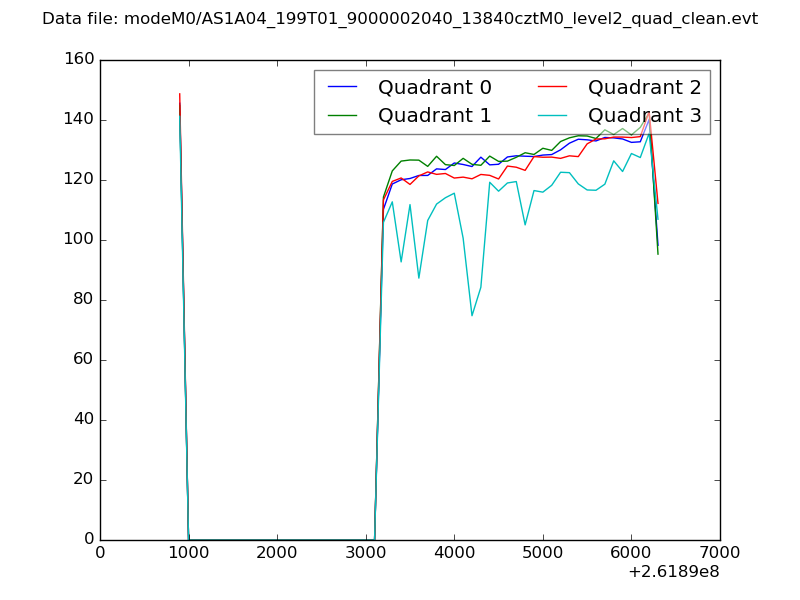

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

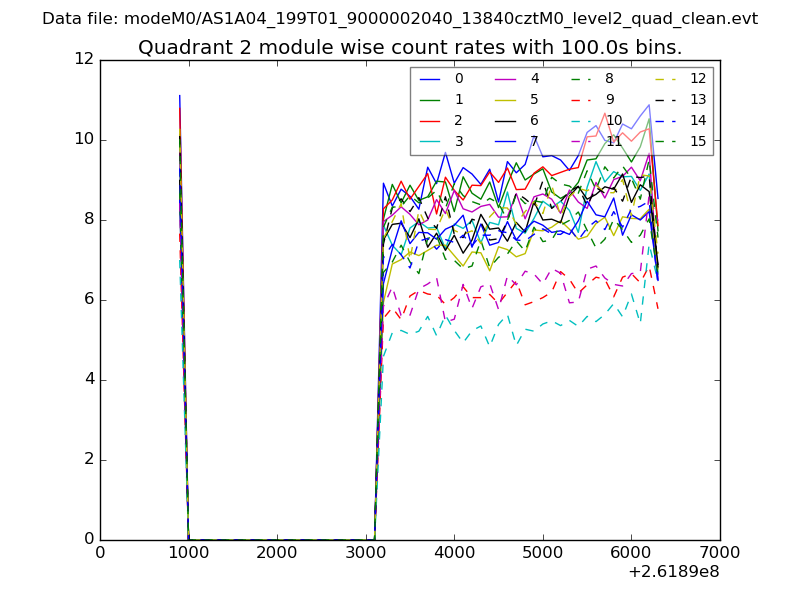

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

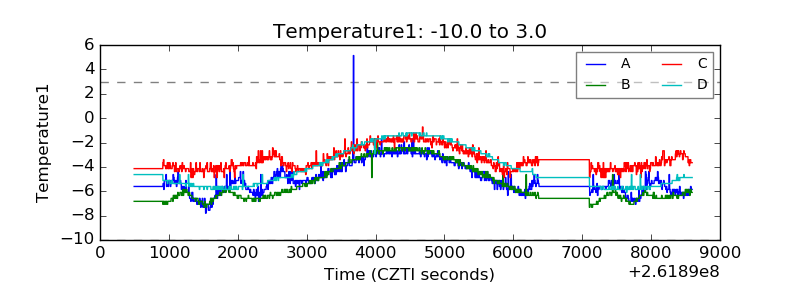

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

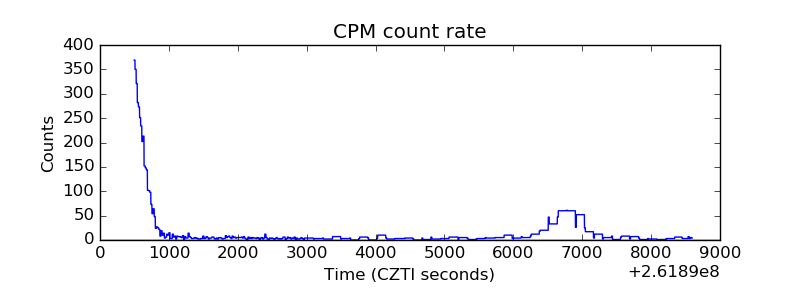

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

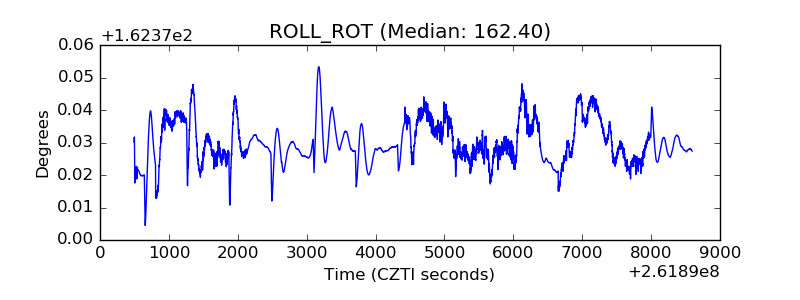

| _ROLL_ROT |  |

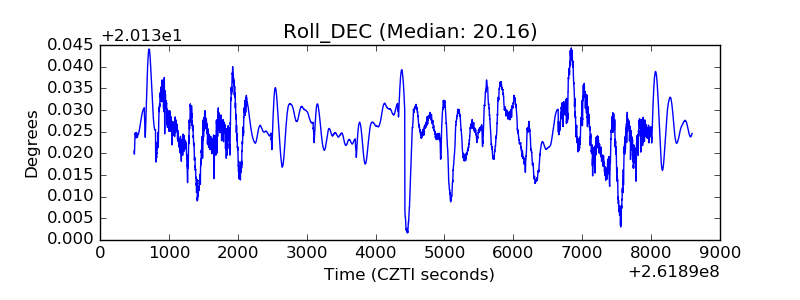

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
