| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_199T01_9000002040_13849cztM0_level2.evt | modeM0/AS1A04_199T01_9000002040_13849cztM0_level2_quad_clean.evt |
| Size (bytes) | 488,649,600 | 89,271,360 |
| Size | 466.0 MB | 85.1 MB |
| Events in quadrant A | 3,245,239 | 577,419 |
| Events in quadrant B | 3,319,792 | 582,195 |
| Events in quadrant C | 3,003,243 | 569,941 |
| Events in quadrant D | 4,798,558 | 529,828 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13781 | 3 |
| B | 0 | 14032 | 2 |
| C | 0 | 13151 | 2 |
| D | 0 | 18500 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6360 | 61 | 0.959119% |
| B | 6360 | 74 | 1.163522% |
| C | 6360 | 24 | 0.377358% |
| D | 6360 | 327 | 5.141509% |

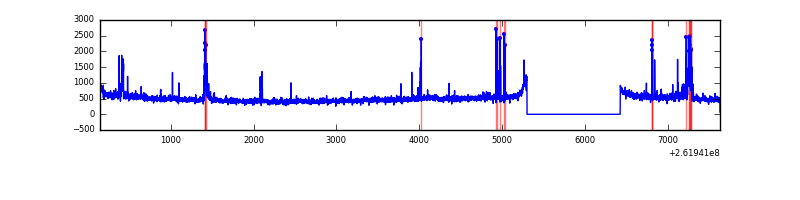

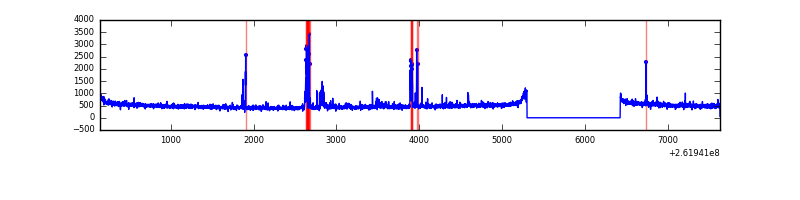

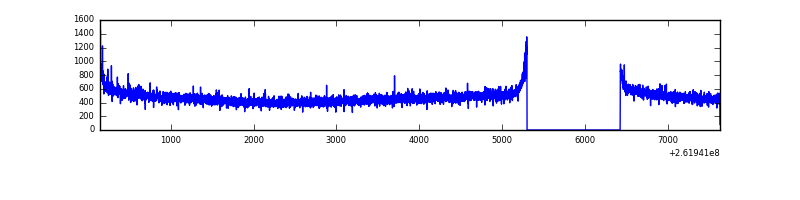

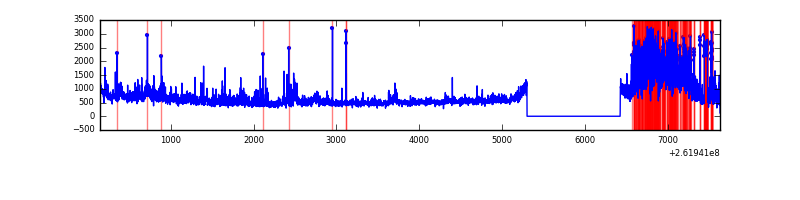

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7486 | 6361 | 25 | 25 | 0.33% | 0.39% |  |
| B | 7486 | 6361 | 20 | 20 | 0.27% | 0.31% |  |
| C | 7486 | 6361 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7486 | 6361 | 285 | 285 | 3.81% | 4.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 196033 | 1240.91 | 780 | 765 | 157.4 |
| A | 8 | 15 | 19743 | 120.6 | 780 | 765 | 157.4 |
| A | 0 | 23 | 11090 | 65.61 | 780 | 765 | 157.4 |
| B | 0 | 219 | 114449 | 772.3 | 782 | 766 | 147.2 |
| B | 3 | 64 | 48427 | 323.78 | 782 | 766 | 147.2 |
| B | 4 | 80 | 34131 | 226.66 | 782 | 766 | 147.2 |
| C | 3 | 233 | 30780 | 170.53 | 762 | 766 | 176.0 |
| C | 13 | 61 | 5415 | 26.41 | 762 | 766 | 176.0 |
| C | 8 | 222 | 2194 | 8.11 | 762 | 766 | 176.0 |
| D | 10 | 157 | 1065393 | 5943.28 | 742 | 725 | 179.1 |
| D | 1 | 52 | 609750 | 3399.75 | 742 | 725 | 179.1 |
| D | 5 | 222 | 152339 | 846.35 | 742 | 725 | 179.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

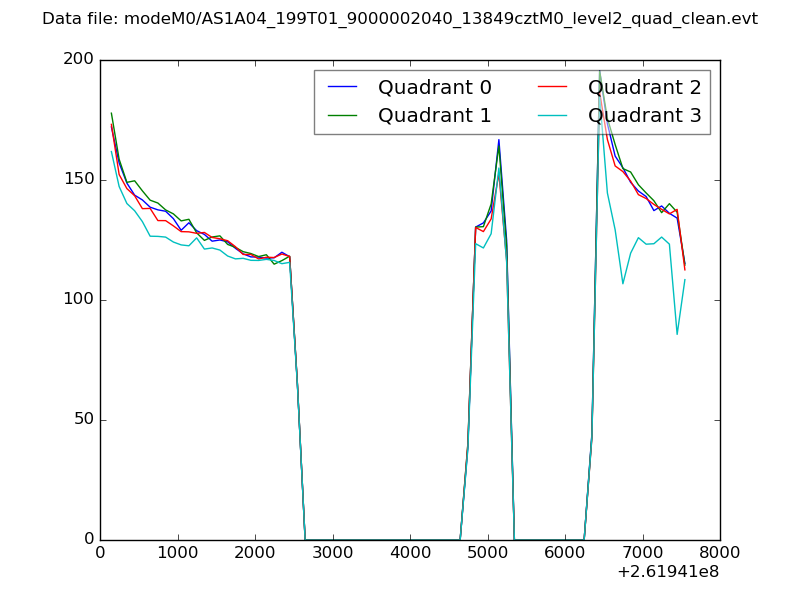

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

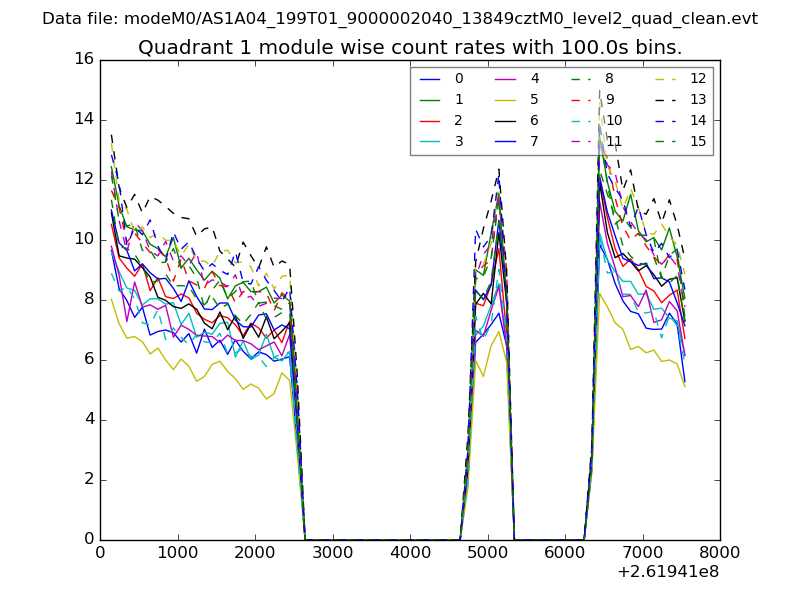

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

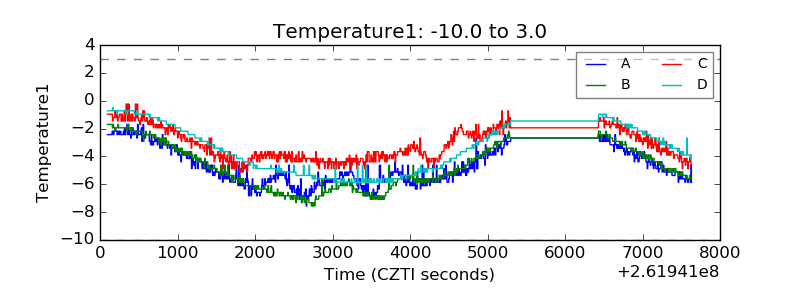

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

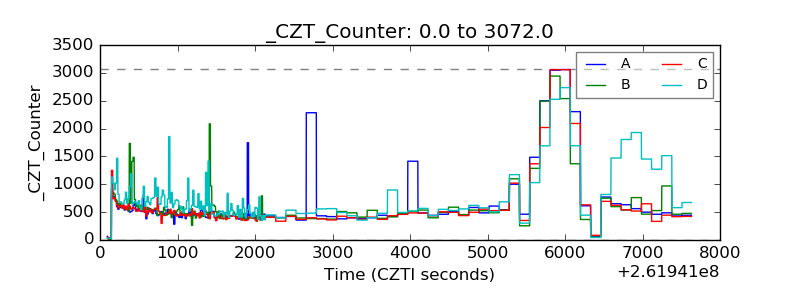

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
