| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_199T01_9000002040_13850cztM0_level2.evt | modeM0/AS1A04_199T01_9000002040_13850cztM0_level2_quad_clean.evt |
| Size (bytes) | 489,179,520 | 87,900,480 |
| Size | 466.5 MB | 83.8 MB |
| Events in quadrant A | 3,278,509 | 568,510 |
| Events in quadrant B | 3,243,373 | 581,818 |
| Events in quadrant C | 2,950,443 | 564,982 |
| Events in quadrant D | 4,924,508 | 516,327 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13716 | 3 |
| B | 0 | 13589 | 2 |
| C | 0 | 12781 | 2 |
| D | 0 | 18752 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6158 | 59 | 0.958103% |
| B | 6158 | 77 | 1.250406% |
| C | 6158 | 24 | 0.389737% |
| D | 6158 | 375 | 6.089639% |

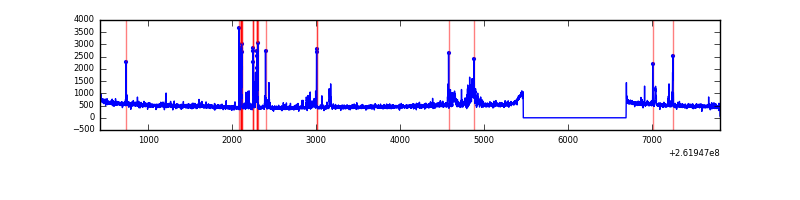

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7384 | 6160 | 25 | 25 | 0.34% | 0.41% |  |
| B | 7384 | 6159 | 24 | 24 | 0.33% | 0.39% |  |
| C | 7384 | 6160 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7384 | 6159 | 337 | 337 | 4.56% | 5.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 247210 | 1593.84 | 766 | 751 | 154.6 |
| A | 15 | 69 | 37484 | 237.55 | 766 | 751 | 154.6 |
| A | 8 | 15 | 21713 | 135.56 | 766 | 751 | 154.6 |
| B | 0 | 219 | 113704 | 777.77 | 771 | 752 | 145.2 |
| B | 4 | 80 | 37169 | 250.76 | 771 | 752 | 145.2 |
| B | 3 | 64 | 35516 | 239.38 | 771 | 752 | 145.2 |
| C | 3 | 233 | 25064 | 139.73 | 748 | 753 | 174.0 |
| C | 14 | 220 | 8356 | 43.7 | 748 | 753 | 174.0 |
| C | 13 | 61 | 5427 | 26.86 | 748 | 753 | 174.0 |
| D | 10 | 157 | 831421 | 4413.01 | 722 | 704 | 188.2 |
| D | 1 | 52 | 658247 | 3493.06 | 722 | 704 | 188.2 |
| D | 5 | 222 | 377808 | 2003.29 | 722 | 704 | 188.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

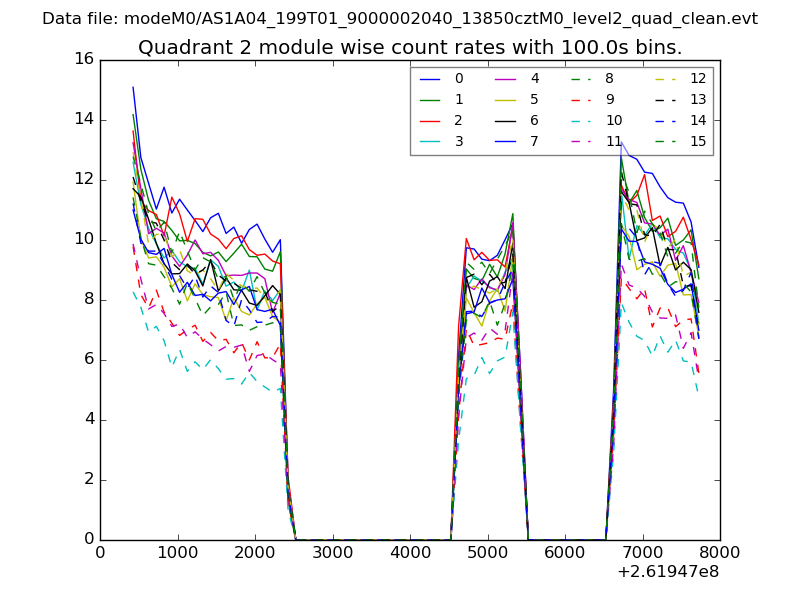

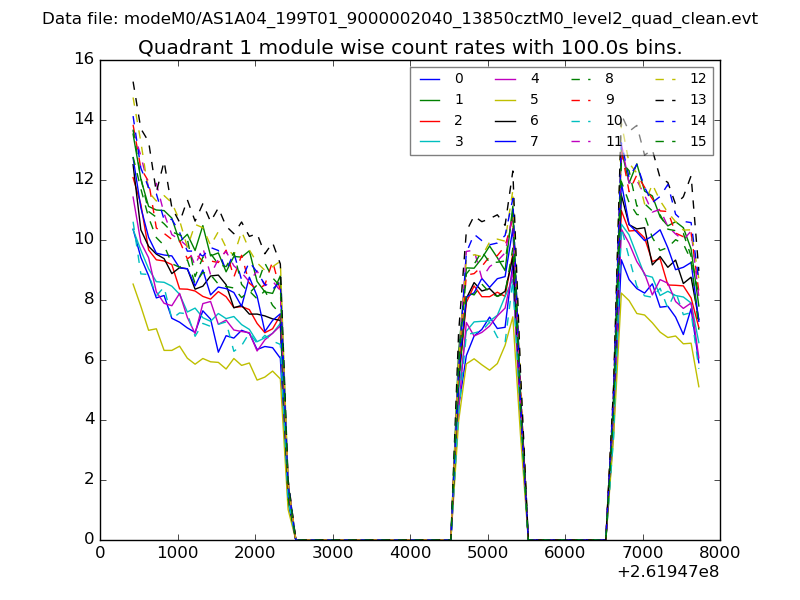

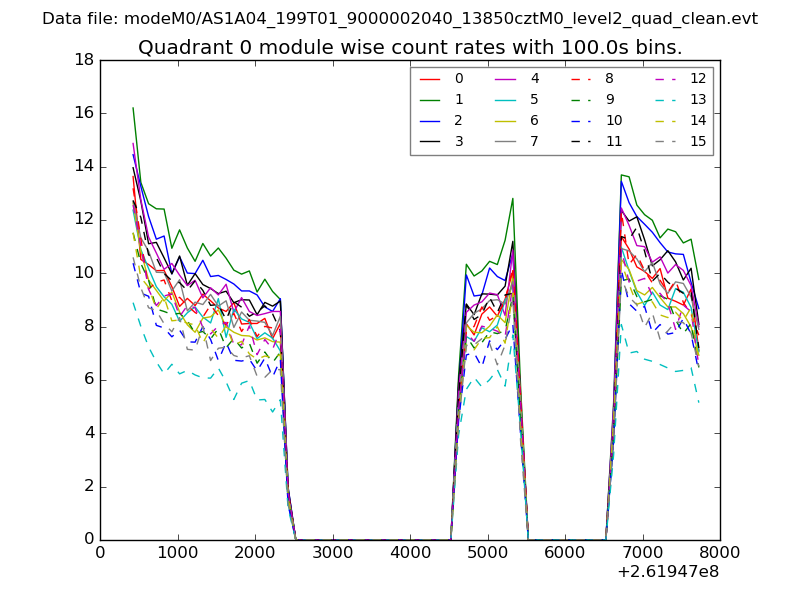

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

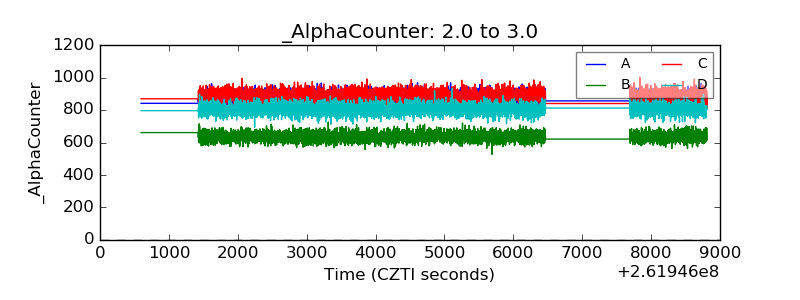

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

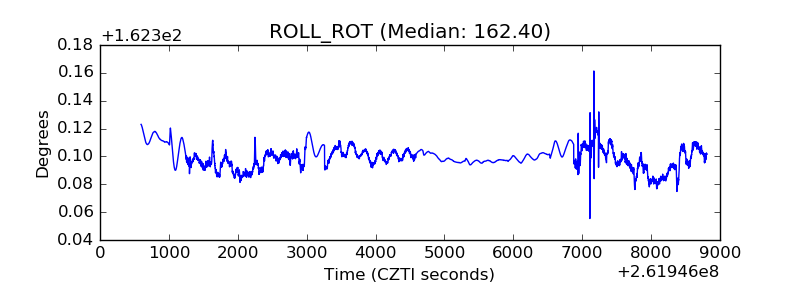

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
