| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_199T01_9000002040_13852cztM0_level2.evt | modeM0/AS1A04_199T01_9000002040_13852cztM0_level2_quad_clean.evt |
| Size (bytes) | 460,560,960 | 78,387,840 |
| Size | 439.2 MB | 74.8 MB |
| Events in quadrant A | 3,089,037 | 497,203 |
| Events in quadrant B | 3,148,540 | 511,345 |
| Events in quadrant C | 2,988,760 | 491,688 |
| Events in quadrant D | 4,312,885 | 452,769 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12831 | 3 |
| B | 0 | 12990 | 2 |
| C | 0 | 12502 | 2 |
| D | 0 | 16867 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6023 | 39 | 0.647518% |
| B | 6023 | 40 | 0.664121% |
| C | 6023 | 21 | 0.348663% |
| D | 6023 | 221 | 3.669268% |

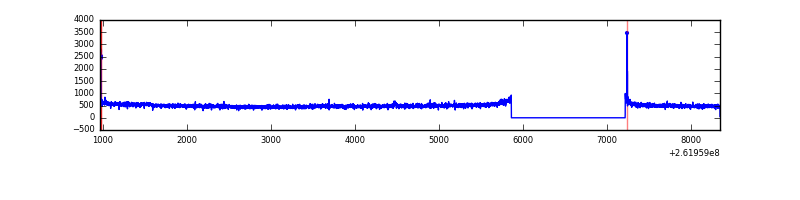

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7379 | 6025 | 27 | 27 | 0.37% | 0.45% |  |
| B | 7379 | 6025 | 14 | 14 | 0.19% | 0.23% |  |
| C | 7379 | 6025 | 9 | 9 | 0.12% | 0.15% |  |
| D | 7379 | 6025 | 208 | 208 | 2.82% | 3.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 156382 | 1021.3 | 753 | 738 | 152.4 |
| A | 8 | 15 | 16507 | 103.47 | 753 | 738 | 152.4 |
| A | 1 | 162 | 13461 | 83.49 | 753 | 738 | 152.4 |
| B | 3 | 64 | 59462 | 411.88 | 760 | 742 | 142.6 |
| B | 0 | 219 | 39496 | 271.83 | 760 | 742 | 142.6 |
| B | 4 | 173 | 32086 | 219.86 | 760 | 742 | 142.6 |
| C | 3 | 233 | 86537 | 505.06 | 731 | 736 | 169.9 |
| C | 14 | 220 | 27914 | 159.98 | 731 | 736 | 169.9 |
| C | 6 | 253 | 22044 | 125.43 | 731 | 736 | 169.9 |
| D | 1 | 52 | 1178344 | 6862.8 | 707 | 692 | 171.6 |
| D | 13 | 189 | 128817 | 746.65 | 707 | 692 | 171.6 |
| D | 10 | 157 | 117573 | 681.13 | 707 | 692 | 171.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

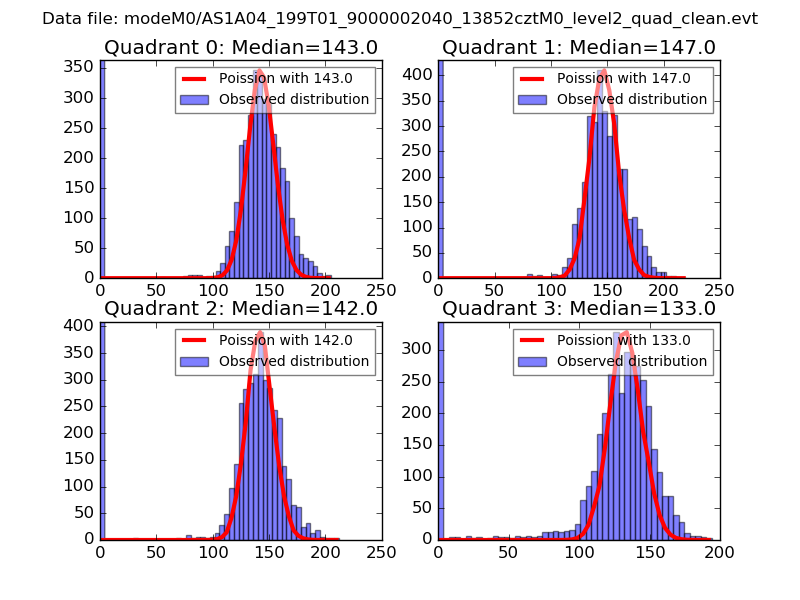

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

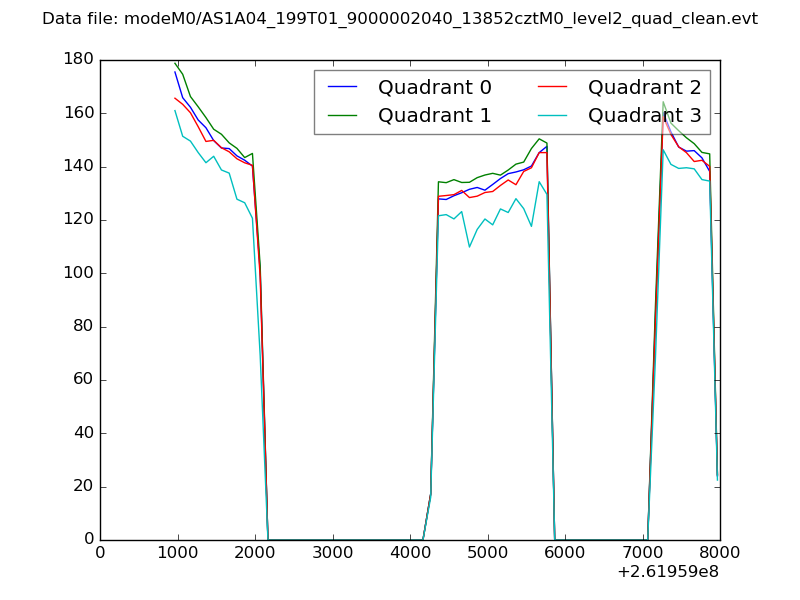

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

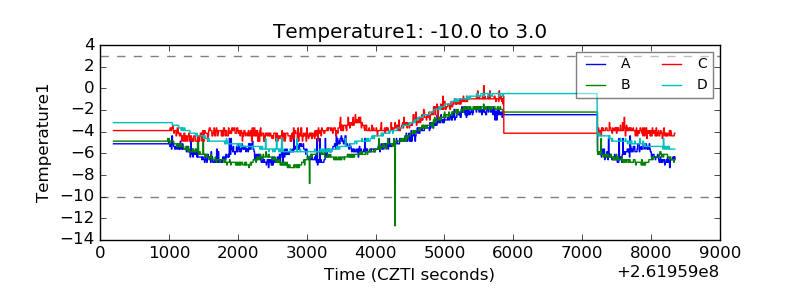

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

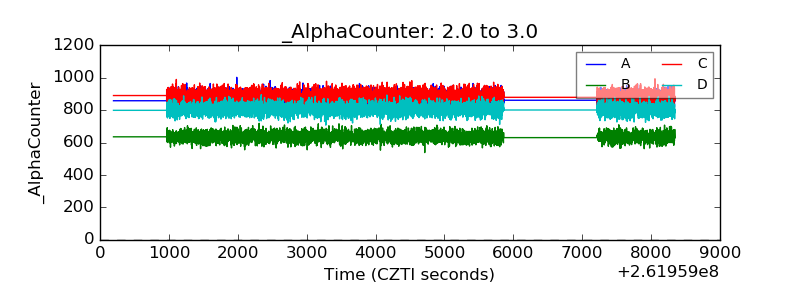

| Alpha Counter |  |

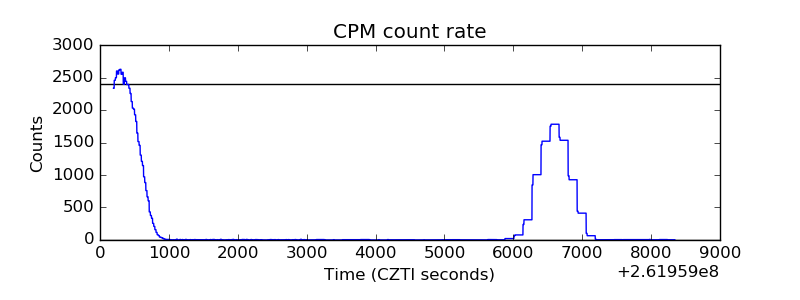

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

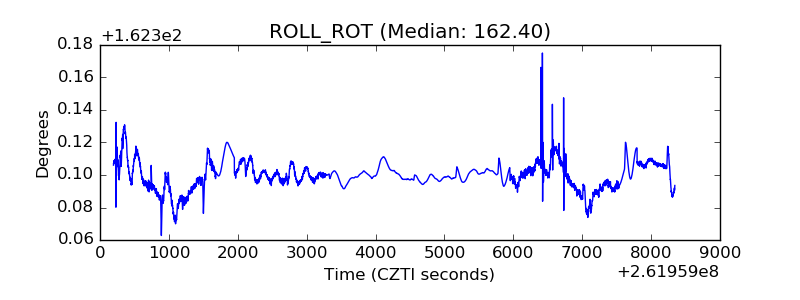

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
