| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_199T01_9000002040_13855cztM0_level2.evt | modeM0/AS1A04_199T01_9000002040_13855cztM0_level2_quad_clean.evt |
| Size (bytes) | 579,133,440 | 87,082,560 |
| Size | 552.3 MB | 83.0 MB |
| Events in quadrant A | 3,803,923 | 528,676 |
| Events in quadrant B | 3,978,189 | 532,952 |
| Events in quadrant C | 3,840,740 | 523,757 |
| Events in quadrant D | 5,379,225 | 500,933 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16495 | 3 |
| B | 0 | 16846 | 2 |
| C | 0 | 16575 | 2 |
| D | 0 | 21335 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7912 | 185 | 2.338220% |
| B | 7912 | 226 | 2.856421% |
| C | 7912 | 135 | 1.706269% |
| D | 7912 | 271 | 3.425177% |

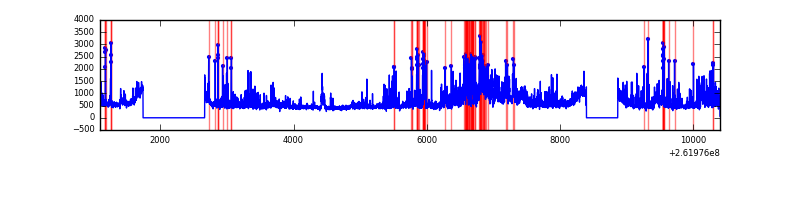

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9308 | 7913 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9308 | 7913 | 3 | 3 | 0.03% | 0.04% |  |
| C | 9308 | 7913 | 3 | 3 | 0.03% | 0.04% |  |
| D | 9308 | 7913 | 113 | 113 | 1.21% | 1.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 29052 | 138.65 | 980 | 954 | 202.6 |
| A | 0 | 226 | 8725 | 38.35 | 980 | 954 | 202.6 |
| A | 12 | 194 | 7308 | 31.35 | 980 | 954 | 202.6 |
| B | 3 | 209 | 66946 | 347.43 | 980 | 956 | 189.9 |
| B | 0 | 219 | 56547 | 292.68 | 980 | 956 | 189.9 |
| B | 12 | 111 | 22590 | 113.9 | 980 | 956 | 189.9 |
| C | 3 | 233 | 103950 | 459.75 | 954 | 956 | 224.0 |
| C | 14 | 234 | 13069 | 54.07 | 954 | 956 | 224.0 |
| C | 13 | 61 | 6863 | 26.37 | 954 | 956 | 224.0 |
| D | 13 | 122 | 614734 | 2631.09 | 939 | 916 | 233.3 |
| D | 10 | 157 | 394914 | 1688.85 | 939 | 916 | 233.3 |
| D | 5 | 222 | 251135 | 1072.55 | 939 | 916 | 233.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

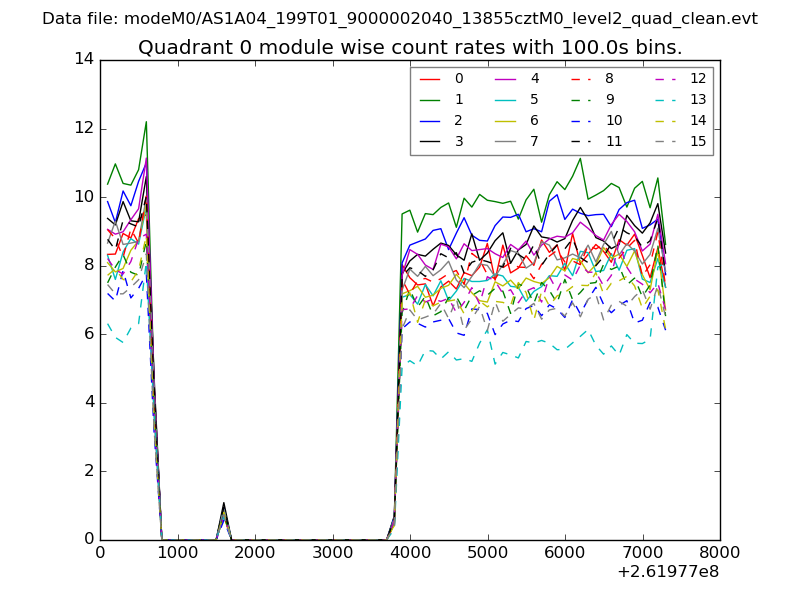

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

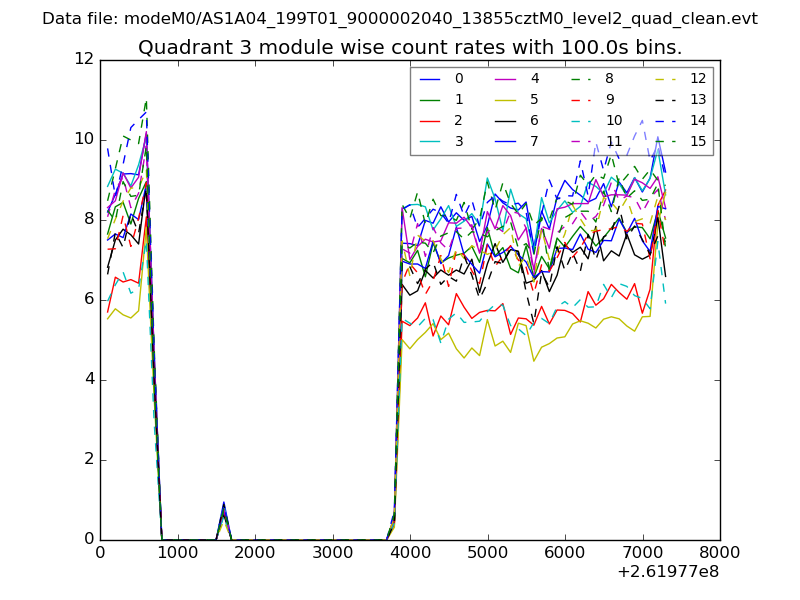

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

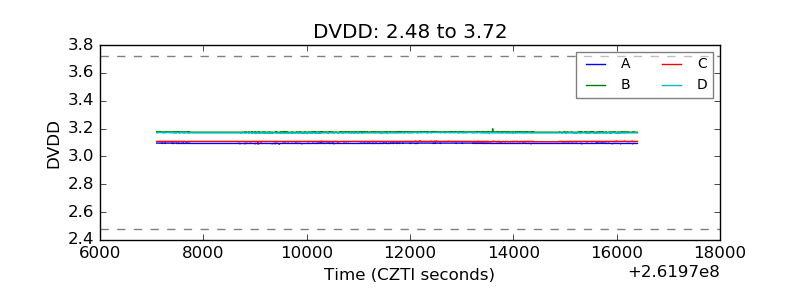

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

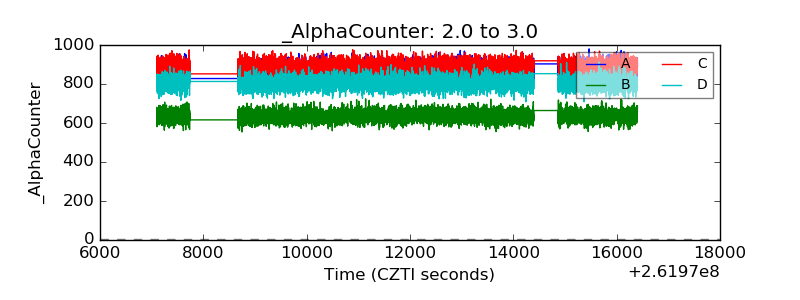

| Alpha Counter |  |

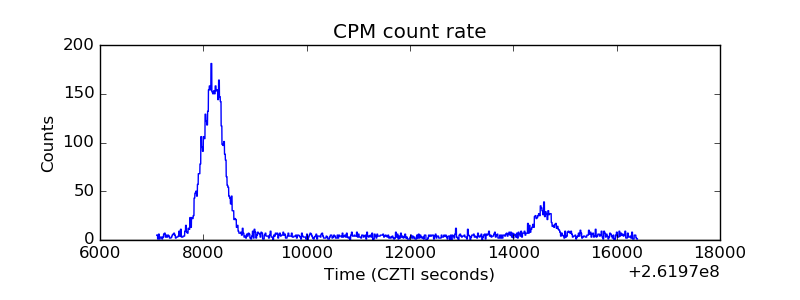

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

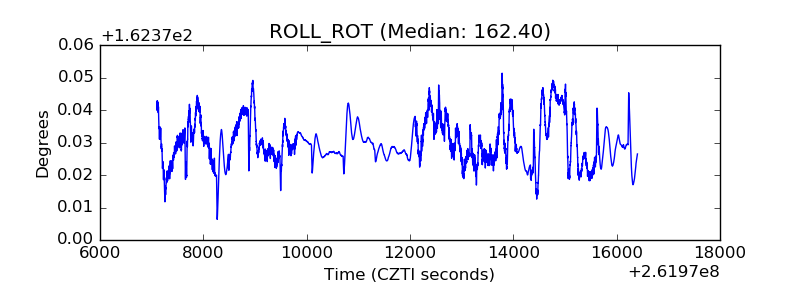

| _ROLL_ROT |  |

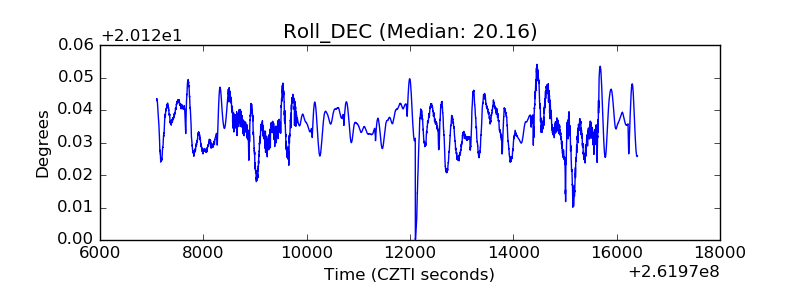

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
