| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_115T02_9000002042_13860cztM0_level2.evt | modeM0/AS1A04_115T02_9000002042_13860cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,330,827,840 | 239,258,880 |
| Size | 1.2 GB | 228.2 MB |
| Events in quadrant A | 8,968,437 | 1,496,561 |
| Events in quadrant B | 9,441,496 | 1,504,214 |
| Events in quadrant C | 9,183,054 | 1,482,112 |
| Events in quadrant D | 11,410,374 | 1,438,433 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39433 | 5 |
| B | 0 | 40226 | 4 |
| C | 0 | 39625 | 4 |
| D | 0 | 46360 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 392 | 0 |
| B | 0 | 392 | 0 |
| C | 0 | 392 | 0 |
| D | 0 | 392 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19243 | 355 | 1.844827% |
| B | 19243 | 453 | 2.354103% |
| C | 19243 | 273 | 1.418698% |
| D | 19243 | 364 | 1.891597% |

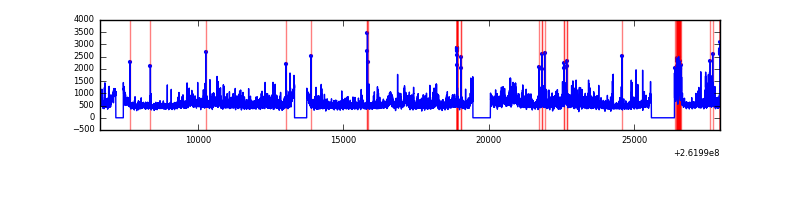

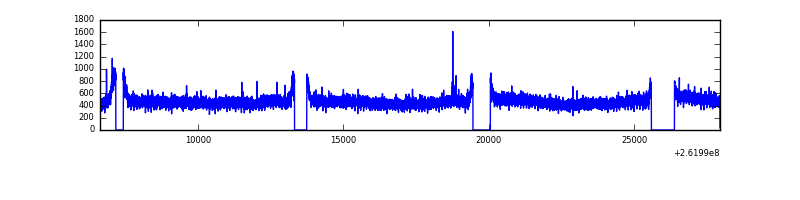

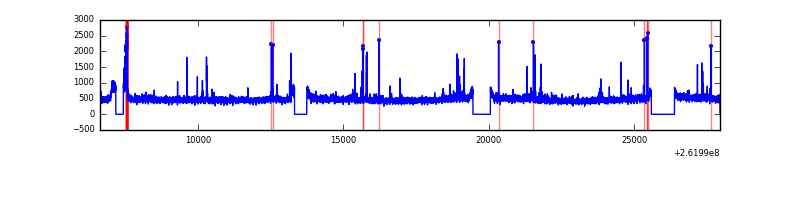

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21319 | 19244 | 0 | 0 | 0.00% | 0.00% |  |
| B | 21319 | 19244 | 34 | 34 | 0.16% | 0.18% |  |
| C | 21319 | 19244 | 5 | 5 | 0.02% | 0.03% |  |
| D | 21318 | 19243 | 62 | 62 | 0.29% | 0.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 23929 | 45.82 | 2322 | 2263 | 472.8 |
| A | 0 | 226 | 20541 | 38.66 | 2322 | 2263 | 472.8 |
| A | 12 | 194 | 17376 | 31.96 | 2322 | 2263 | 472.8 |
| B | 3 | 64 | 125178 | 276.8 | 2305 | 2242 | 444.1 |
| B | 4 | 80 | 104891 | 231.12 | 2305 | 2242 | 444.1 |
| B | 0 | 219 | 91255 | 200.42 | 2305 | 2242 | 444.1 |
| C | 3 | 233 | 313512 | 590.95 | 2261 | 2271 | 526.7 |
| C | 14 | 220 | 29236 | 51.2 | 2261 | 2271 | 526.7 |
| C | 13 | 61 | 16050 | 26.16 | 2261 | 2271 | 526.7 |
| D | 10 | 157 | 1021160 | 1907.42 | 2238 | 2180 | 534.2 |
| D | 5 | 222 | 738813 | 1378.9 | 2238 | 2180 | 534.2 |
| D | 1 | 52 | 583883 | 1088.88 | 2238 | 2180 | 534.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

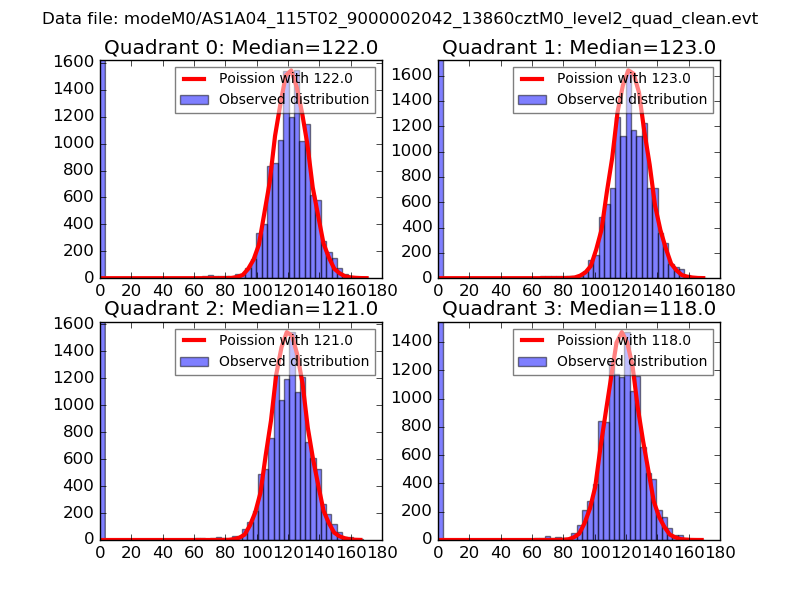

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

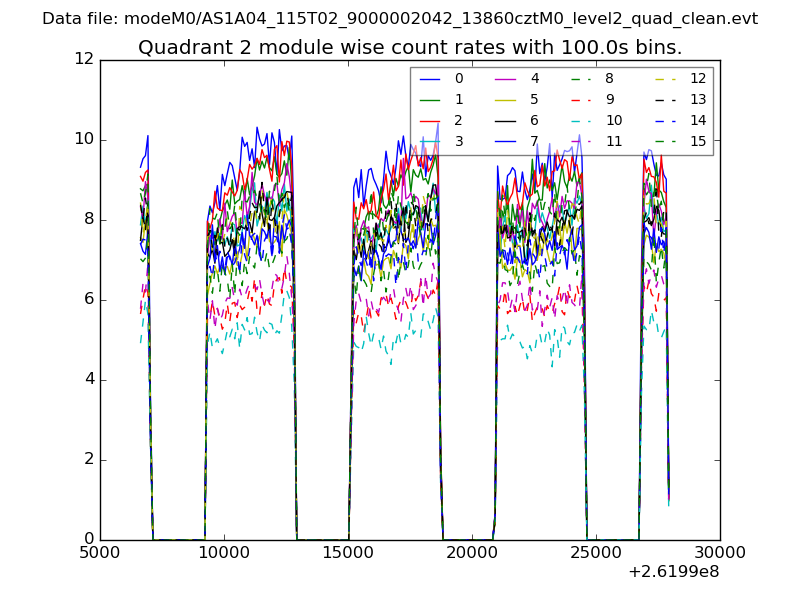

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

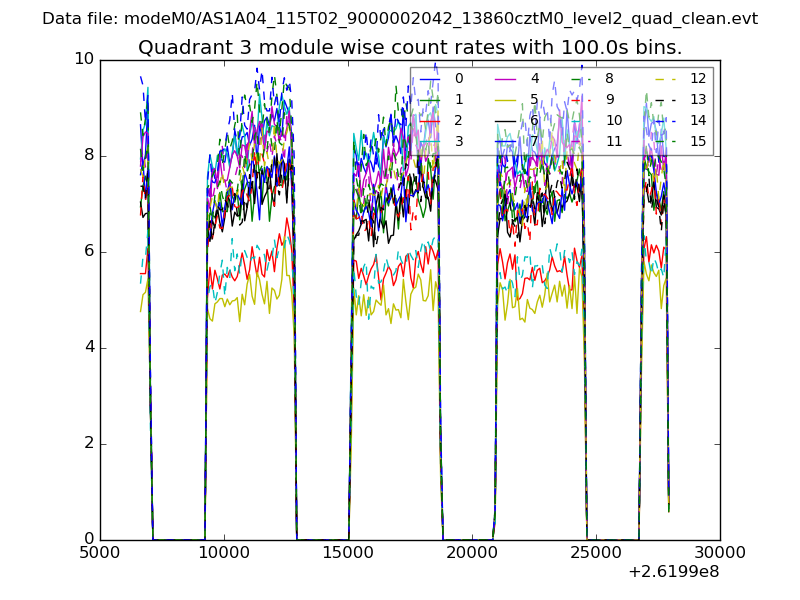

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

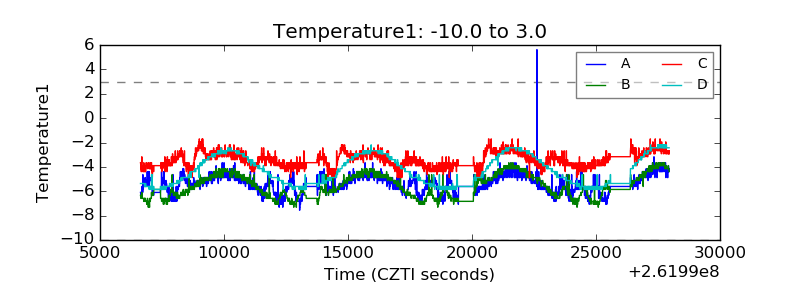

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

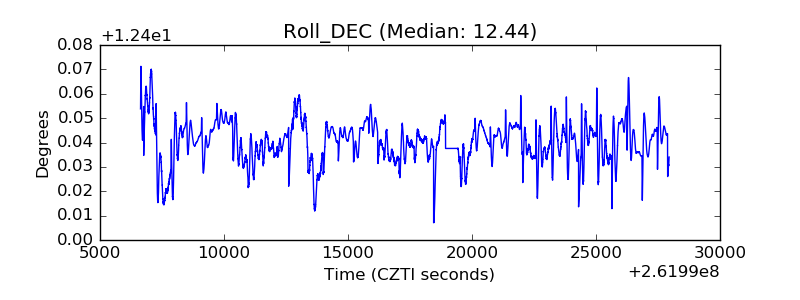

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
