| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_115T02_9000002042_13870cztM0_level2.evt | modeM0/AS1A04_115T02_9000002042_13870cztM0_level2_quad_clean.evt |
| Size (bytes) | 530,386,560 | 92,689,920 |
| Size | 505.8 MB | 88.4 MB |
| Events in quadrant A | 3,684,917 | 569,246 |
| Events in quadrant B | 3,798,472 | 574,516 |
| Events in quadrant C | 3,670,370 | 573,031 |
| Events in quadrant D | 4,381,643 | 550,141 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16203 | 3 |
| B | 0 | 16402 | 2 |
| C | 0 | 16206 | 2 |
| D | 0 | 18389 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7767 | 175 | 2.253122% |
| B | 7767 | 228 | 2.935496% |
| C | 7767 | 109 | 1.403373% |
| D | 7767 | 216 | 2.780997% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

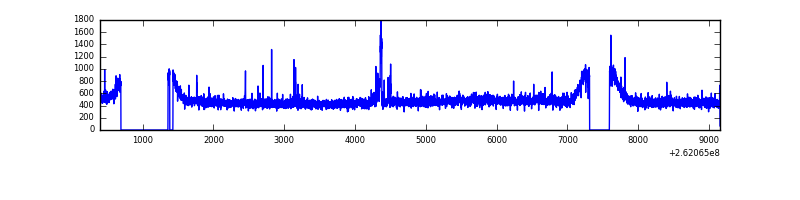

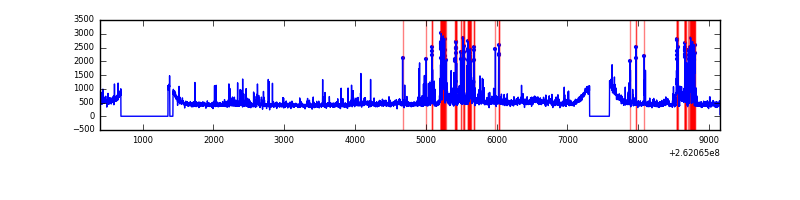

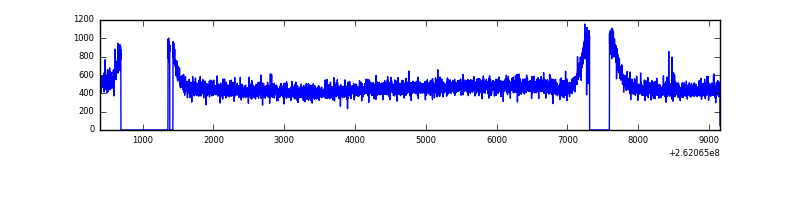

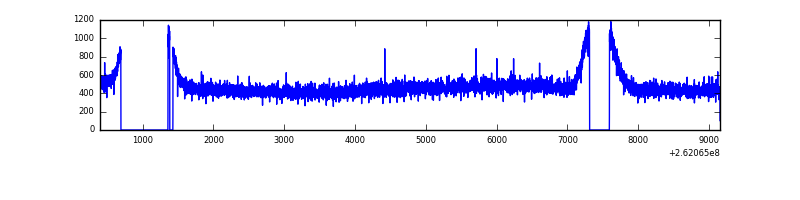

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8758 | 7768 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8758 | 7769 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8758 | 7769 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8758 | 7769 | 126 | 126 | 1.44% | 1.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8576 | 38.97 | 957 | 934 | 196.1 |
| A | 12 | 194 | 7016 | 31.02 | 957 | 934 | 196.1 |
| A | 1 | 162 | 6920 | 30.53 | 957 | 934 | 196.1 |
| B | 15 | 222 | 57184 | 301.32 | 954 | 930 | 186.7 |
| B | 12 | 111 | 23118 | 118.85 | 954 | 930 | 186.7 |
| B | 11 | 111 | 19792 | 101.03 | 954 | 930 | 186.7 |
| C | 3 | 233 | 33975 | 151.26 | 933 | 937 | 218.4 |
| C | 13 | 61 | 6797 | 26.83 | 933 | 937 | 218.4 |
| C | 14 | 234 | 2194 | 5.75 | 933 | 937 | 218.4 |
| D | 5 | 222 | 367571 | 1655.75 | 918 | 897 | 221.5 |
| D | 13 | 189 | 350658 | 1579.37 | 918 | 897 | 221.5 |
| D | 12 | 110 | 67935 | 302.72 | 918 | 897 | 221.5 |

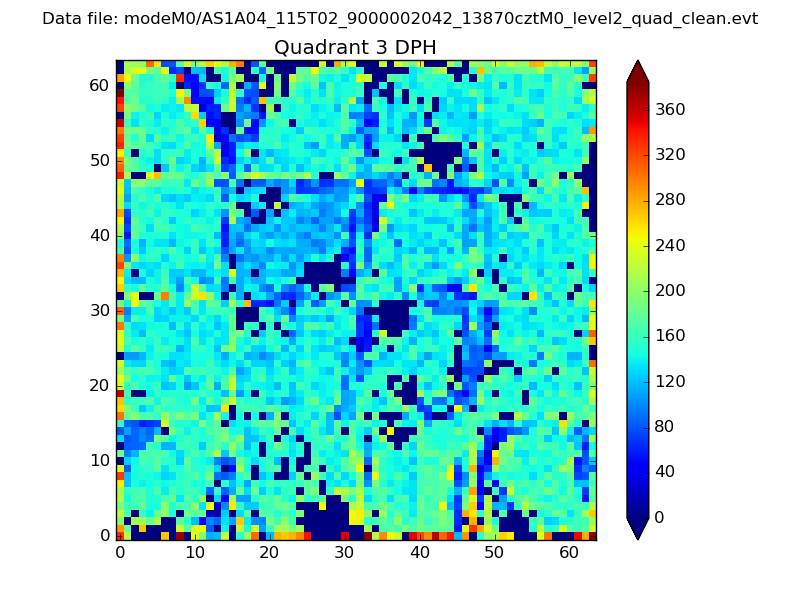

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

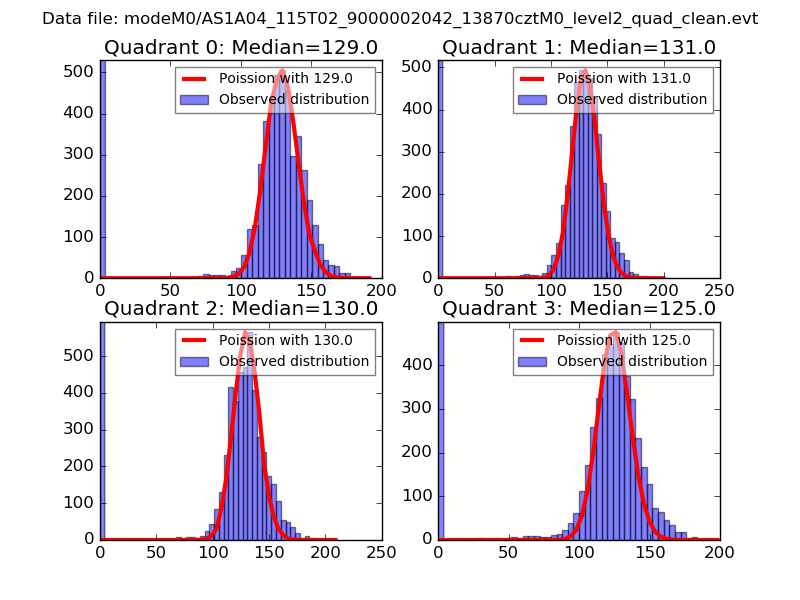

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

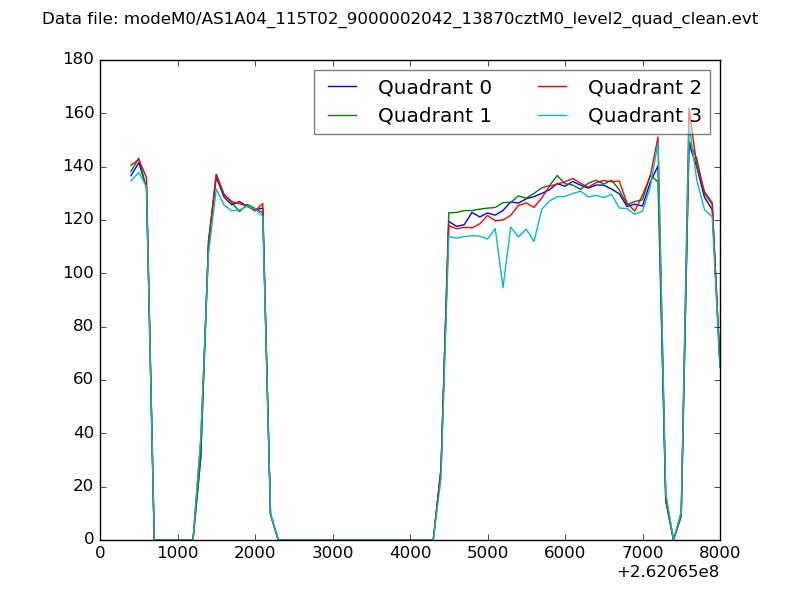

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

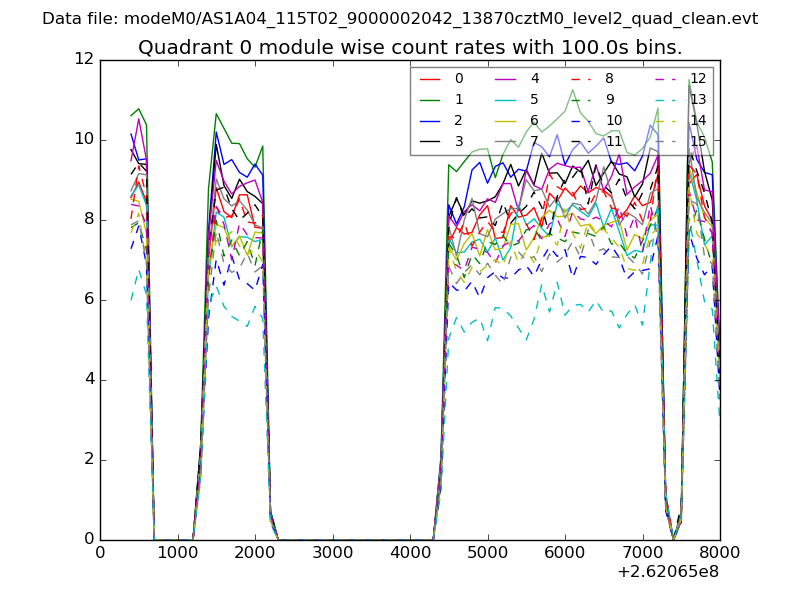

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

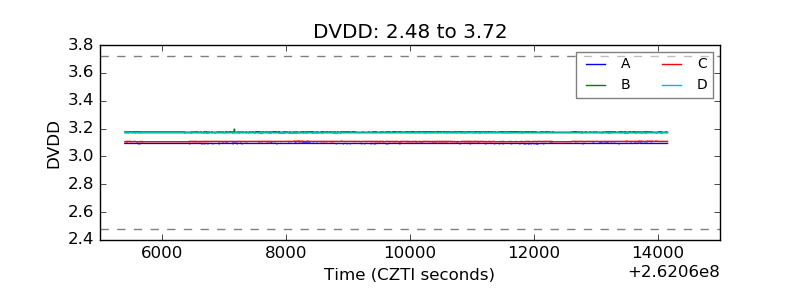

| D_VDD |  |

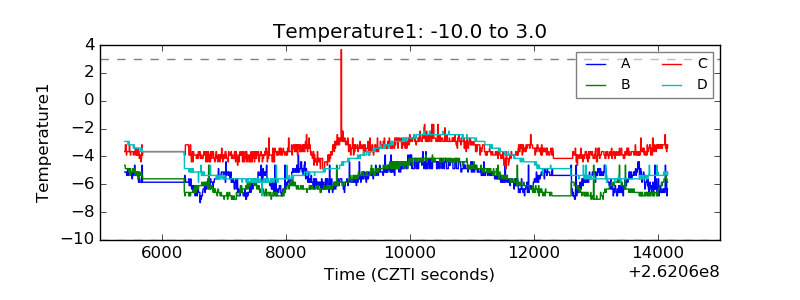

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

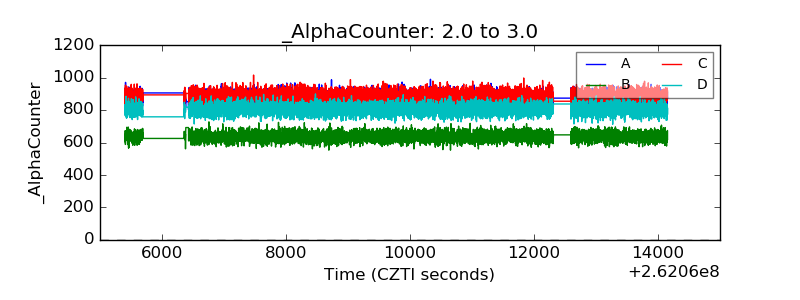

| Alpha Counter |  |

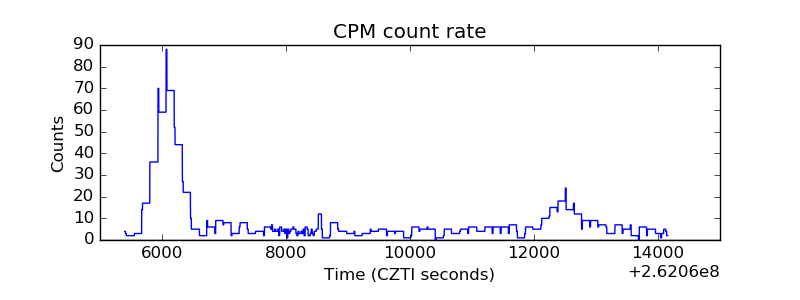

| _CPM_Rate |  |

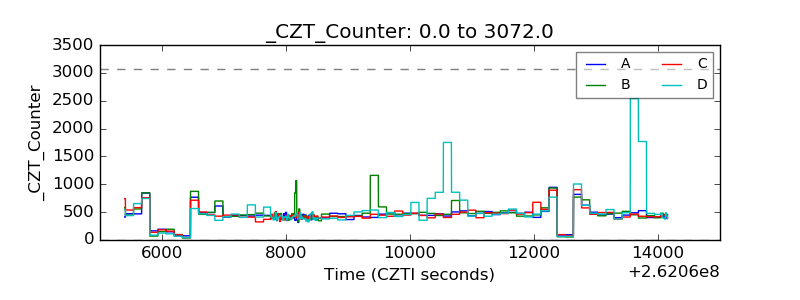

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

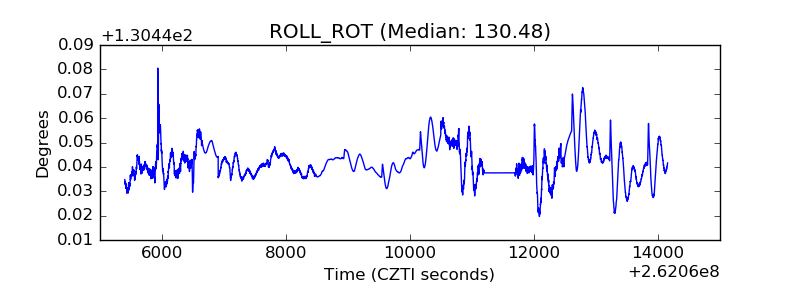

| _ROLL_ROT |  |

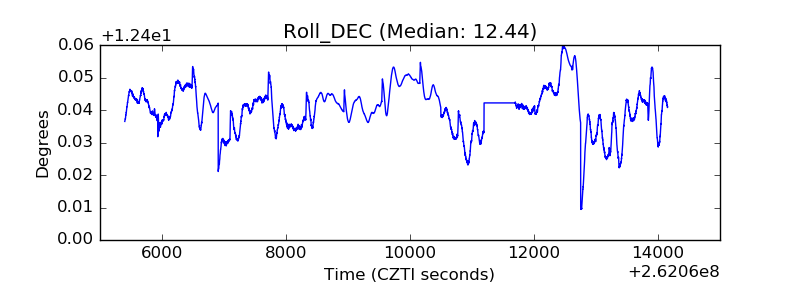

| _Roll_DEC |  |

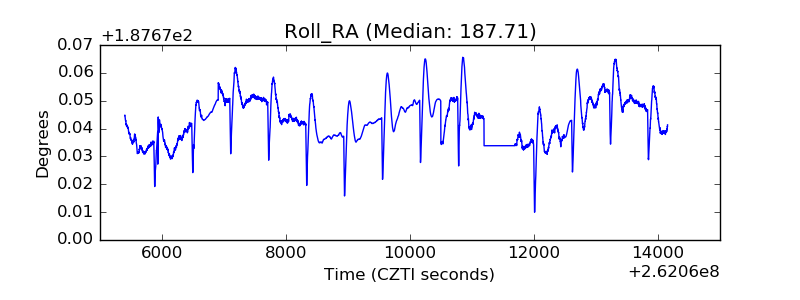

| _Roll_RA |  |

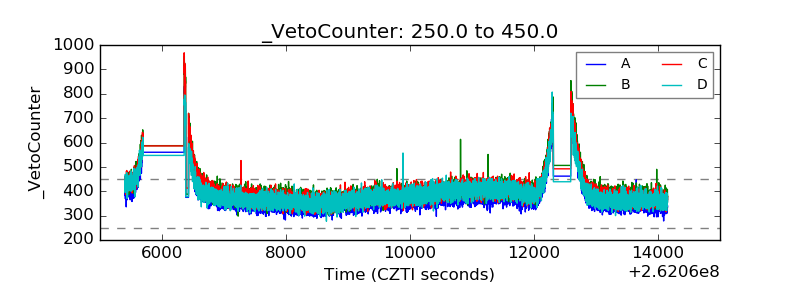

| Veto Counter |  |
