| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_115T02_9000002042_13871cztM0_level2.evt | modeM0/AS1A04_115T02_9000002042_13871cztM0_level2_quad_clean.evt |
| Size (bytes) | 566,688,960 | 93,775,680 |
| Size | 540.4 MB | 89.4 MB |
| Events in quadrant A | 3,960,594 | 567,462 |
| Events in quadrant B | 4,112,183 | 572,364 |
| Events in quadrant C | 4,001,668 | 573,202 |
| Events in quadrant D | 4,529,291 | 554,848 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17297 | 4 |
| B | 0 | 17412 | 3 |
| C | 0 | 17389 | 3 |
| D | 0 | 19055 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 172 | 0 |
| B | 0 | 172 | 0 |
| C | 0 | 172 | 0 |
| D | 0 | 172 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8220 | 253 | 3.077859% |
| B | 8220 | 314 | 3.819951% |
| C | 8220 | 192 | 2.335766% |
| D | 8220 | 252 | 3.065693% |

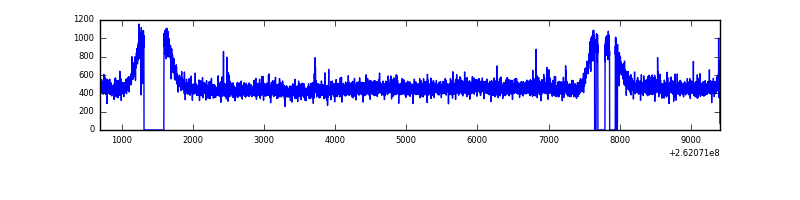

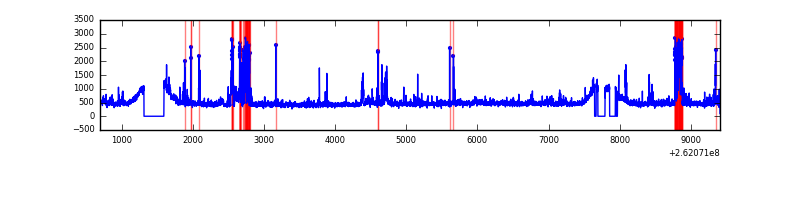

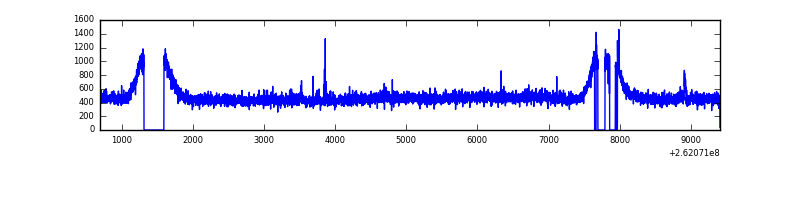

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8717 | 8221 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8717 | 8222 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8717 | 8223 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8717 | 8223 | 105 | 105 | 1.20% | 1.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 16257 | 72.44 | 1019 | 995 | 210.7 |
| A | 8 | 15 | 10672 | 45.93 | 1019 | 995 | 210.7 |
| A | 0 | 226 | 9236 | 39.12 | 1019 | 995 | 210.7 |
| B | 10 | 244 | 132512 | 656.27 | 1013 | 986 | 200.4 |
| B | 12 | 111 | 25005 | 119.85 | 1013 | 986 | 200.4 |
| B | 11 | 111 | 21060 | 100.16 | 1013 | 986 | 200.4 |
| C | 3 | 233 | 61188 | 255.7 | 993 | 999 | 235.4 |
| C | 14 | 220 | 31806 | 130.88 | 993 | 999 | 235.4 |
| C | 8 | 112 | 24560 | 100.09 | 993 | 999 | 235.4 |
| D | 5 | 222 | 544900 | 2286.32 | 984 | 958 | 237.9 |
| D | 13 | 189 | 91029 | 378.59 | 984 | 958 | 237.9 |
| D | 12 | 110 | 66096 | 273.79 | 984 | 958 | 237.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

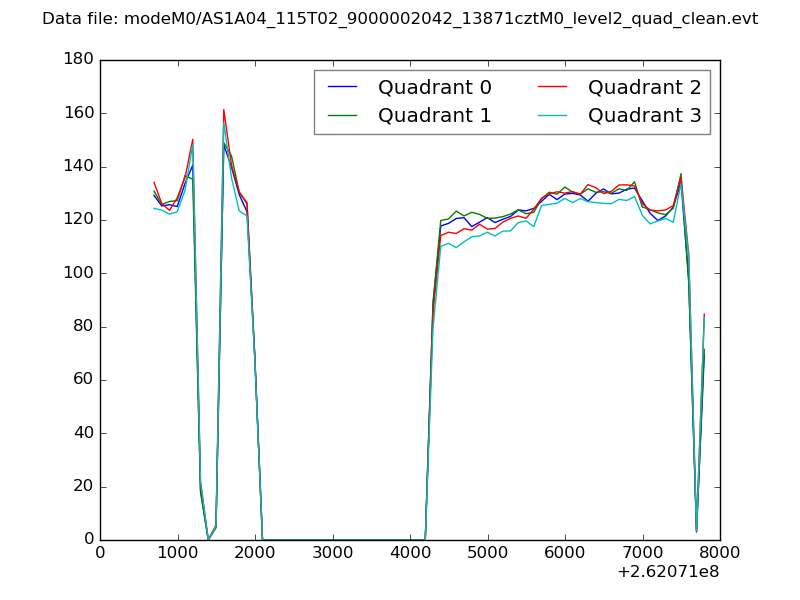

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

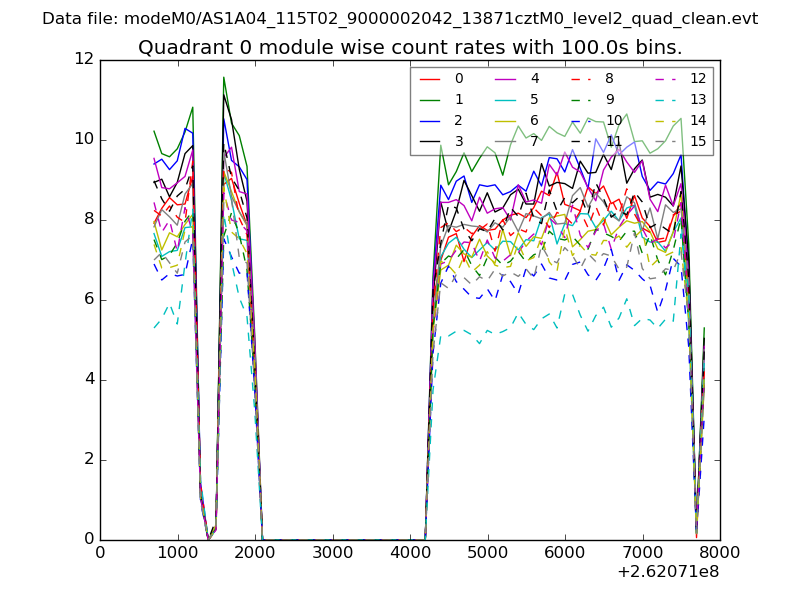

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

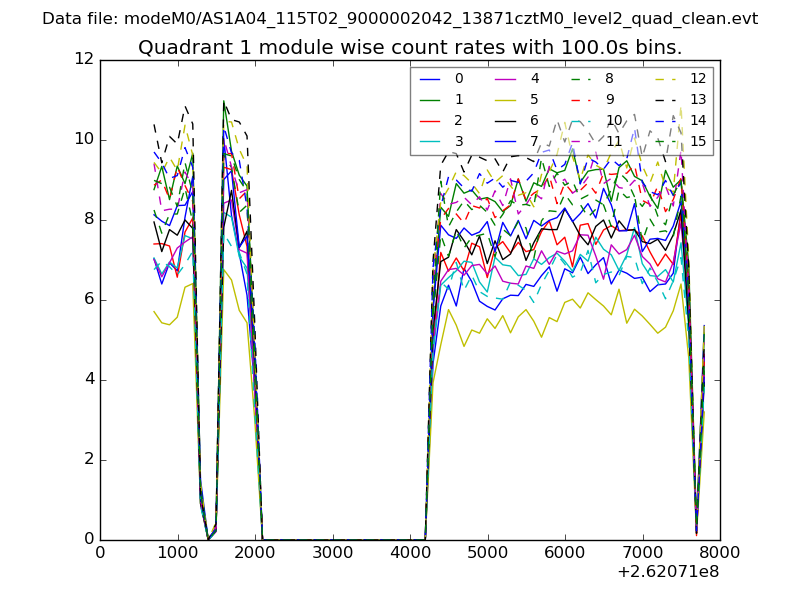

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

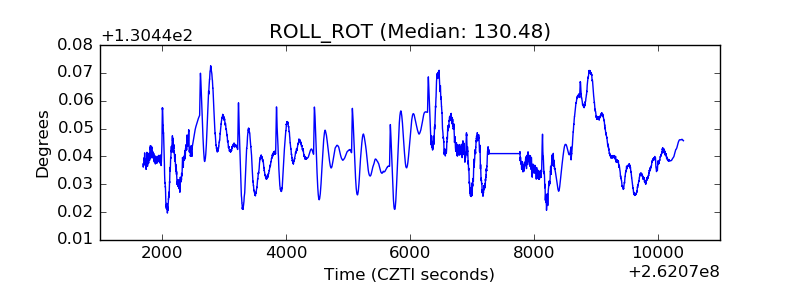

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
