| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_010T01_9000002046_13881cztM0_level2.evt | modeM0/AS1A04_010T01_9000002046_13881cztM0_level2_quad_clean.evt |
| Size (bytes) | 442,071,360 | 90,495,360 |
| Size | 421.6 MB | 86.3 MB |
| Events in quadrant A | 3,056,701 | 582,425 |
| Events in quadrant B | 3,171,013 | 591,948 |
| Events in quadrant C | 3,077,240 | 582,290 |
| Events in quadrant D | 3,659,452 | 548,659 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13051 | 3 |
| B | 0 | 13346 | 2 |
| C | 0 | 13050 | 2 |
| D | 0 | 14963 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6238 | 30 | 0.480923% |
| B | 6238 | 50 | 0.801539% |
| C | 6238 | 12 | 0.192369% |
| D | 6238 | 95 | 1.522924% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

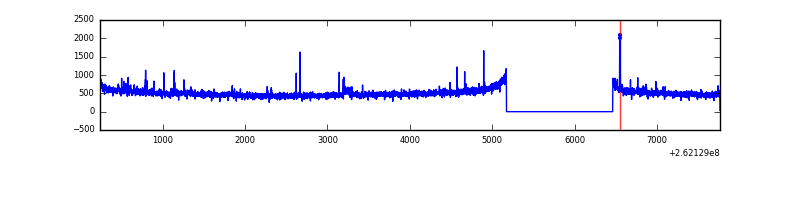

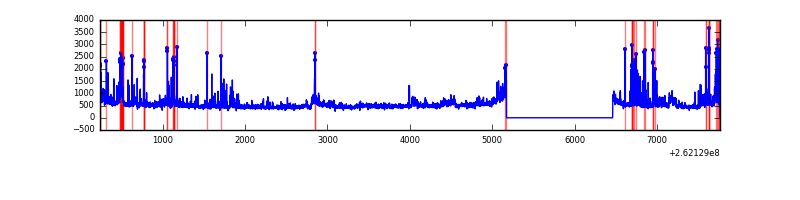

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7529 | 6239 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7529 | 6239 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7529 | 6239 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7529 | 6239 | 67 | 67 | 0.89% | 1.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 17837 | 106.33 | 785 | 769 | 160.5 |
| A | 1 | 162 | 10737 | 62.1 | 785 | 769 | 160.5 |
| A | 0 | 226 | 7993 | 45.0 | 785 | 769 | 160.5 |
| B | 0 | 214 | 27684 | 180.8 | 787 | 770 | 148.9 |
| B | 3 | 209 | 24102 | 156.74 | 787 | 770 | 148.9 |
| B | 12 | 111 | 17087 | 109.61 | 787 | 770 | 148.9 |
| C | 3 | 233 | 94396 | 526.7 | 765 | 772 | 177.8 |
| C | 13 | 61 | 5325 | 25.61 | 765 | 772 | 177.8 |
| C | 3 | 202 | 1759 | 5.55 | 765 | 772 | 177.8 |
| D | 1 | 52 | 230652 | 1289.39 | 750 | 735 | 178.3 |
| D | 2 | 136 | 101571 | 565.5 | 750 | 735 | 178.3 |
| D | 5 | 222 | 98133 | 546.22 | 750 | 735 | 178.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

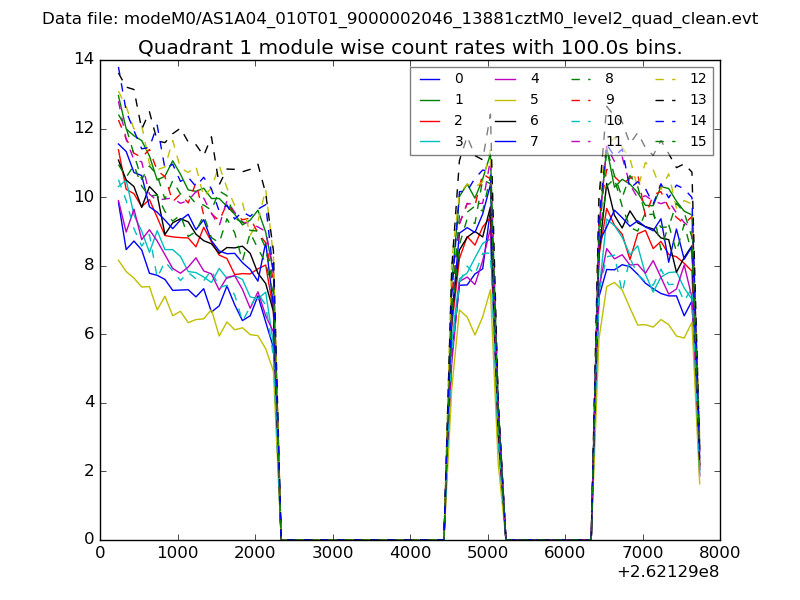

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

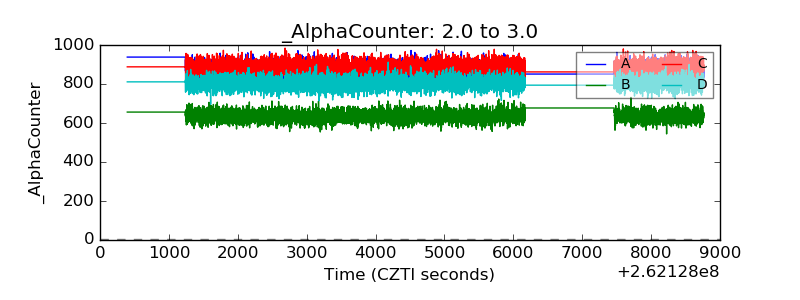

| Alpha Counter |  |
| _CPM_Rate |  |

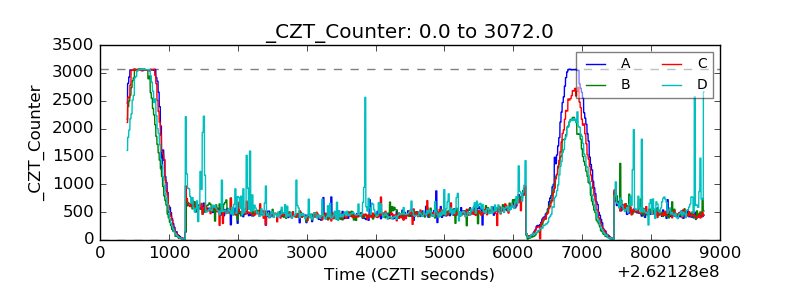

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

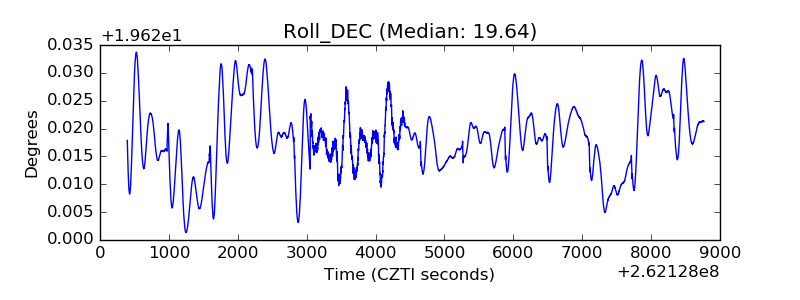

| _Roll_DEC |  |

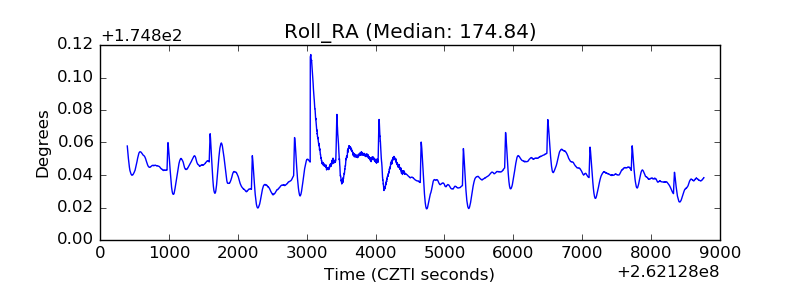

| _Roll_RA |  |

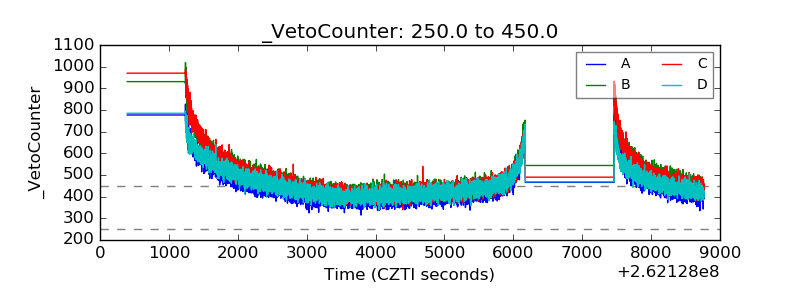

| Veto Counter |  |
