| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_010T02_9000002048_13895cztM0_level2.evt | modeM0/AS1A04_010T02_9000002048_13895cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,864,960 | 88,597,440 |
| Size | 450.0 MB | 84.5 MB |
| Events in quadrant A | 3,093,195 | 569,540 |
| Events in quadrant B | 3,147,745 | 581,733 |
| Events in quadrant C | 3,232,678 | 570,649 |
| Events in quadrant D | 4,402,103 | 534,405 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13138 | 3 |
| B | 0 | 13109 | 2 |
| C | 0 | 13157 | 2 |
| D | 0 | 17287 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6107 | 49 | 0.802358% |
| B | 6107 | 65 | 1.064352% |
| C | 6107 | 32 | 0.523989% |
| D | 6107 | 172 | 2.816440% |

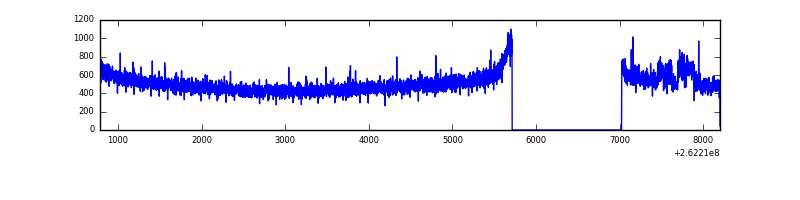

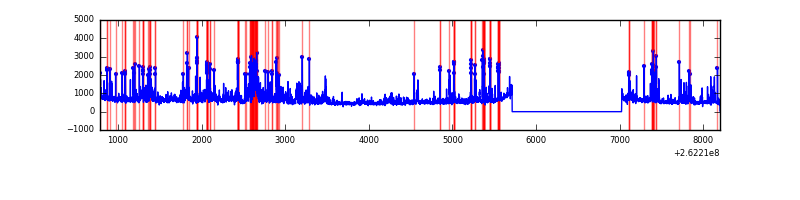

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7418 | 6108 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7418 | 6108 | 17 | 17 | 0.23% | 0.28% |  |
| C | 7418 | 6108 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7418 | 6108 | 155 | 155 | 2.09% | 2.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 88164 | 557.85 | 776 | 761 | 156.7 |
| A | 0 | 226 | 12318 | 73.76 | 776 | 761 | 156.7 |
| A | 1 | 162 | 11752 | 70.15 | 776 | 761 | 156.7 |
| B | 4 | 80 | 67563 | 458.07 | 774 | 755 | 145.8 |
| B | 0 | 214 | 17110 | 112.14 | 774 | 755 | 145.8 |
| B | 12 | 111 | 16894 | 110.66 | 774 | 755 | 145.8 |
| C | 3 | 233 | 262331 | 1492.94 | 759 | 765 | 175.2 |
| C | 14 | 234 | 12127 | 64.85 | 759 | 765 | 175.2 |
| C | 13 | 61 | 5468 | 26.84 | 759 | 765 | 175.2 |
| D | 1 | 52 | 878101 | 4964.97 | 742 | 727 | 176.7 |
| D | 13 | 122 | 473492 | 2675.33 | 742 | 727 | 176.7 |
| D | 5 | 222 | 60436 | 337.88 | 742 | 727 | 176.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

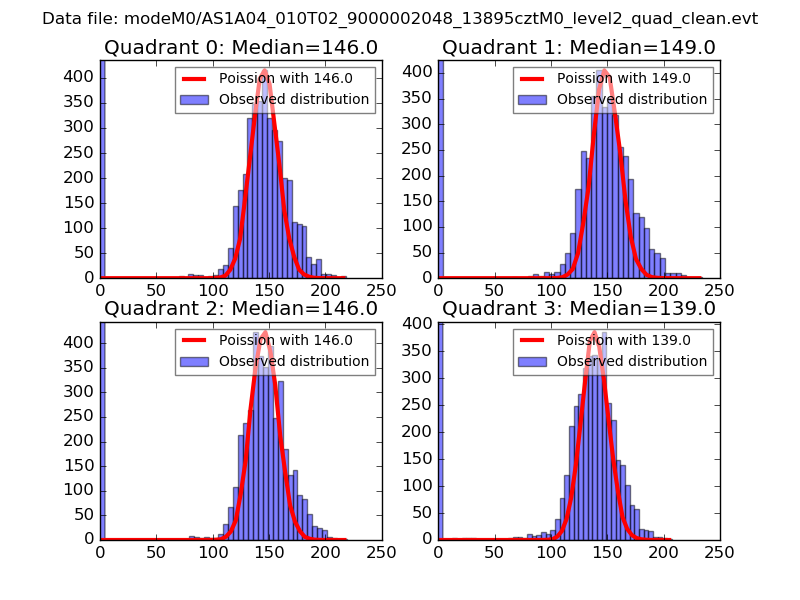

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

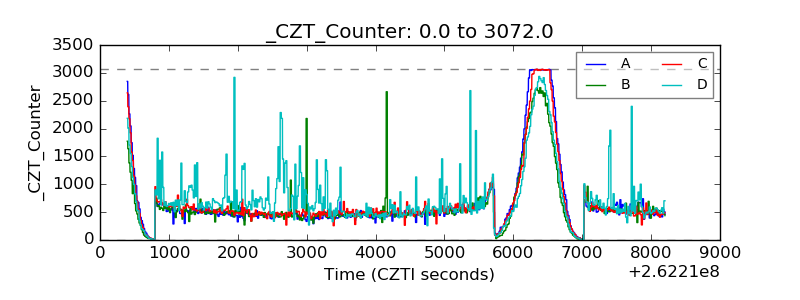

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

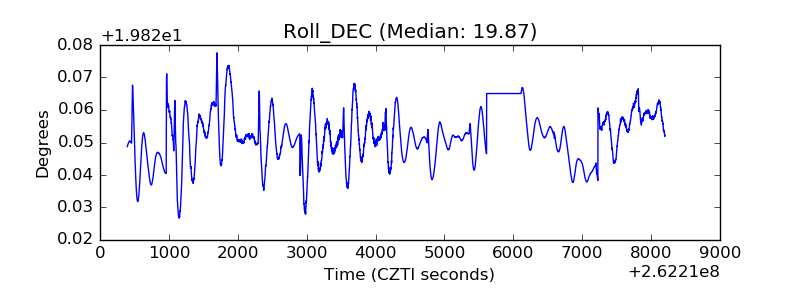

| _Roll_DEC |  |

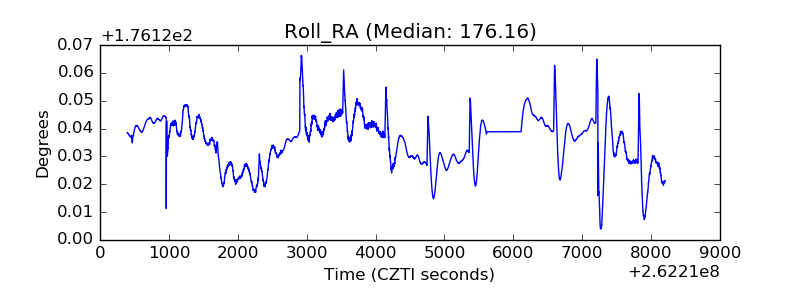

| _Roll_RA |  |
| Veto Counter |  |
