| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_010T02_9000002048_13898cztM0_level2.evt | modeM0/AS1A04_010T02_9000002048_13898cztM0_level2_quad_clean.evt |
| Size (bytes) | 542,577,600 | 100,552,320 |
| Size | 517.4 MB | 95.9 MB |
| Events in quadrant A | 3,583,361 | 635,028 |
| Events in quadrant B | 3,681,110 | 642,533 |
| Events in quadrant C | 3,645,172 | 632,649 |
| Events in quadrant D | 5,006,216 | 605,630 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15655 | 3 |
| B | 0 | 15889 | 2 |
| C | 0 | 15716 | 2 |
| D | 0 | 19913 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7609 | 28 | 0.367985% |
| B | 7609 | 47 | 0.617690% |
| C | 7609 | 17 | 0.223420% |
| D | 7609 | 196 | 2.575897% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9430 | 7612 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9430 | 7612 | 1 | 1 | 0.01% | 0.01% |  |
| C | 9430 | 7612 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9430 | 7612 | 206 | 206 | 2.18% | 2.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 22012 | 113.0 | 922 | 901 | 186.8 |
| A | 1 | 178 | 8398 | 40.13 | 922 | 901 | 186.8 |
| A | 0 | 226 | 8333 | 39.78 | 922 | 901 | 186.8 |
| B | 0 | 230 | 24650 | 133.98 | 920 | 896 | 177.3 |
| B | 4 | 173 | 22025 | 119.17 | 920 | 896 | 177.3 |
| B | 12 | 111 | 21475 | 116.07 | 920 | 896 | 177.3 |
| C | 3 | 233 | 150898 | 718.04 | 896 | 903 | 208.9 |
| C | 13 | 61 | 6498 | 26.78 | 896 | 903 | 208.9 |
| C | 12 | 4 | 2567 | 7.97 | 896 | 903 | 208.9 |
| D | 13 | 122 | 666361 | 3172.22 | 881 | 861 | 209.8 |
| D | 1 | 52 | 494000 | 2350.63 | 881 | 861 | 209.8 |
| D | 13 | 189 | 214067 | 1016.28 | 881 | 861 | 209.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

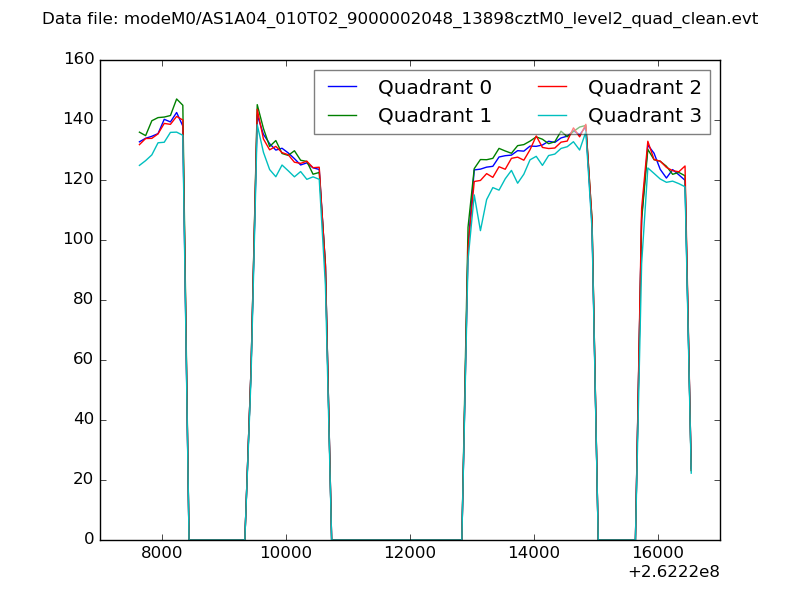

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

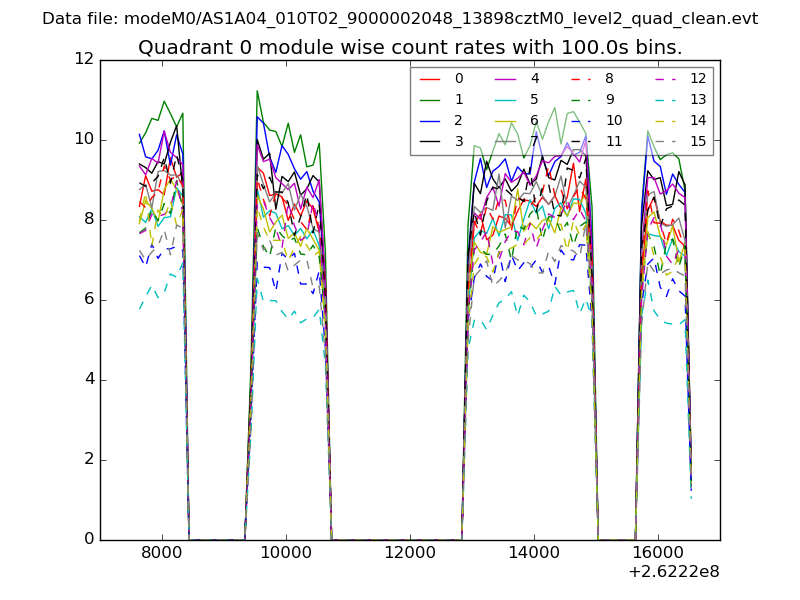

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

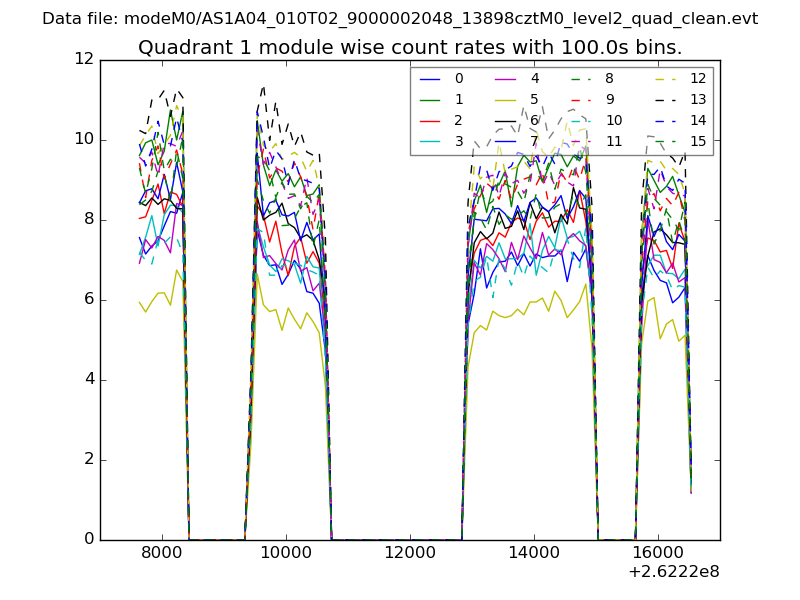

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

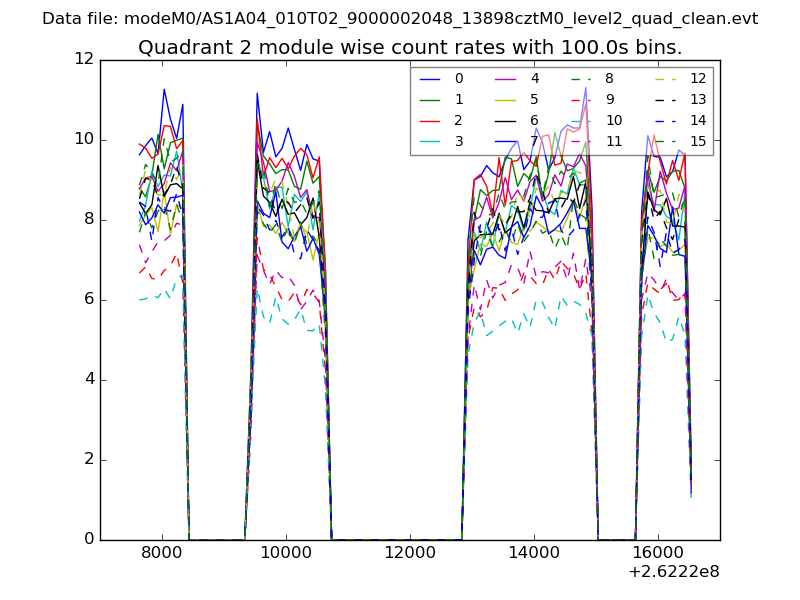

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

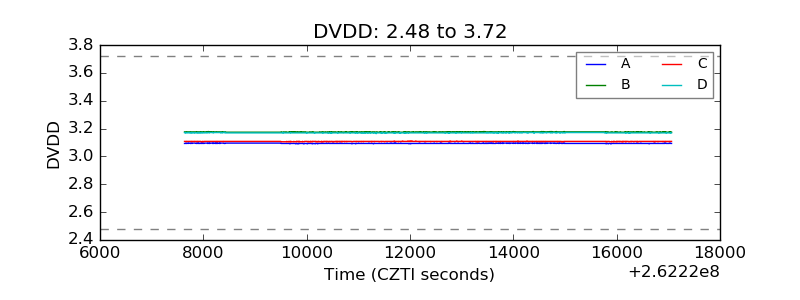

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

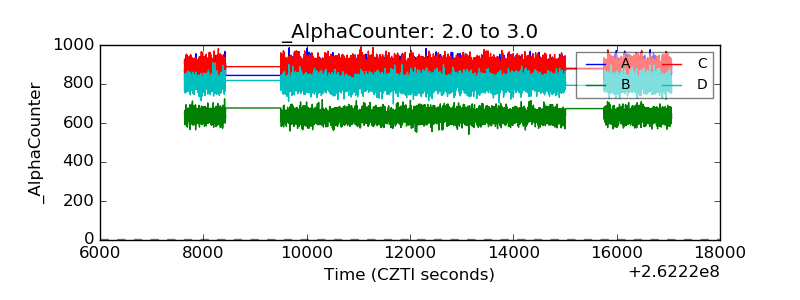

| Alpha Counter |  |

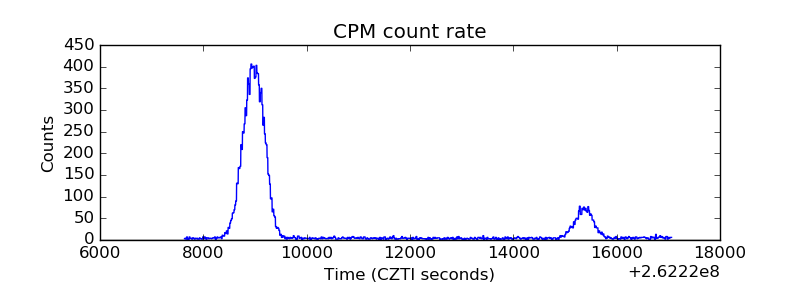

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

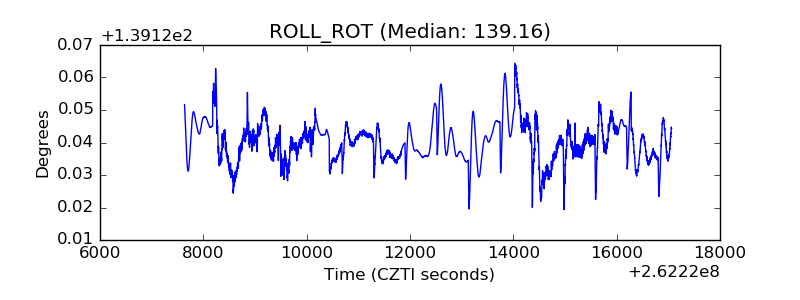

| _ROLL_ROT |  |
