| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_012T02_9000002050_13911cztM0_level2.evt | modeM0/AS1A04_012T02_9000002050_13911cztM0_level2_quad_clean.evt |
| Size (bytes) | 461,600,640 | 87,672,960 |
| Size | 440.2 MB | 83.6 MB |
| Events in quadrant A | 3,169,834 | 558,144 |
| Events in quadrant B | 3,117,114 | 569,081 |
| Events in quadrant C | 3,104,197 | 562,727 |
| Events in quadrant D | 4,159,823 | 524,558 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13546 | 3 |
| B | 0 | 13388 | 2 |
| C | 0 | 13150 | 2 |
| D | 0 | 16630 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6312 | 36 | 0.570342% |
| B | 6312 | 40 | 0.633714% |
| C | 6312 | 12 | 0.190114% |
| D | 6312 | 192 | 3.041825% |

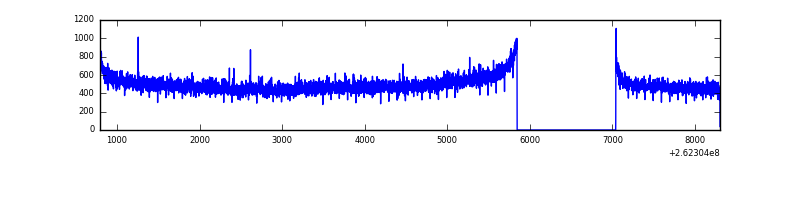

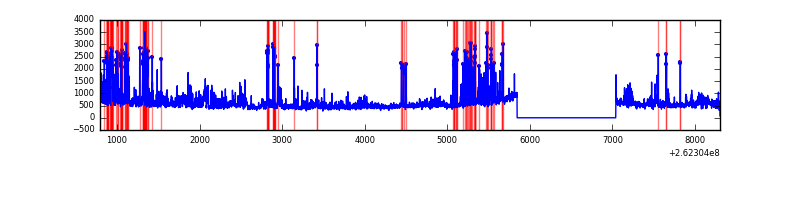

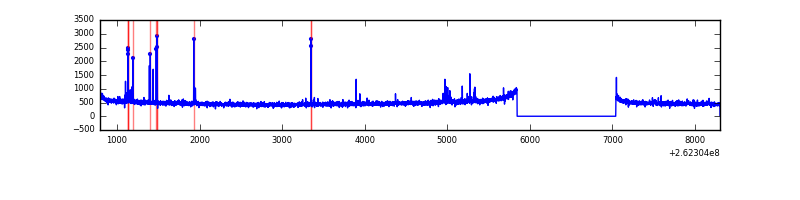

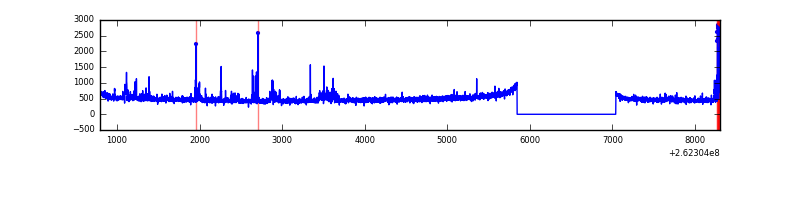

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7507 | 6313 | 15 | 15 | 0.20% | 0.24% |  |
| B | 7508 | 6313 | 11 | 11 | 0.15% | 0.17% |  |
| C | 7508 | 6314 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7508 | 6314 | 168 | 168 | 2.24% | 2.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 123226 | 780.63 | 771 | 754 | 156.9 |
| A | 8 | 15 | 42254 | 264.52 | 771 | 754 | 156.9 |
| A | 1 | 162 | 14935 | 90.39 | 771 | 754 | 156.9 |
| B | 4 | 80 | 29019 | 192.54 | 770 | 751 | 146.8 |
| B | 0 | 219 | 22888 | 150.78 | 770 | 751 | 146.8 |
| B | 10 | 244 | 21099 | 138.6 | 770 | 751 | 146.8 |
| C | 3 | 233 | 168921 | 966.75 | 752 | 756 | 173.9 |
| C | 13 | 61 | 5523 | 27.4 | 752 | 756 | 173.9 |
| C | 5 | 193 | 2453 | 9.76 | 752 | 756 | 173.9 |
| D | 13 | 122 | 570263 | 3283.32 | 731 | 715 | 173.5 |
| D | 1 | 52 | 532439 | 3065.28 | 731 | 715 | 173.5 |
| D | 5 | 222 | 143058 | 820.58 | 731 | 715 | 173.5 |

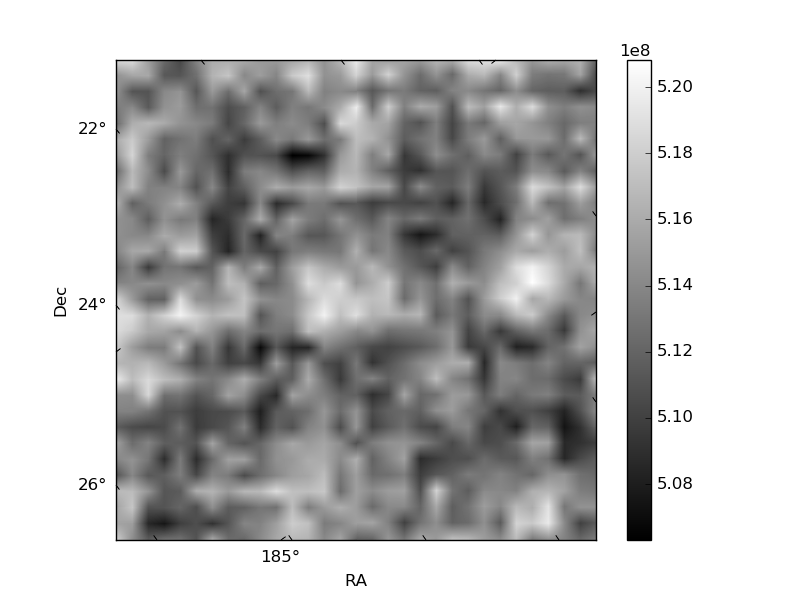

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

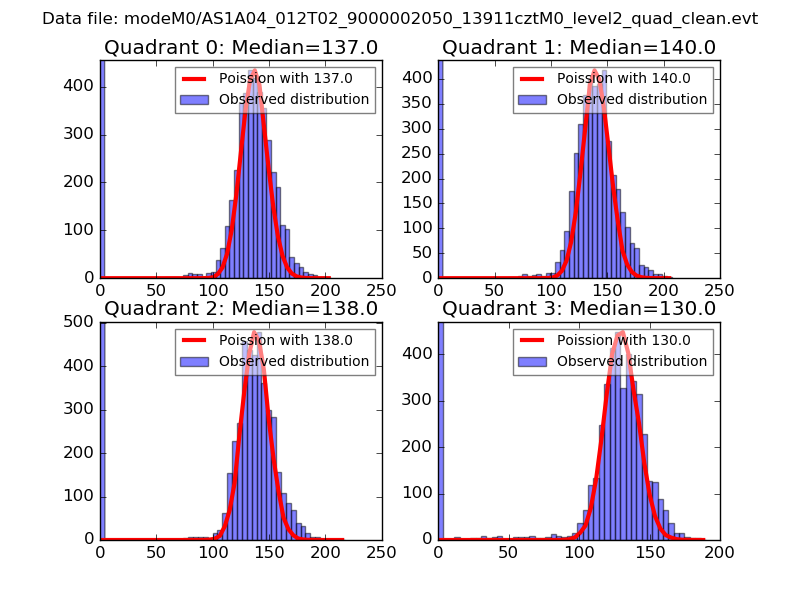

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

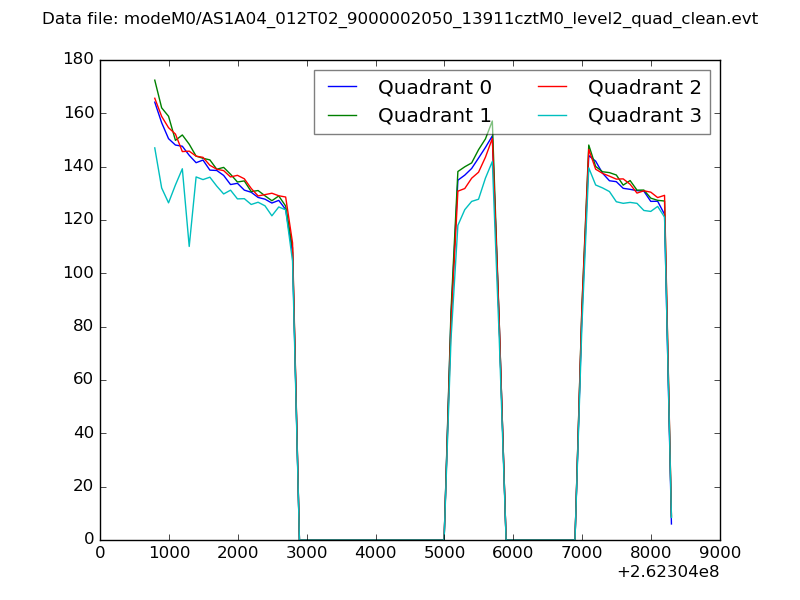

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

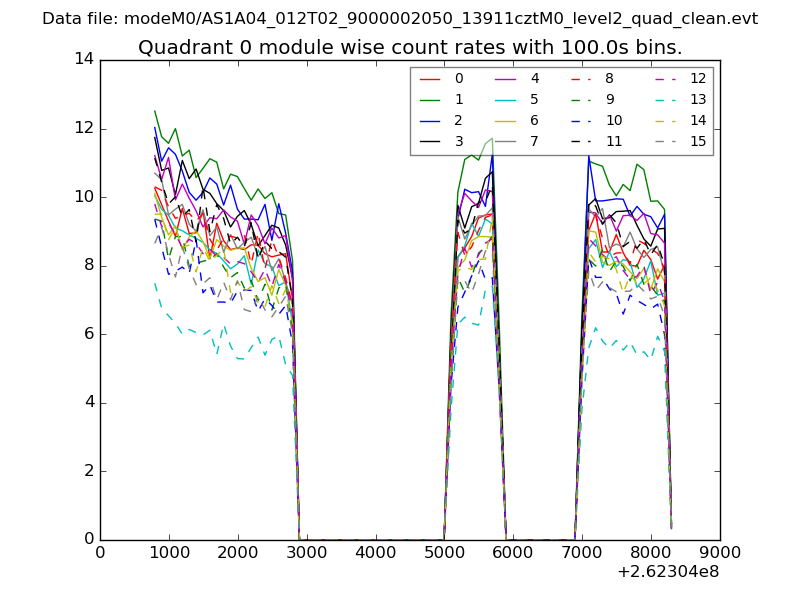

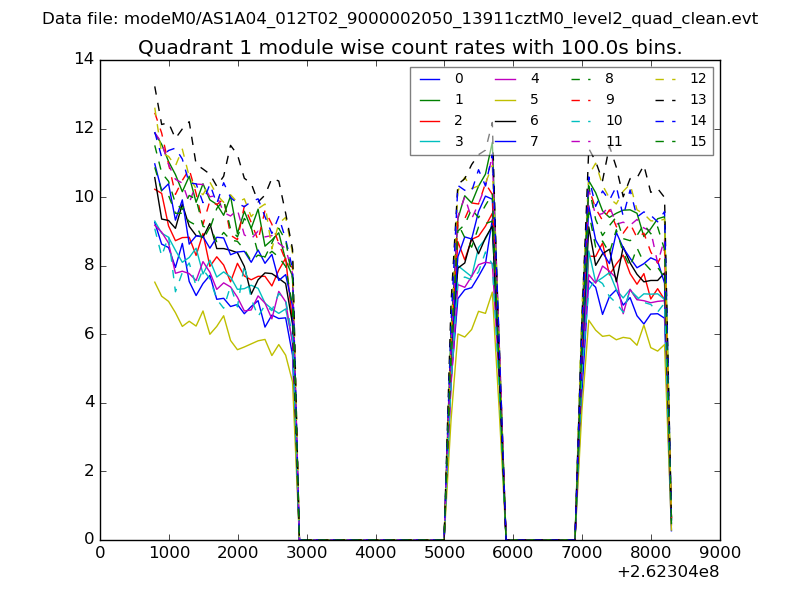

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

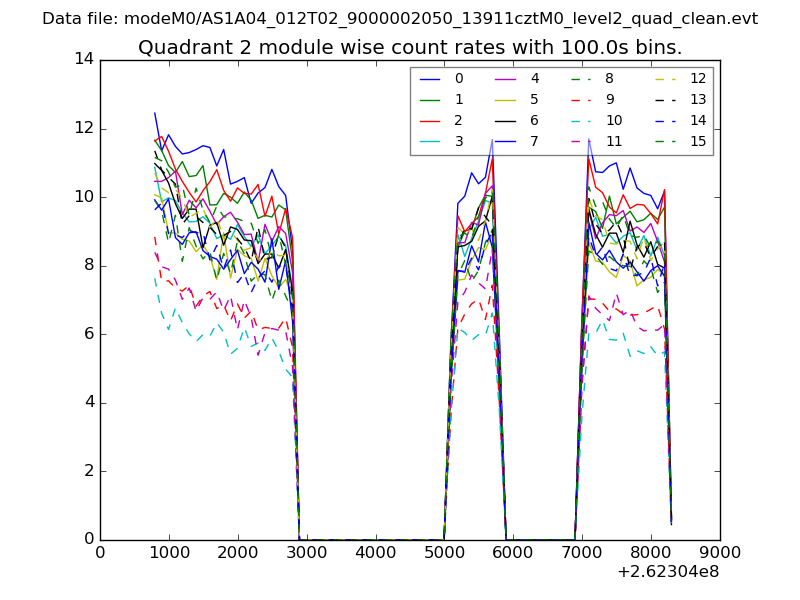

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

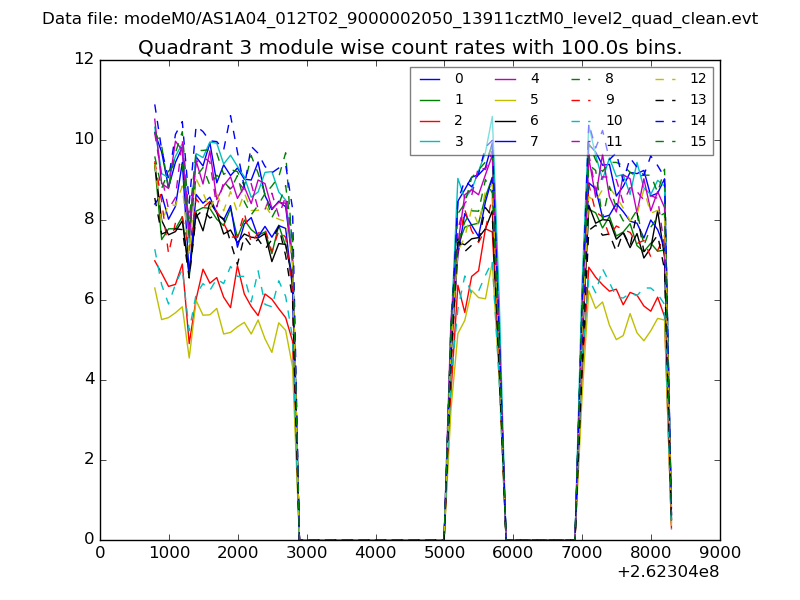

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

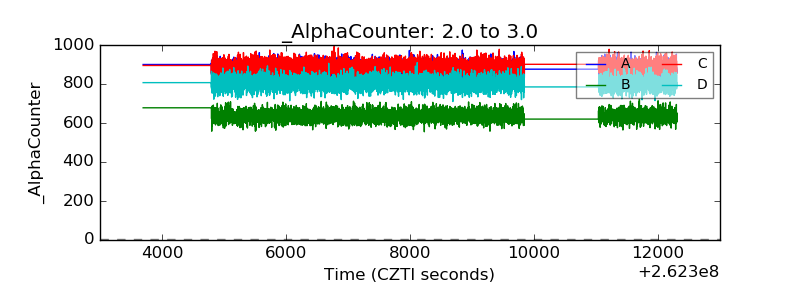

| Alpha Counter |  |

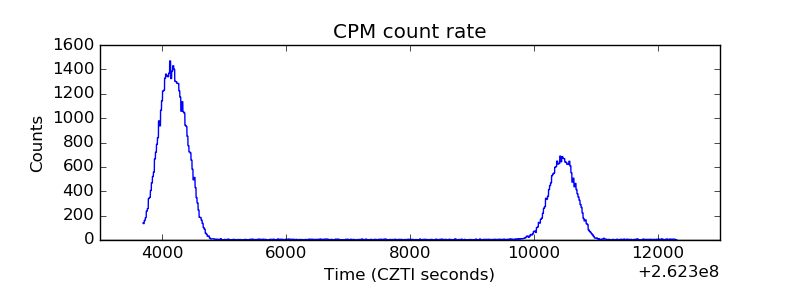

| _CPM_Rate |  |

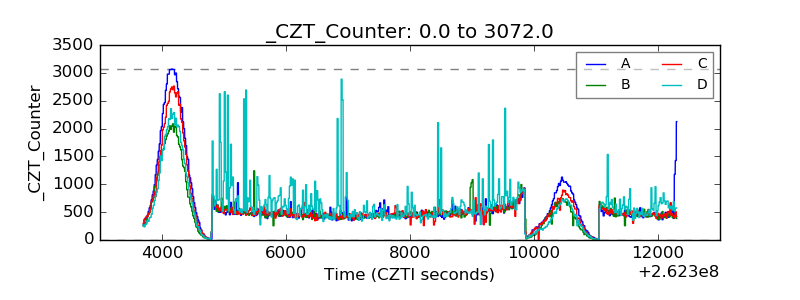

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

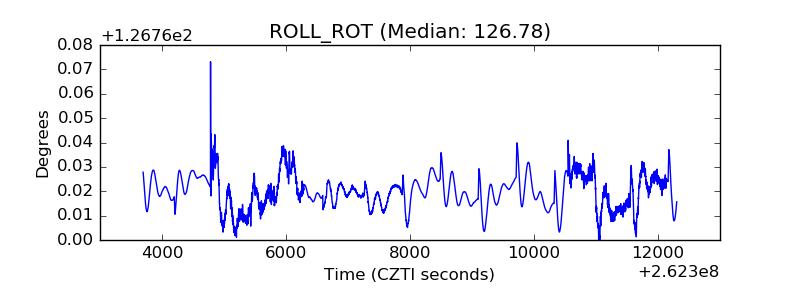

| _ROLL_ROT |  |

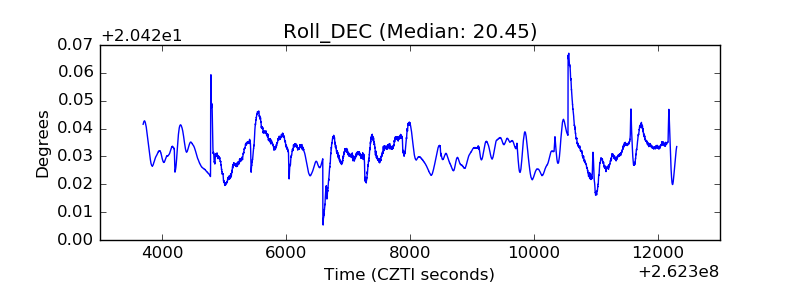

| _Roll_DEC |  |

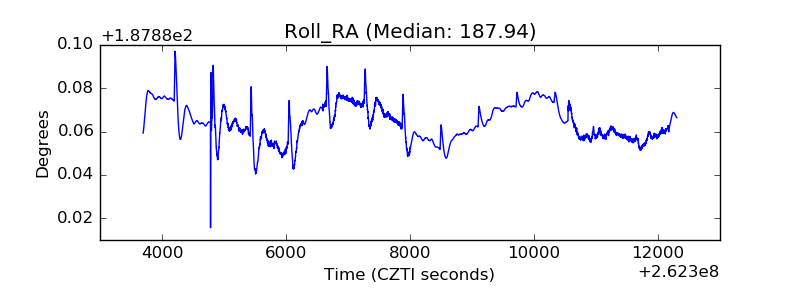

| _Roll_RA |  |

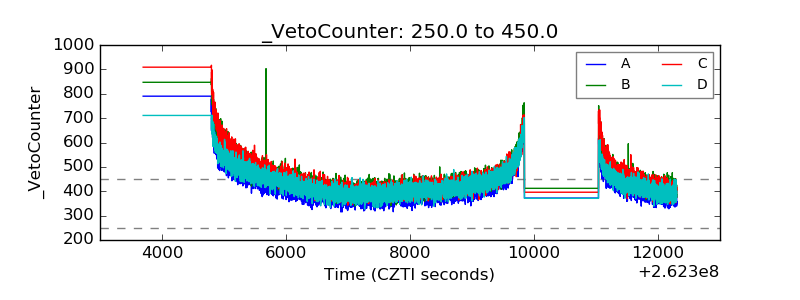

| Veto Counter |  |
