| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_219T01_9000002054_13923cztM0_level2.evt | modeM0/AS1A04_219T01_9000002054_13923cztM0_level2_quad_clean.evt |
| Size (bytes) | 514,872,000 | 100,520,640 |
| Size | 491.0 MB | 95.9 MB |
| Events in quadrant A | 3,191,252 | 658,250 |
| Events in quadrant B | 3,261,873 | 665,908 |
| Events in quadrant C | 3,221,365 | 663,871 |
| Events in quadrant D | 5,499,333 | 624,496 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13377 | 3 |
| B | 0 | 13472 | 2 |
| C | 0 | 13467 | 2 |
| D | 0 | 20800 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6186 | 75 | 1.212415% |
| B | 6186 | 89 | 1.438733% |
| C | 6186 | 70 | 1.131587% |
| D | 6186 | 210 | 3.394762% |

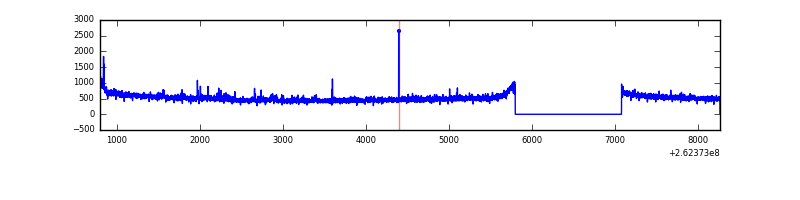

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7467 | 6187 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7467 | 6187 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7467 | 6187 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7467 | 6187 | 116 | 116 | 1.55% | 1.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 40415 | 242.81 | 809 | 793 | 163.2 |
| A | 1 | 162 | 23447 | 138.83 | 809 | 793 | 163.2 |
| A | 1 | 178 | 8024 | 44.31 | 809 | 793 | 163.2 |
| B | 10 | 244 | 77644 | 507.33 | 802 | 784 | 151.5 |
| B | 0 | 244 | 19267 | 122.0 | 802 | 784 | 151.5 |
| B | 4 | 173 | 18250 | 115.29 | 802 | 784 | 151.5 |
| C | 3 | 233 | 118158 | 639.03 | 795 | 800 | 183.6 |
| C | 13 | 61 | 5680 | 26.57 | 795 | 800 | 183.6 |
| C | 0 | 207 | 4116 | 18.06 | 795 | 800 | 183.6 |
| D | 13 | 122 | 1587440 | 8564.54 | 779 | 763 | 185.3 |
| D | 1 | 52 | 388215 | 2091.38 | 779 | 763 | 185.3 |
| D | 12 | 110 | 266159 | 1432.55 | 779 | 763 | 185.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

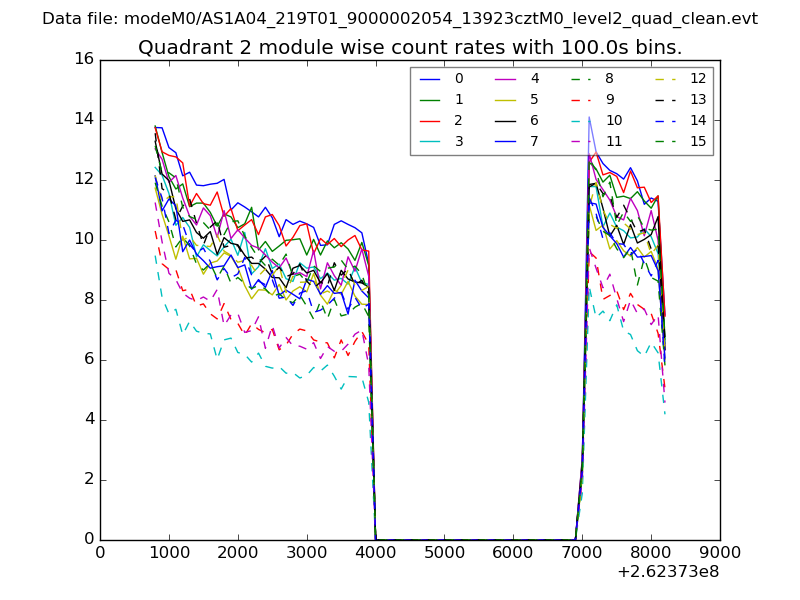

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

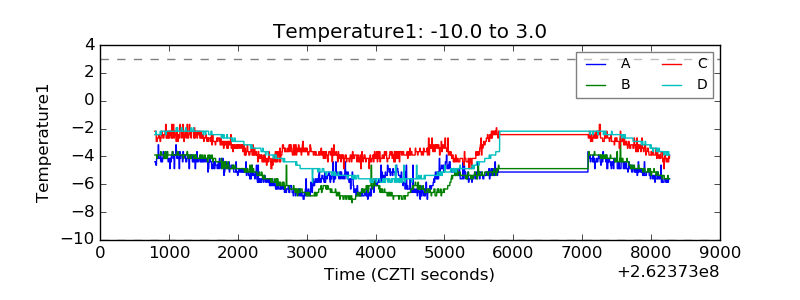

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

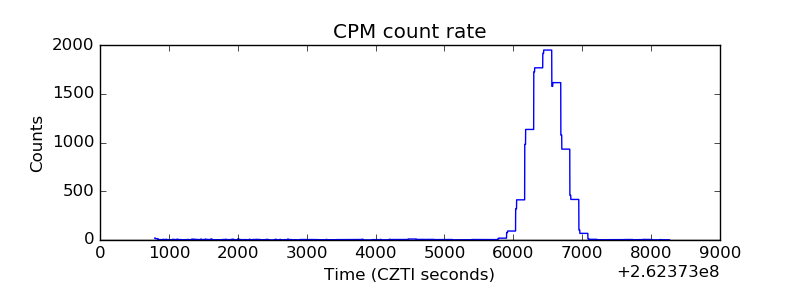

| _CPM_Rate |  |

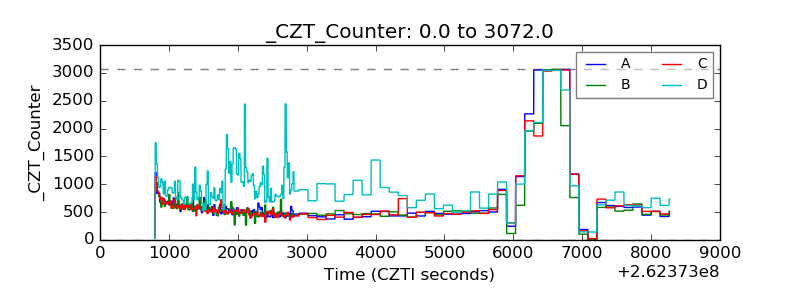

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

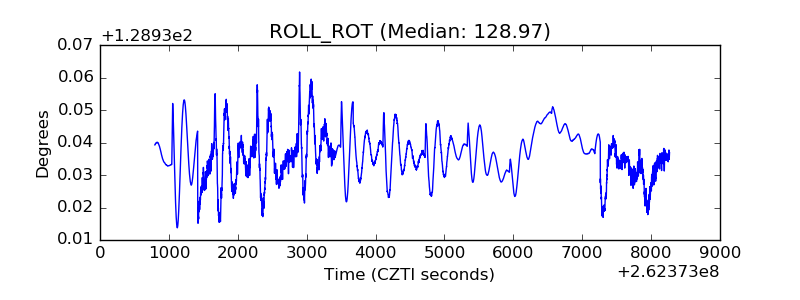

| _ROLL_ROT |  |

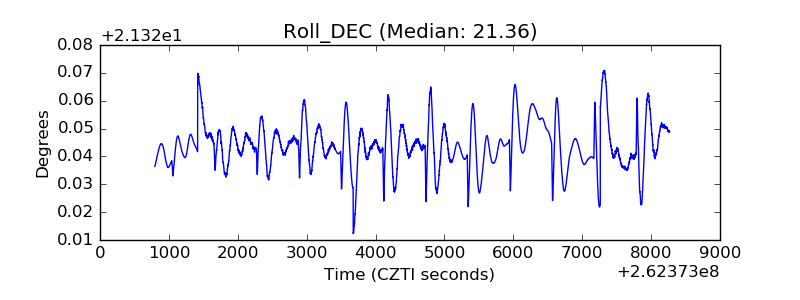

| _Roll_DEC |  |
| _Roll_RA |  |

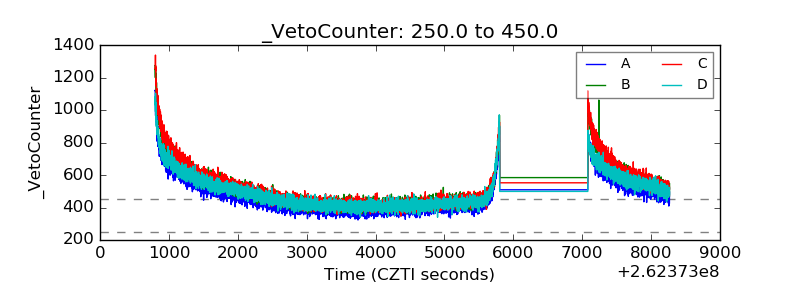

| Veto Counter |  |
