| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_076T01_9000002056_13928cztM0_level2.evt | modeM0/AS1G08_076T01_9000002056_13928cztM0_level2_quad_clean.evt |
| Size (bytes) | 579,170,880 | 129,245,760 |
| Size | 552.3 MB | 123.3 MB |
| Events in quadrant A | 3,850,908 | 813,118 |
| Events in quadrant B | 4,050,856 | 827,667 |
| Events in quadrant C | 4,091,378 | 873,149 |
| Events in quadrant D | 4,981,725 | 821,722 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17282 | 4 |
| B | 0 | 17541 | 3 |
| C | 0 | 17524 | 3 |
| D | 0 | 20671 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 172 | 0 |
| B | 0 | 172 | 0 |
| C | 0 | 172 | 0 |
| D | 0 | 172 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8326 | 123 | 1.477300% |
| B | 8326 | 171 | 2.053807% |
| C | 8326 | 80 | 0.960846% |
| D | 8326 | 266 | 3.194811% |

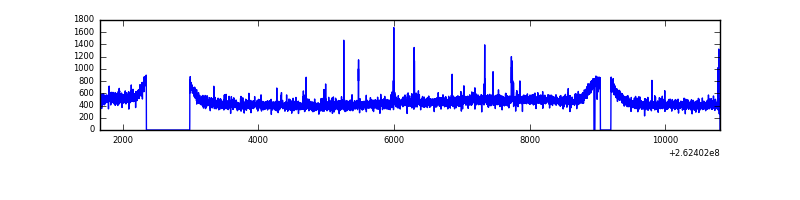

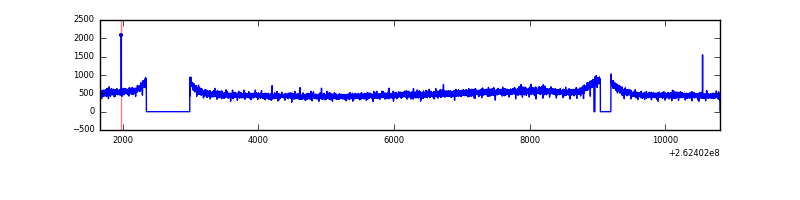

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9137 | 8328 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9137 | 8329 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9137 | 8330 | 1 | 1 | 0.01% | 0.01% |  |
| D | 9137 | 8329 | 122 | 122 | 1.34% | 1.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 33916 | 165.25 | 983 | 960 | 199.4 |
| A | 8 | 15 | 21788 | 104.43 | 983 | 960 | 199.4 |
| A | 1 | 162 | 10428 | 47.47 | 983 | 960 | 199.4 |
| B | 10 | 244 | 72455 | 378.86 | 987 | 958 | 188.7 |
| B | 0 | 214 | 32379 | 166.5 | 987 | 958 | 188.7 |
| B | 0 | 189 | 23300 | 118.39 | 987 | 958 | 188.7 |
| C | 3 | 233 | 262514 | 1150.17 | 980 | 985 | 227.4 |
| C | 13 | 61 | 7130 | 27.02 | 980 | 985 | 227.4 |
| C | 14 | 234 | 4699 | 16.33 | 980 | 985 | 227.4 |
| D | 1 | 52 | 750007 | 3342.54 | 954 | 928 | 224.1 |
| D | 13 | 189 | 263569 | 1171.96 | 954 | 928 | 224.1 |
| D | 8 | 195 | 171772 | 762.34 | 954 | 928 | 224.1 |

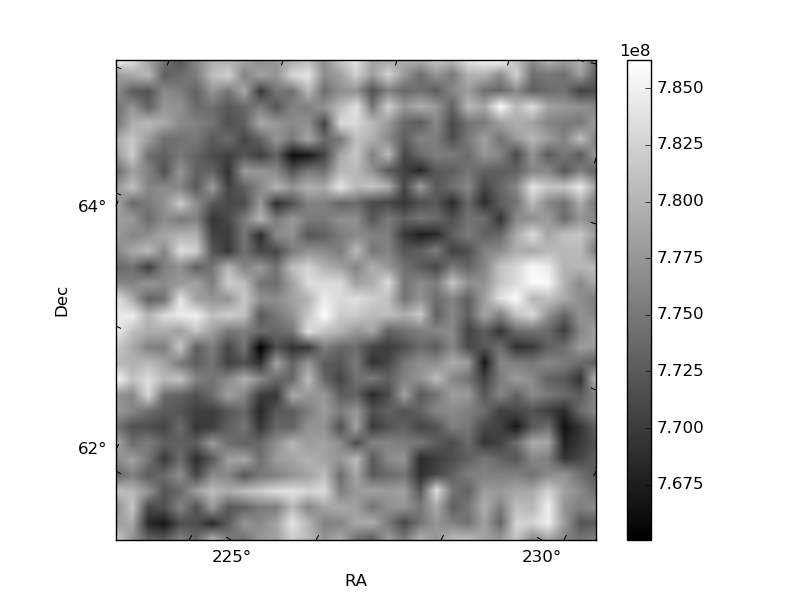

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

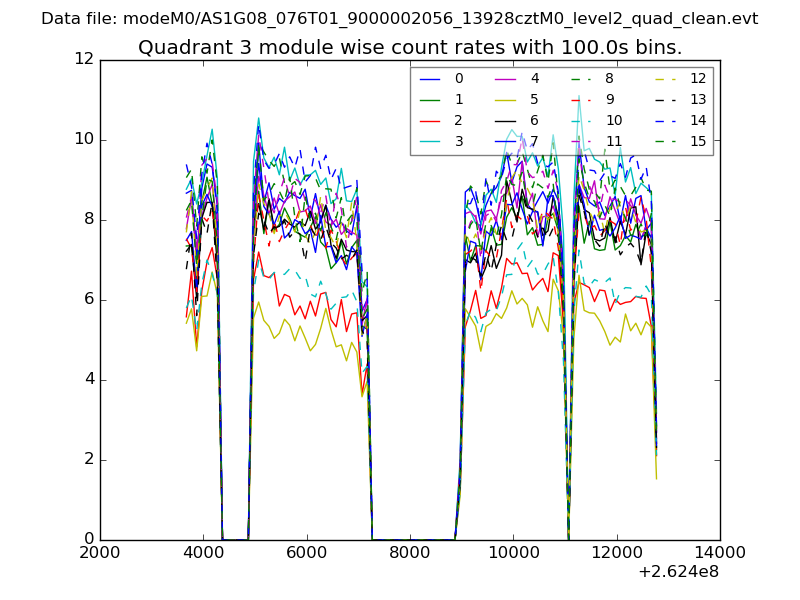

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

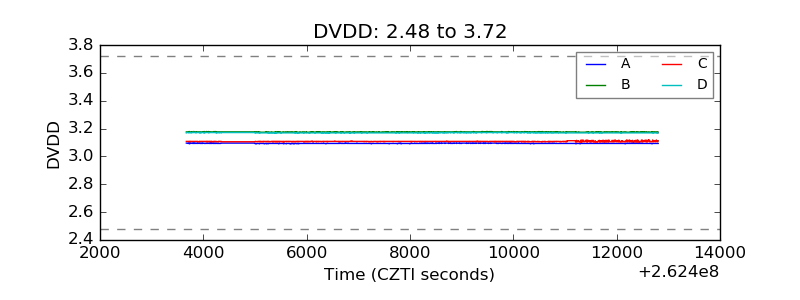

| D_VDD |  |

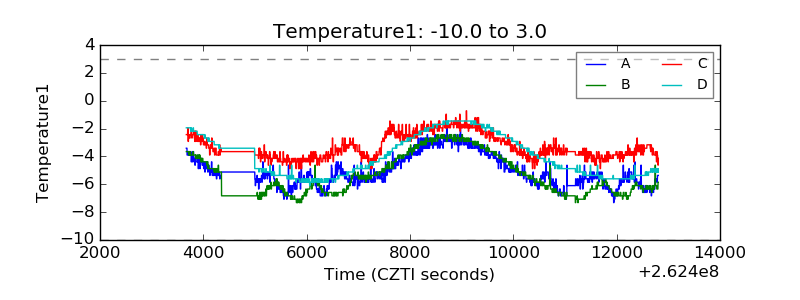

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

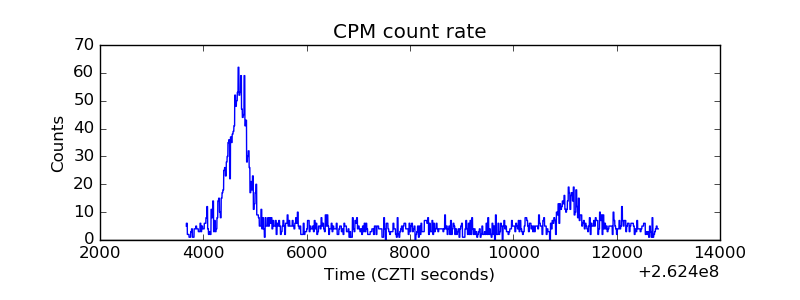

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

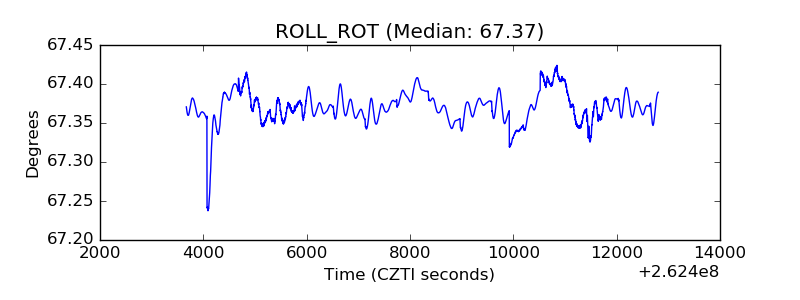

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
