| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_041T01_9000002058_13933cztM0_level2.evt | modeM0/AS1T02_041T01_9000002058_13933cztM0_level2_quad_clean.evt |
| Size (bytes) | 596,145,600 | 87,773,760 |
| Size | 568.5 MB | 83.7 MB |
| Events in quadrant A | 3,190,432 | 550,810 |
| Events in quadrant B | 3,557,577 | 553,110 |
| Events in quadrant C | 3,379,059 | 563,153 |
| Events in quadrant D | 7,463,334 | 513,123 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14056 | 3 |
| B | 0 | 14932 | 2 |
| C | 0 | 14484 | 2 |
| D | 0 | 26961 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6865 | 61 | 0.888565% |
| B | 6865 | 76 | 1.107065% |
| C | 6865 | 92 | 1.340131% |
| D | 6865 | 645 | 9.395484% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

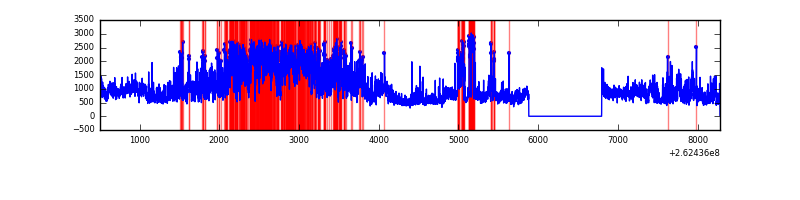

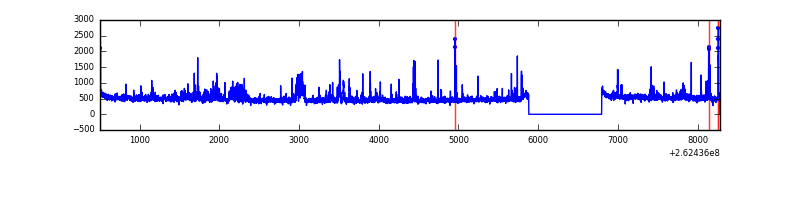

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7781 | 6866 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7781 | 6866 | 8 | 8 | 0.10% | 0.12% |  |
| C | 7781 | 6866 | 32 | 32 | 0.41% | 0.47% |  |
| D | 7781 | 6866 | 661 | 661 | 8.50% | 9.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 29 | 19943 | 114.73 | 818 | 801 | 166.8 |
| A | 1 | 162 | 11820 | 66.04 | 818 | 801 | 166.8 |
| A | 15 | 222 | 7711 | 41.42 | 818 | 801 | 166.8 |
| B | 0 | 230 | 108499 | 690.39 | 812 | 790 | 156.0 |
| B | 10 | 245 | 60726 | 384.17 | 812 | 790 | 156.0 |
| B | 0 | 189 | 42920 | 270.04 | 812 | 790 | 156.0 |
| C | 4 | 254 | 177671 | 975.61 | 791 | 797 | 181.3 |
| C | 3 | 233 | 115113 | 630.55 | 791 | 797 | 181.3 |
| C | 13 | 61 | 5609 | 26.54 | 791 | 797 | 181.3 |
| D | 1 | 52 | 3693897 | 19986.1 | 773 | 753 | 184.8 |
| D | 15 | 0 | 314142 | 1695.96 | 773 | 753 | 184.8 |
| D | 10 | 157 | 164926 | 888.45 | 773 | 753 | 184.8 |

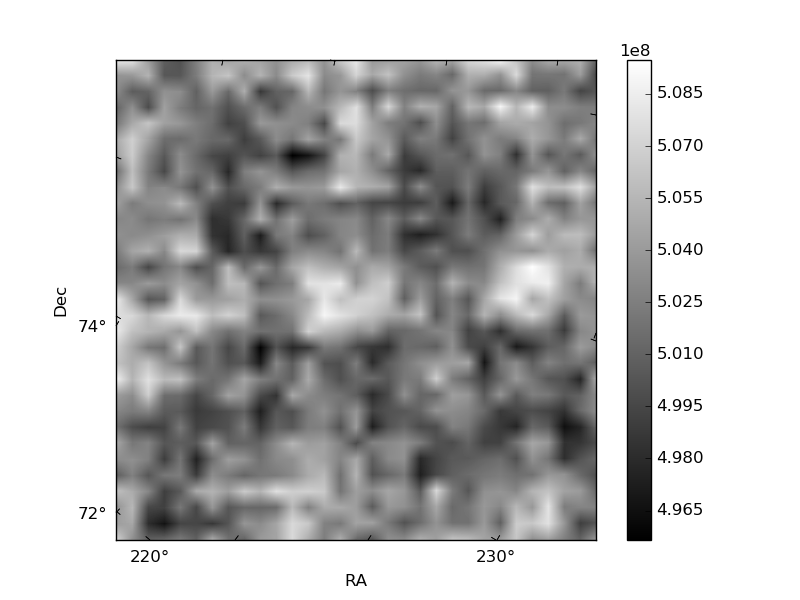

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

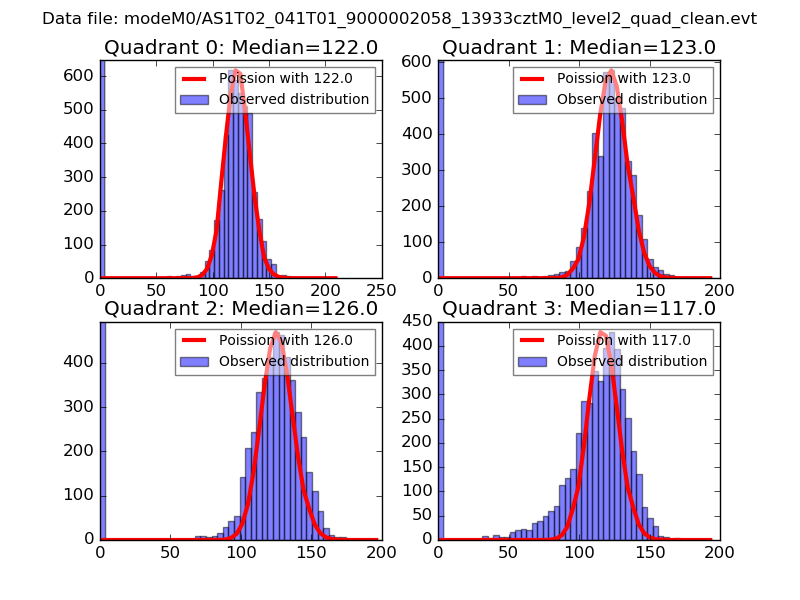

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

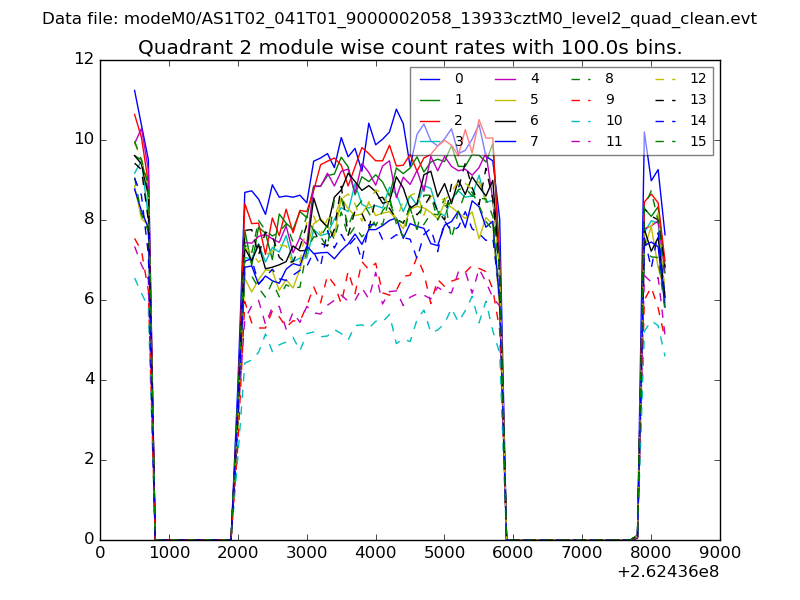

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

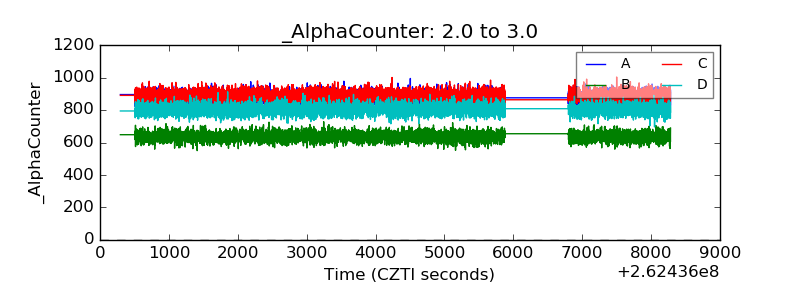

| Alpha Counter |  |
| _CPM_Rate |  |

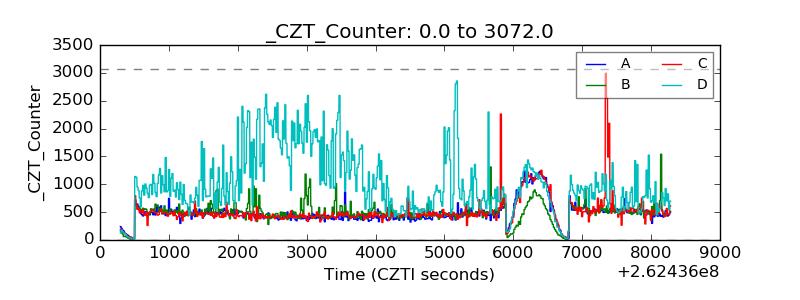

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

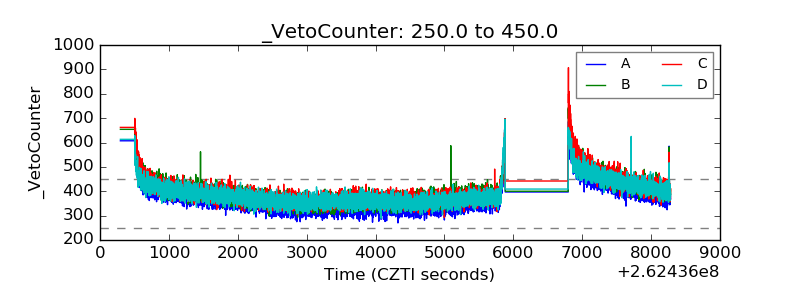

| Veto Counter |  |
