| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_041T01_9000002058_13938cztM0_level2.evt | modeM0/AS1T02_041T01_9000002058_13938cztM0_level2_quad_clean.evt |
| Size (bytes) | 672,851,520 | 122,408,640 |
| Size | 641.7 MB | 116.7 MB |
| Events in quadrant A | 3,100,680 | 826,743 |
| Events in quadrant B | 4,910,955 | 810,722 |
| Events in quadrant C | 3,594,328 | 881,498 |
| Events in quadrant D | 8,351,513 | 754,135 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13370 | 3 |
| B | 0 | 18706 | 2 |
| C | 0 | 14616 | 2 |
| D | 0 | 29173 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6214 | 75 | 1.206952% |
| B | 6214 | 822 | 13.228194% |
| C | 6214 | 88 | 1.416157% |
| D | 6214 | 1296 | 20.856131% |

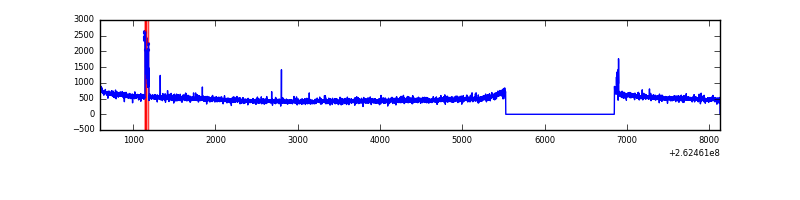

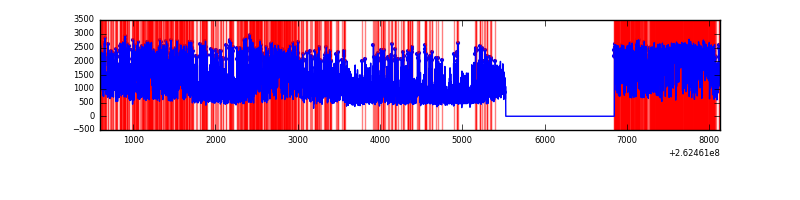

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7535 | 6215 | 10 | 10 | 0.13% | 0.16% |  |
| B | 7535 | 6215 | 680 | 680 | 9.02% | 10.94% |  |
| C | 7535 | 6215 | 31 | 31 | 0.41% | 0.50% |  |
| D | 7534 | 6214 | 1311 | 1311 | 17.40% | 21.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 65824 | 414.01 | 782 | 767 | 157.1 |
| A | 1 | 162 | 15900 | 96.3 | 782 | 767 | 157.1 |
| A | 0 | 226 | 6848 | 38.7 | 782 | 767 | 157.1 |
| B | 0 | 85 | 1802521 | 13176.91 | 749 | 731 | 136.7 |
| B | 3 | 64 | 36252 | 259.77 | 749 | 731 | 136.7 |
| B | 0 | 230 | 33899 | 242.57 | 749 | 731 | 136.7 |
| C | 4 | 254 | 339068 | 1861.74 | 797 | 803 | 181.7 |
| C | 3 | 233 | 143666 | 786.29 | 797 | 803 | 181.7 |
| C | 14 | 234 | 7873 | 38.91 | 797 | 803 | 181.7 |
| D | 1 | 52 | 5339495 | 31278.94 | 732 | 718 | 170.7 |
| D | 8 | 195 | 49369 | 285.04 | 732 | 718 | 170.7 |
| D | 10 | 157 | 45703 | 263.56 | 732 | 718 | 170.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

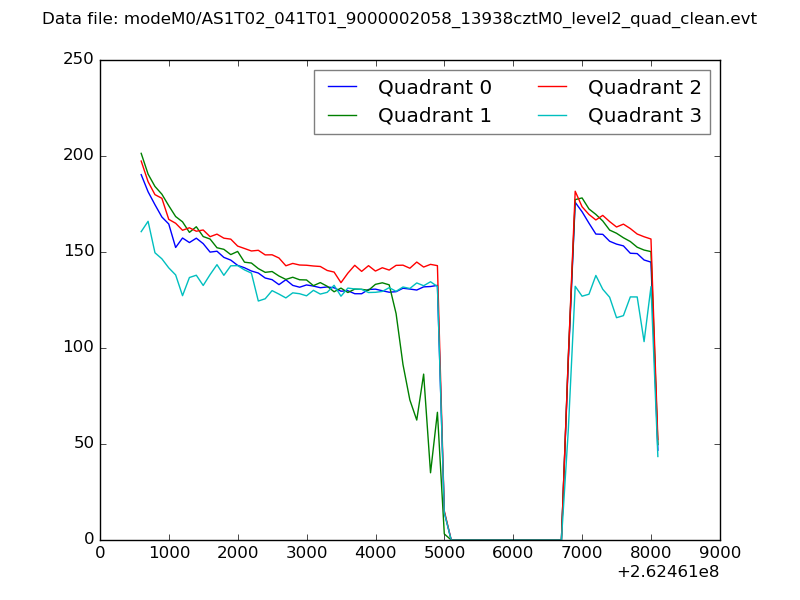

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

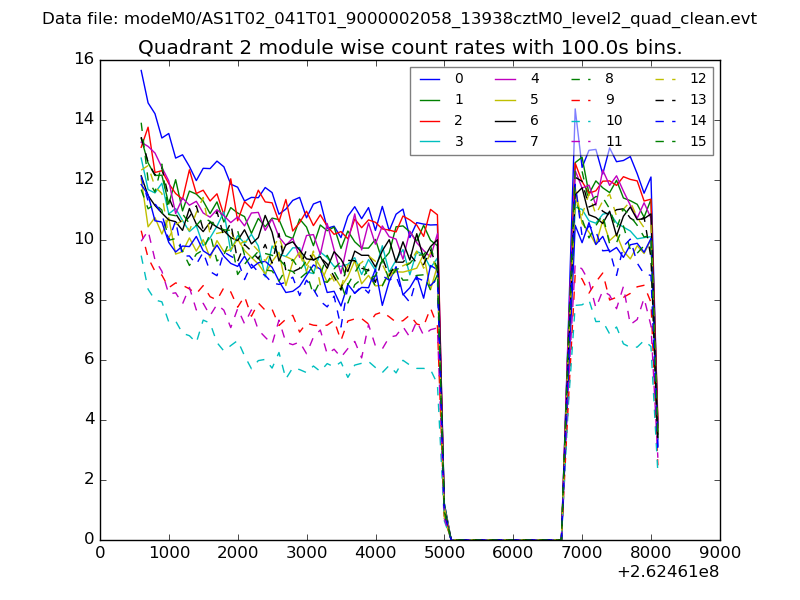

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

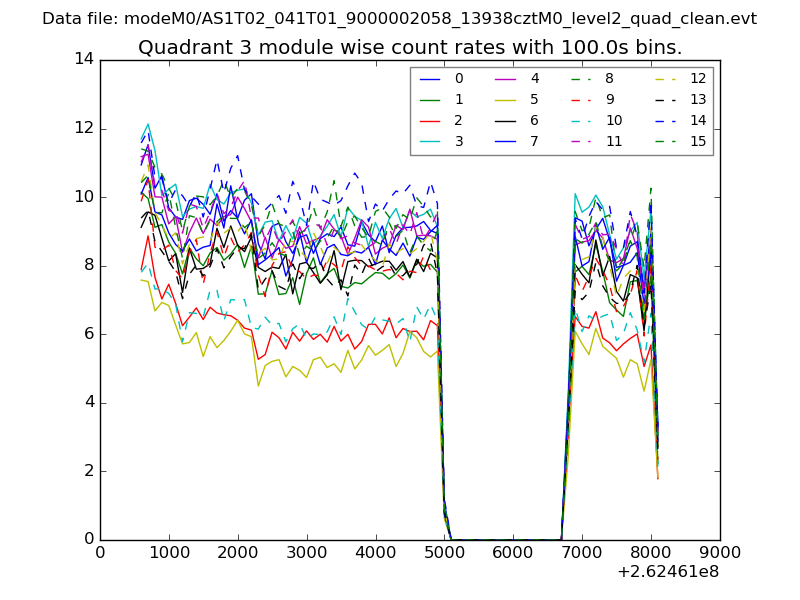

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

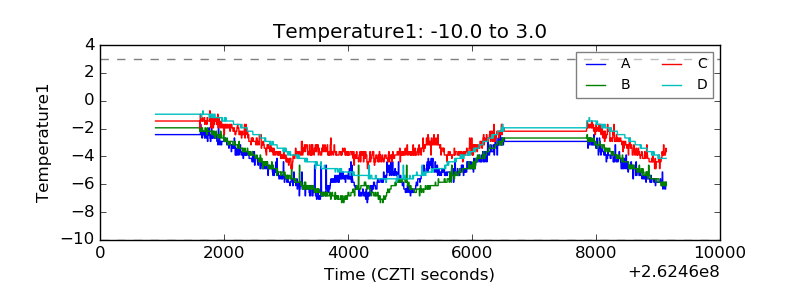

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

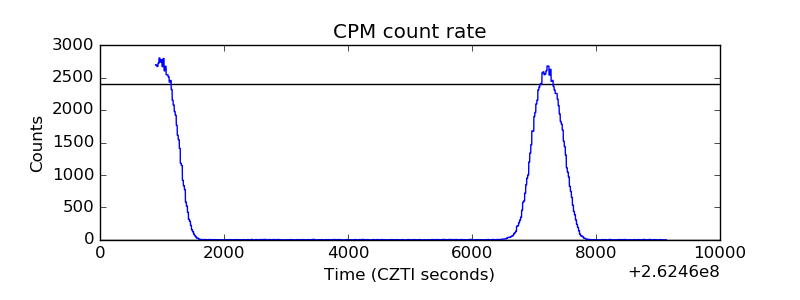

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

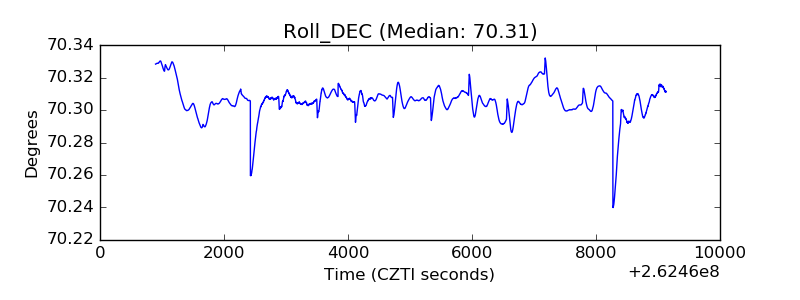

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
