| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_041T01_9000002058_13939cztM0_level2.evt | modeM0/AS1T02_041T01_9000002058_13939cztM0_level2_quad_clean.evt |
| Size (bytes) | 629,426,880 | 110,635,200 |
| Size | 600.3 MB | 105.5 MB |
| Events in quadrant A | 2,968,231 | 729,418 |
| Events in quadrant B | 3,293,604 | 751,750 |
| Events in quadrant C | 3,193,588 | 787,130 |
| Events in quadrant D | 9,193,863 | 655,567 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12955 | 3 |
| B | 0 | 13816 | 2 |
| C | 0 | 13419 | 2 |
| D | 0 | 31573 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6107 | 31 | 0.507614% |
| B | 6107 | 118 | 1.932209% |
| C | 6107 | 34 | 0.556738% |
| D | 6107 | 1647 | 26.969052% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7413 | 6108 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7413 | 6109 | 40 | 40 | 0.54% | 0.65% |  |
| C | 7413 | 6108 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7413 | 6108 | 1682 | 1682 | 22.69% | 27.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 59574 | 393.45 | 747 | 732 | 149.6 |
| A | 1 | 162 | 12150 | 76.35 | 747 | 732 | 149.6 |
| A | 14 | 111 | 10407 | 64.69 | 747 | 732 | 149.6 |
| B | 3 | 64 | 94867 | 672.75 | 759 | 739 | 139.9 |
| B | 4 | 142 | 79721 | 564.5 | 759 | 739 | 139.9 |
| B | 0 | 189 | 26768 | 186.03 | 759 | 739 | 139.9 |
| C | 3 | 233 | 144221 | 822.43 | 763 | 767 | 174.4 |
| C | 4 | 254 | 75807 | 430.21 | 763 | 767 | 174.4 |
| C | 13 | 61 | 5490 | 27.08 | 763 | 767 | 174.4 |
| D | 1 | 52 | 6235039 | 37433.16 | 690 | 675 | 166.5 |
| D | 2 | 14 | 47933 | 283.75 | 690 | 675 | 166.5 |
| D | 12 | 110 | 46729 | 276.52 | 690 | 675 | 166.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

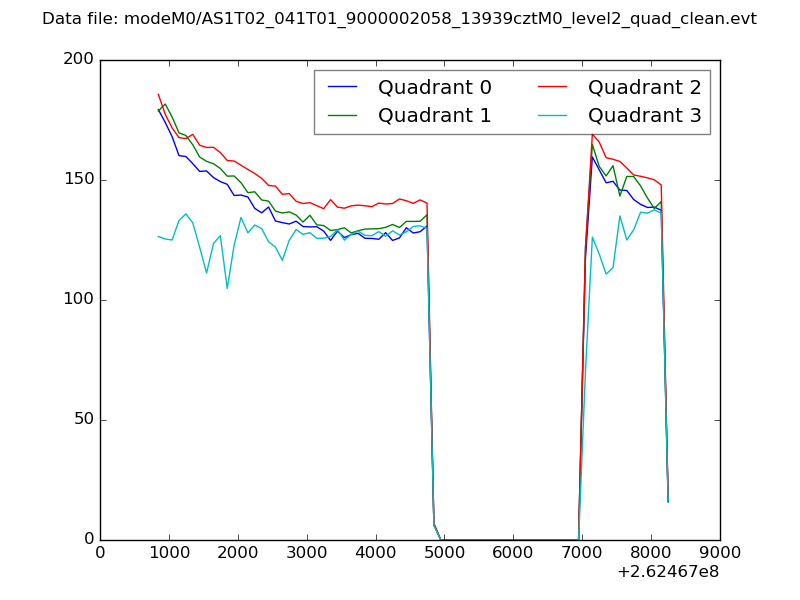

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

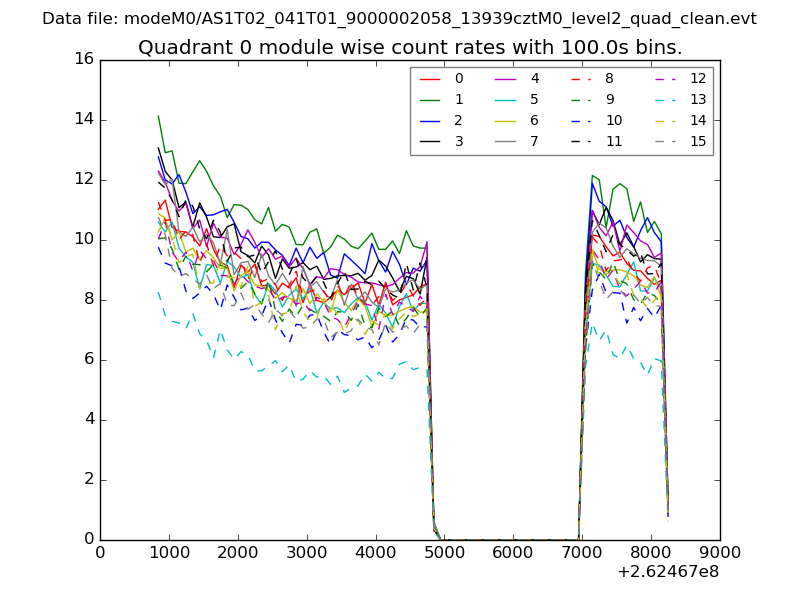

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

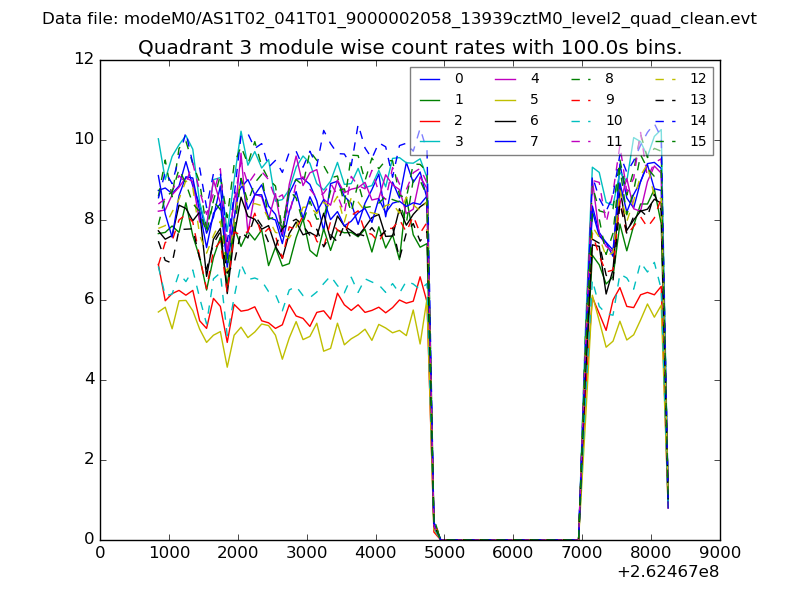

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

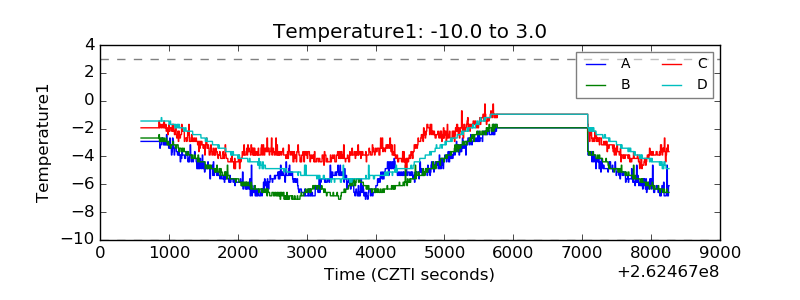

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

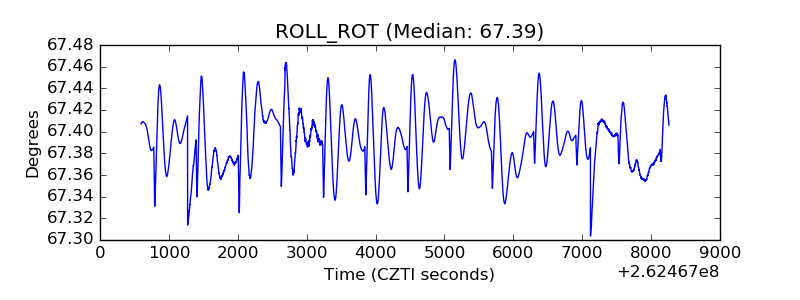

| _ROLL_ROT |  |

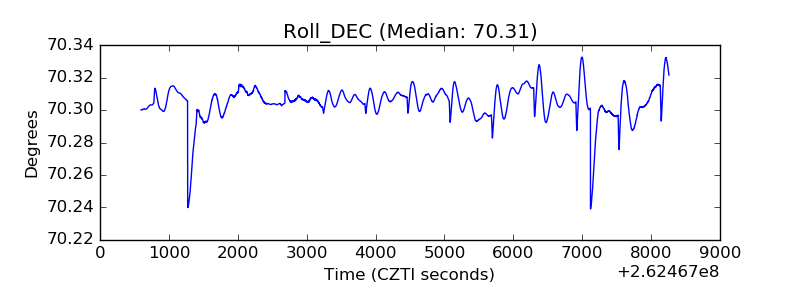

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
