| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_225T01_9000002062_13963cztM0_level2.evt | modeM0/AS1A04_225T01_9000002062_13963cztM0_level2_quad_clean.evt |
| Size (bytes) | 453,047,040 | 69,373,440 |
| Size | 432.1 MB | 66.2 MB |
| Events in quadrant A | 3,214,424 | 412,557 |
| Events in quadrant B | 3,365,204 | 422,589 |
| Events in quadrant C | 3,211,084 | 410,564 |
| Events in quadrant D | 3,480,721 | 393,847 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13911 | 3 |
| B | 0 | 14318 | 2 |
| C | 0 | 13827 | 2 |
| D | 0 | 14864 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6610 | 70 | 1.059002% |
| B | 6610 | 72 | 1.089259% |
| C | 6610 | 48 | 0.726172% |
| D | 6610 | 83 | 1.255673% |

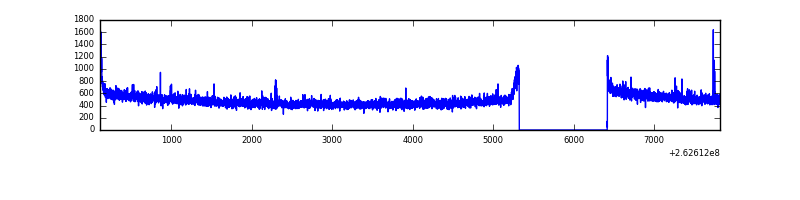

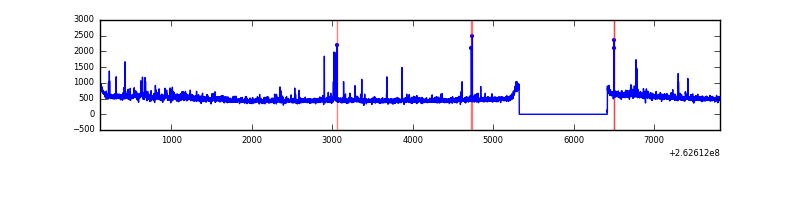

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7706 | 6612 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7706 | 6612 | 5 | 5 | 0.06% | 0.08% |  |
| C | 7706 | 6612 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7706 | 6612 | 24 | 24 | 0.31% | 0.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 26201 | 154.19 | 815 | 797 | 164.8 |
| A | 8 | 15 | 26120 | 153.7 | 815 | 797 | 164.8 |
| A | 1 | 162 | 16237 | 93.71 | 815 | 797 | 164.8 |
| B | 0 | 189 | 48572 | 310.12 | 817 | 797 | 154.1 |
| B | 3 | 209 | 33793 | 214.19 | 817 | 797 | 154.1 |
| B | 10 | 247 | 26645 | 167.79 | 817 | 797 | 154.1 |
| C | 3 | 233 | 91346 | 495.92 | 791 | 794 | 182.6 |
| C | 8 | 222 | 16196 | 84.35 | 791 | 794 | 182.6 |
| C | 8 | 128 | 11092 | 56.4 | 791 | 794 | 182.6 |
| D | 13 | 189 | 122124 | 641.36 | 789 | 766 | 189.2 |
| D | 10 | 157 | 115967 | 608.82 | 789 | 766 | 189.2 |
| D | 1 | 52 | 62279 | 325.09 | 789 | 766 | 189.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

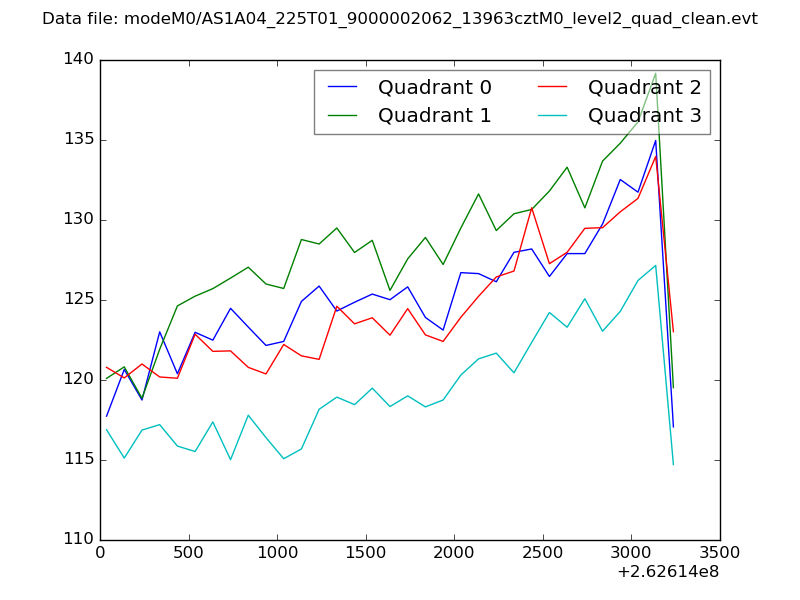

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

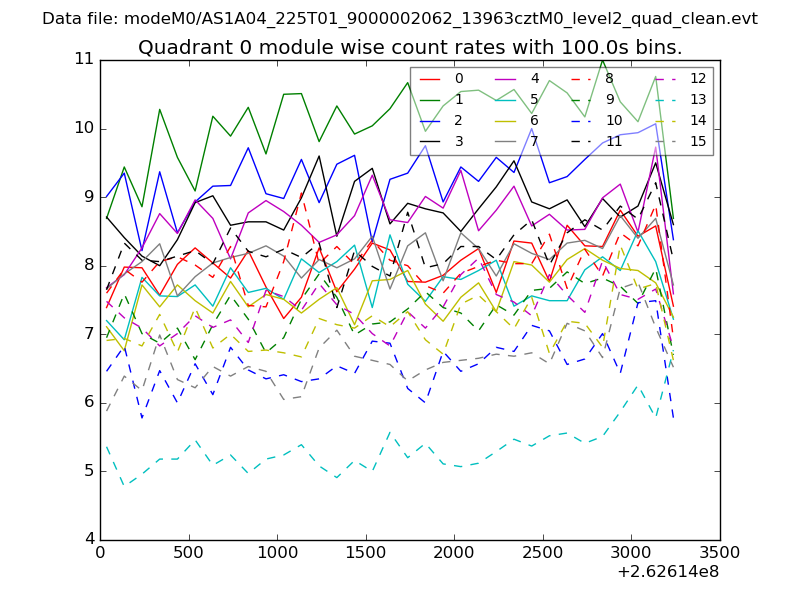

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

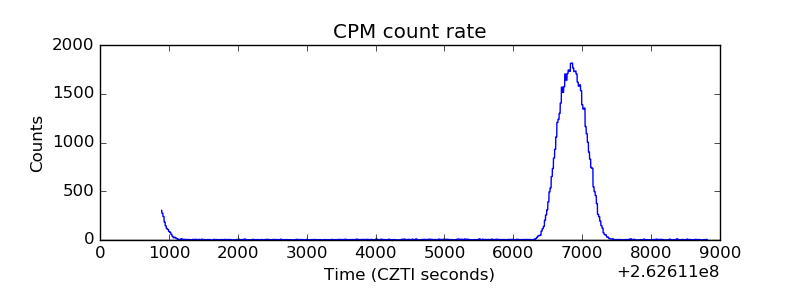

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

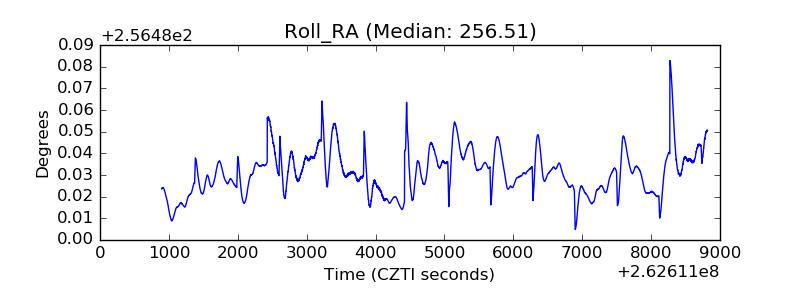

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
