| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_122T01_9000002064_13979cztM0_level2.evt | modeM0/AS1A04_122T01_9000002064_13979cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,167,680 | 68,474,880 |
| Size | 497.0 MB | 65.3 MB |
| Events in quadrant A | 3,427,635 | 411,851 |
| Events in quadrant B | 3,400,917 | 436,804 |
| Events in quadrant C | 3,312,600 | 397,004 |
| Events in quadrant D | 5,205,847 | 378,048 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14147 | 3 |
| B | 0 | 14166 | 2 |
| C | 0 | 13845 | 2 |
| D | 0 | 19858 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6445 | 101 | 1.567106% |
| B | 6445 | 109 | 1.691234% |
| C | 6445 | 60 | 0.930954% |
| D | 6445 | 255 | 3.956555% |

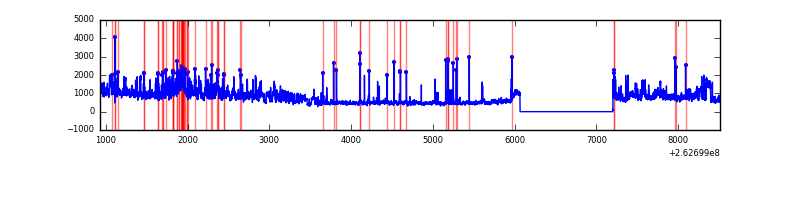

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7581 | 6447 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7581 | 6447 | 13 | 13 | 0.17% | 0.20% |  |
| C | 7581 | 6447 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7581 | 6447 | 76 | 76 | 1.00% | 1.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 132300 | 786.66 | 830 | 814 | 167.1 |
| A | 14 | 111 | 43154 | 253.31 | 830 | 814 | 167.1 |
| A | 1 | 162 | 33117 | 193.26 | 830 | 814 | 167.1 |
| B | 3 | 64 | 39407 | 247.62 | 834 | 818 | 155.8 |
| B | 0 | 189 | 29286 | 182.68 | 834 | 818 | 155.8 |
| B | 4 | 80 | 25518 | 158.5 | 834 | 818 | 155.8 |
| C | 3 | 233 | 191395 | 1040.62 | 799 | 802 | 183.2 |
| C | 13 | 61 | 5746 | 26.99 | 799 | 802 | 183.2 |
| C | 14 | 234 | 4802 | 21.84 | 799 | 802 | 183.2 |
| D | 13 | 122 | 1161220 | 5931.93 | 785 | 767 | 195.6 |
| D | 10 | 157 | 710648 | 3628.73 | 785 | 767 | 195.6 |
| D | 10 | 199 | 112258 | 569.91 | 785 | 767 | 195.6 |

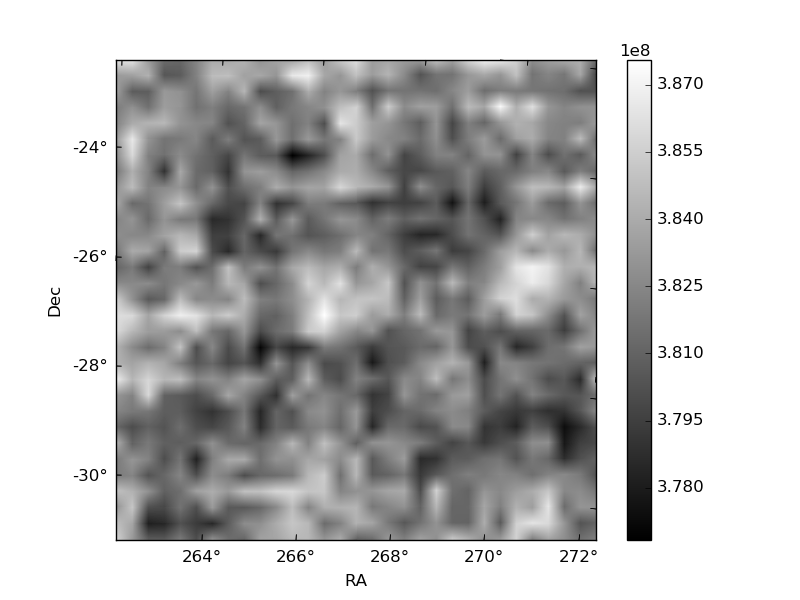

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

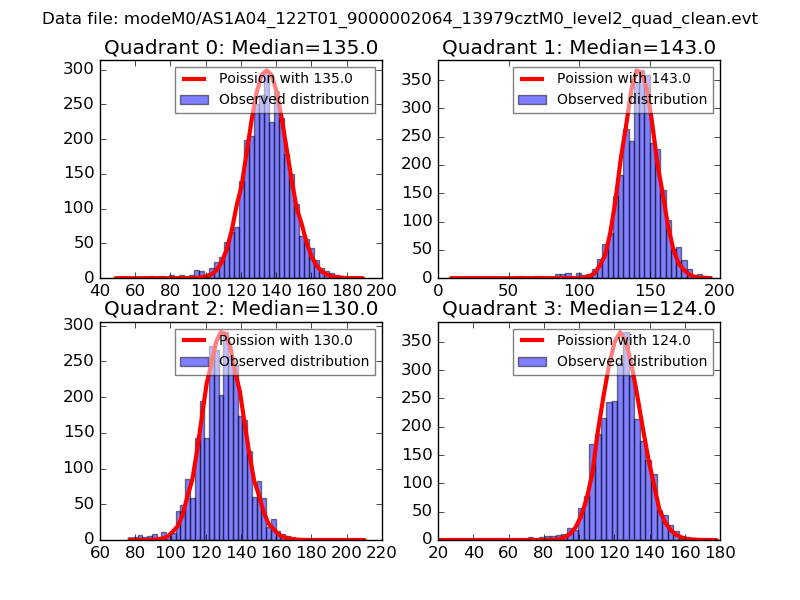

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

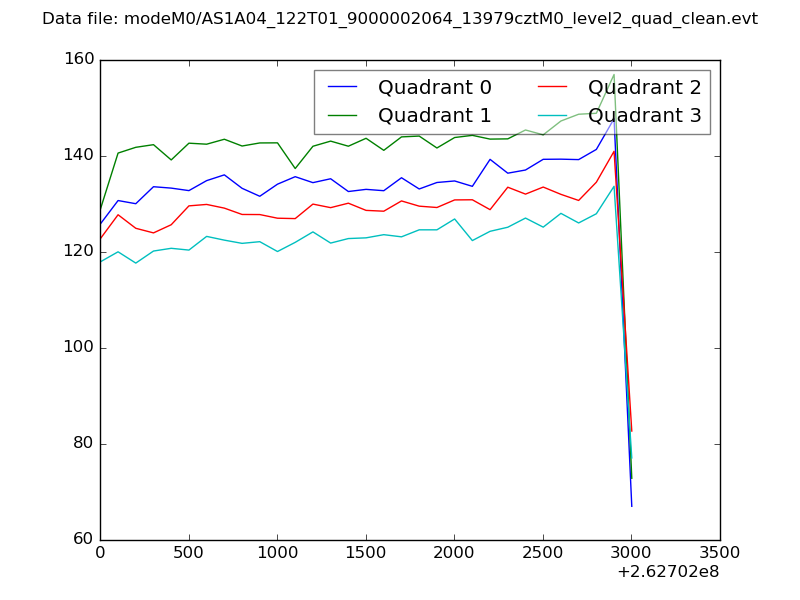

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

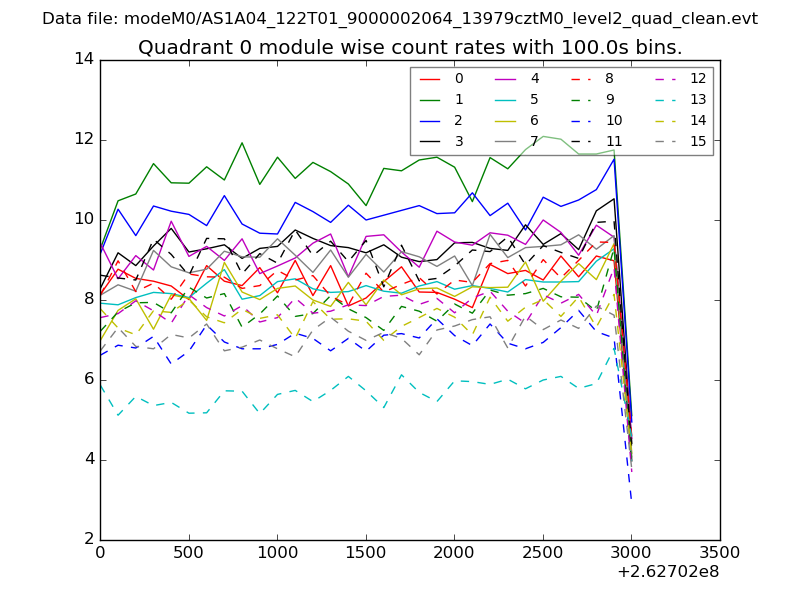

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

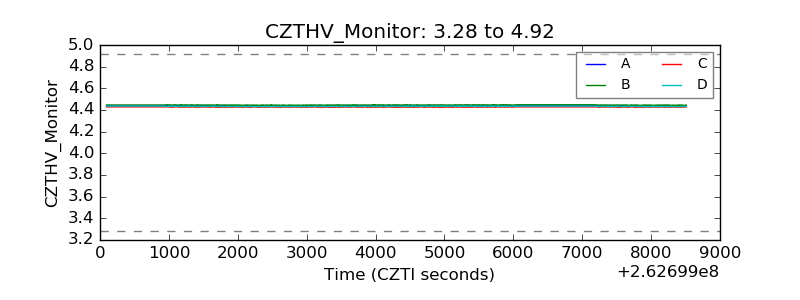

| CZT HV Monitor |  |
| D_VDD |  |

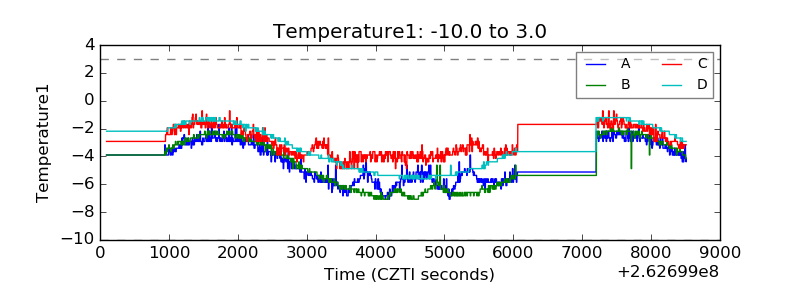

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

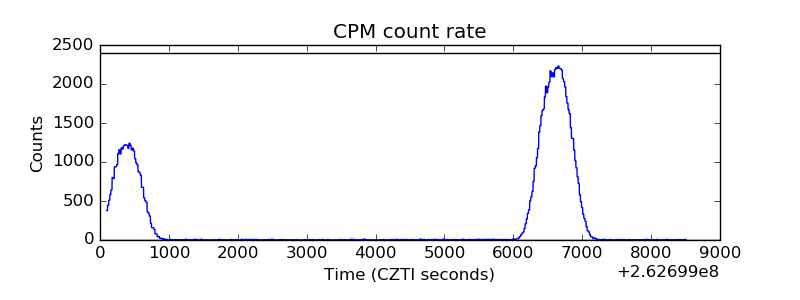

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
