| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_122T01_9000002064_13982cztM0_level2.evt | modeM0/AS1A04_122T01_9000002064_13982cztM0_level2_quad_clean.evt |
| Size (bytes) | 567,129,600 | 101,911,680 |
| Size | 540.9 MB | 97.2 MB |
| Events in quadrant A | 3,372,813 | 678,438 |
| Events in quadrant B | 3,579,600 | 725,461 |
| Events in quadrant C | 3,394,217 | 654,673 |
| Events in quadrant D | 6,409,316 | 595,497 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13830 | 3 |
| B | 0 | 14549 | 2 |
| C | 0 | 13913 | 2 |
| D | 0 | 23445 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6194 | 119 | 1.921214% |
| B | 6194 | 165 | 2.663868% |
| C | 6194 | 63 | 1.017113% |
| D | 6194 | 874 | 14.110429% |

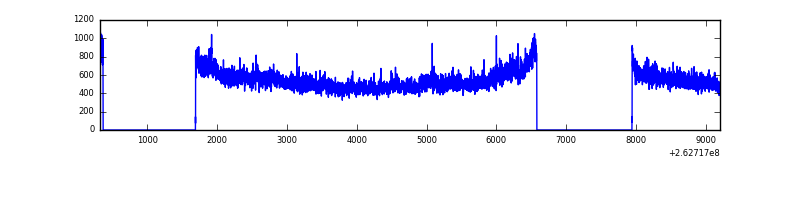

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8885 | 6197 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8885 | 6197 | 9 | 9 | 0.10% | 0.15% |  |
| C | 8885 | 6197 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8885 | 6197 | 645 | 645 | 7.26% | 10.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 149781 | 880.0 | 832 | 817 | 169.3 |
| A | 1 | 162 | 13535 | 75.13 | 832 | 817 | 169.3 |
| A | 0 | 226 | 7341 | 38.54 | 832 | 817 | 169.3 |
| B | 4 | 80 | 43914 | 271.41 | 848 | 832 | 158.7 |
| B | 4 | 142 | 42950 | 265.34 | 848 | 832 | 158.7 |
| B | 0 | 189 | 40416 | 249.37 | 848 | 832 | 158.7 |
| C | 3 | 233 | 245696 | 1322.07 | 806 | 813 | 185.2 |
| C | 13 | 61 | 5887 | 27.39 | 806 | 813 | 185.2 |
| C | 0 | 207 | 5715 | 26.46 | 806 | 813 | 185.2 |
| D | 1 | 52 | 1077743 | 5618.24 | 749 | 733 | 191.7 |
| D | 10 | 157 | 1009167 | 5260.51 | 749 | 733 | 191.7 |
| D | 13 | 122 | 934059 | 4868.71 | 749 | 733 | 191.7 |

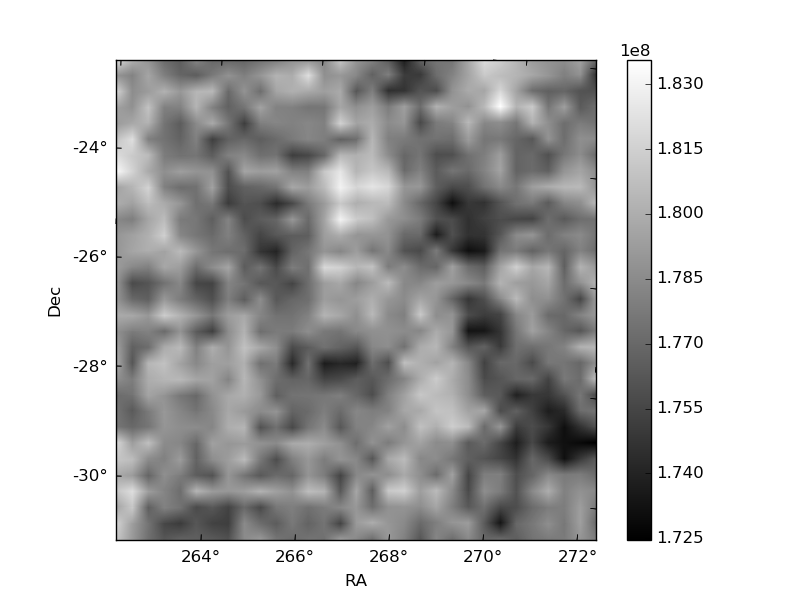

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

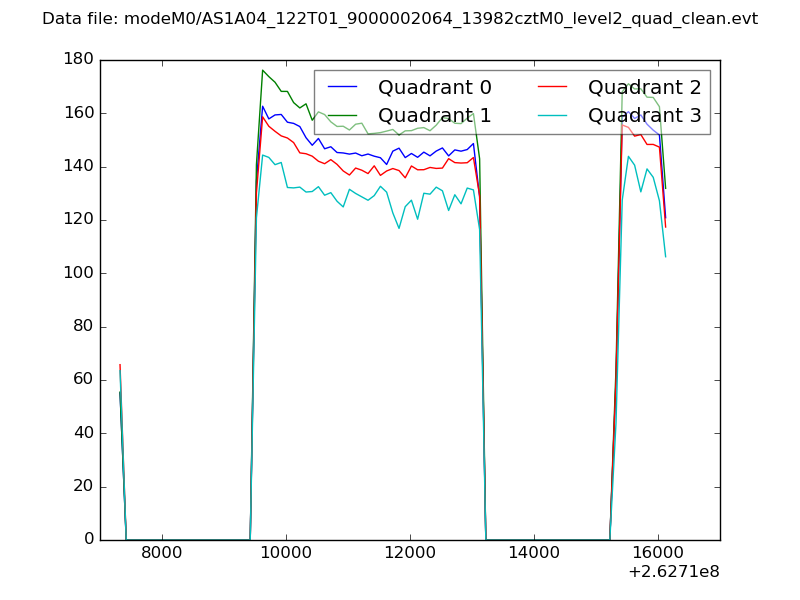

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

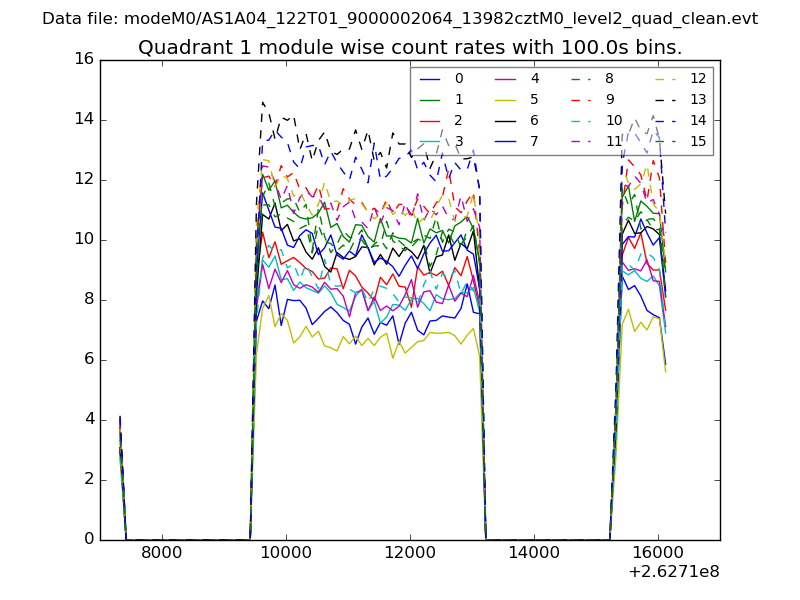

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

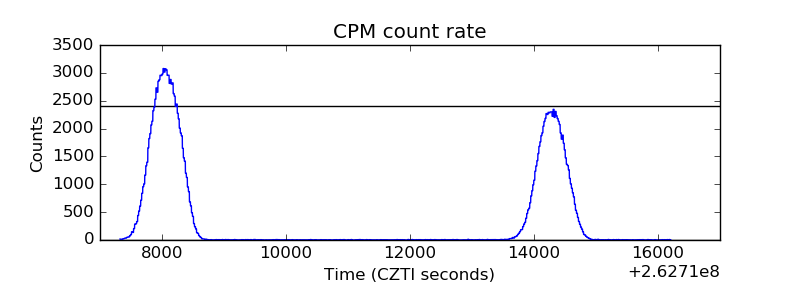

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

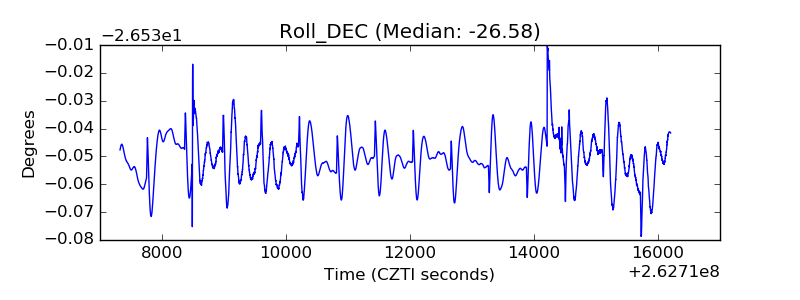

| _Roll_DEC |  |
| _Roll_RA |  |

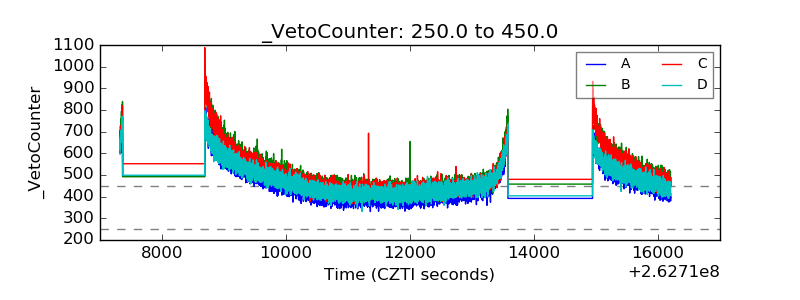

| Veto Counter |  |
