| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_122T01_9000002064_13984cztM0_level2.evt | modeM0/AS1A04_122T01_9000002064_13984cztM0_level2_quad_clean.evt |
| Size (bytes) | 559,287,360 | 105,402,240 |
| Size | 533.4 MB | 100.5 MB |
| Events in quadrant A | 3,256,035 | 700,910 |
| Events in quadrant B | 3,484,910 | 752,650 |
| Events in quadrant C | 3,518,184 | 680,798 |
| Events in quadrant D | 6,229,751 | 595,560 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13947 | 3 |
| B | 0 | 14554 | 2 |
| C | 0 | 14356 | 2 |
| D | 0 | 23014 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6635 | 36 | 0.542577% |
| B | 6635 | 83 | 1.250942% |
| C | 6635 | 22 | 0.331575% |
| D | 6635 | 928 | 13.986436% |

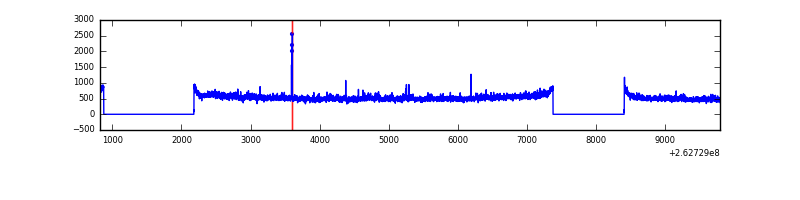

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8971 | 6638 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8971 | 6638 | 11 | 11 | 0.12% | 0.17% |  |
| C | 8971 | 6638 | 3 | 3 | 0.03% | 0.05% |  |
| D | 8971 | 6638 | 873 | 873 | 9.73% | 13.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 66325 | 391.43 | 822 | 807 | 167.4 |
| A | 1 | 162 | 16524 | 93.9 | 822 | 807 | 167.4 |
| A | 0 | 226 | 7157 | 37.94 | 822 | 807 | 167.4 |
| B | 4 | 80 | 50043 | 309.0 | 843 | 829 | 159.3 |
| B | 0 | 189 | 36911 | 226.55 | 843 | 829 | 159.3 |
| B | 0 | 219 | 33149 | 202.93 | 843 | 829 | 159.3 |
| C | 3 | 233 | 355959 | 1920.27 | 802 | 807 | 184.9 |
| C | 14 | 234 | 14039 | 71.54 | 802 | 807 | 184.9 |
| C | 8 | 128 | 8585 | 42.05 | 802 | 807 | 184.9 |
| D | 10 | 157 | 1749341 | 9754.83 | 741 | 724 | 179.3 |
| D | 1 | 52 | 1125708 | 6275.83 | 741 | 724 | 179.3 |
| D | 13 | 189 | 182108 | 1011.87 | 741 | 724 | 179.3 |

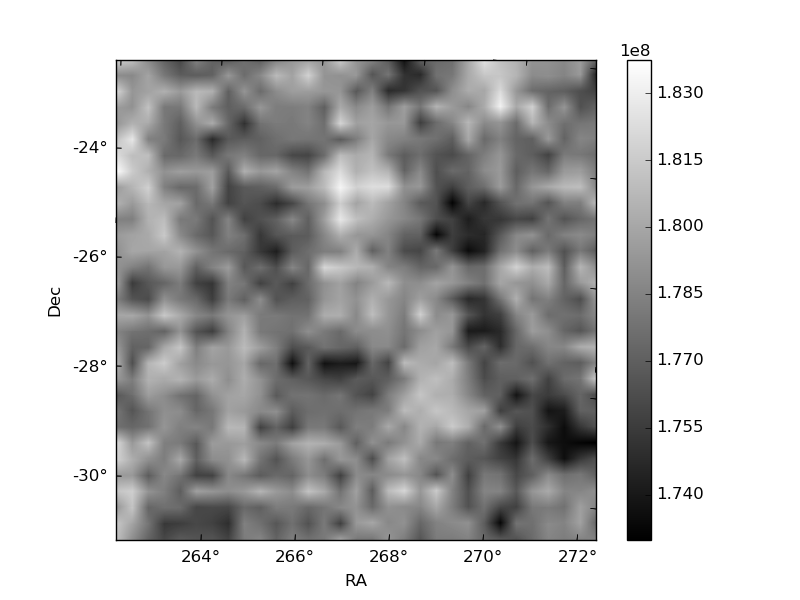

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

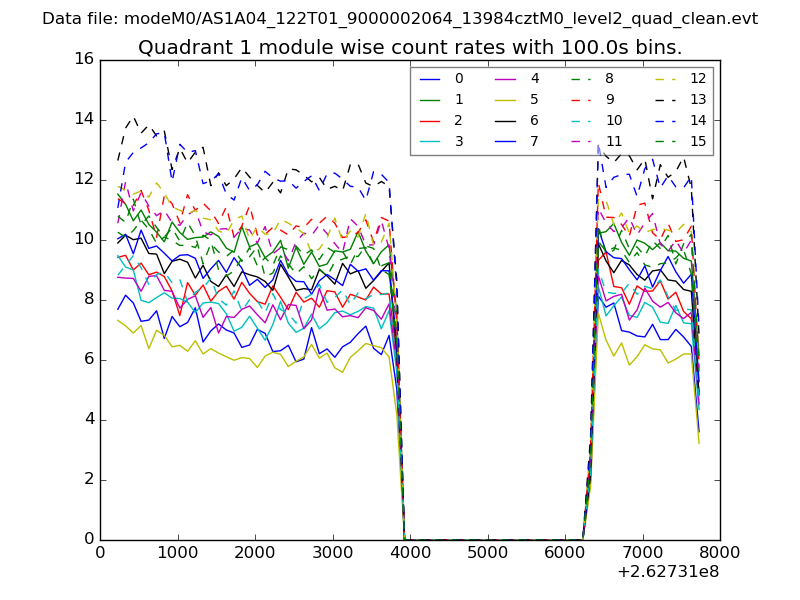

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

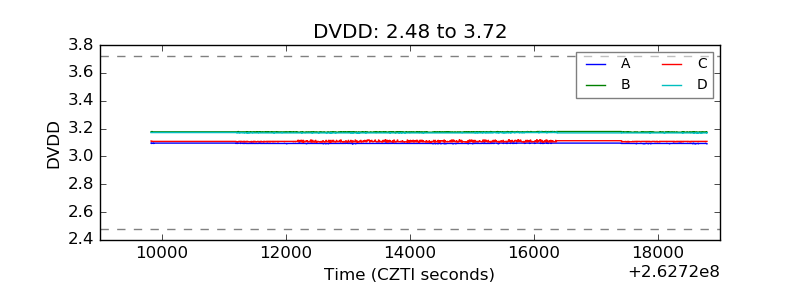

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

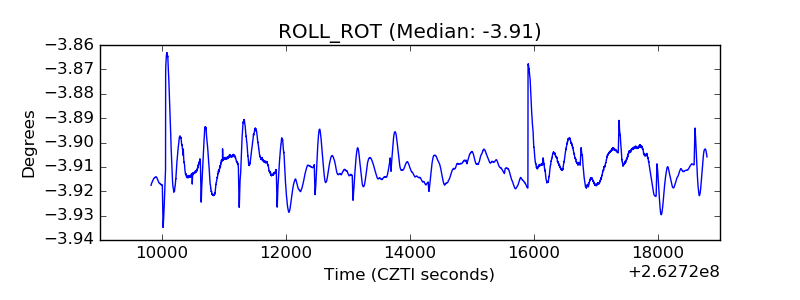

| _ROLL_ROT |  |

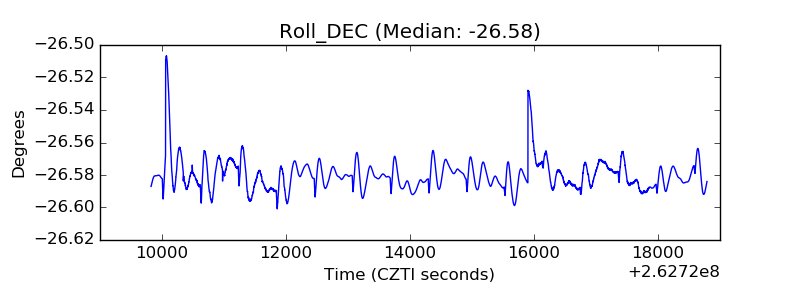

| _Roll_DEC |  |

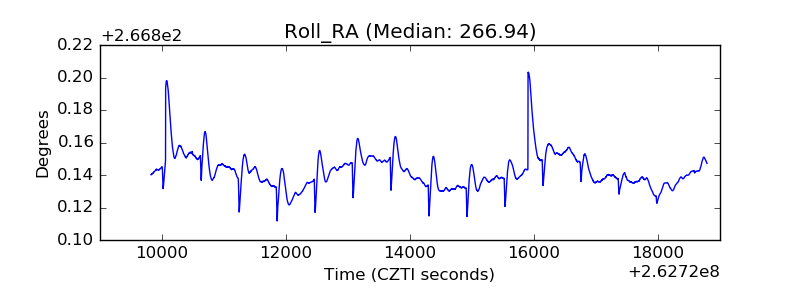

| _Roll_RA |  |

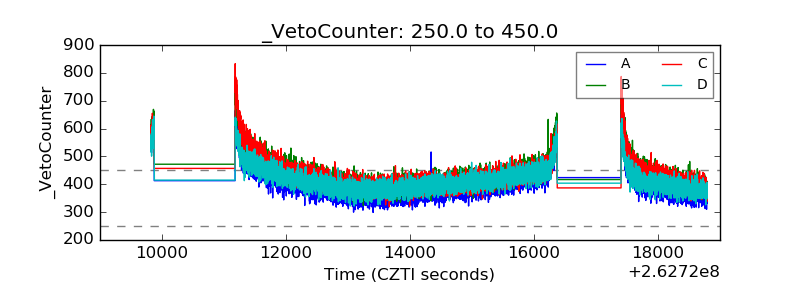

| Veto Counter |  |
