| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_122T01_9000002064_13985cztM0_level2.evt | modeM0/AS1A04_122T01_9000002064_13985cztM0_level2_quad_clean.evt |
| Size (bytes) | 580,305,600 | 98,144,640 |
| Size | 553.4 MB | 93.6 MB |
| Events in quadrant A | 3,363,309 | 639,727 |
| Events in quadrant B | 3,524,480 | 684,239 |
| Events in quadrant C | 3,461,915 | 621,670 |
| Events in quadrant D | 6,752,879 | 541,024 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14556 | 3 |
| B | 0 | 14787 | 2 |
| C | 0 | 14495 | 2 |
| D | 0 | 24757 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6971 | 22 | 0.315593% |
| B | 6971 | 74 | 1.061541% |
| C | 6971 | 25 | 0.358629% |
| D | 6971 | 846 | 12.135992% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8607 | 6974 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8607 | 6974 | 5 | 5 | 0.06% | 0.07% |  |
| C | 8607 | 6974 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8607 | 6974 | 730 | 730 | 8.48% | 10.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 50005 | 286.29 | 848 | 831 | 171.8 |
| A | 1 | 162 | 26958 | 152.11 | 848 | 831 | 171.8 |
| A | 1 | 178 | 10033 | 53.57 | 848 | 831 | 171.8 |
| B | 4 | 80 | 42084 | 250.76 | 866 | 851 | 164.4 |
| B | 0 | 189 | 27273 | 160.68 | 866 | 851 | 164.4 |
| B | 3 | 209 | 27179 | 160.11 | 866 | 851 | 164.4 |
| C | 3 | 233 | 229391 | 1180.06 | 828 | 832 | 193.7 |
| C | 13 | 61 | 5981 | 26.58 | 828 | 832 | 193.7 |
| C | 12 | 4 | 4044 | 16.58 | 828 | 832 | 193.7 |
| D | 10 | 157 | 2443399 | 13313.69 | 768 | 752 | 183.5 |
| D | 10 | 199 | 372512 | 2026.28 | 768 | 752 | 183.5 |
| D | 1 | 52 | 350561 | 1906.64 | 768 | 752 | 183.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

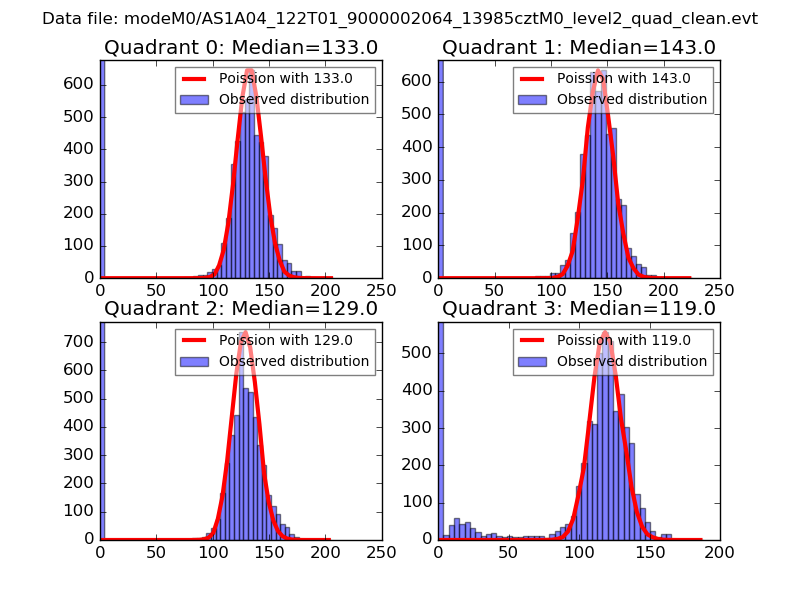

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
