| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_038T02_9000002068_13997cztM0_level2.evt | modeM0/AS1A04_038T02_9000002068_13997cztM0_level2_quad_clean.evt |
| Size (bytes) | 460,900,800 | 123,114,240 |
| Size | 439.5 MB | 117.4 MB |
| Events in quadrant A | 2,935,391 | 849,899 |
| Events in quadrant B | 3,183,387 | 860,592 |
| Events in quadrant C | 3,119,748 | 816,003 |
| Events in quadrant D | 4,306,527 | 777,419 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12690 | 2 |
| B | 0 | 13325 | 1 |
| C | 0 | 13220 | 1 |
| D | 0 | 16878 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6086 | 31 | 0.509366% |
| B | 6086 | 58 | 0.953007% |
| C | 6086 | 53 | 0.870851% |
| D | 6086 | 250 | 4.107788% |

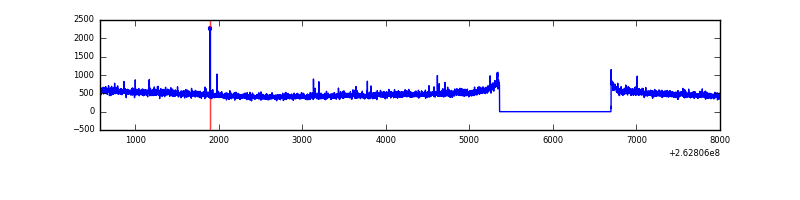

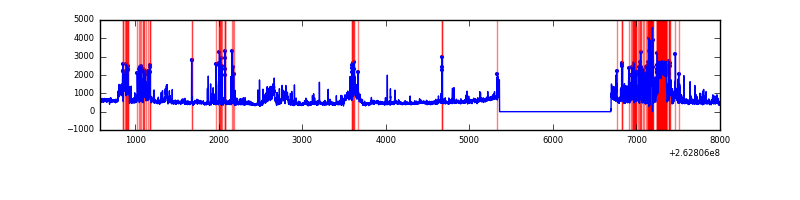

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7422 | 6088 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7422 | 6088 | 21 | 21 | 0.28% | 0.34% |  |
| C | 7422 | 6088 | 4 | 4 | 0.05% | 0.07% |  |
| D | 7422 | 6088 | 229 | 229 | 3.09% | 3.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 33274 | 218.57 | 742 | 728 | 148.9 |
| A | 8 | 15 | 17168 | 110.4 | 742 | 728 | 148.9 |
| A | 1 | 162 | 11282 | 70.88 | 742 | 728 | 148.9 |
| B | 3 | 64 | 82294 | 589.81 | 743 | 726 | 138.3 |
| B | 0 | 189 | 75146 | 538.13 | 743 | 726 | 138.3 |
| B | 0 | 219 | 55167 | 393.66 | 743 | 726 | 138.3 |
| C | 3 | 233 | 184954 | 1136.68 | 704 | 708 | 162.1 |
| C | 14 | 220 | 181979 | 1118.33 | 704 | 708 | 162.1 |
| C | 0 | 207 | 9114 | 51.86 | 704 | 708 | 162.1 |
| D | 7 | 80 | 753469 | 4141.96 | 688 | 673 | 181.7 |
| D | 10 | 157 | 360990 | 1982.5 | 688 | 673 | 181.7 |
| D | 8 | 195 | 196439 | 1077.12 | 688 | 673 | 181.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

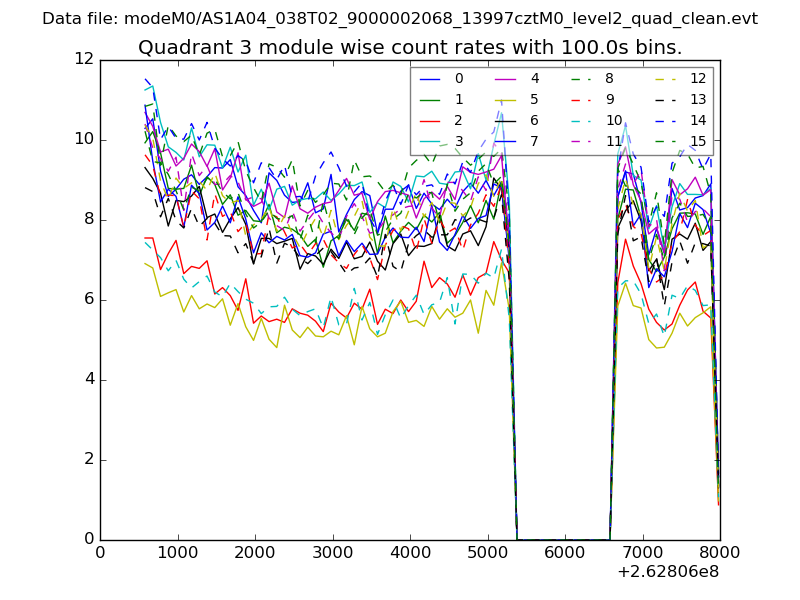

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

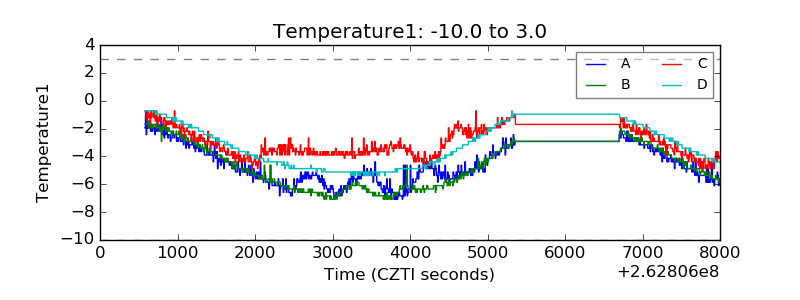

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

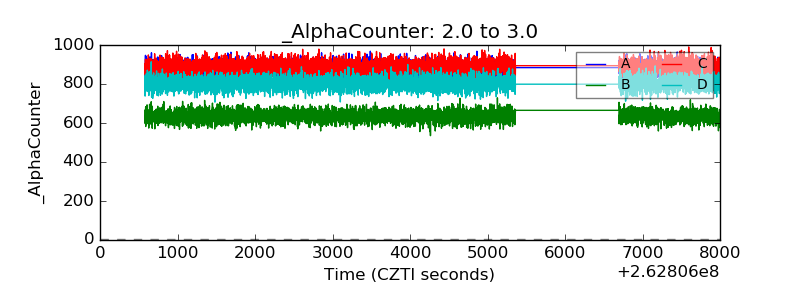

| Alpha Counter |  |

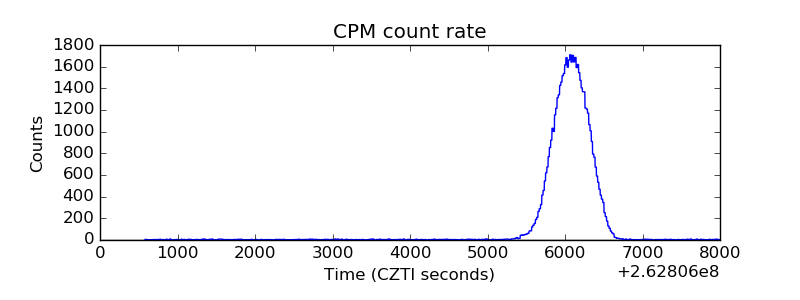

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

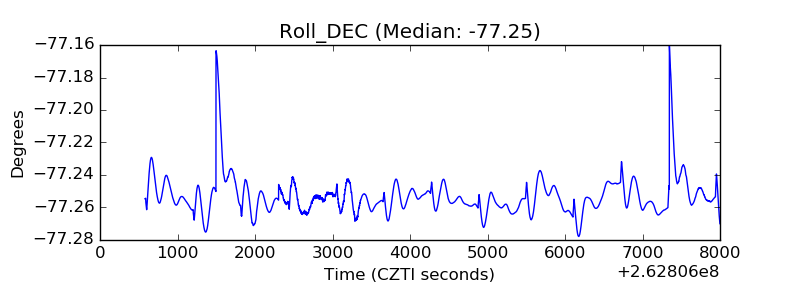

| _Roll_DEC |  |
| _Roll_RA |  |

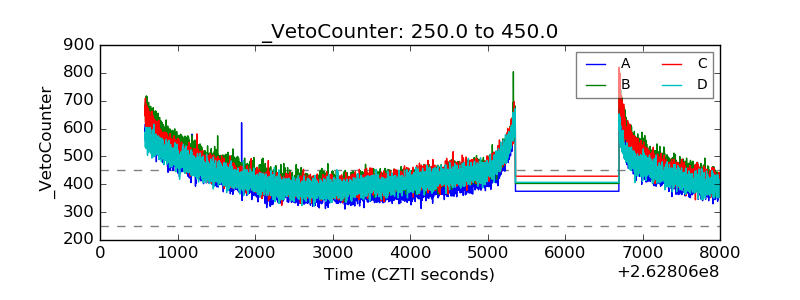

| Veto Counter |  |
