| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_038T02_9000002068_14002cztM0_level2.evt | modeM0/AS1A04_038T02_9000002068_14002cztM0_level2_quad_clean.evt |
| Size (bytes) | 604,261,440 | 120,375,360 |
| Size | 576.3 MB | 114.8 MB |
| Events in quadrant A | 3,131,464 | 822,075 |
| Events in quadrant B | 3,627,223 | 828,114 |
| Events in quadrant C | 3,236,708 | 805,904 |
| Events in quadrant D | 7,842,334 | 713,781 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14051 | 2 |
| B | 0 | 15259 | 1 |
| C | 0 | 14109 | 1 |
| D | 0 | 27986 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6820 | 193 | 2.829912% |
| B | 6820 | 266 | 3.900293% |
| C | 6820 | 187 | 2.741935% |
| D | 6820 | 1415 | 20.747801% |

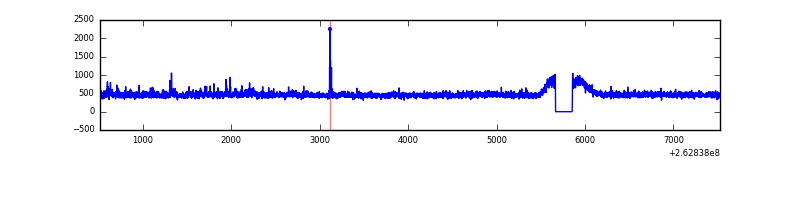

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

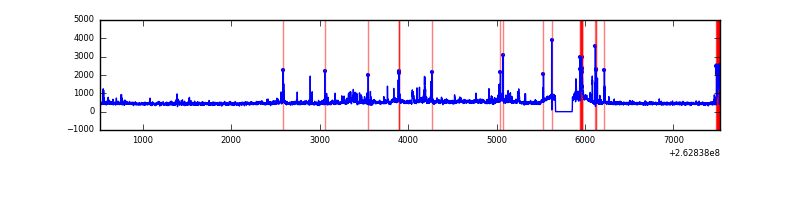

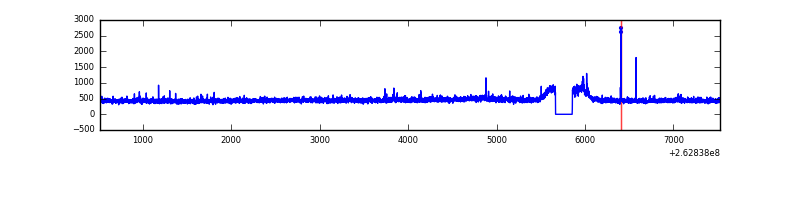

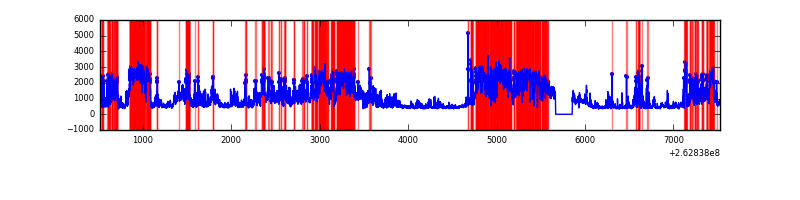

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7011 | 6822 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7011 | 6822 | 48 | 48 | 0.68% | 0.70% |  |
| C | 7011 | 6822 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7011 | 6822 | 1215 | 1215 | 17.33% | 17.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 32825 | 198.11 | 793 | 774 | 161.8 |
| A | 4 | 2 | 12368 | 71.66 | 793 | 774 | 161.8 |
| A | 1 | 162 | 12299 | 71.24 | 793 | 774 | 161.8 |
| B | 10 | 16 | 198251 | 1311.11 | 788 | 766 | 150.6 |
| B | 10 | 244 | 106123 | 699.47 | 788 | 766 | 150.6 |
| B | 0 | 189 | 58984 | 386.51 | 788 | 766 | 150.6 |
| C | 3 | 233 | 211176 | 1180.55 | 771 | 771 | 178.2 |
| C | 14 | 234 | 11631 | 60.93 | 771 | 771 | 178.2 |
| C | 13 | 61 | 5521 | 26.65 | 771 | 771 | 178.2 |
| D | 1 | 52 | 2674830 | 15142.76 | 717 | 698 | 176.6 |
| D | 13 | 104 | 1548295 | 8763.55 | 717 | 698 | 176.6 |
| D | 13 | 122 | 321210 | 1814.96 | 717 | 698 | 176.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

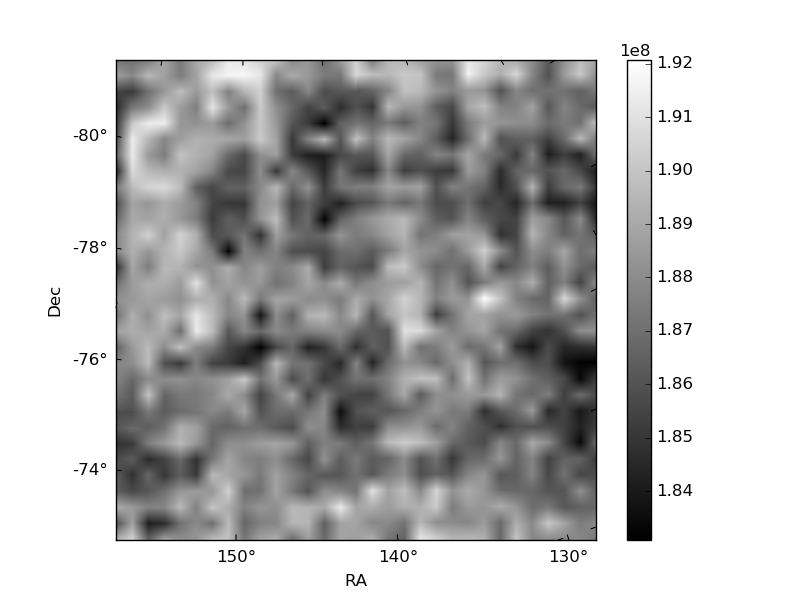

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

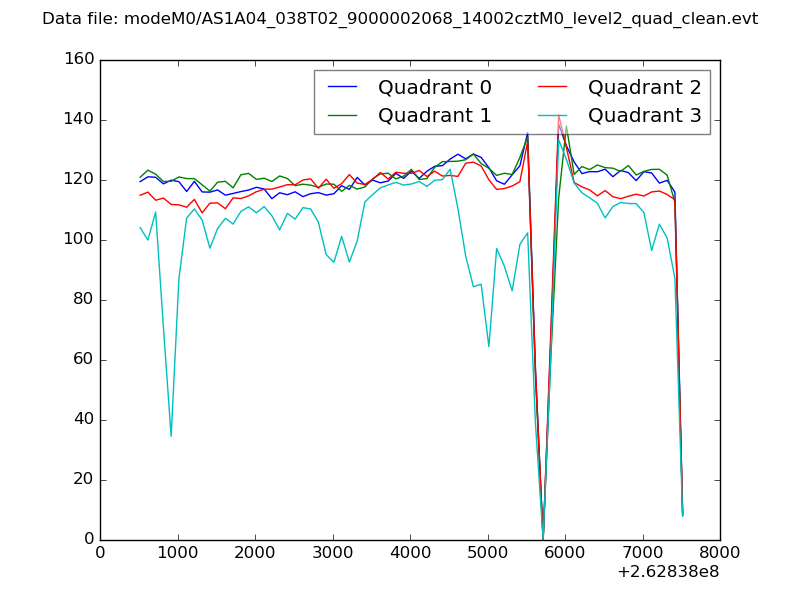

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

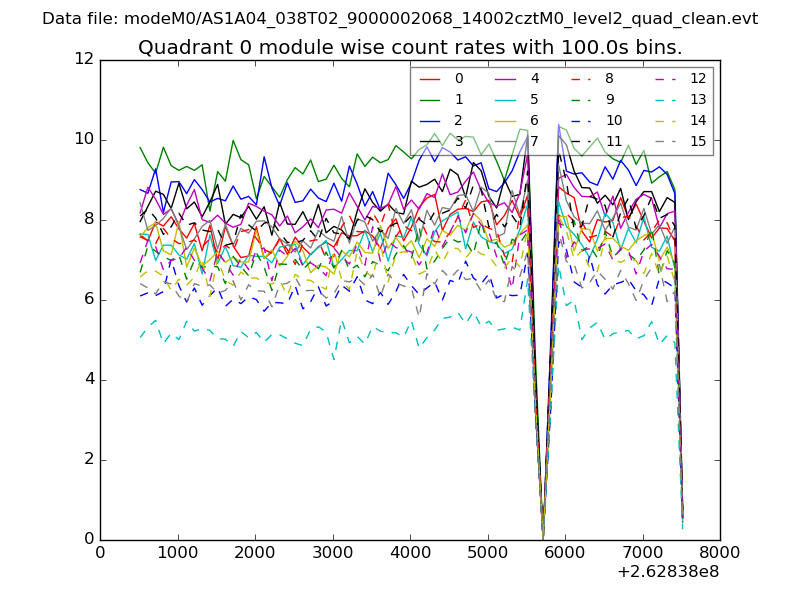

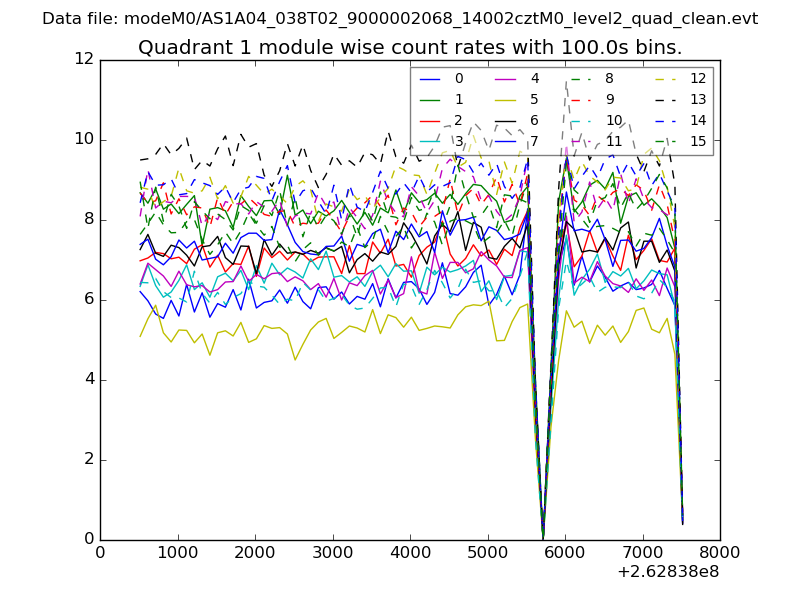

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

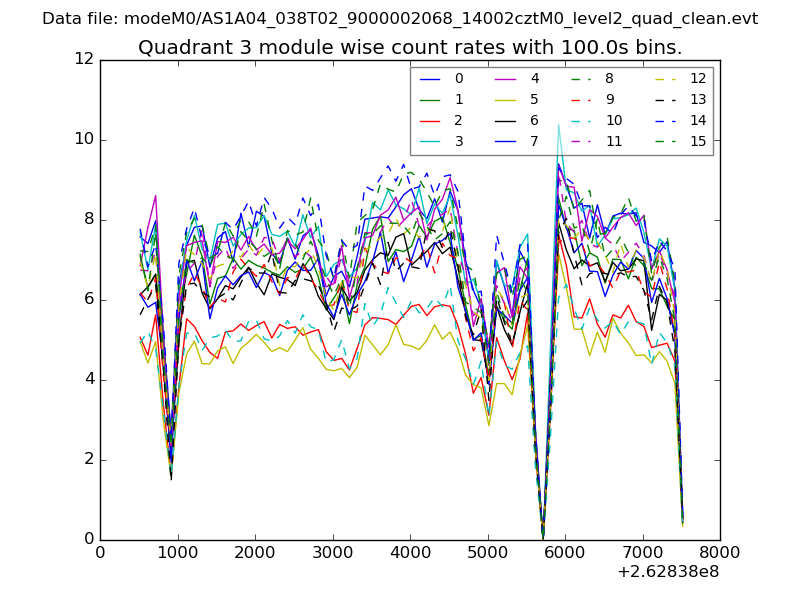

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

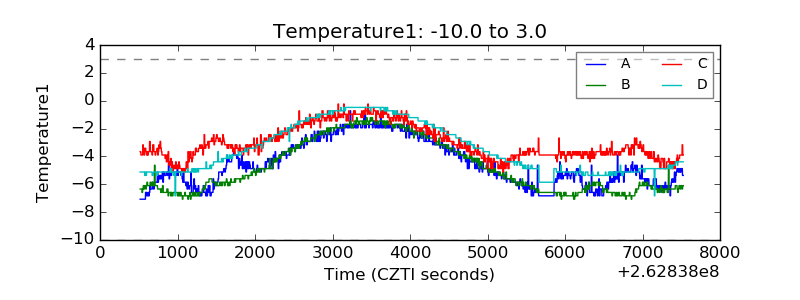

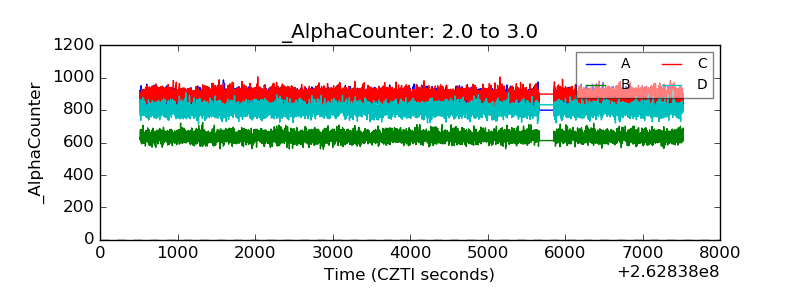

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

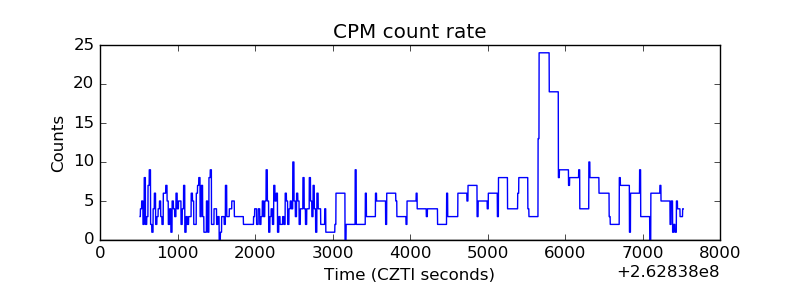

| _CPM_Rate |  |

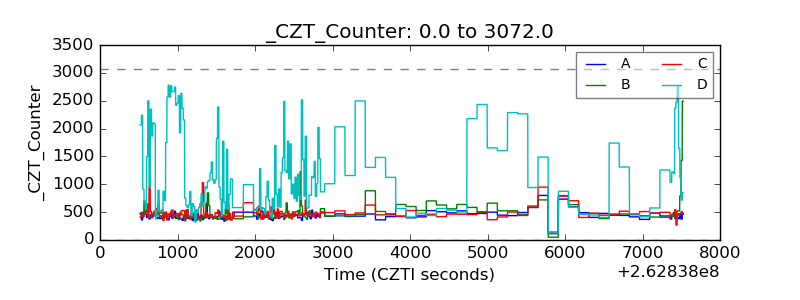

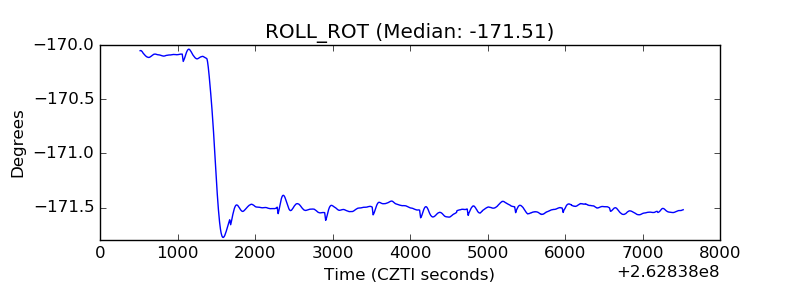

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

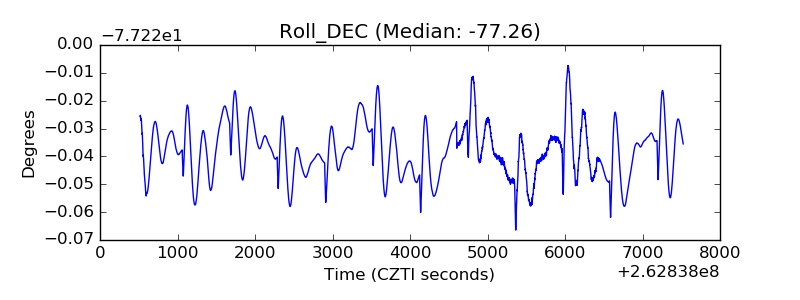

| _Roll_DEC |  |

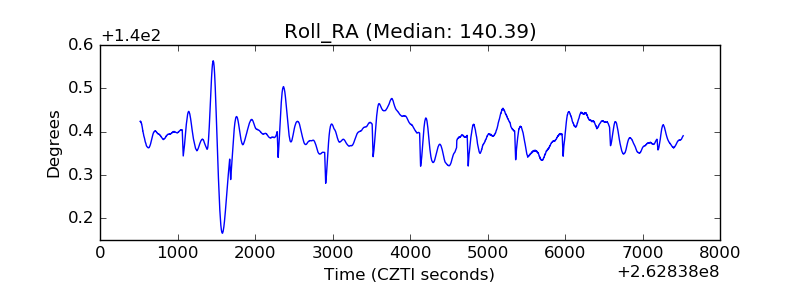

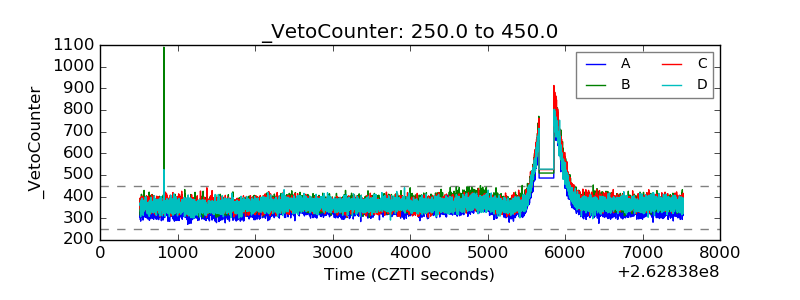

| _Roll_RA |  |
| Veto Counter |  |
