| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_064T01_9000002070_14008cztM0_level2.evt | modeM0/AS1G08_064T01_9000002070_14008cztM0_level2_quad_clean.evt |
| Size (bytes) | 570,185,280 | 99,504,000 |
| Size | 543.8 MB | 94.9 MB |
| Events in quadrant A | 3,521,155 | 647,471 |
| Events in quadrant B | 4,298,528 | 644,522 |
| Events in quadrant C | 3,732,845 | 633,575 |
| Events in quadrant D | 5,238,602 | 597,837 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15078 | 3 |
| B | 0 | 17445 | 2 |
| C | 0 | 15426 | 2 |
| D | 0 | 20246 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7031 | 101 | 1.436496% |
| B | 7031 | 302 | 4.295264% |
| C | 7031 | 119 | 1.692505% |
| D | 7031 | 515 | 7.324705% |

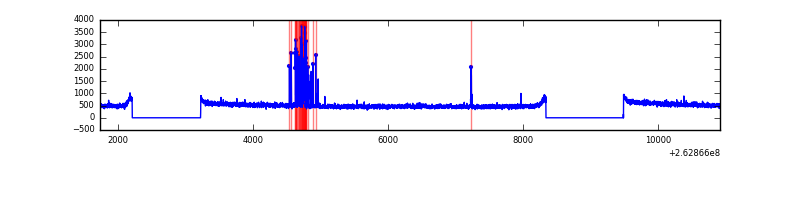

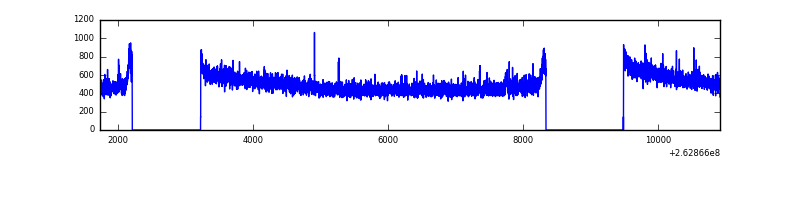

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9197 | 7033 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9197 | 7033 | 106 | 106 | 1.15% | 1.51% |  |
| C | 9197 | 7033 | 35 | 35 | 0.38% | 0.50% |  |
| D | 9197 | 7033 | 356 | 356 | 3.87% | 5.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 20031 | 105.14 | 901 | 880 | 182.1 |
| A | 8 | 15 | 17291 | 90.1 | 901 | 880 | 182.1 |
| A | 1 | 162 | 8641 | 42.61 | 901 | 880 | 182.1 |
| B | 10 | 16 | 649941 | 3904.5 | 874 | 851 | 166.2 |
| B | 4 | 142 | 75548 | 449.33 | 874 | 851 | 166.2 |
| B | 0 | 189 | 64814 | 384.76 | 874 | 851 | 166.2 |
| C | 0 | 207 | 175374 | 875.65 | 866 | 872 | 199.3 |
| C | 3 | 233 | 166100 | 829.11 | 866 | 872 | 199.3 |
| C | 14 | 234 | 15977 | 75.8 | 866 | 872 | 199.3 |
| D | 1 | 52 | 1676829 | 8394.83 | 844 | 823 | 199.6 |
| D | 13 | 189 | 202677 | 1011.05 | 844 | 823 | 199.6 |
| D | 8 | 195 | 50531 | 248.98 | 844 | 823 | 199.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

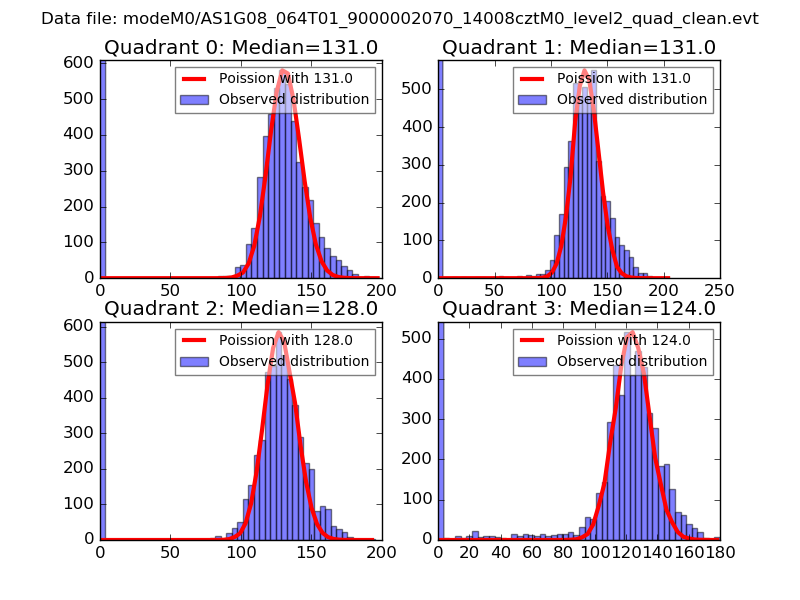

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

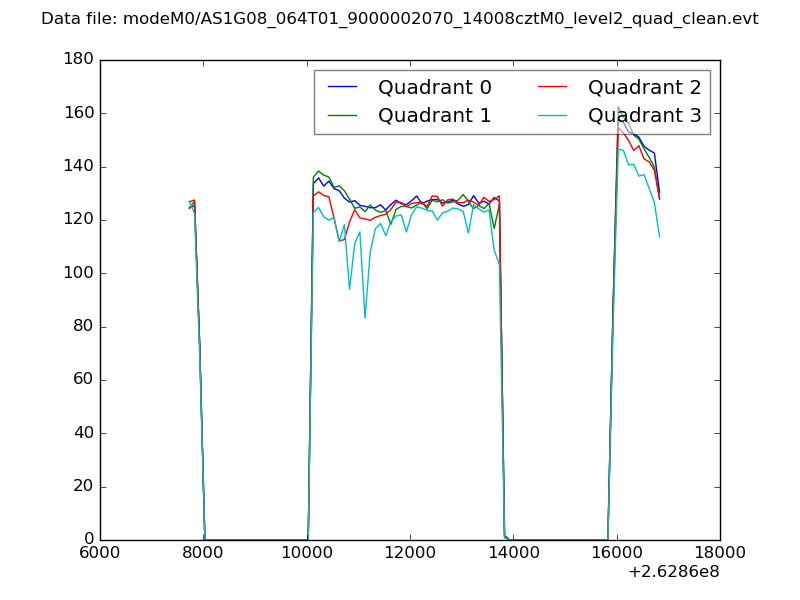

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

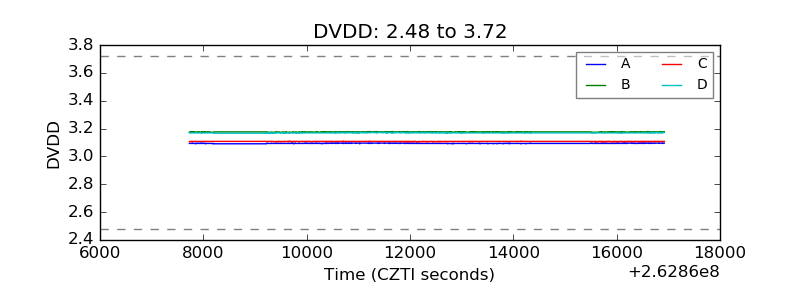

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

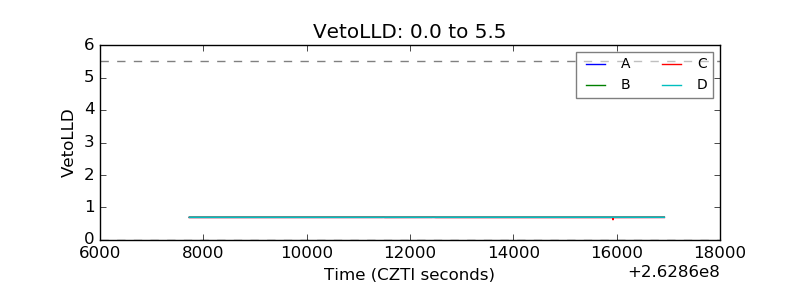

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
