| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_064T01_9000002070_14014cztM0_level2.evt | modeM0/AS1G08_064T01_9000002070_14014cztM0_level2_quad_clean.evt |
| Size (bytes) | 517,124,160 | 100,215,360 |
| Size | 493.2 MB | 95.6 MB |
| Events in quadrant A | 3,413,705 | 637,431 |
| Events in quadrant B | 3,506,789 | 643,998 |
| Events in quadrant C | 3,382,835 | 644,121 |
| Events in quadrant D | 4,876,426 | 615,328 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14917 | 3 |
| B | 0 | 15315 | 2 |
| C | 0 | 14813 | 2 |
| D | 0 | 19083 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7102 | 34 | 0.478738% |
| B | 7102 | 72 | 1.013799% |
| C | 7102 | 28 | 0.394255% |
| D | 7102 | 236 | 3.323008% |

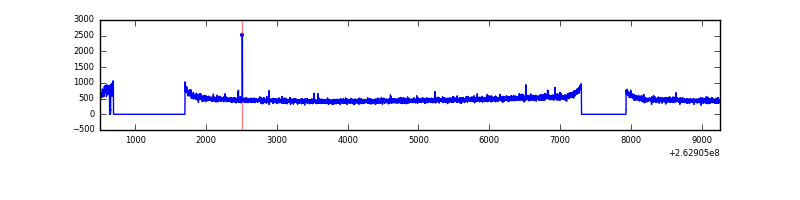

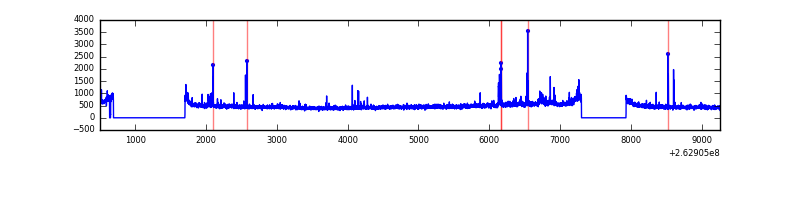

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8758 | 7106 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8758 | 7106 | 6 | 6 | 0.07% | 0.08% |  |
| C | 8758 | 7106 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8758 | 7106 | 185 | 185 | 2.11% | 2.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 53745 | 306.12 | 850 | 831 | 172.9 |
| A | 1 | 162 | 29717 | 167.11 | 850 | 831 | 172.9 |
| A | 8 | 15 | 18514 | 102.3 | 850 | 831 | 172.9 |
| B | 0 | 189 | 42930 | 257.87 | 848 | 824 | 163.3 |
| B | 4 | 173 | 29810 | 177.52 | 848 | 824 | 163.3 |
| B | 0 | 214 | 25221 | 149.41 | 848 | 824 | 163.3 |
| C | 3 | 233 | 110614 | 562.98 | 837 | 840 | 195.0 |
| C | 0 | 207 | 8086 | 37.16 | 837 | 840 | 195.0 |
| C | 13 | 61 | 5932 | 26.11 | 837 | 840 | 195.0 |
| D | 1 | 52 | 1025393 | 4811.6 | 815 | 795 | 212.9 |
| D | 13 | 189 | 286190 | 1340.24 | 815 | 795 | 212.9 |
| D | 8 | 195 | 267494 | 1252.44 | 815 | 795 | 212.9 |

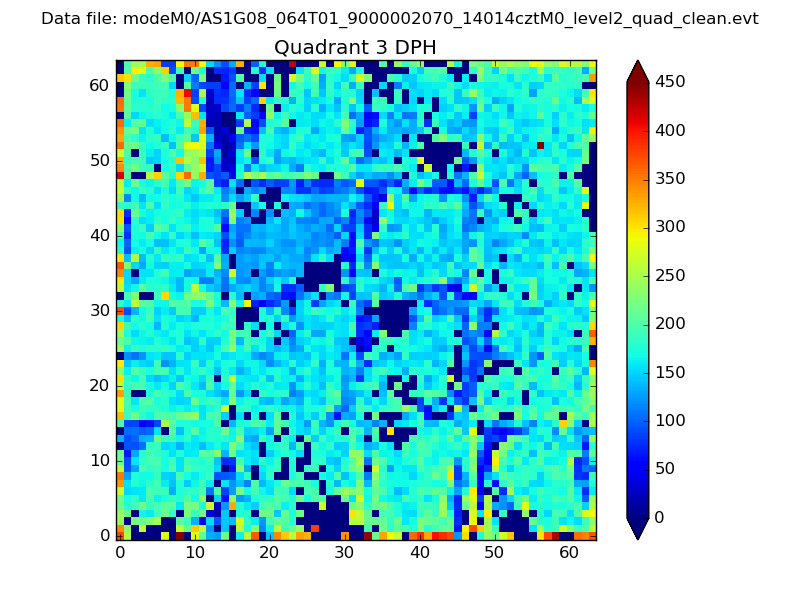

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

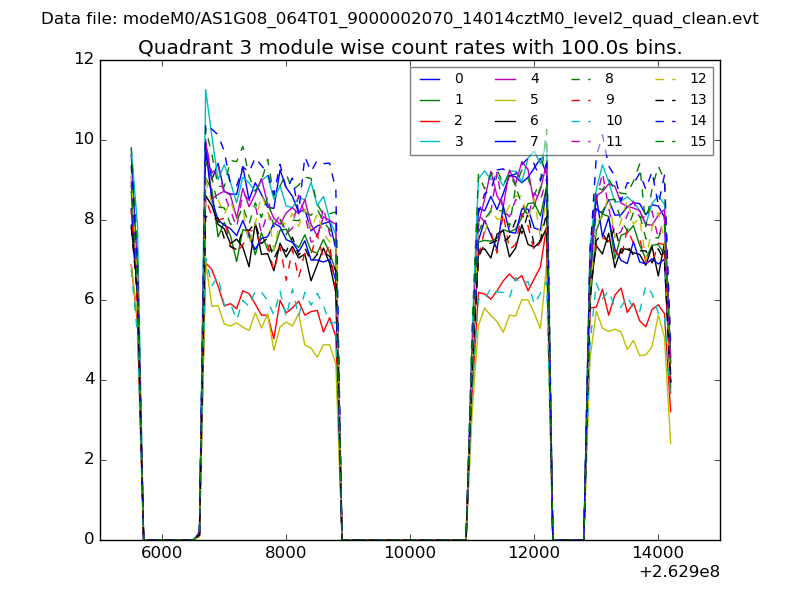

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

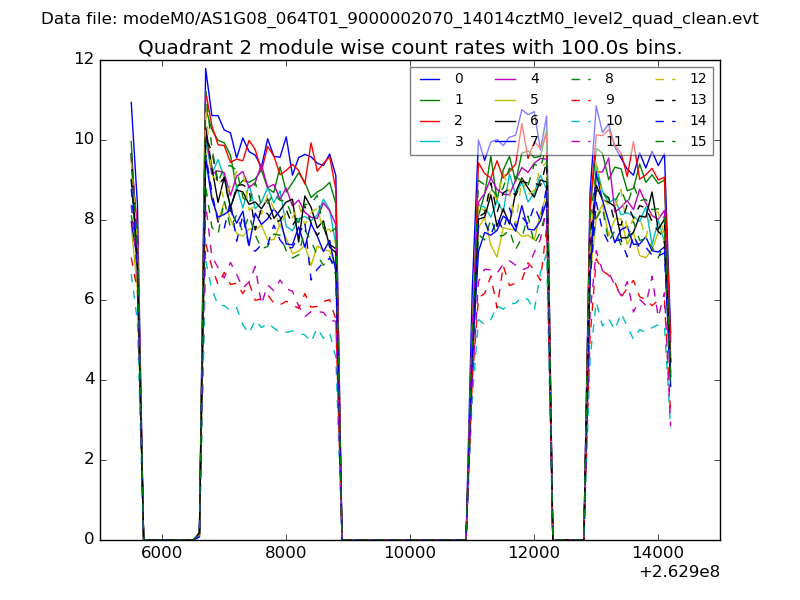

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

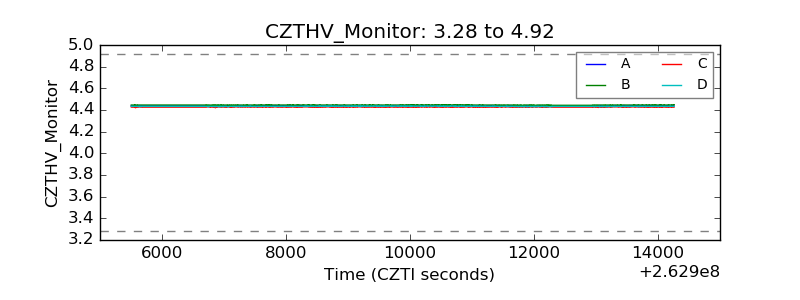

| CZT HV Monitor |  |

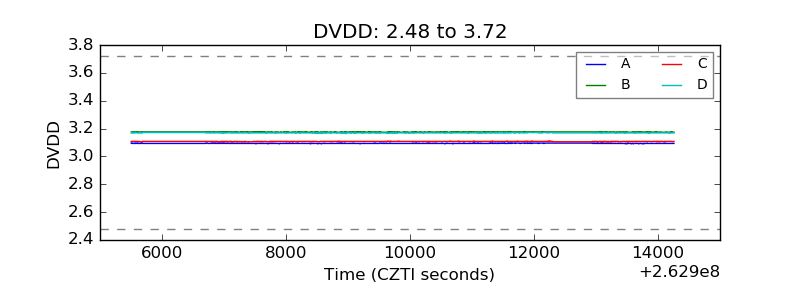

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

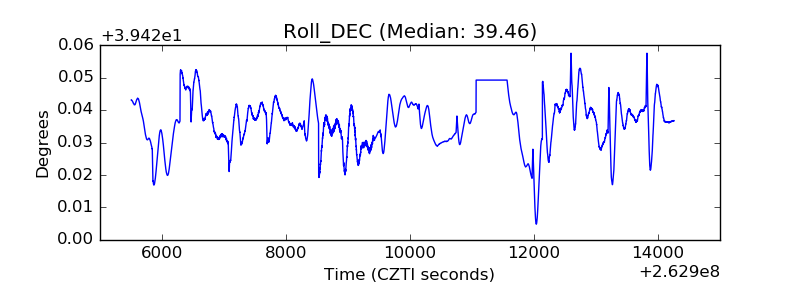

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
