| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_064T01_9000002070_14023cztM0_level2.evt | modeM0/AS1G08_064T01_9000002070_14023cztM0_level2_quad_clean.evt |
| Size (bytes) | 750,317,760 | 171,040,320 |
| Size | 715.6 MB | 163.1 MB |
| Events in quadrant A | 5,219,974 | 1,132,689 |
| Events in quadrant B | 5,441,549 | 1,129,677 |
| Events in quadrant C | 5,252,601 | 1,114,157 |
| Events in quadrant D | 6,094,424 | 1,073,242 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22474 | 3 |
| B | 0 | 23122 | 2 |
| C | 0 | 22234 | 2 |
| D | 0 | 24801 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 214 | 0 |
| B | 0 | 214 | 0 |
| C | 0 | 214 | 0 |
| D | 0 | 214 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10559 | 140 | 1.325883% |
| B | 10559 | 199 | 1.884648% |
| C | 10559 | 117 | 1.108059% |
| D | 10559 | 251 | 2.377119% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12820 | 10562 | 0 | 0 | 0.00% | 0.00% |  |
| B | 12820 | 10561 | 36 | 36 | 0.28% | 0.34% |  |
| C | 12820 | 10562 | 1 | 1 | 0.01% | 0.01% |  |
| D | 12820 | 10562 | 99 | 99 | 0.77% | 0.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 79050 | 292.27 | 1322 | 1292 | 266.0 |
| A | 8 | 15 | 21392 | 75.55 | 1322 | 1292 | 266.0 |
| A | 1 | 162 | 19368 | 67.94 | 1322 | 1292 | 266.0 |
| B | 10 | 16 | 202731 | 821.25 | 1301 | 1272 | 245.3 |
| B | 0 | 189 | 52456 | 208.65 | 1301 | 1272 | 245.3 |
| B | 3 | 209 | 35996 | 141.55 | 1301 | 1272 | 245.3 |
| C | 3 | 233 | 252722 | 854.78 | 1280 | 1287 | 294.2 |
| C | 6 | 253 | 10128 | 30.06 | 1280 | 1287 | 294.2 |
| C | 13 | 61 | 9370 | 27.48 | 1280 | 1287 | 294.2 |
| D | 8 | 195 | 468401 | 1400.11 | 1262 | 1237 | 333.7 |
| D | 10 | 157 | 349340 | 1043.28 | 1262 | 1237 | 333.7 |
| D | 13 | 189 | 267642 | 798.42 | 1262 | 1237 | 333.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

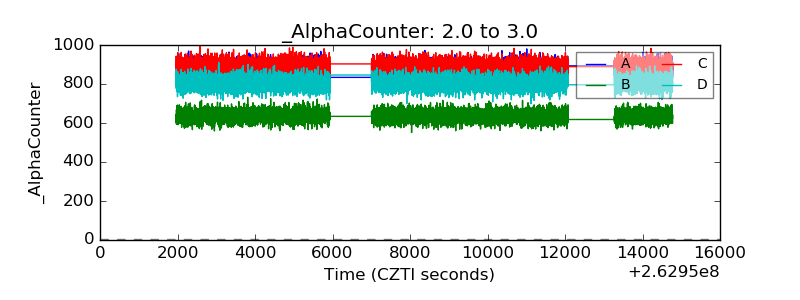

| Alpha Counter |  |

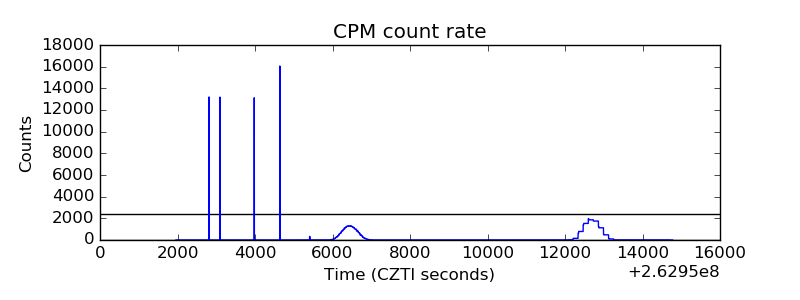

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

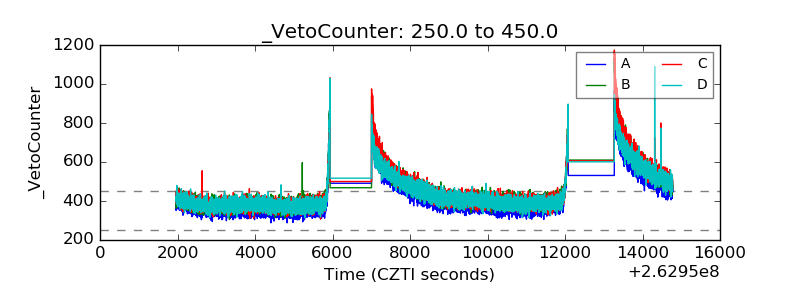

| Veto Counter |  |
