| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_002T01_9000002072_14028cztM0_level2.evt | modeM0/AS1G08_002T01_9000002072_14028cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,145,920 | 91,843,200 |
| Size | 460.8 MB | 87.6 MB |
| Events in quadrant A | 3,195,330 | 581,487 |
| Events in quadrant B | 3,280,666 | 586,240 |
| Events in quadrant C | 4,096,361 | 585,571 |
| Events in quadrant D | 3,608,913 | 565,025 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13862 | 3 |
| B | 0 | 14052 | 2 |
| C | 0 | 16756 | 2 |
| D | 0 | 15420 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6637 | 54 | 0.813621% |
| B | 6637 | 73 | 1.099895% |
| C | 6637 | 43 | 0.647883% |
| D | 6637 | 50 | 0.753352% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

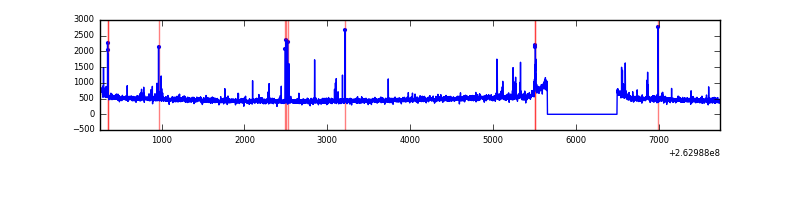

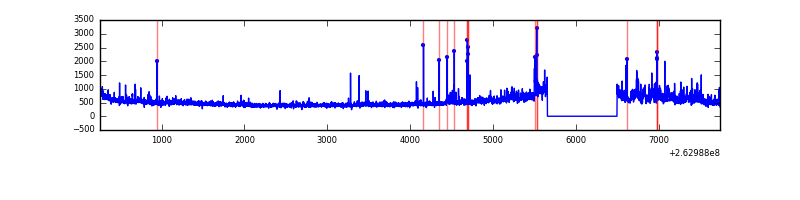

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7478 | 6638 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7478 | 6638 | 10 | 10 | 0.13% | 0.15% |  |
| C | 7478 | 6638 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7478 | 6638 | 16 | 16 | 0.21% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 45323 | 270.19 | 813 | 795 | 164.8 |
| A | 1 | 162 | 9367 | 52.01 | 813 | 795 | 164.8 |
| A | 0 | 226 | 7301 | 39.48 | 813 | 795 | 164.8 |
| B | 4 | 173 | 38600 | 242.87 | 808 | 788 | 155.7 |
| B | 4 | 80 | 26512 | 165.23 | 808 | 788 | 155.7 |
| B | 3 | 64 | 20989 | 129.75 | 808 | 788 | 155.7 |
| C | 3 | 233 | 987982 | 5304.48 | 796 | 802 | 186.1 |
| C | 13 | 61 | 5605 | 25.81 | 796 | 802 | 186.1 |
| C | 14 | 220 | 5053 | 22.84 | 796 | 802 | 186.1 |
| D | 1 | 52 | 335120 | 1628.98 | 787 | 770 | 205.3 |
| D | 8 | 195 | 105032 | 507.97 | 787 | 770 | 205.3 |
| D | 10 | 157 | 89374 | 431.69 | 787 | 770 | 205.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

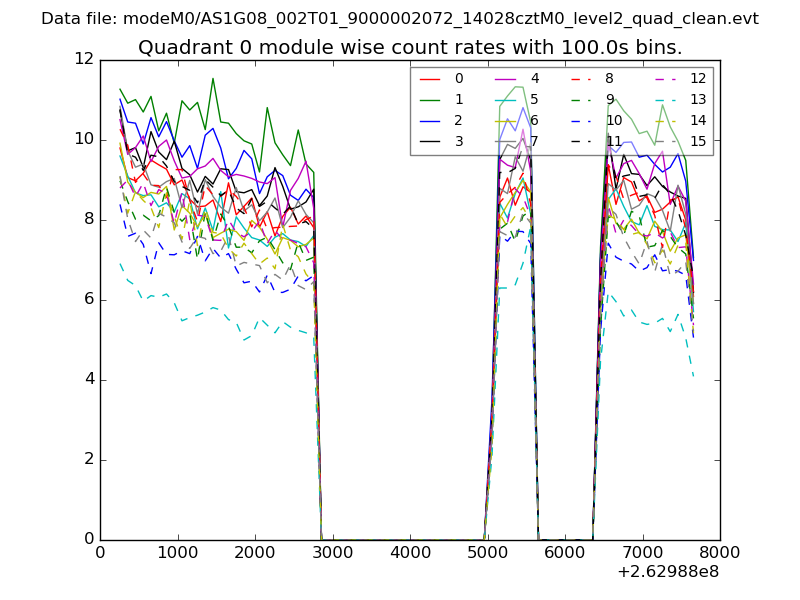

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

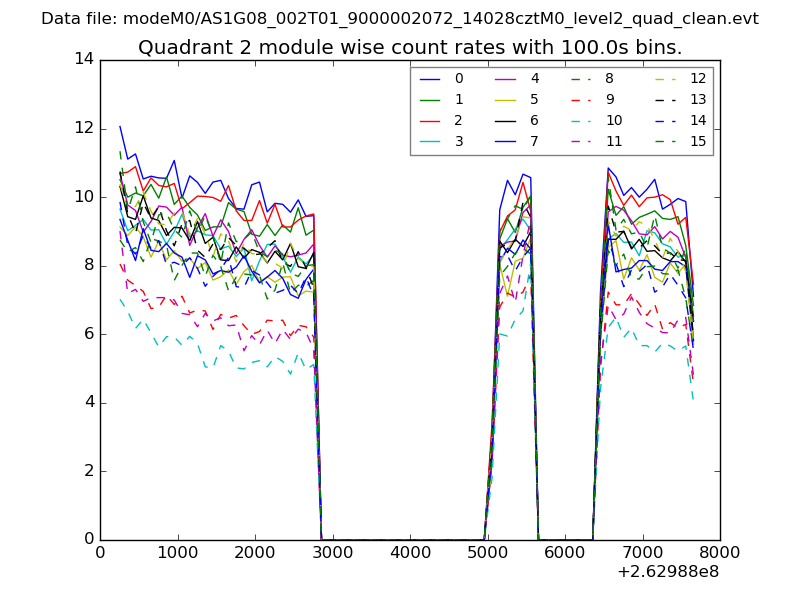

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

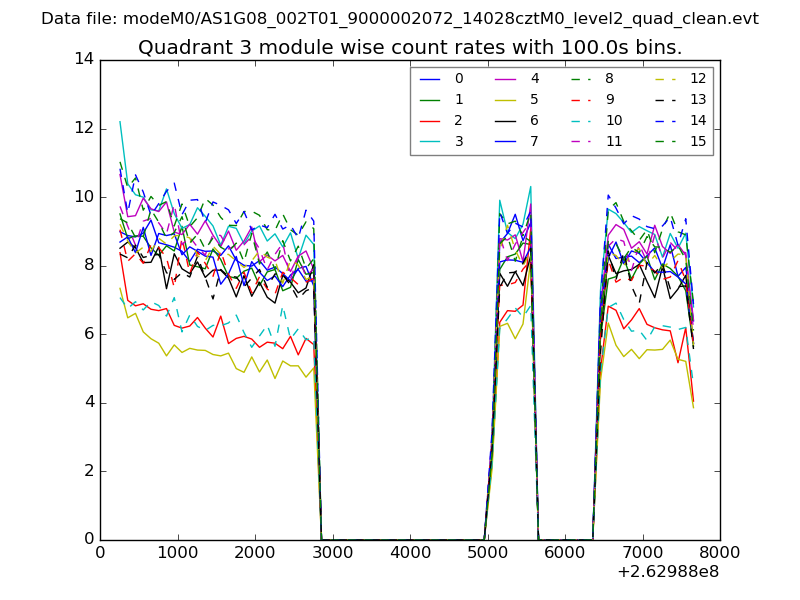

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

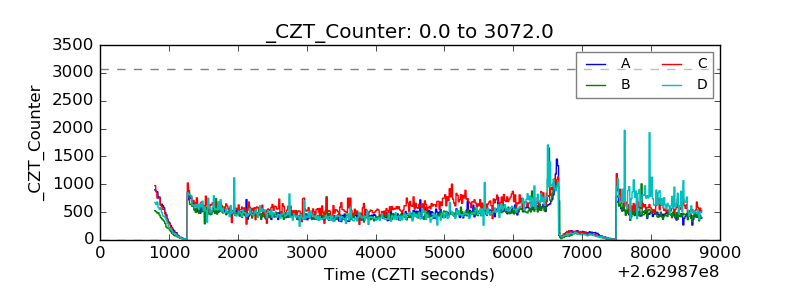

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

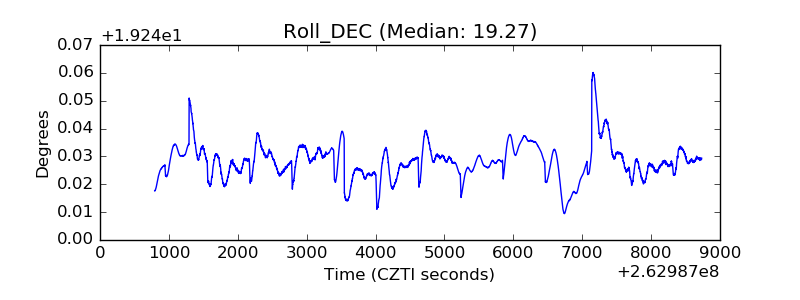

| _Roll_DEC |  |

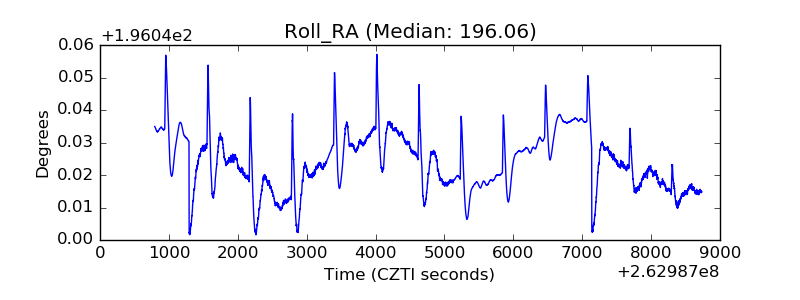

| _Roll_RA |  |
| Veto Counter |  |
