| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_162T01_9000002074_14040cztM0_level2.evt | modeM0/AS1A04_162T01_9000002074_14040cztM0_level2_quad_clean.evt |
| Size (bytes) | 472,904,640 | 132,048,000 |
| Size | 451.0 MB | 125.9 MB |
| Events in quadrant A | 3,153,287 | 917,120 |
| Events in quadrant B | 3,326,354 | 929,124 |
| Events in quadrant C | 3,095,122 | 881,609 |
| Events in quadrant D | 4,329,632 | 842,268 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13327 | 3 |
| B | 0 | 13857 | 2 |
| C | 0 | 13093 | 2 |
| D | 0 | 16964 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6157 | 46 | 0.747117% |
| B | 6157 | 59 | 0.958259% |
| C | 6157 | 12 | 0.194900% |
| D | 6157 | 205 | 3.329544% |

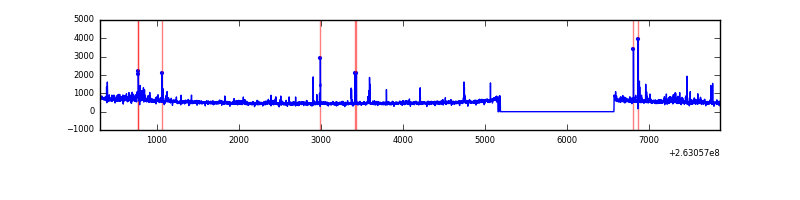

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7558 | 6160 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7558 | 6160 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7558 | 6160 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7558 | 6160 | 170 | 170 | 2.25% | 2.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 85416 | 526.48 | 789 | 775 | 160.8 |
| A | 1 | 162 | 11573 | 67.16 | 789 | 775 | 160.8 |
| A | 4 | 2 | 8289 | 46.74 | 789 | 775 | 160.8 |
| B | 0 | 189 | 133337 | 920.39 | 787 | 768 | 144.0 |
| B | 0 | 219 | 40433 | 275.38 | 787 | 768 | 144.0 |
| B | 3 | 64 | 32046 | 217.15 | 787 | 768 | 144.0 |
| C | 3 | 233 | 181108 | 1063.84 | 745 | 750 | 169.5 |
| C | 0 | 207 | 6885 | 36.19 | 745 | 750 | 169.5 |
| C | 13 | 61 | 5448 | 27.71 | 745 | 750 | 169.5 |
| D | 13 | 104 | 976963 | 5028.25 | 735 | 719 | 194.2 |
| D | 15 | 0 | 182811 | 937.88 | 735 | 719 | 194.2 |
| D | 1 | 52 | 134619 | 689.67 | 735 | 719 | 194.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

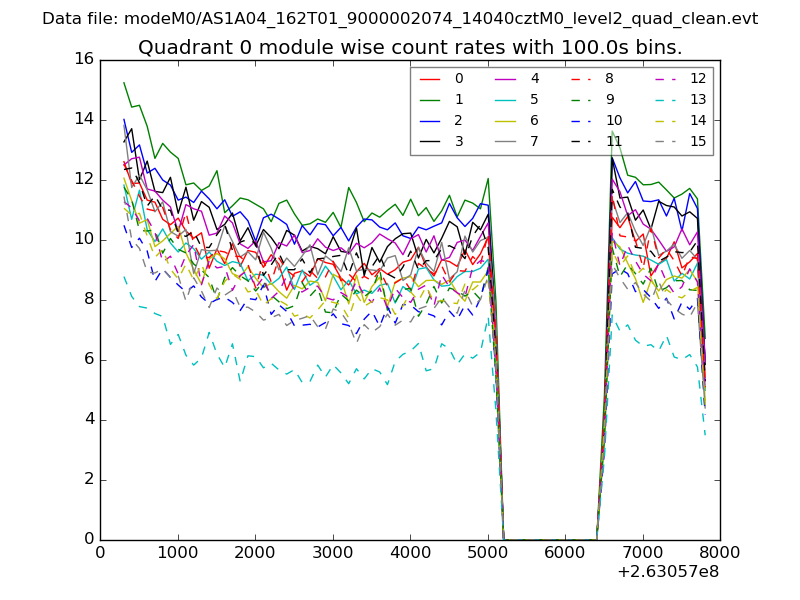

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

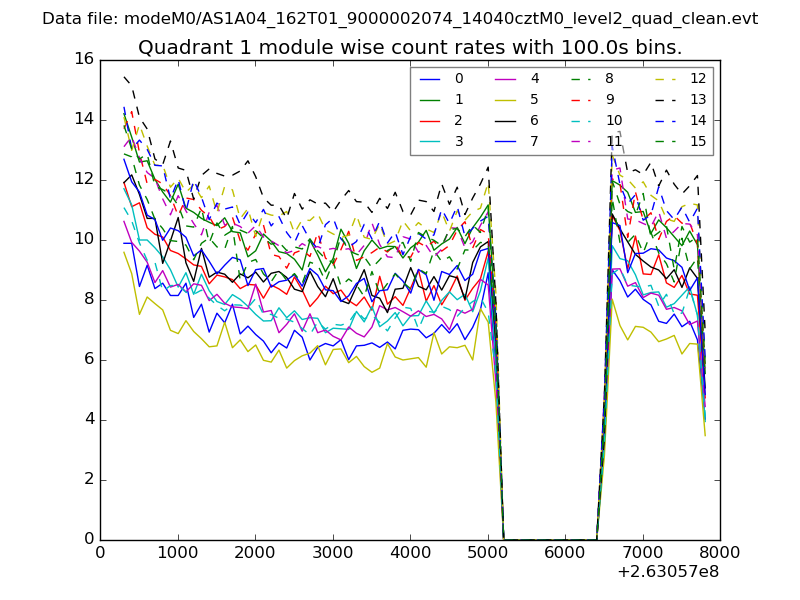

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

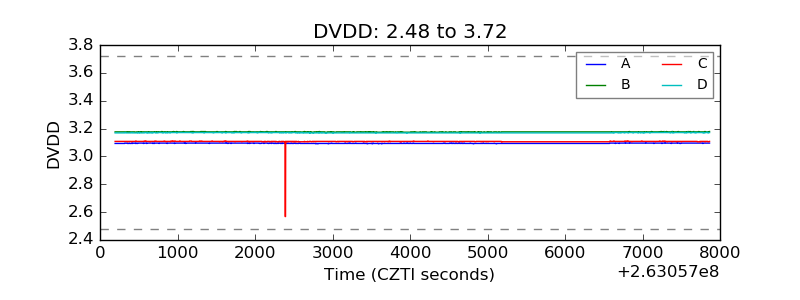

| D_VDD |  |

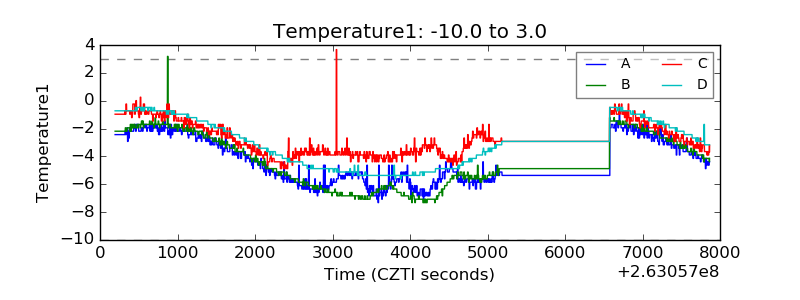

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

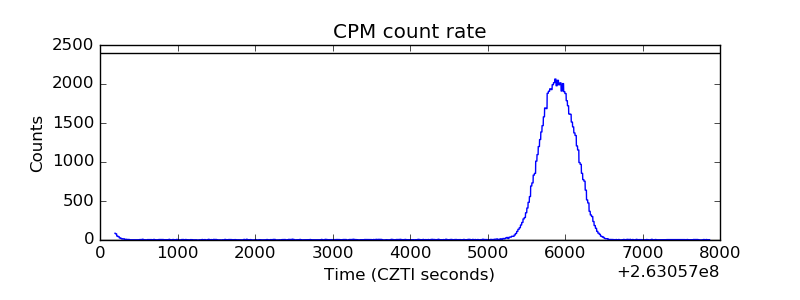

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

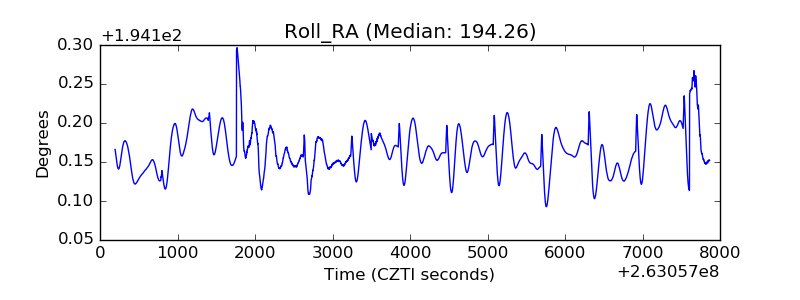

| _Roll_RA |  |
| Veto Counter |  |
