| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_162T01_9000002074_14042cztM0_level2.evt | modeM0/AS1A04_162T01_9000002074_14042cztM0_level2_quad_clean.evt |
| Size (bytes) | 440,717,760 | 126,947,520 |
| Size | 420.3 MB | 121.1 MB |
| Events in quadrant A | 3,221,349 | 865,304 |
| Events in quadrant B | 3,353,202 | 876,904 |
| Events in quadrant C | 3,202,067 | 834,600 |
| Events in quadrant D | 3,128,056 | 814,470 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13861 | 2 |
| B | 0 | 14244 | 1 |
| C | 0 | 13702 | 1 |
| D | 0 | 13920 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6508 | 36 | 0.553165% |
| B | 6508 | 91 | 1.398279% |
| C | 6508 | 19 | 0.291948% |
| D | 6508 | 57 | 0.875845% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

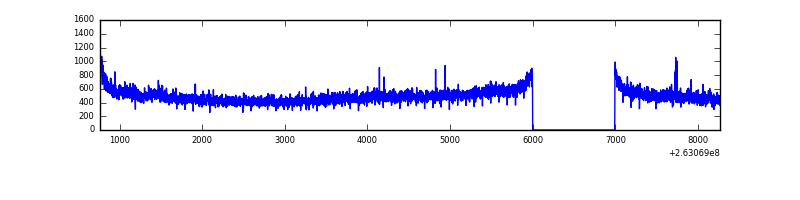

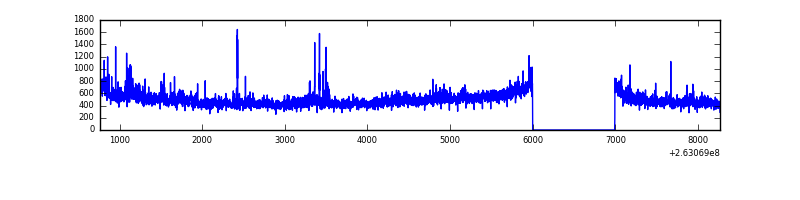

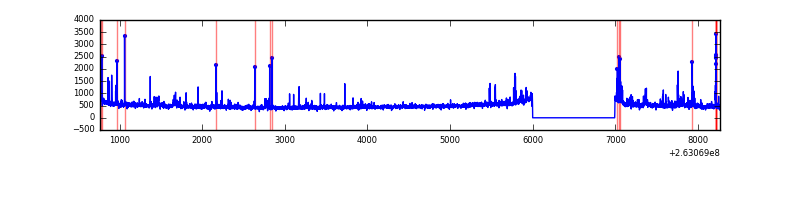

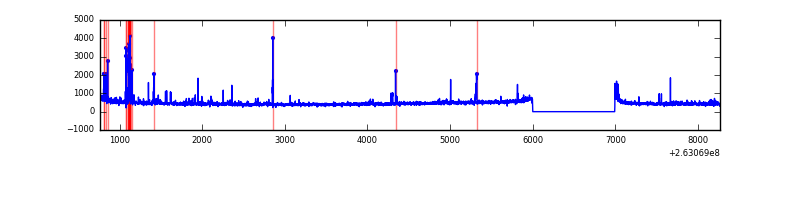

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7504 | 6510 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7504 | 6510 | 17 | 17 | 0.23% | 0.26% |  |
| C | 7504 | 6510 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7504 | 6510 | 27 | 27 | 0.36% | 0.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 89777 | 566.63 | 773 | 758 | 157.1 |
| A | 12 | 189 | 80372 | 506.77 | 773 | 758 | 157.1 |
| A | 1 | 162 | 24375 | 150.33 | 773 | 758 | 157.1 |
| B | 10 | 245 | 100762 | 685.75 | 777 | 759 | 145.8 |
| B | 0 | 189 | 70275 | 476.69 | 777 | 759 | 145.8 |
| B | 0 | 219 | 48330 | 326.21 | 777 | 759 | 145.8 |
| C | 3 | 233 | 303833 | 1781.64 | 740 | 743 | 170.1 |
| C | 12 | 4 | 8346 | 44.69 | 740 | 743 | 170.1 |
| C | 13 | 61 | 5274 | 26.63 | 740 | 743 | 170.1 |
| D | 1 | 52 | 143041 | 759.39 | 732 | 712 | 187.4 |
| D | 8 | 195 | 61538 | 324.54 | 732 | 712 | 187.4 |
| D | 13 | 104 | 47866 | 251.59 | 732 | 712 | 187.4 |

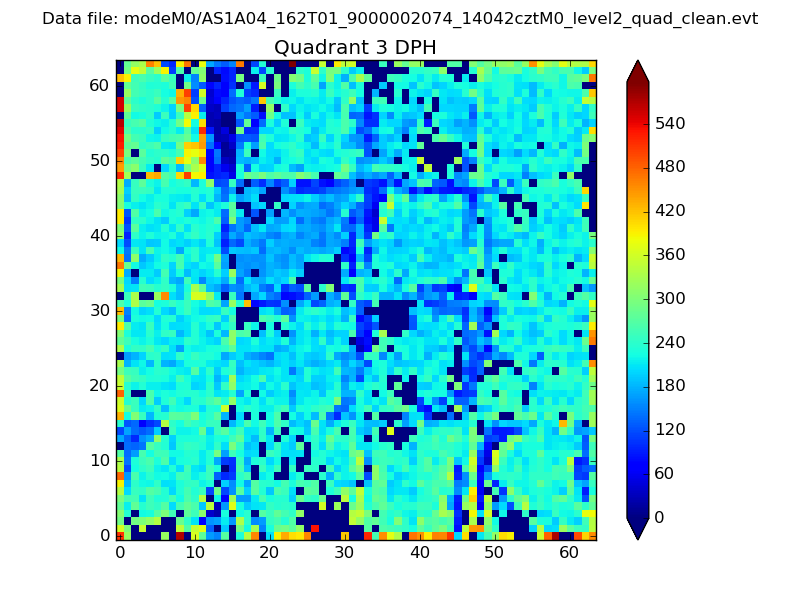

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

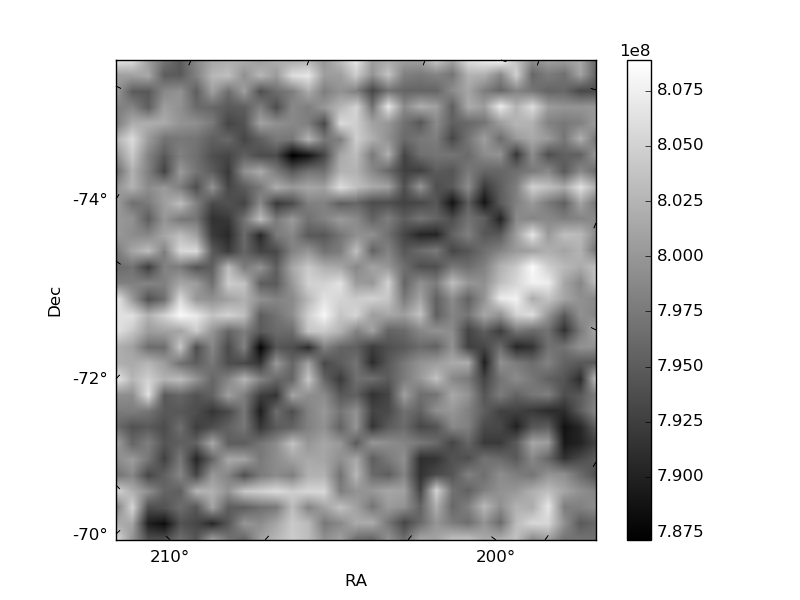

| Plot type | Count rate plots | Images |
|---|---|---|

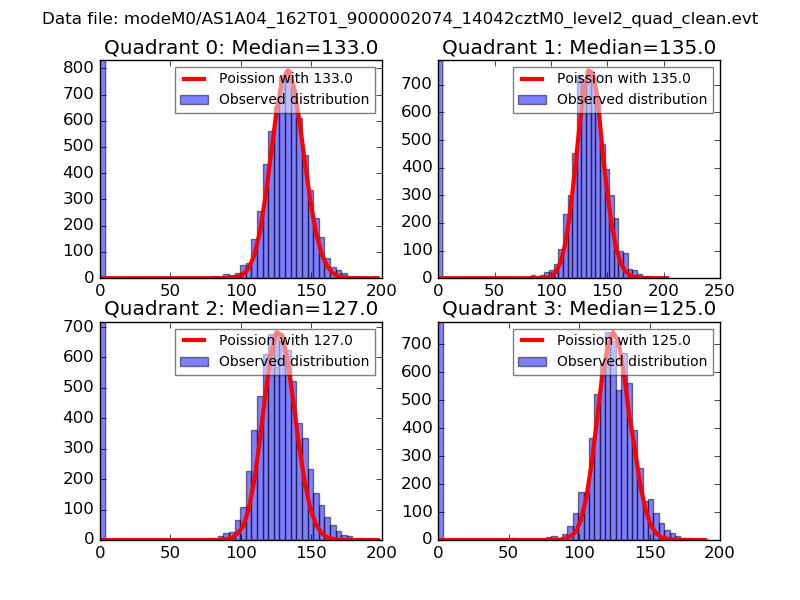

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

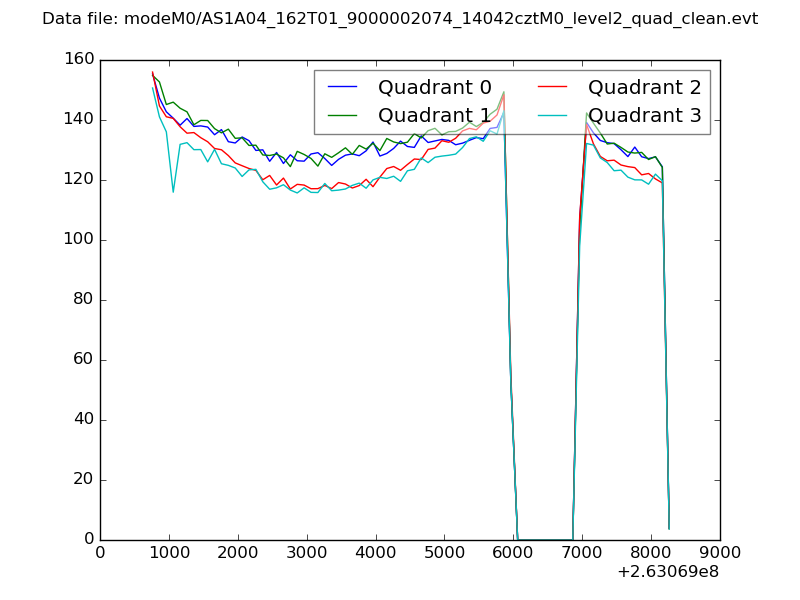

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

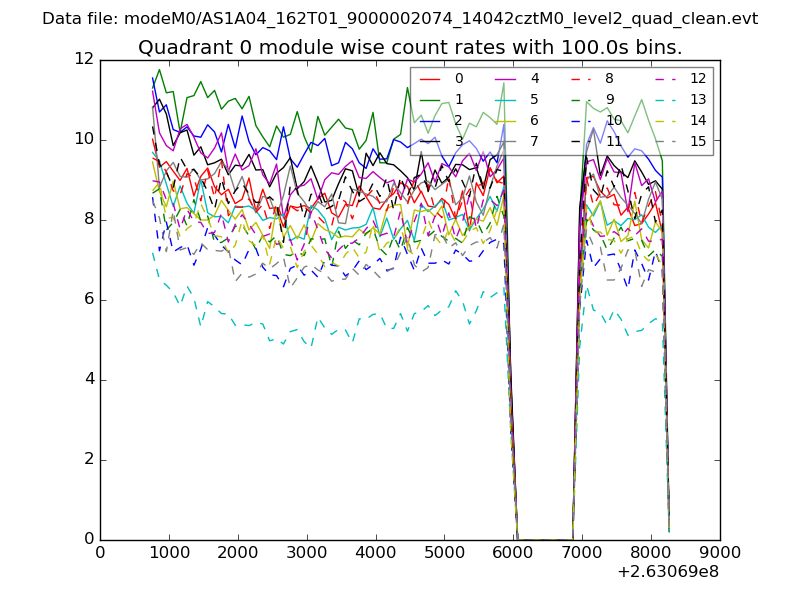

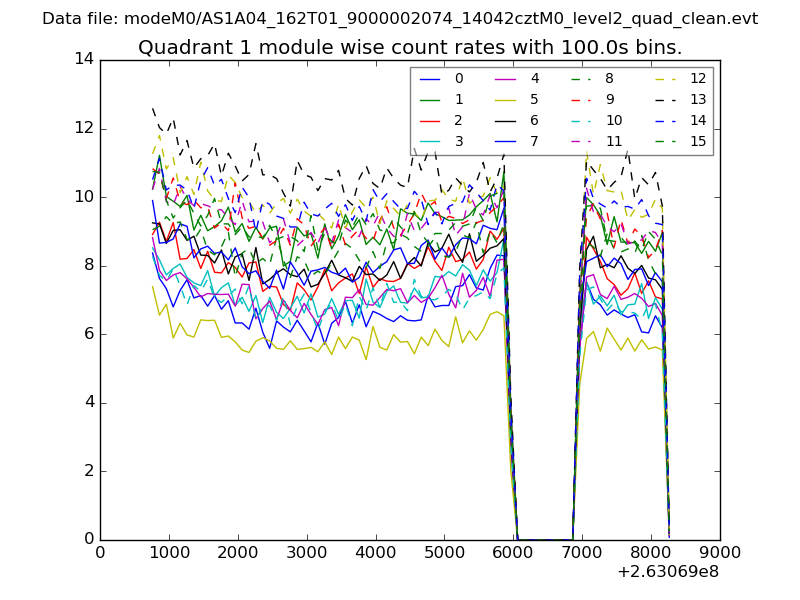

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

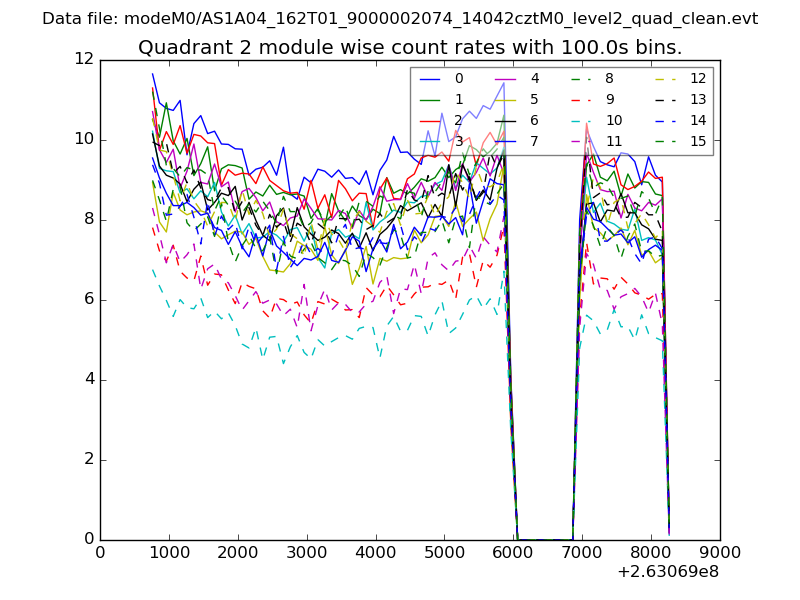

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

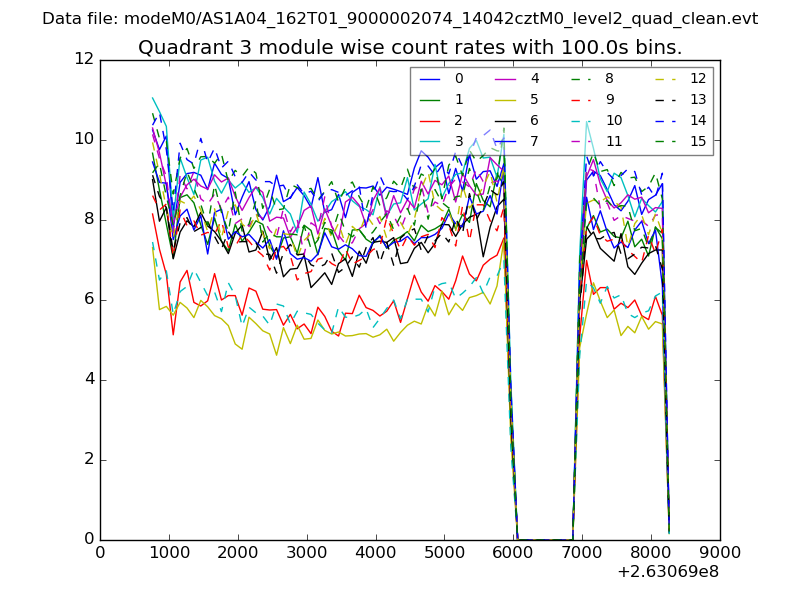

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

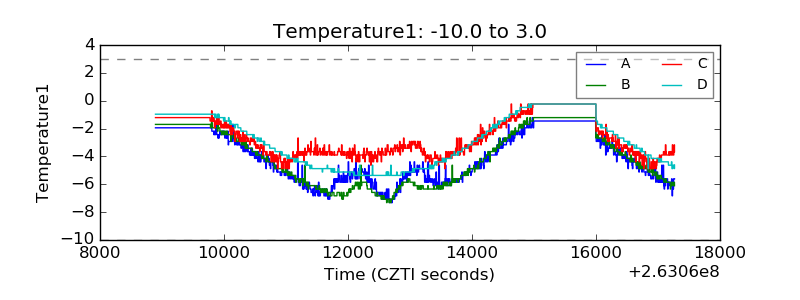

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

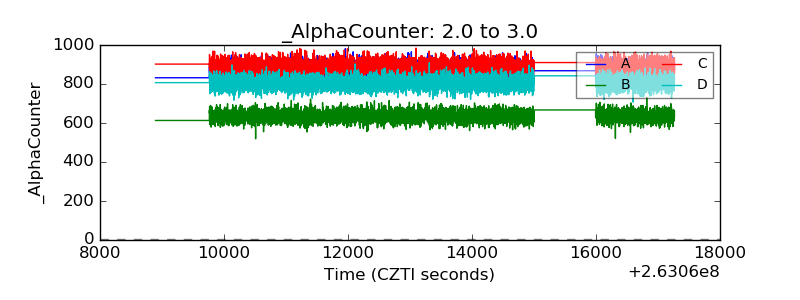

| Alpha Counter |  |

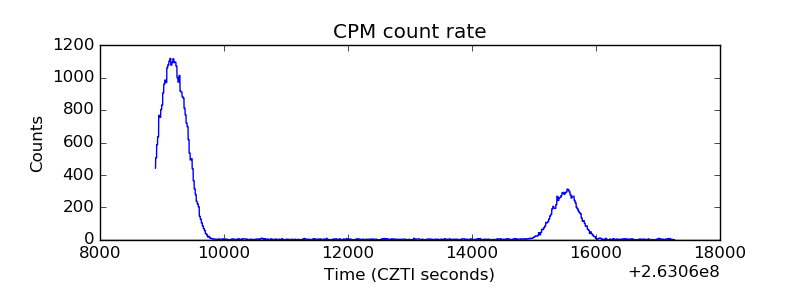

| _CPM_Rate |  |

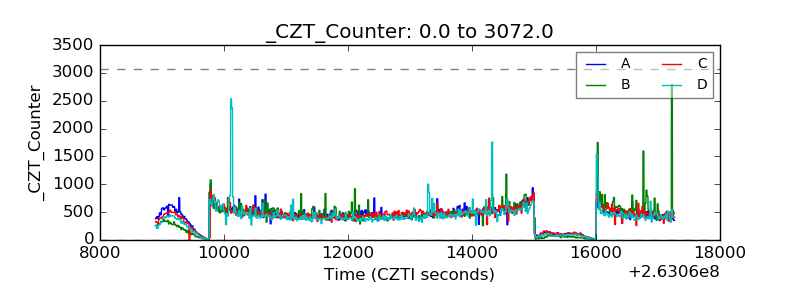

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

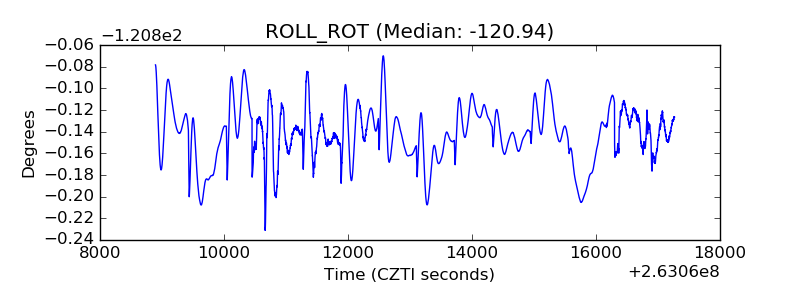

| _ROLL_ROT |  |

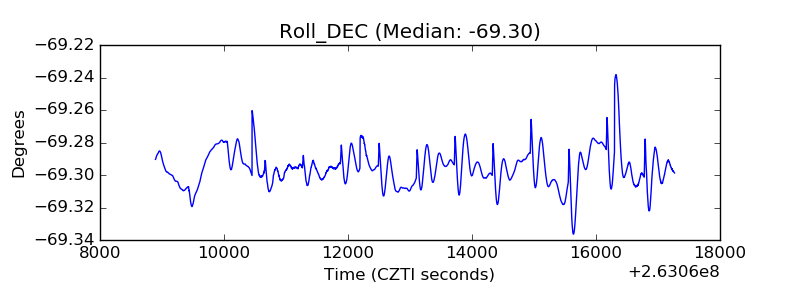

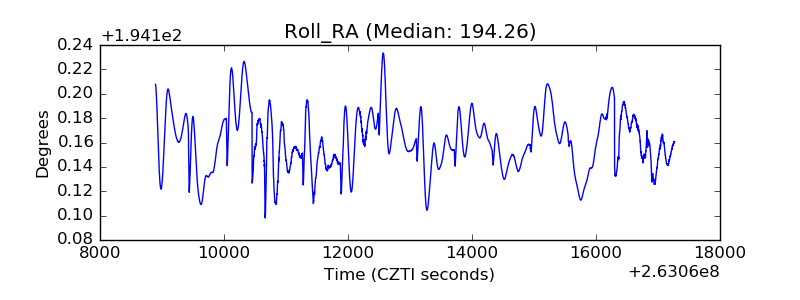

| _Roll_DEC |  |
| _Roll_RA |  |

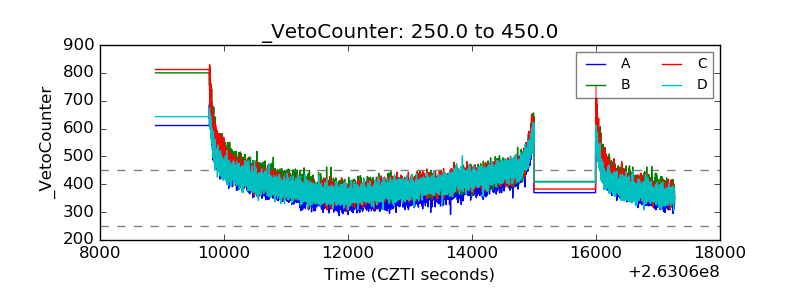

| Veto Counter |  |
