| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_162T01_9000002074_14043cztM0_level2.evt | modeM0/AS1A04_162T01_9000002074_14043cztM0_level2_quad_clean.evt |
| Size (bytes) | 507,686,400 | 130,887,360 |
| Size | 484.2 MB | 124.8 MB |
| Events in quadrant A | 3,405,104 | 889,209 |
| Events in quadrant B | 3,772,693 | 898,896 |
| Events in quadrant C | 3,737,040 | 855,925 |
| Events in quadrant D | 3,984,817 | 832,294 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14861 | 2 |
| B | 0 | 15893 | 1 |
| C | 0 | 15557 | 1 |
| D | 0 | 16958 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7007 | 43 | 0.613672% |
| B | 7007 | 90 | 1.284430% |
| C | 7007 | 111 | 1.584130% |
| D | 7007 | 113 | 1.612673% |

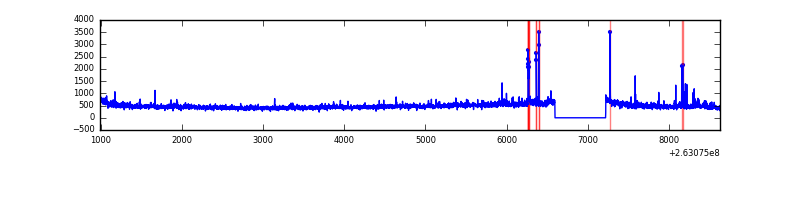

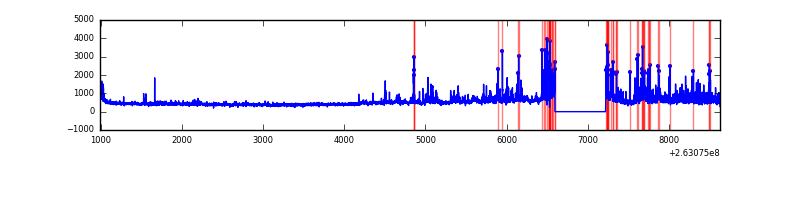

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7633 | 7009 | 13 | 13 | 0.17% | 0.19% |  |
| B | 7633 | 7009 | 19 | 19 | 0.25% | 0.27% |  |
| C | 7633 | 7009 | 60 | 60 | 0.79% | 0.86% |  |
| D | 7633 | 7009 | 59 | 59 | 0.77% | 0.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 113652 | 684.17 | 810 | 794 | 165.0 |
| A | 15 | 222 | 47083 | 280.62 | 810 | 794 | 165.0 |
| A | 15 | 69 | 38980 | 231.49 | 810 | 794 | 165.0 |
| B | 10 | 245 | 197445 | 1283.52 | 814 | 795 | 153.2 |
| B | 0 | 219 | 192961 | 1254.25 | 814 | 795 | 153.2 |
| B | 0 | 189 | 91928 | 594.82 | 814 | 795 | 153.2 |
| C | 3 | 233 | 627986 | 3506.94 | 774 | 775 | 178.8 |
| C | 14 | 220 | 42310 | 232.24 | 774 | 775 | 178.8 |
| C | 0 | 207 | 24437 | 132.3 | 774 | 775 | 178.8 |
| D | 1 | 52 | 550961 | 2676.03 | 764 | 747 | 205.6 |
| D | 8 | 195 | 192288 | 931.58 | 764 | 747 | 205.6 |
| D | 15 | 0 | 94069 | 453.88 | 764 | 747 | 205.6 |

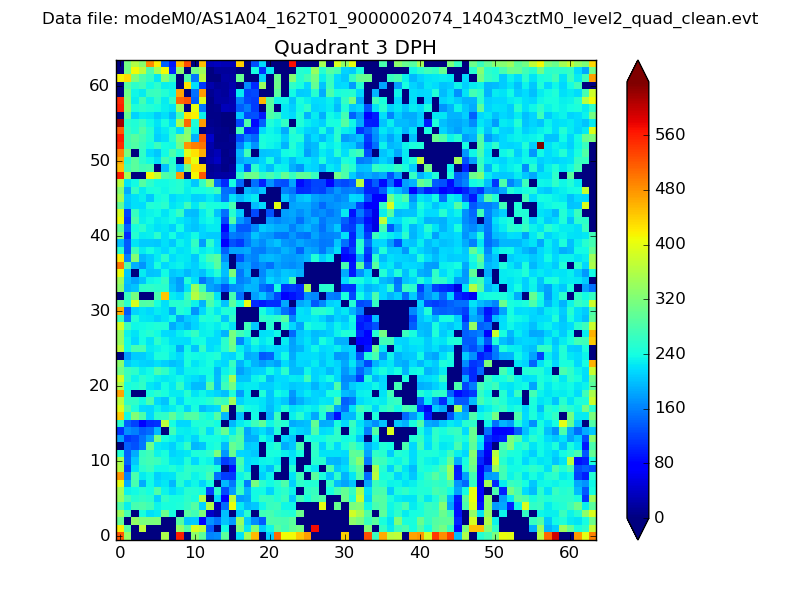

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

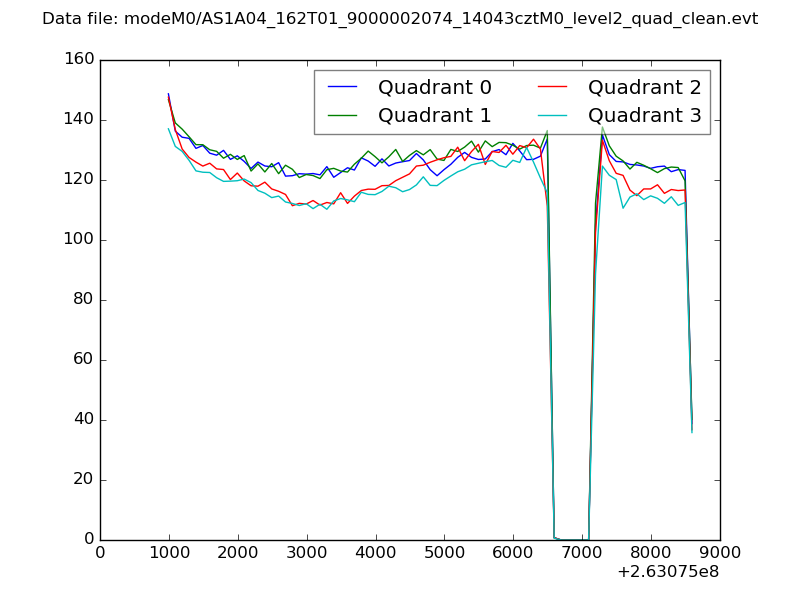

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

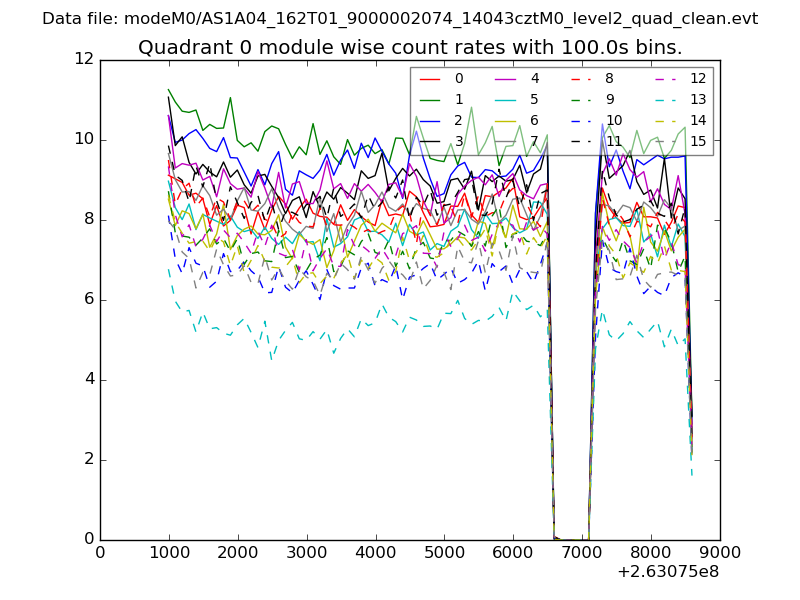

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

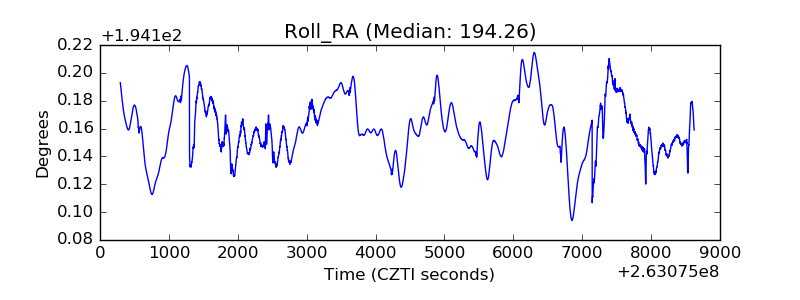

| _Roll_RA |  |
| Veto Counter |  |
