| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_162T01_9000002074_14051cztM0_level2.evt | modeM0/AS1A04_162T01_9000002074_14051cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,091,840 | 128,799,360 |
| Size | 451.2 MB | 122.8 MB |
| Events in quadrant A | 3,238,476 | 874,089 |
| Events in quadrant B | 3,405,528 | 889,427 |
| Events in quadrant C | 3,232,267 | 863,262 |
| Events in quadrant D | 4,010,178 | 821,163 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13850 | 3 |
| B | 0 | 14230 | 2 |
| C | 0 | 14099 | 2 |
| D | 0 | 16165 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6502 | 78 | 1.199631% |
| B | 6502 | 119 | 1.830206% |
| C | 6502 | 73 | 1.122731% |
| D | 6502 | 141 | 2.168564% |

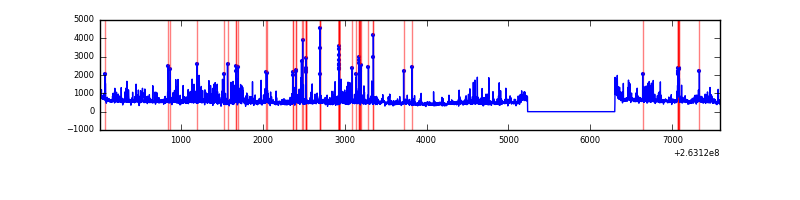

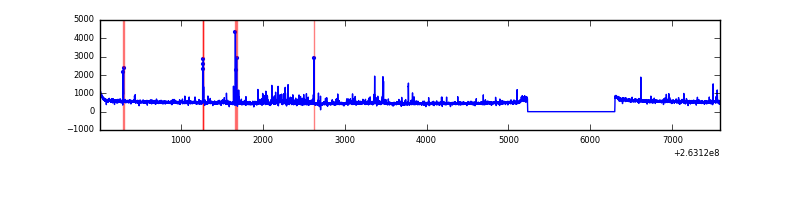

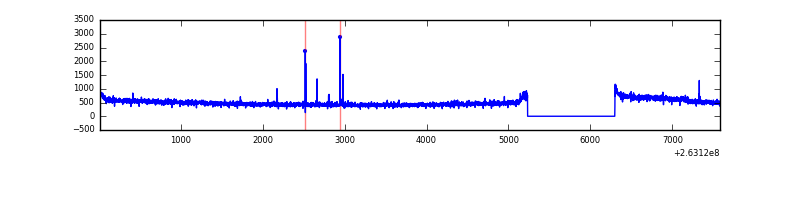

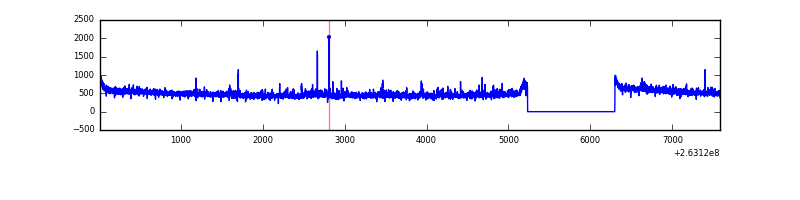

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7568 | 6504 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7568 | 6504 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7568 | 6504 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7568 | 6504 | 53 | 53 | 0.70% | 0.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 68464 | 415.95 | 807 | 790 | 162.7 |
| A | 8 | 15 | 17852 | 104.87 | 807 | 790 | 162.7 |
| A | 12 | 96 | 13240 | 76.52 | 807 | 790 | 162.7 |
| B | 0 | 189 | 100326 | 661.71 | 804 | 783 | 150.4 |
| B | 3 | 209 | 27468 | 177.39 | 804 | 783 | 150.4 |
| B | 0 | 219 | 24913 | 160.4 | 804 | 783 | 150.4 |
| C | 3 | 233 | 172824 | 971.75 | 779 | 781 | 177.0 |
| C | 0 | 207 | 17706 | 95.6 | 779 | 781 | 177.0 |
| C | 13 | 61 | 5735 | 27.98 | 779 | 781 | 177.0 |
| D | 1 | 52 | 500230 | 2677.5 | 781 | 758 | 186.5 |
| D | 8 | 195 | 289390 | 1547.26 | 781 | 758 | 186.5 |
| D | 2 | 152 | 113441 | 604.06 | 781 | 758 | 186.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

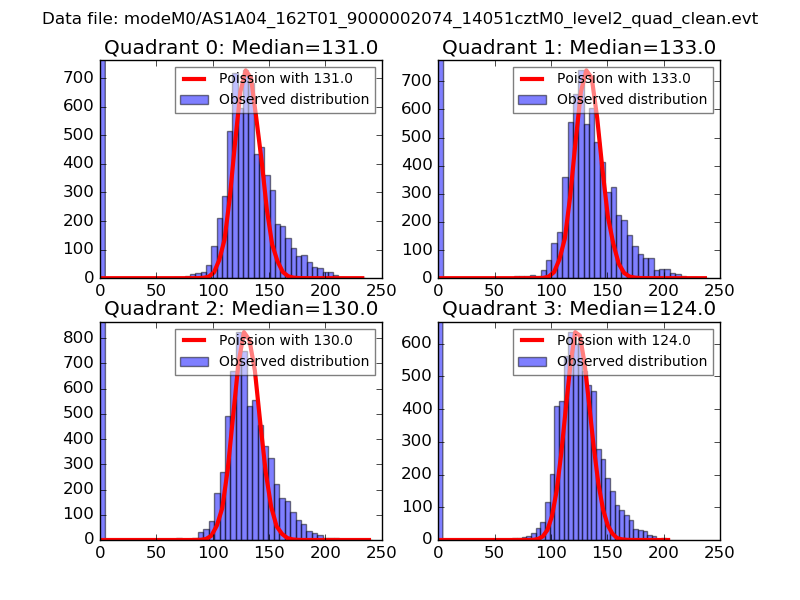

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

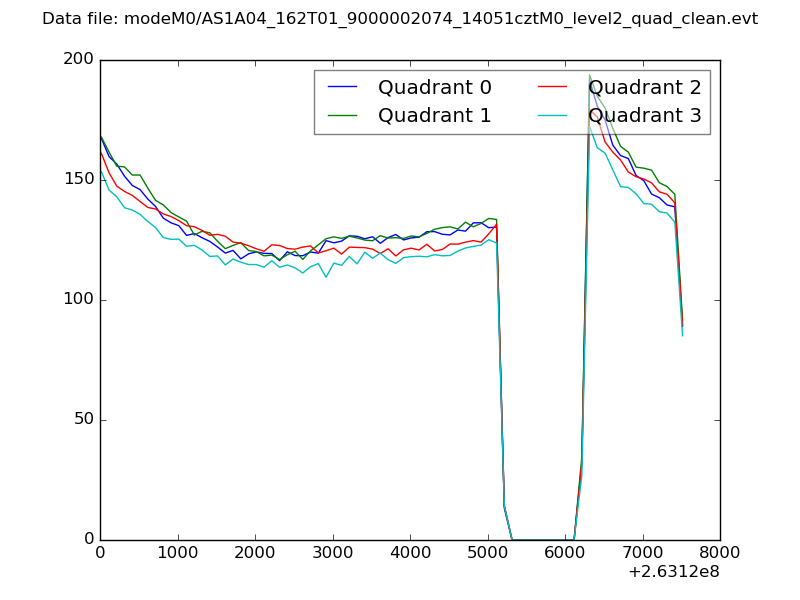

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

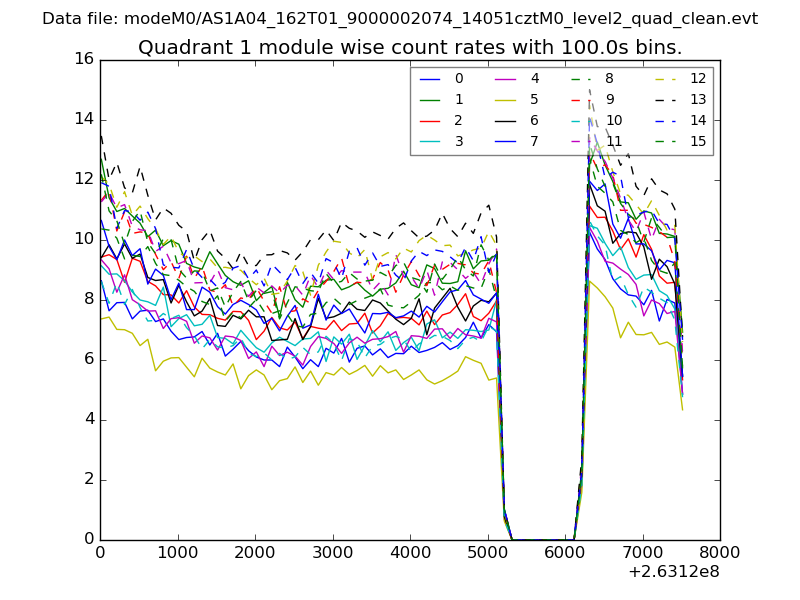

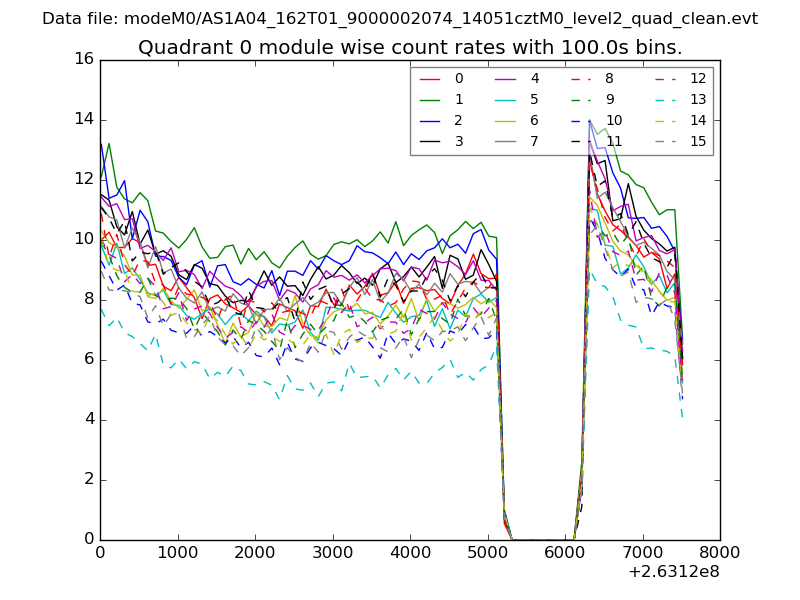

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

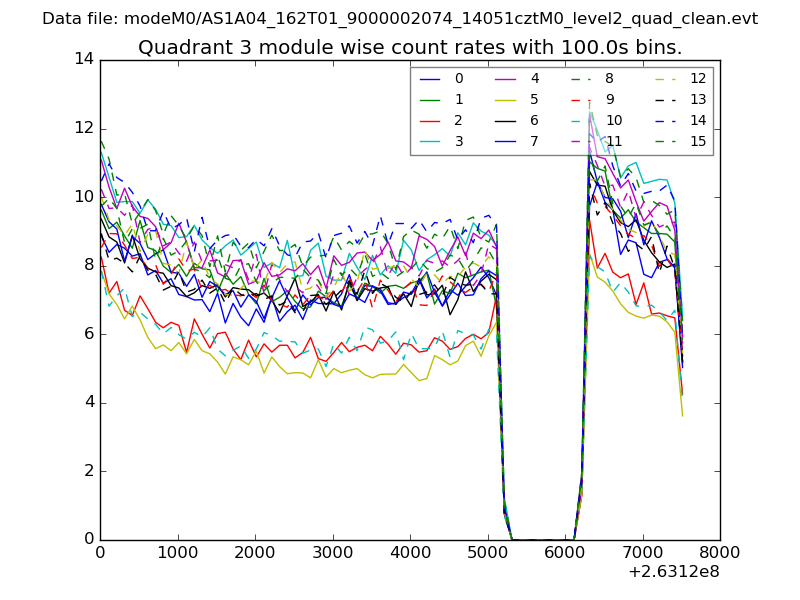

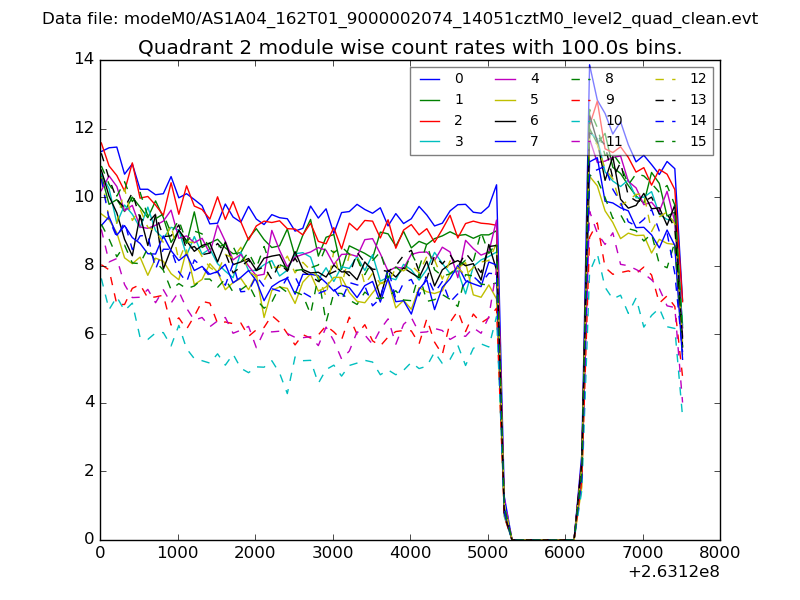

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

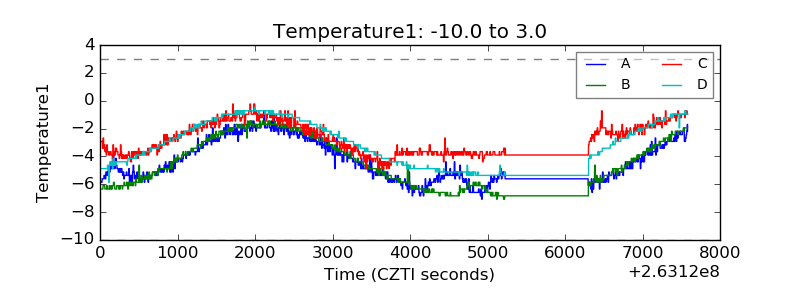

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

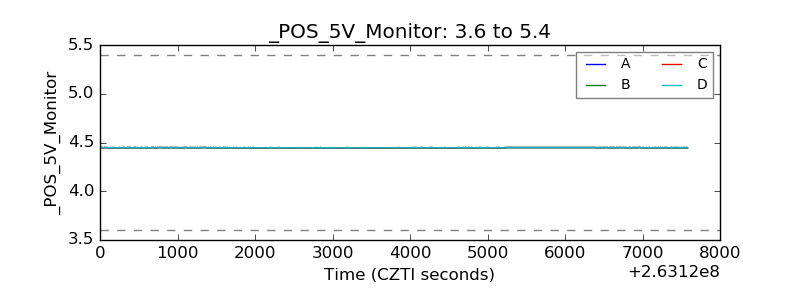

| +5 Volts monitor |  |

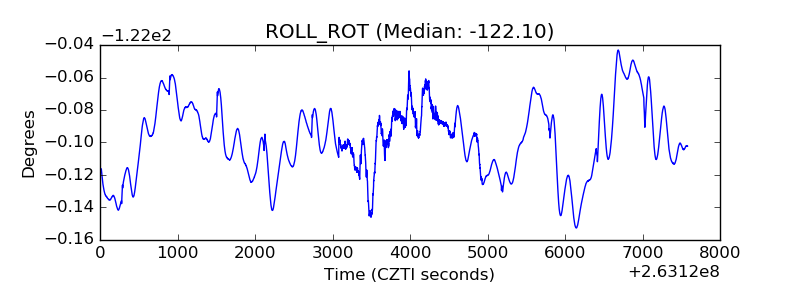

| _ROLL_ROT |  |

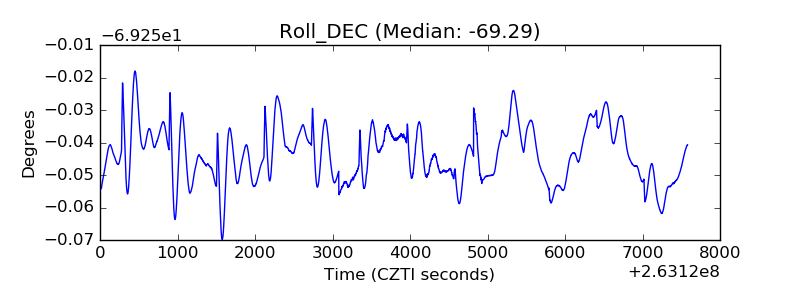

| _Roll_DEC |  |

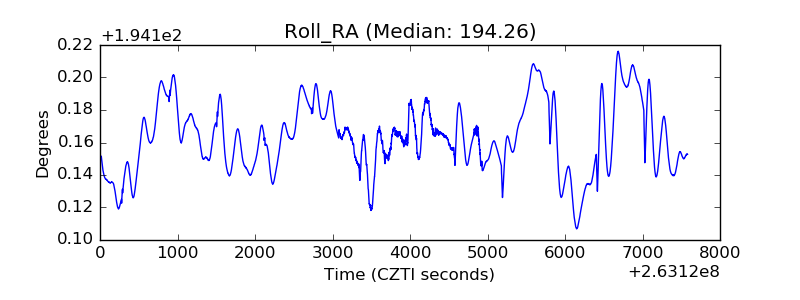

| _Roll_RA |  |

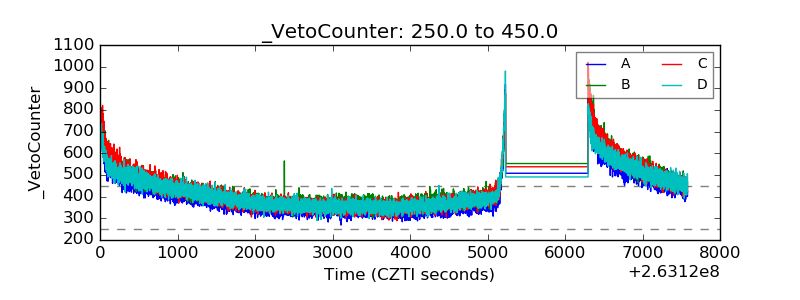

| Veto Counter |  |
