| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_162T01_9000002074_14052cztM0_level2.evt | modeM0/AS1A04_162T01_9000002074_14052cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,684,480 | 139,605,120 |
| Size | 487.0 MB | 133.1 MB |
| Events in quadrant A | 3,462,736 | 959,203 |
| Events in quadrant B | 3,814,784 | 967,076 |
| Events in quadrant C | 3,382,643 | 938,492 |
| Events in quadrant D | 4,355,249 | 900,620 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14628 | 3 |
| B | 0 | 15659 | 2 |
| C | 0 | 14660 | 2 |
| D | 0 | 17407 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6645 | 83 | 1.249059% |
| B | 6645 | 175 | 2.633559% |
| C | 6645 | 61 | 0.917983% |
| D | 6645 | 152 | 2.287434% |

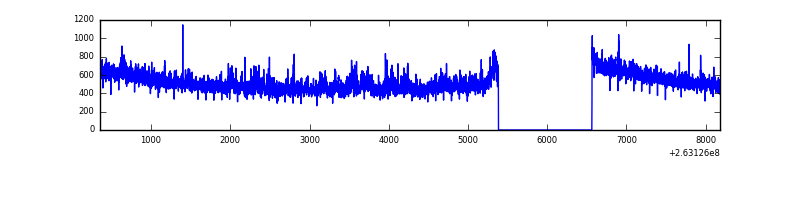

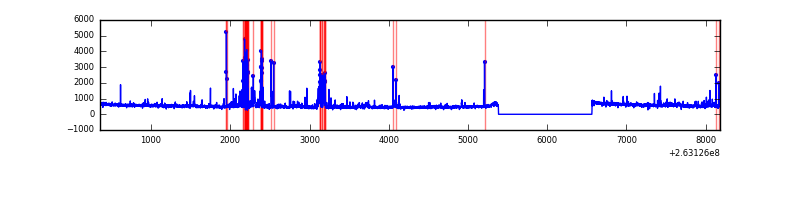

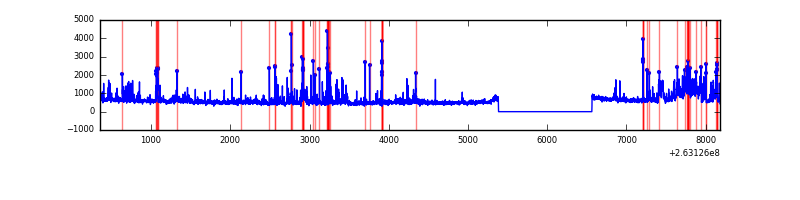

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7826 | 6647 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7826 | 6647 | 56 | 56 | 0.72% | 0.84% |  |
| C | 7826 | 6647 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7826 | 6647 | 71 | 71 | 0.91% | 1.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 119541 | 693.55 | 855 | 839 | 171.2 |
| A | 8 | 15 | 33110 | 188.55 | 855 | 839 | 171.2 |
| A | 2 | 79 | 17407 | 96.8 | 855 | 839 | 171.2 |
| B | 0 | 189 | 174468 | 1117.8 | 844 | 825 | 155.3 |
| B | 0 | 228 | 171503 | 1098.71 | 844 | 825 | 155.3 |
| B | 3 | 209 | 58991 | 374.44 | 844 | 825 | 155.3 |
| C | 3 | 233 | 182732 | 982.97 | 816 | 821 | 185.1 |
| C | 0 | 207 | 18166 | 93.72 | 816 | 821 | 185.1 |
| C | 13 | 61 | 6003 | 28.0 | 816 | 821 | 185.1 |
| D | 1 | 52 | 514650 | 2397.92 | 811 | 794 | 214.3 |
| D | 10 | 172 | 250149 | 1163.62 | 811 | 794 | 214.3 |
| D | 8 | 195 | 182354 | 847.25 | 811 | 794 | 214.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

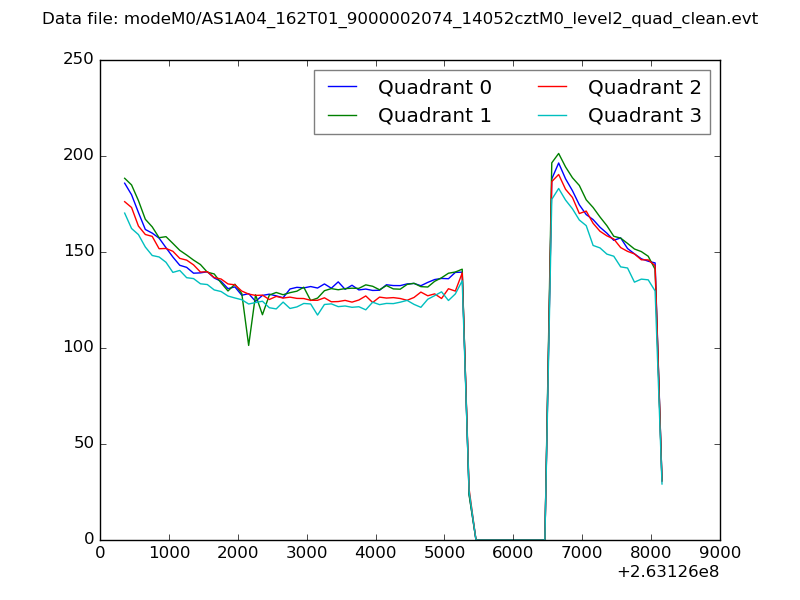

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

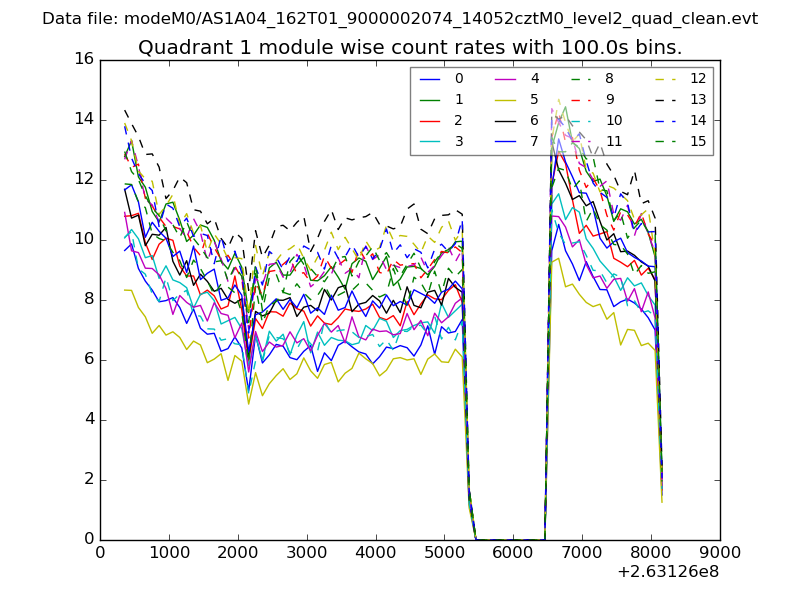

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

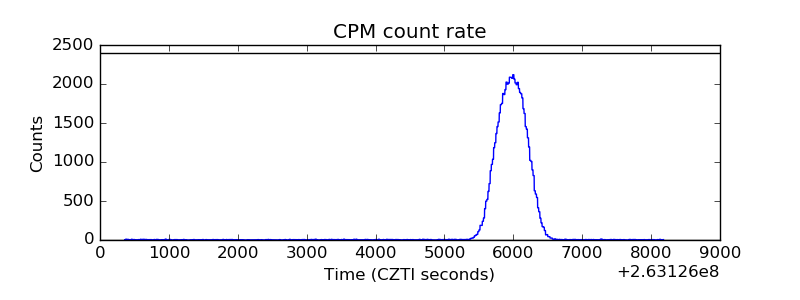

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

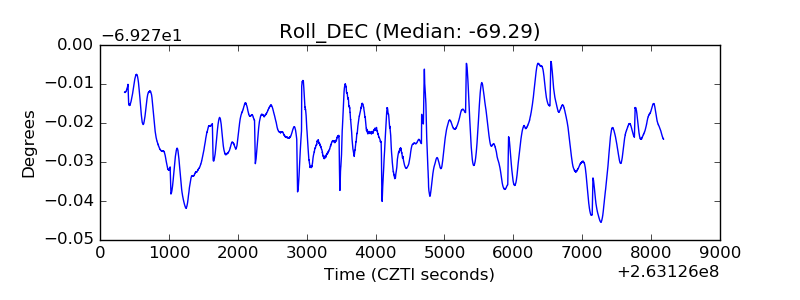

| _Roll_DEC |  |

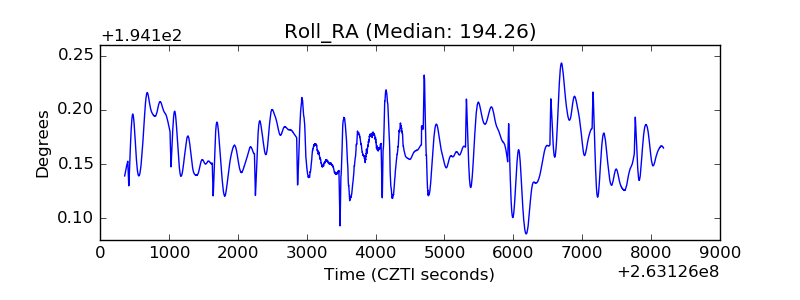

| _Roll_RA |  |
| Veto Counter |  |
