| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_055T01_9000002076_14067cztM0_level2.evt | modeM0/AS1G08_055T01_9000002076_14067cztM0_level2_quad_clean.evt |
| Size (bytes) | 509,754,240 | 114,690,240 |
| Size | 486.1 MB | 109.4 MB |
| Events in quadrant A | 3,197,118 | 779,230 |
| Events in quadrant B | 3,478,155 | 784,407 |
| Events in quadrant C | 3,116,362 | 757,720 |
| Events in quadrant D | 5,226,815 | 720,154 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13461 | 2 |
| B | 0 | 14270 | 1 |
| C | 0 | 13279 | 1 |
| D | 0 | 20028 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6191 | 57 | 0.920691% |
| B | 6191 | 65 | 1.049911% |
| C | 6191 | 42 | 0.678404% |
| D | 6191 | 165 | 2.665159% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7477 | 6193 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7477 | 6193 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7477 | 6193 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7477 | 6193 | 129 | 129 | 1.73% | 2.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 58098 | 354.96 | 813 | 799 | 161.4 |
| A | 8 | 15 | 12374 | 71.71 | 813 | 799 | 161.4 |
| A | 0 | 226 | 7515 | 41.6 | 813 | 799 | 161.4 |
| B | 4 | 48 | 59140 | 396.59 | 806 | 790 | 147.1 |
| B | 0 | 189 | 51570 | 345.14 | 806 | 790 | 147.1 |
| B | 0 | 219 | 48362 | 323.33 | 806 | 790 | 147.1 |
| C | 3 | 233 | 91711 | 522.16 | 771 | 776 | 174.2 |
| C | 0 | 207 | 20028 | 110.55 | 771 | 776 | 174.2 |
| C | 13 | 61 | 5645 | 27.96 | 771 | 776 | 174.2 |
| D | 10 | 172 | 651308 | 3584.76 | 768 | 751 | 181.5 |
| D | 1 | 52 | 481597 | 2649.6 | 768 | 751 | 181.5 |
| D | 8 | 195 | 288780 | 1587.12 | 768 | 751 | 181.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

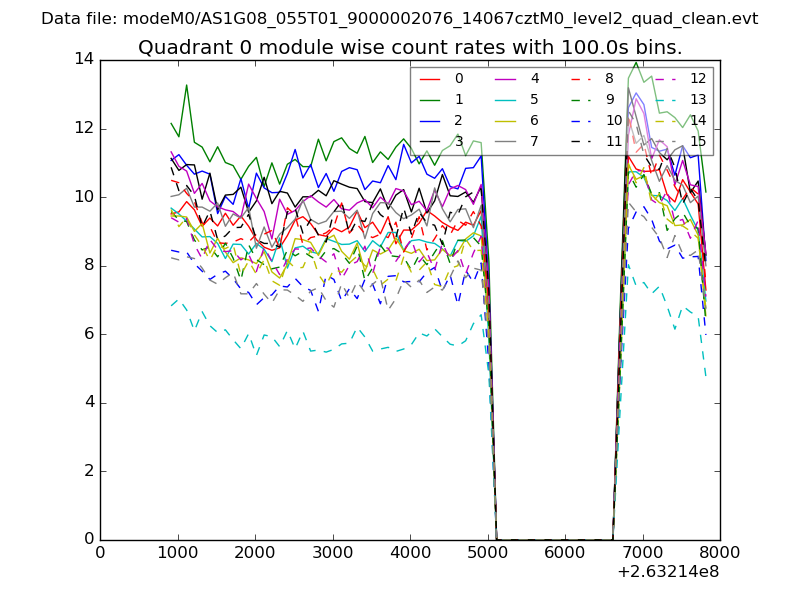

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

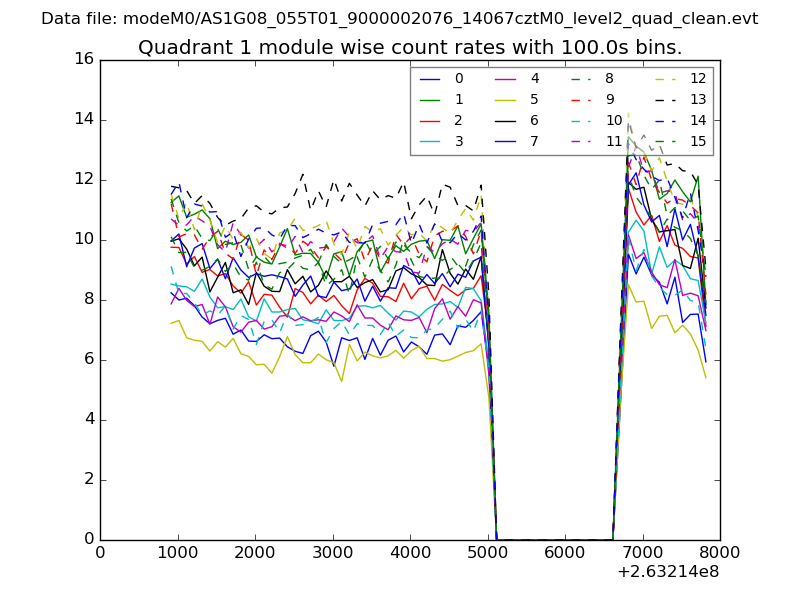

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

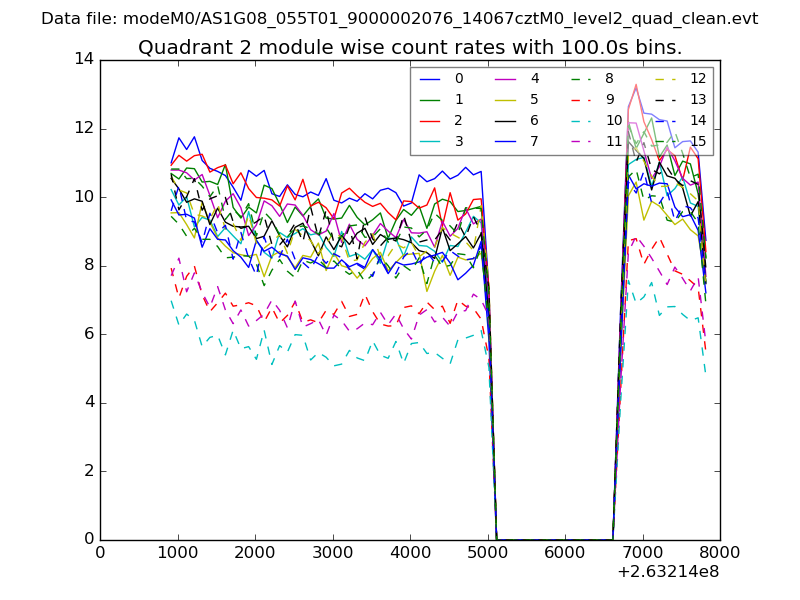

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

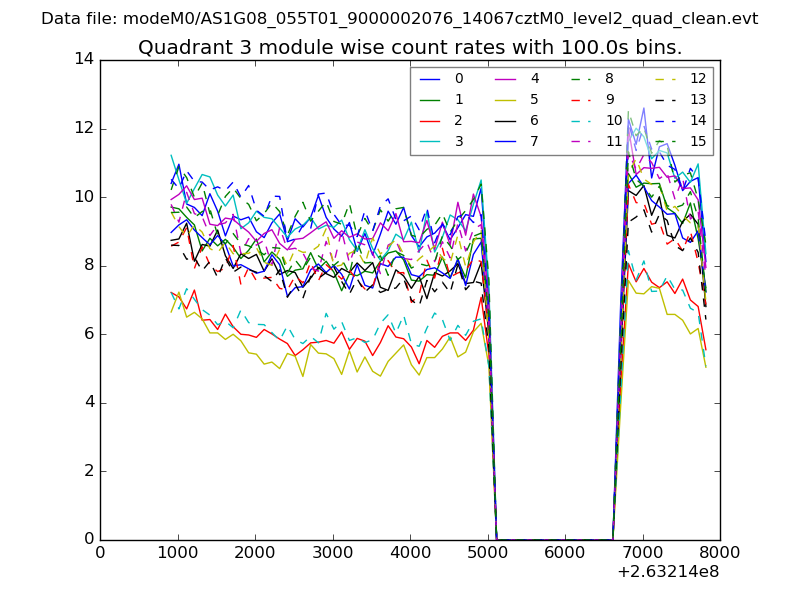

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

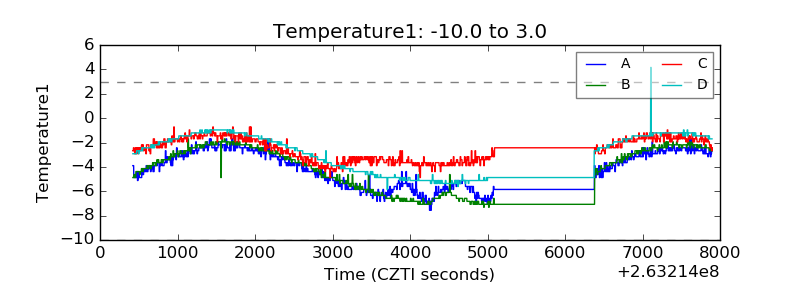

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

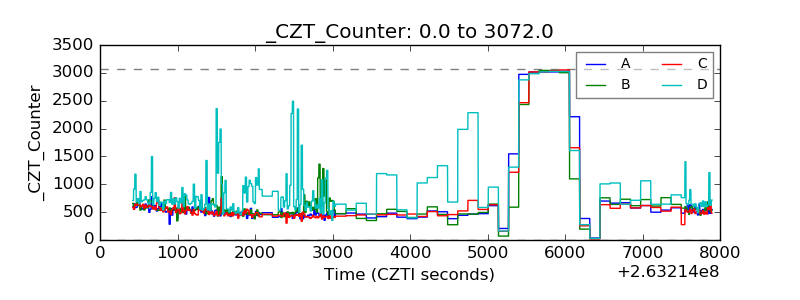

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

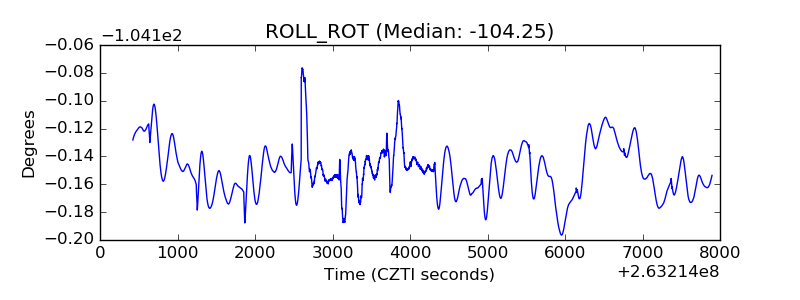

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
