| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_055T01_9000002076_14077cztM0_level2.evt | modeM0/AS1G08_055T01_9000002076_14077cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,420,698,240 | 309,257,280 |
| Size | 1.3 GB | 294.9 MB |
| Events in quadrant A | 10,204,667 | 2,061,469 |
| Events in quadrant B | 12,633,959 | 2,019,631 |
| Events in quadrant C | 8,921,420 | 2,010,868 |
| Events in quadrant D | 9,966,531 | 1,950,014 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 390 | 0 |
| B | 0 | 390 | 0 |
| C | 0 | 390 | 0 |
| D | 0 | 390 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43072 | 5 |
| B | 0 | 50153 | 4 |
| C | 0 | 39495 | 4 |
| D | 0 | 42997 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19240 | 395 | 2.053015% |
| B | 19240 | 1234 | 6.413721% |
| C | 19240 | 222 | 1.153846% |
| D | 19240 | 255 | 1.325364% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

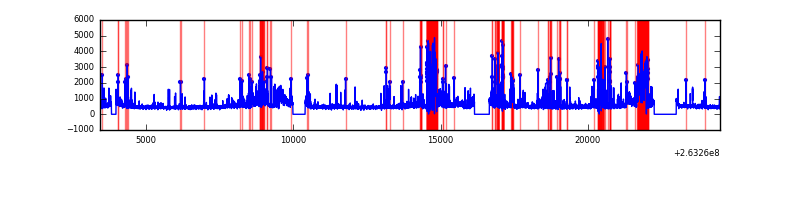

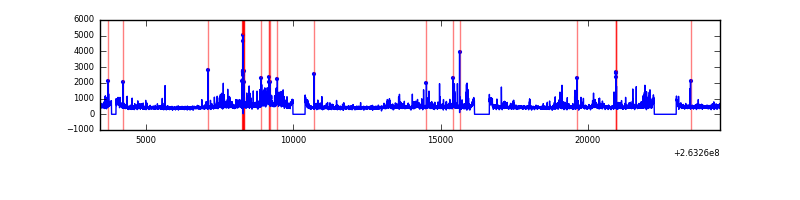

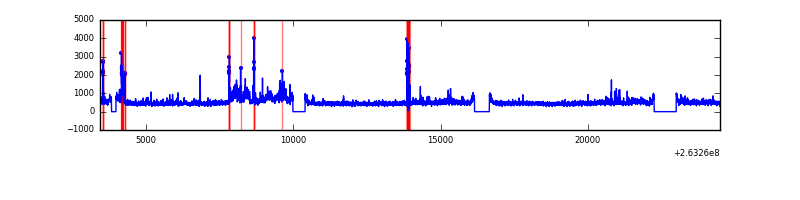

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21066 | 19245 | 62 | 62 | 0.29% | 0.32% |  |
| B | 21066 | 19245 | 612 | 612 | 2.91% | 3.18% |  |
| C | 21066 | 19245 | 7 | 7 | 0.03% | 0.04% |  |
| D | 21066 | 19245 | 30 | 30 | 0.14% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 928063 | 2015.94 | 2285 | 2235 | 459.3 |
| A | 12 | 189 | 289462 | 625.42 | 2285 | 2235 | 459.3 |
| A | 9 | 143 | 151723 | 325.5 | 2285 | 2235 | 459.3 |
| B | 10 | 16 | 3075728 | 7293.7 | 2252 | 2193 | 421.4 |
| B | 0 | 189 | 143223 | 334.67 | 2252 | 2193 | 421.4 |
| B | 0 | 197 | 97550 | 226.29 | 2252 | 2193 | 421.4 |
| C | 3 | 233 | 105875 | 202.32 | 2225 | 2231 | 512.3 |
| C | 0 | 207 | 88584 | 168.57 | 2225 | 2231 | 512.3 |
| C | 10 | 22 | 24885 | 44.22 | 2225 | 2231 | 512.3 |
| D | 2 | 152 | 305451 | 519.31 | 2194 | 2150 | 584.0 |
| D | 10 | 157 | 286022 | 486.04 | 2194 | 2150 | 584.0 |
| D | 10 | 172 | 198142 | 335.58 | 2194 | 2150 | 584.0 |

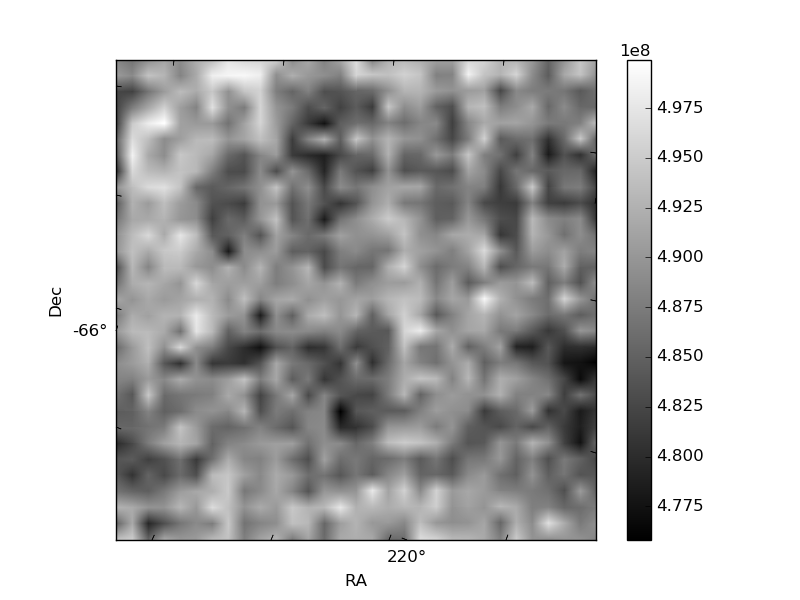

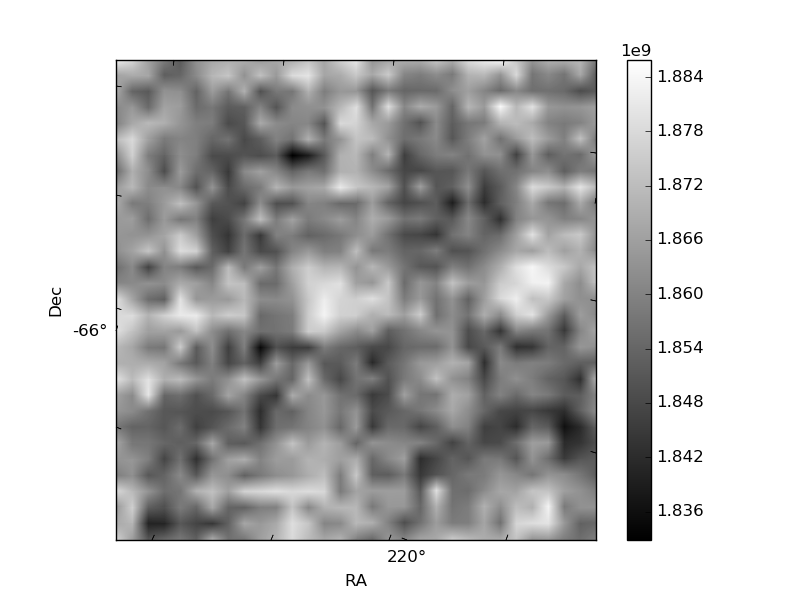

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

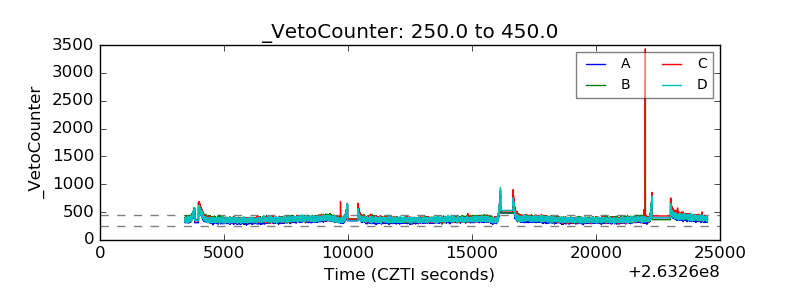

| Veto Counter |  |
