| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_149T01_9000002082_14116cztM0_level2.evt | modeM0/AS1A04_149T01_9000002082_14116cztM0_level2_quad_clean.evt |
| Size (bytes) | 548,337,600 | 127,725,120 |
| Size | 522.9 MB | 121.8 MB |
| Events in quadrant A | 3,388,659 | 859,170 |
| Events in quadrant B | 4,634,868 | 853,945 |
| Events in quadrant C | 3,572,068 | 835,583 |
| Events in quadrant D | 4,512,318 | 808,105 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15117 | 2 |
| B | 0 | 18739 | 1 |
| C | 0 | 15270 | 1 |
| D | 0 | 18321 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7347 | 33 | 0.449163% |
| B | 7347 | 279 | 3.797468% |
| C | 7347 | 15 | 0.204165% |
| D | 7347 | 128 | 1.742208% |

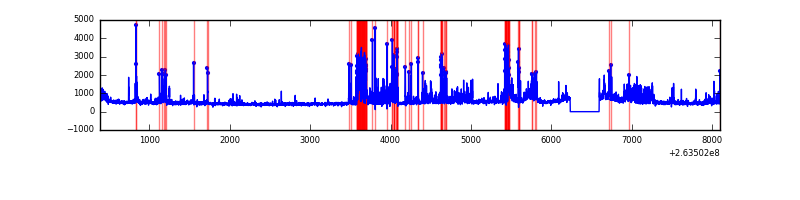

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

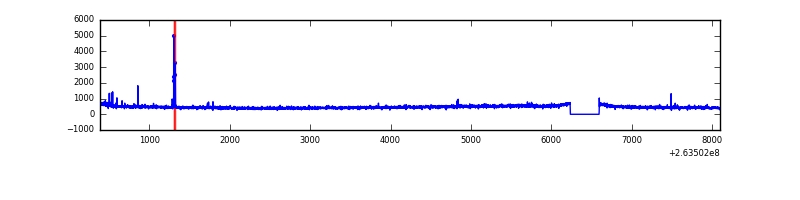

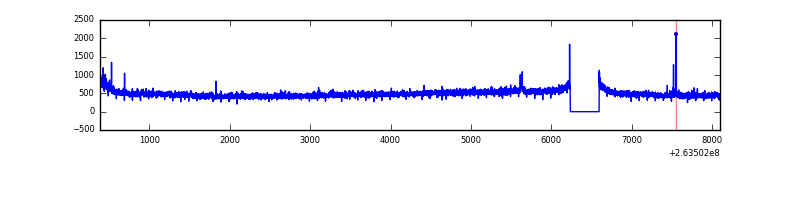

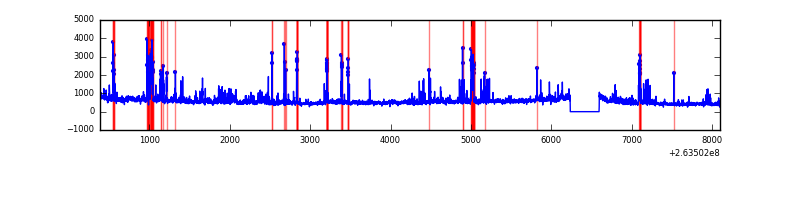

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7708 | 7349 | 5 | 5 | 0.06% | 0.07% |  |
| B | 7708 | 7349 | 135 | 135 | 1.75% | 1.84% |  |
| C | 7708 | 7349 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7708 | 7349 | 104 | 104 | 1.35% | 1.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 31574 | 174.7 | 866 | 845 | 175.9 |
| A | 8 | 15 | 23239 | 127.31 | 866 | 845 | 175.9 |
| A | 0 | 226 | 7632 | 38.59 | 866 | 845 | 175.9 |
| B | 0 | 85 | 663789 | 4054.67 | 859 | 837 | 163.5 |
| B | 0 | 189 | 262800 | 1602.19 | 859 | 837 | 163.5 |
| B | 10 | 16 | 120797 | 733.69 | 859 | 837 | 163.5 |
| C | 3 | 233 | 310829 | 1630.31 | 828 | 831 | 190.1 |
| C | 0 | 207 | 20948 | 105.8 | 828 | 831 | 190.1 |
| C | 10 | 22 | 7532 | 35.24 | 828 | 831 | 190.1 |
| D | 10 | 157 | 533774 | 2491.99 | 821 | 800 | 213.9 |
| D | 8 | 195 | 492716 | 2300.02 | 821 | 800 | 213.9 |
| D | 1 | 52 | 84961 | 393.51 | 821 | 800 | 213.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |

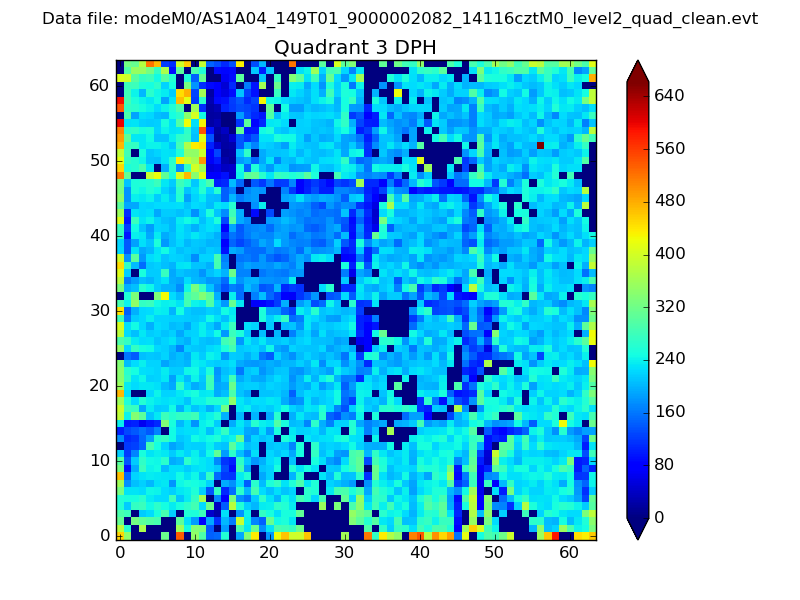

|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

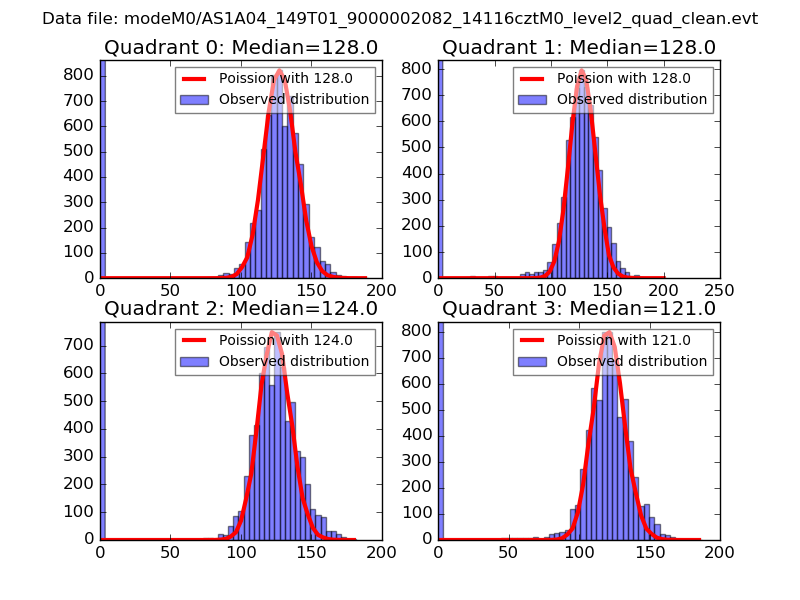

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

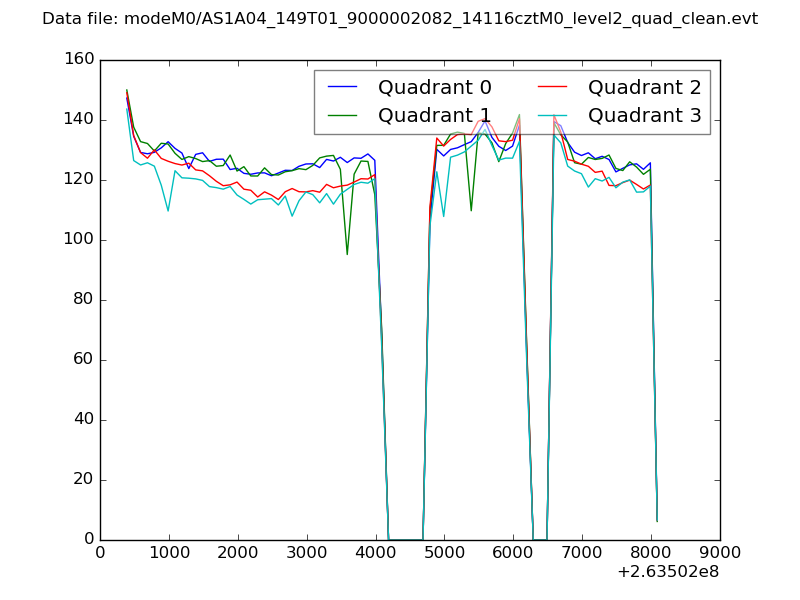

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

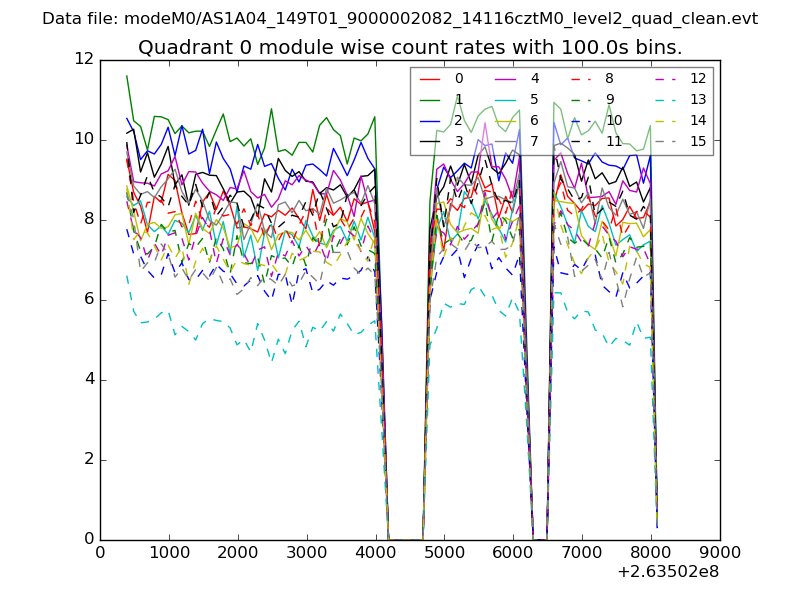

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

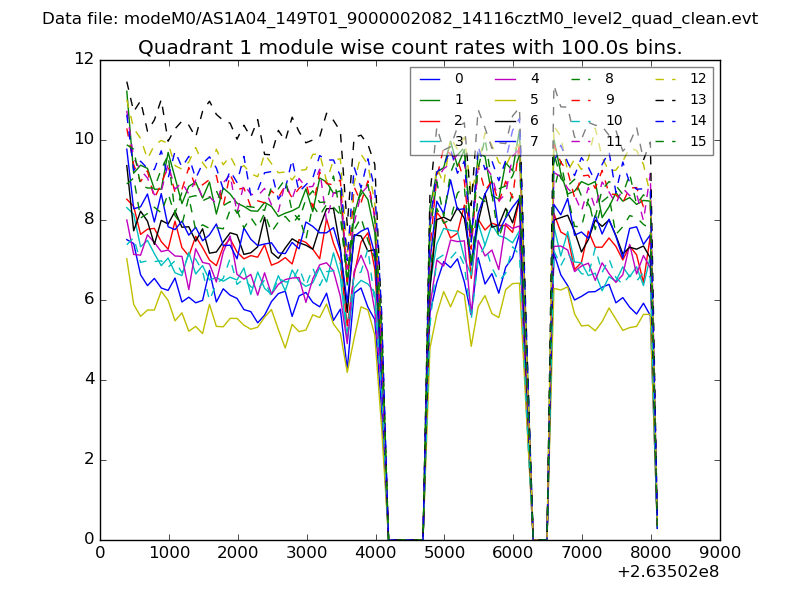

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

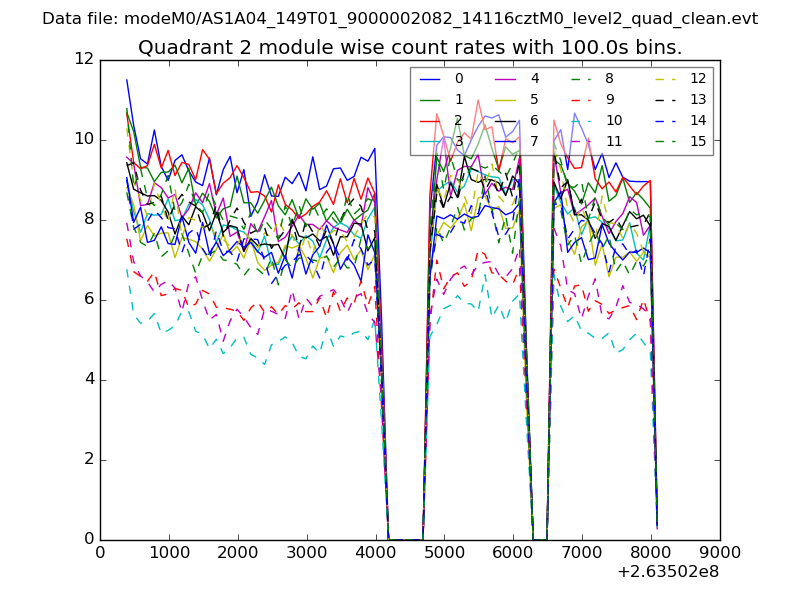

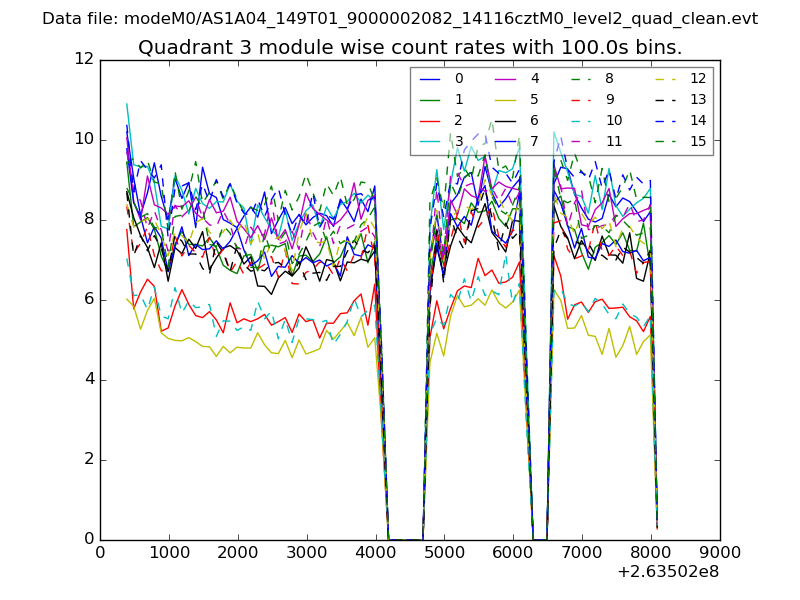

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

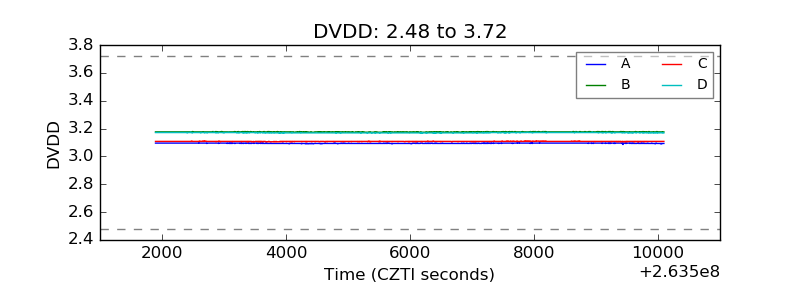

| D_VDD |  |

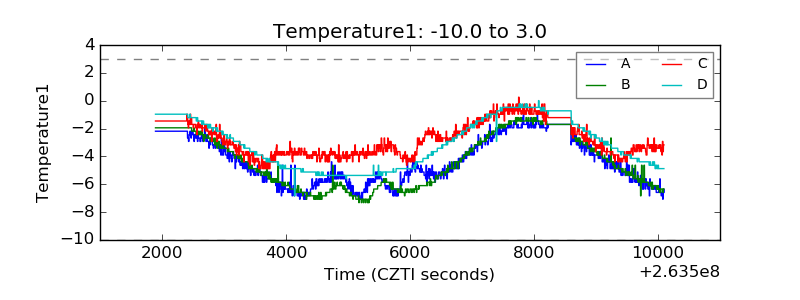

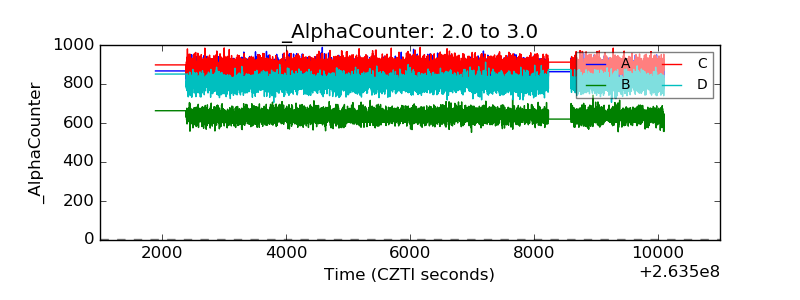

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

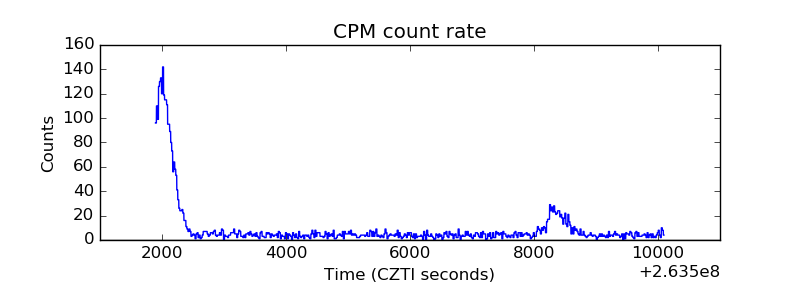

| _CPM_Rate |  |

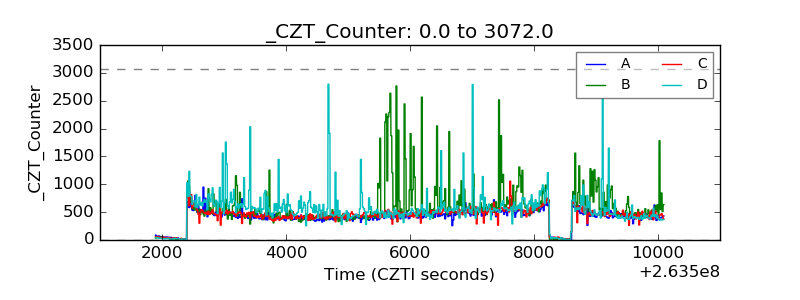

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

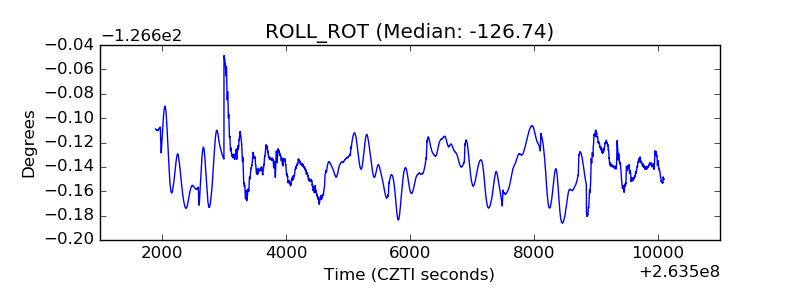

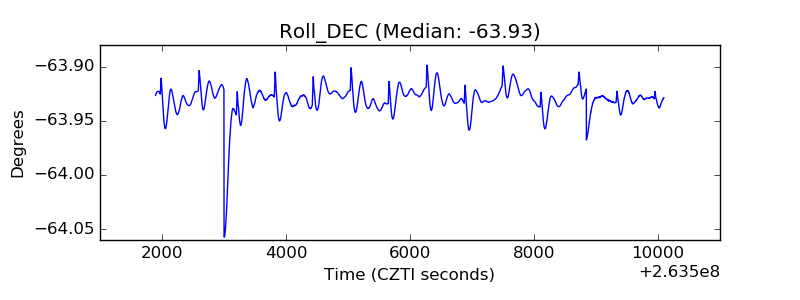

| _ROLL_ROT |  |
| _Roll_DEC |  |

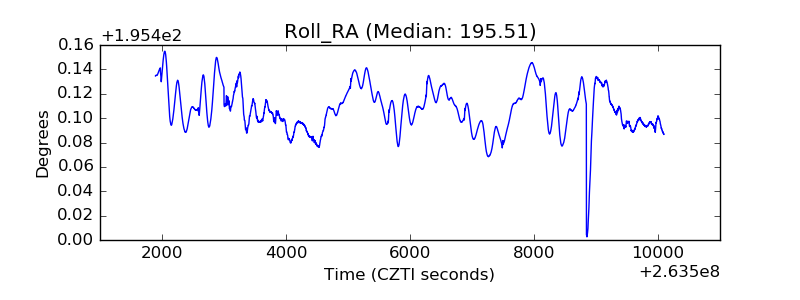

| _Roll_RA |  |

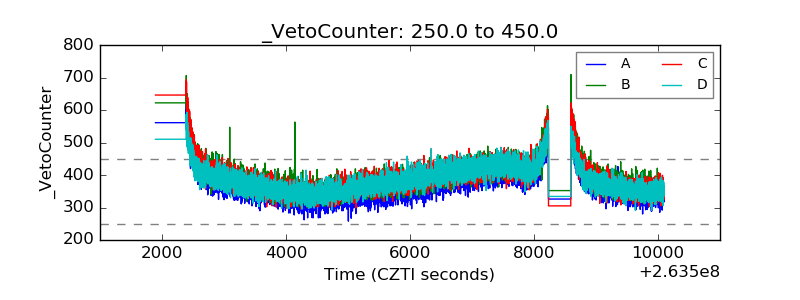

| Veto Counter |  |
