| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_149T01_9000002082_14117cztM0_level2.evt | modeM0/AS1A04_149T01_9000002082_14117cztM0_level2_quad_clean.evt |
| Size (bytes) | 576,161,280 | 138,193,920 |
| Size | 549.5 MB | 131.8 MB |
| Events in quadrant A | 3,684,772 | 928,859 |
| Events in quadrant B | 4,733,696 | 929,269 |
| Events in quadrant C | 3,856,211 | 905,145 |
| Events in quadrant D | 4,632,464 | 866,988 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16546 | 3 |
| B | 0 | 19280 | 2 |
| C | 0 | 16658 | 2 |
| D | 0 | 19399 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7989 | 82 | 1.026411% |
| B | 7989 | 266 | 3.329578% |
| C | 7989 | 81 | 1.013894% |
| D | 7989 | 245 | 3.066717% |

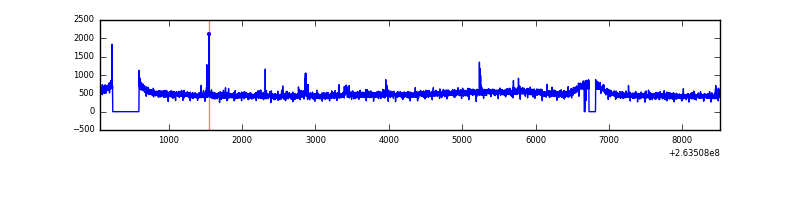

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8455 | 7993 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8455 | 7993 | 52 | 52 | 0.62% | 0.65% |  |
| C | 8455 | 7993 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8455 | 7993 | 134 | 134 | 1.58% | 1.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 27803 | 140.84 | 944 | 923 | 190.9 |
| A | 0 | 226 | 8457 | 39.47 | 944 | 923 | 190.9 |
| A | 13 | 248 | 7853 | 36.31 | 944 | 923 | 190.9 |
| B | 10 | 16 | 504167 | 2786.83 | 943 | 917 | 180.6 |
| B | 0 | 189 | 329218 | 1818.02 | 943 | 917 | 180.6 |
| B | 0 | 190 | 74651 | 408.31 | 943 | 917 | 180.6 |
| C | 3 | 233 | 270720 | 1285.28 | 906 | 907 | 209.9 |
| C | 10 | 22 | 23681 | 108.49 | 906 | 907 | 209.9 |
| C | 5 | 96 | 15051 | 67.38 | 906 | 907 | 209.9 |
| D | 10 | 157 | 466870 | 1957.4 | 888 | 866 | 238.1 |
| D | 1 | 52 | 265593 | 1111.96 | 888 | 866 | 238.1 |
| D | 2 | 152 | 195868 | 819.09 | 888 | 866 | 238.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

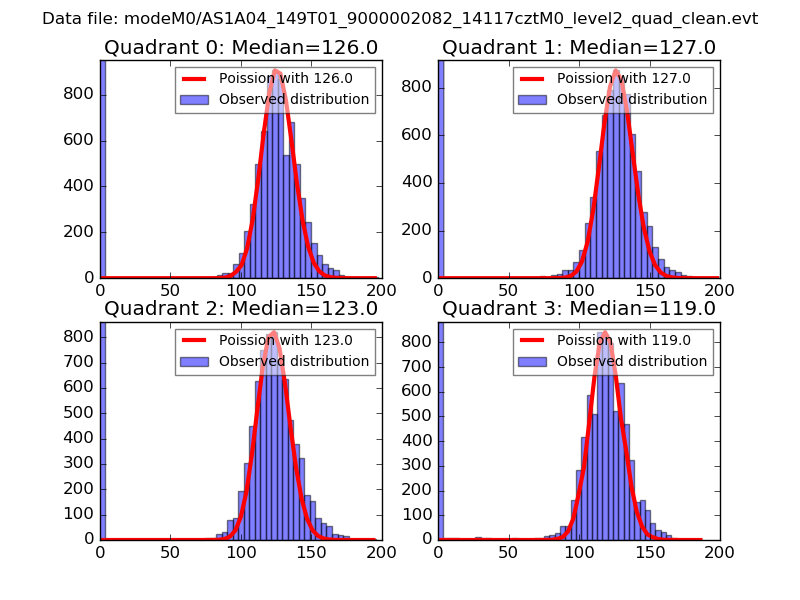

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

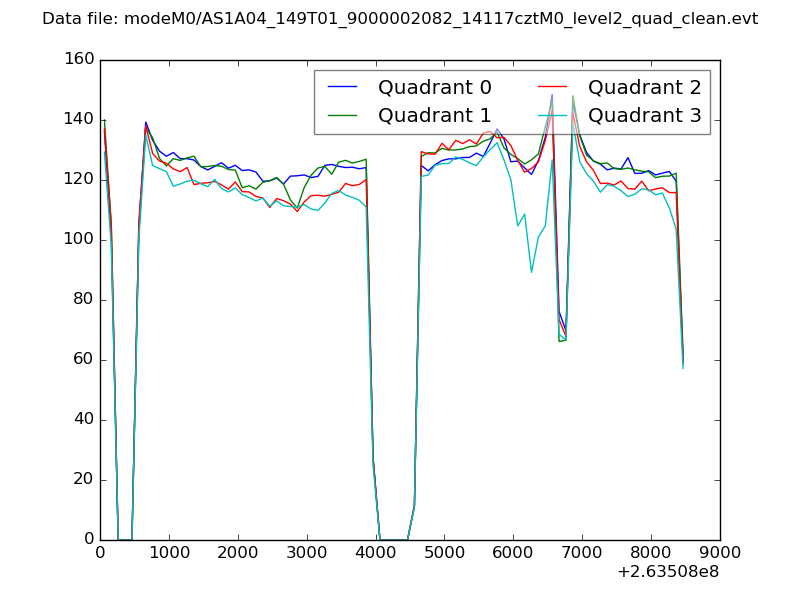

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

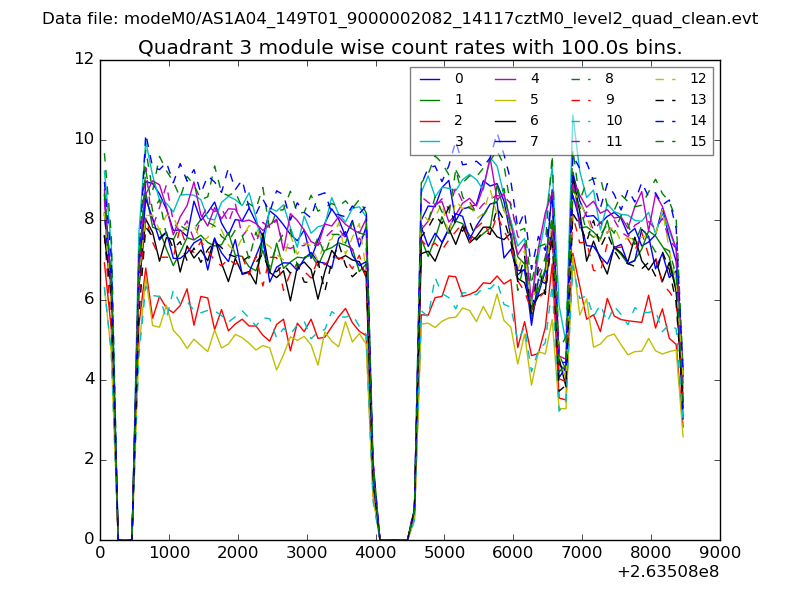

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

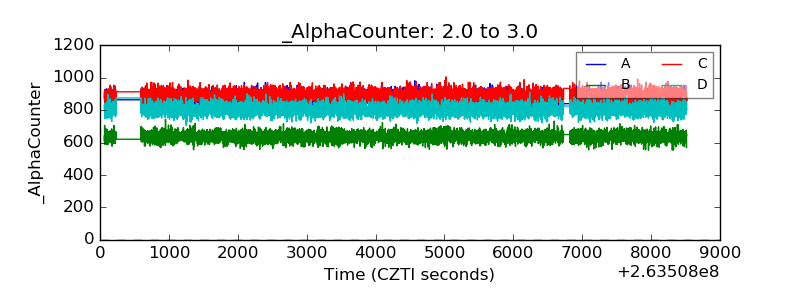

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

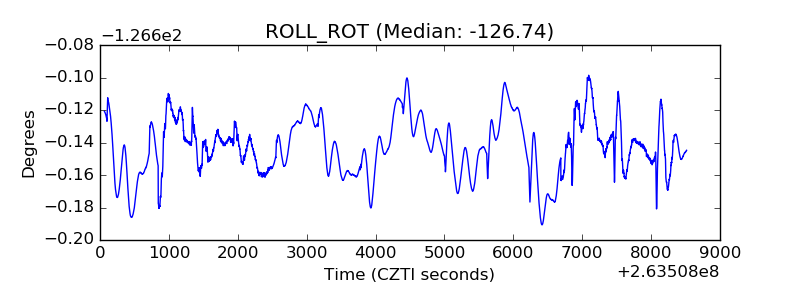

| _ROLL_ROT |  |
| _Roll_DEC |  |

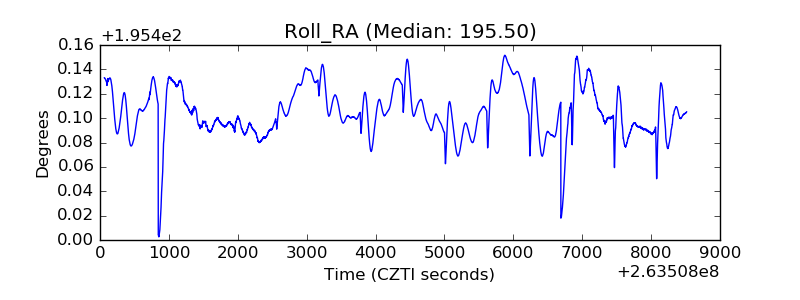

| _Roll_RA |  |
| Veto Counter |  |
