| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_149T01_9000002082_14126cztM0_level2.evt | modeM0/AS1A04_149T01_9000002082_14126cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,437,760 | 131,149,440 |
| Size | 481.1 MB | 125.1 MB |
| Events in quadrant A | 3,427,780 | 897,090 |
| Events in quadrant B | 4,206,561 | 889,225 |
| Events in quadrant C | 3,397,693 | 878,778 |
| Events in quadrant D | 3,803,351 | 853,203 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14322 | 1 |
| B | 0 | 16766 | 0 |
| C | 0 | 14234 | 0 |
| D | 0 | 15612 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6506 | 95 | 1.460191% |
| B | 6506 | 372 | 5.717799% |
| C | 6506 | 78 | 1.198893% |
| D | 6506 | 134 | 2.059637% |

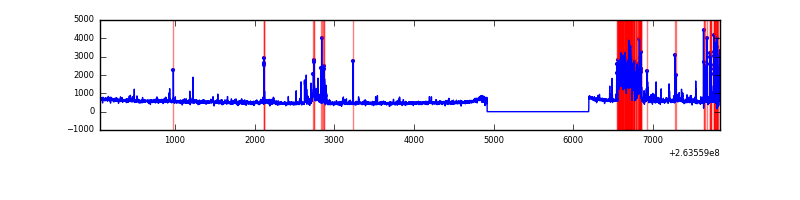

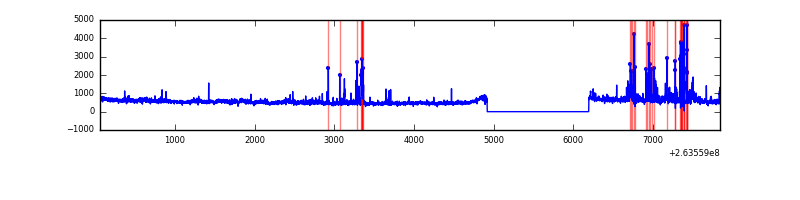

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7782 | 6508 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7782 | 6507 | 174 | 174 | 2.24% | 2.67% |  |
| C | 7782 | 6508 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7782 | 6508 | 39 | 39 | 0.50% | 0.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 77245 | 443.75 | 869 | 854 | 172.1 |
| A | 0 | 226 | 7836 | 40.56 | 869 | 854 | 172.1 |
| A | 8 | 15 | 7033 | 35.89 | 869 | 854 | 172.1 |
| B | 0 | 85 | 766037 | 4924.6 | 846 | 827 | 155.4 |
| B | 3 | 209 | 51738 | 327.64 | 846 | 827 | 155.4 |
| B | 0 | 189 | 33541 | 210.54 | 846 | 827 | 155.4 |
| C | 3 | 233 | 178334 | 950.78 | 825 | 831 | 186.7 |
| C | 13 | 61 | 6043 | 27.92 | 825 | 831 | 186.7 |
| C | 0 | 207 | 2048 | 6.52 | 825 | 831 | 186.7 |
| D | 1 | 52 | 214968 | 1105.3 | 831 | 813 | 193.8 |
| D | 8 | 195 | 161338 | 828.5 | 831 | 813 | 193.8 |
| D | 2 | 152 | 133485 | 684.75 | 831 | 813 | 193.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

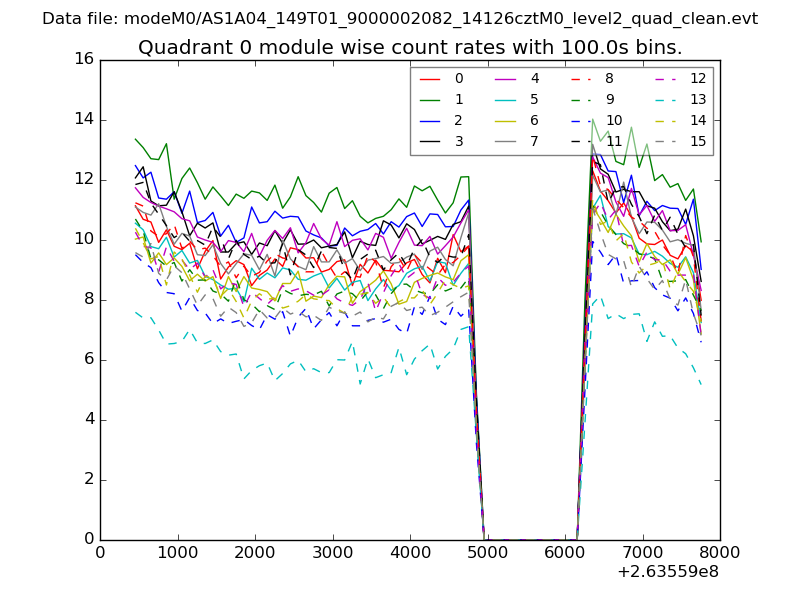

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

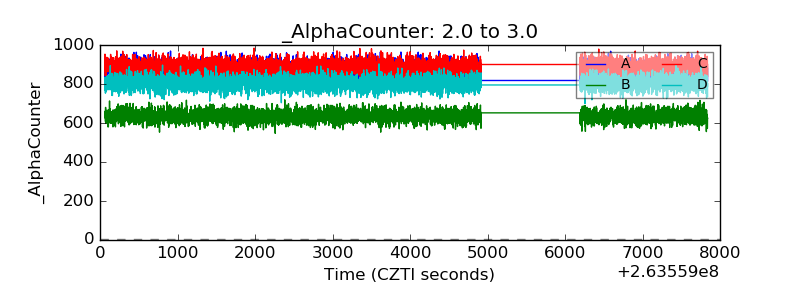

| Alpha Counter |  |
| _CPM_Rate |  |

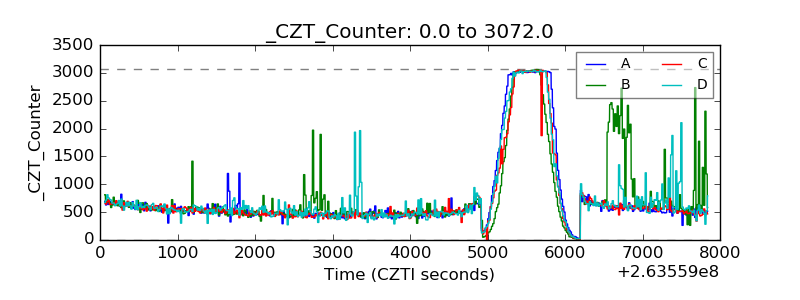

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

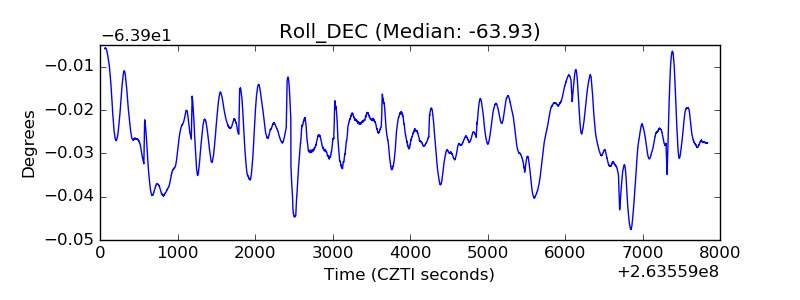

| _Roll_DEC |  |
| _Roll_RA |  |

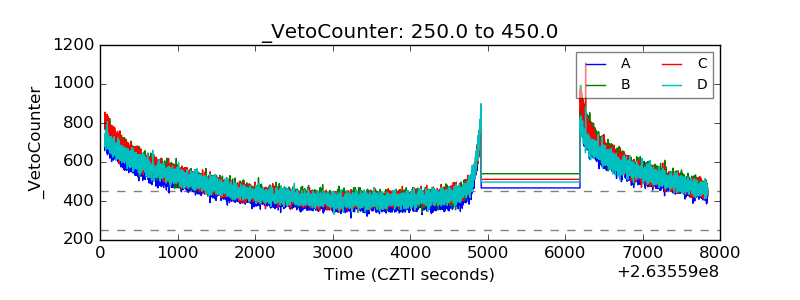

| Veto Counter |  |
