| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_028T01_9000002080_14115cztM0_level2.evt | modeM0/AS1G08_028T01_9000002080_14115cztM0_level2_quad_clean.evt |
| Size (bytes) | 549,115,200 | 86,201,280 |
| Size | 523.7 MB | 82.2 MB |
| Events in quadrant A | 3,341,091 | 550,039 |
| Events in quadrant B | 3,802,147 | 544,978 |
| Events in quadrant C | 3,496,892 | 544,962 |
| Events in quadrant D | 5,552,673 | 520,239 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13836 | 2 |
| B | 0 | 15272 | 2 |
| C | 0 | 14272 | 2 |
| D | 0 | 20838 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6447 | 140 | 2.171553% |
| B | 6447 | 231 | 3.583062% |
| C | 6447 | 120 | 1.861331% |
| D | 6447 | 443 | 6.871413% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8923 | 6450 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8923 | 6450 | 33 | 33 | 0.37% | 0.51% |  |
| C | 8923 | 6450 | 4 | 4 | 0.04% | 0.06% |  |
| D | 8923 | 6450 | 343 | 343 | 3.84% | 5.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7630 | 38.73 | 867 | 850 | 175.0 |
| A | 12 | 194 | 6587 | 32.78 | 867 | 850 | 175.0 |
| A | 3 | 137 | 5443 | 26.24 | 867 | 850 | 175.0 |
| B | 0 | 85 | 281144 | 1717.52 | 858 | 838 | 163.2 |
| B | 0 | 189 | 56133 | 338.81 | 858 | 838 | 163.2 |
| B | 10 | 16 | 43909 | 263.91 | 858 | 838 | 163.2 |
| C | 3 | 233 | 184451 | 931.92 | 844 | 852 | 197.0 |
| C | 10 | 22 | 14037 | 66.93 | 844 | 852 | 197.0 |
| C | 14 | 220 | 6872 | 30.56 | 844 | 852 | 197.0 |
| D | 10 | 157 | 1862778 | 9593.4 | 823 | 805 | 194.1 |
| D | 1 | 52 | 254195 | 1305.54 | 823 | 805 | 194.1 |
| D | 2 | 152 | 130281 | 667.1 | 823 | 805 | 194.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

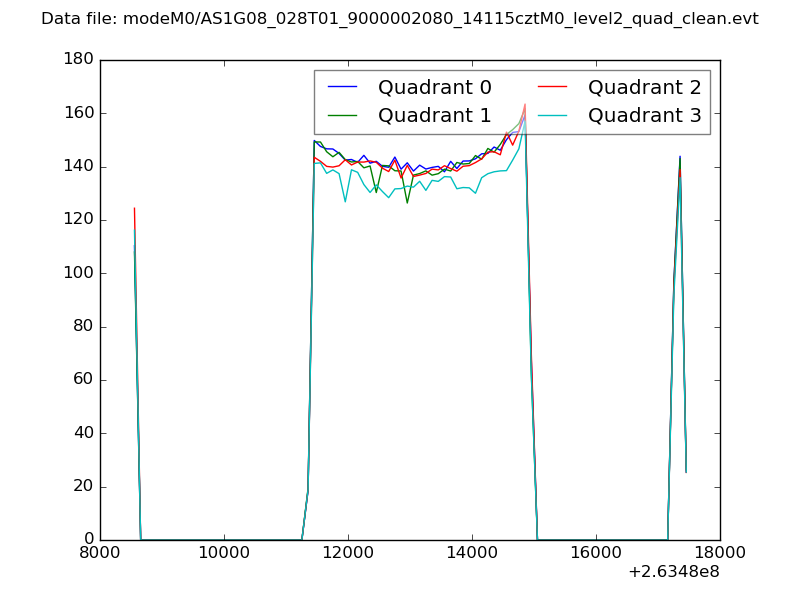

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

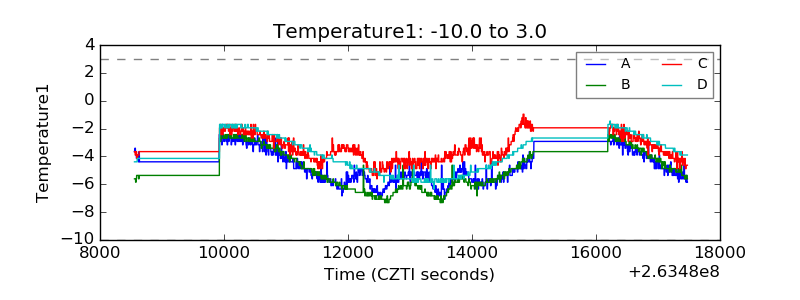

| Temperature 1 |  |

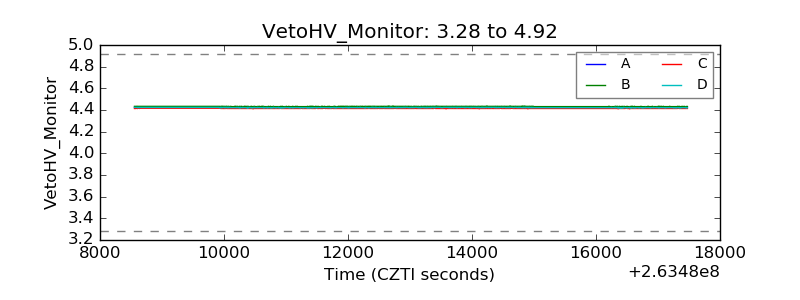

| Veto HV Monitor |  |
| Veto LLD |  |

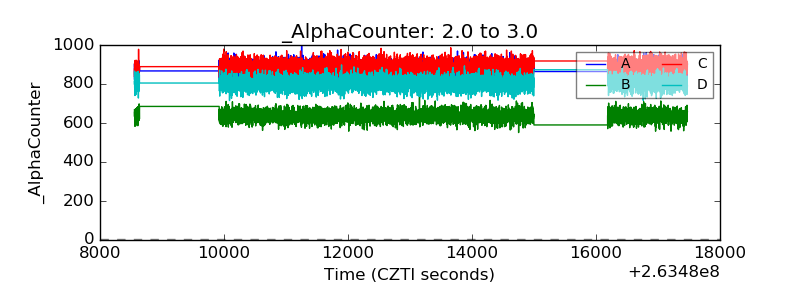

| Alpha Counter |  |
| _CPM_Rate |  |

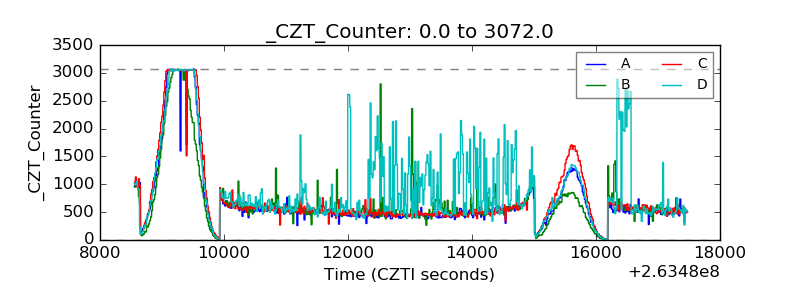

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

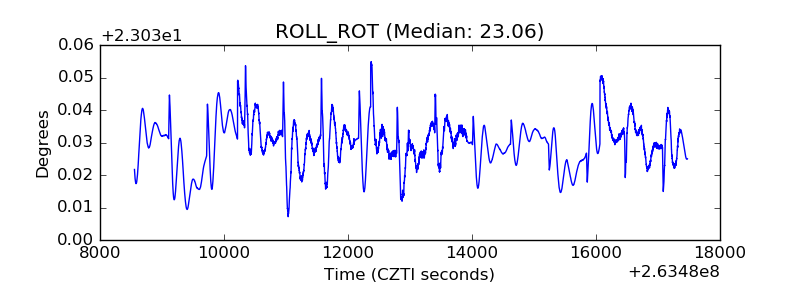

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

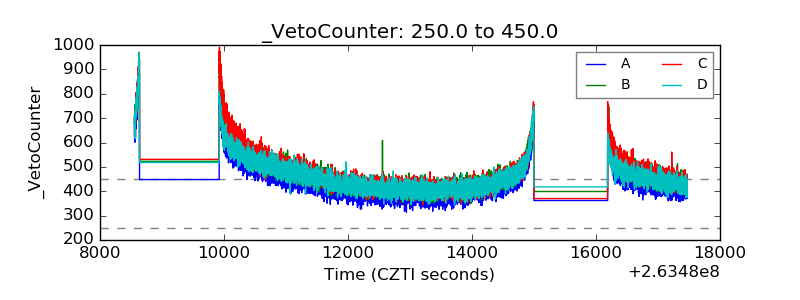

| Veto Counter |  |
