| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_033T01_9000002084_14131cztM0_level2.evt | modeM0/AS1G08_033T01_9000002084_14131cztM0_level2_quad_clean.evt |
| Size (bytes) | 616,259,520 | 104,780,160 |
| Size | 587.7 MB | 99.9 MB |
| Events in quadrant A | 3,763,948 | 700,293 |
| Events in quadrant B | 4,852,317 | 672,350 |
| Events in quadrant C | 3,751,990 | 665,179 |
| Events in quadrant D | 5,793,254 | 619,562 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15931 | 2 |
| B | 0 | 19358 | 2 |
| C | 0 | 15825 | 2 |
| D | 0 | 22454 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7416 | 119 | 1.604639% |
| B | 7416 | 509 | 6.863538% |
| C | 7416 | 55 | 0.741640% |
| D | 7416 | 443 | 5.973571% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8917 | 7419 | 3 | 3 | 0.03% | 0.04% |  |
| B | 8917 | 7419 | 209 | 209 | 2.34% | 2.82% |  |
| C | 8917 | 7419 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8917 | 7419 | 237 | 237 | 2.66% | 3.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 131531 | 701.23 | 921 | 900 | 186.3 |
| A | 9 | 143 | 35221 | 184.23 | 921 | 900 | 186.3 |
| A | 12 | 96 | 33749 | 176.33 | 921 | 900 | 186.3 |
| B | 0 | 85 | 1032952 | 6055.29 | 896 | 875 | 170.4 |
| B | 0 | 189 | 116988 | 681.25 | 896 | 875 | 170.4 |
| B | 10 | 244 | 111486 | 648.96 | 896 | 875 | 170.4 |
| C | 3 | 233 | 260570 | 1276.37 | 885 | 887 | 203.5 |
| C | 14 | 220 | 12883 | 58.96 | 885 | 887 | 203.5 |
| C | 8 | 128 | 11322 | 51.29 | 885 | 887 | 203.5 |
| D | 1 | 52 | 809217 | 3764.65 | 855 | 832 | 214.7 |
| D | 8 | 195 | 803920 | 3739.98 | 855 | 832 | 214.7 |
| D | 7 | 80 | 617390 | 2871.31 | 855 | 832 | 214.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

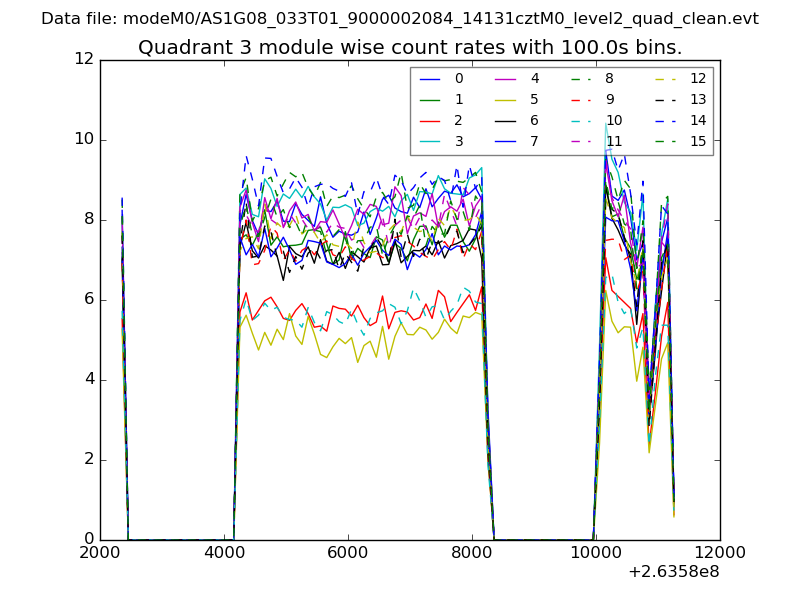

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

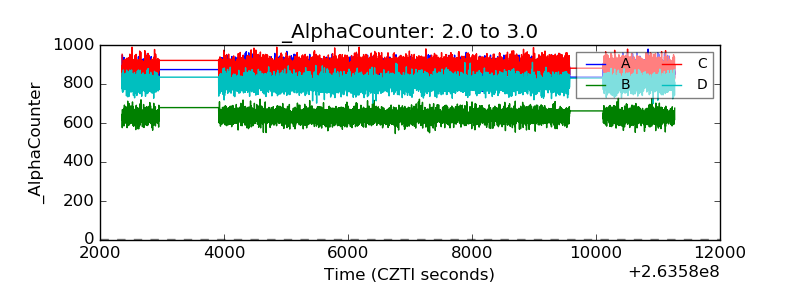

| Alpha Counter |  |

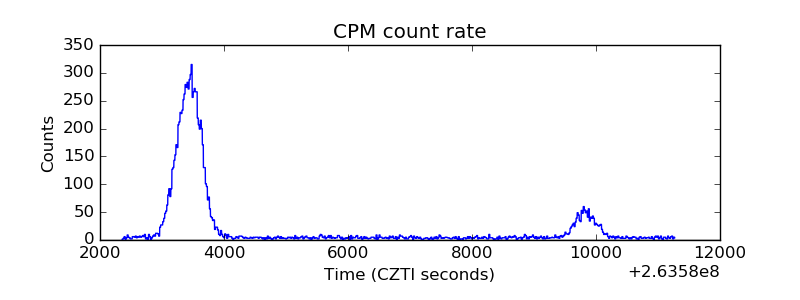

| _CPM_Rate |  |

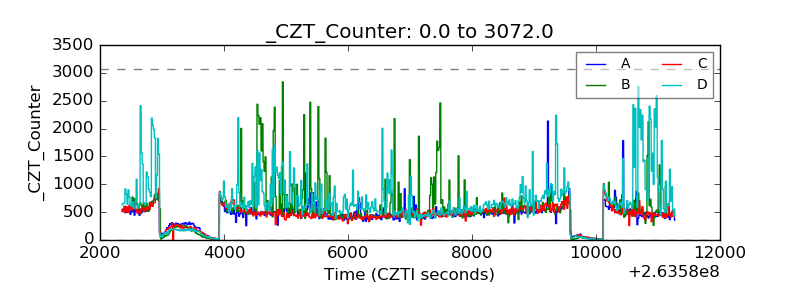

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

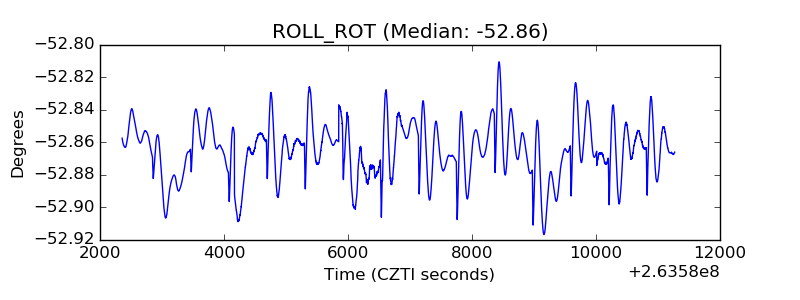

| _ROLL_ROT |  |

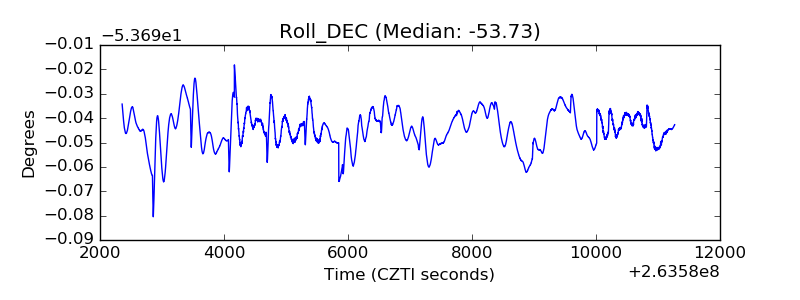

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
