| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_224T05_9000002088_14145cztM0_level2.evt | modeM0/AS1A04_224T05_9000002088_14145cztM0_level2_quad_clean.evt |
| Size (bytes) | 571,904,640 | 99,838,080 |
| Size | 545.4 MB | 95.2 MB |
| Events in quadrant A | 3,721,003 | 619,979 |
| Events in quadrant B | 3,754,491 | 629,981 |
| Events in quadrant C | 3,918,113 | 642,817 |
| Events in quadrant D | 5,412,176 | 603,132 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15946 | 3 |
| B | 0 | 16047 | 2 |
| C | 0 | 16148 | 2 |
| D | 0 | 21084 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7576 | 72 | 0.950370% |
| B | 7576 | 117 | 1.544351% |
| C | 7576 | 74 | 0.976769% |
| D | 7576 | 447 | 5.900211% |

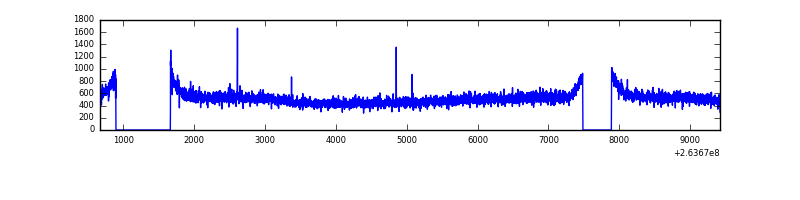

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8752 | 7579 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8752 | 7579 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8752 | 7579 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8752 | 7579 | 330 | 330 | 3.77% | 4.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 72130 | 369.05 | 942 | 921 | 193.0 |
| A | 9 | 143 | 16002 | 78.16 | 942 | 921 | 193.0 |
| A | 12 | 96 | 13612 | 65.77 | 942 | 921 | 193.0 |
| B | 0 | 189 | 23453 | 122.62 | 945 | 919 | 183.8 |
| B | 12 | 111 | 22295 | 116.32 | 945 | 919 | 183.8 |
| B | 3 | 209 | 19818 | 102.84 | 945 | 919 | 183.8 |
| C | 3 | 233 | 288617 | 1316.01 | 930 | 936 | 218.6 |
| C | 13 | 61 | 6541 | 25.64 | 930 | 936 | 218.6 |
| C | 10 | 22 | 4231 | 15.07 | 930 | 936 | 218.6 |
| D | 1 | 52 | 1503443 | 6993.59 | 899 | 878 | 214.8 |
| D | 7 | 80 | 361451 | 1678.26 | 899 | 878 | 214.8 |
| D | 8 | 195 | 40261 | 183.31 | 899 | 878 | 214.8 |

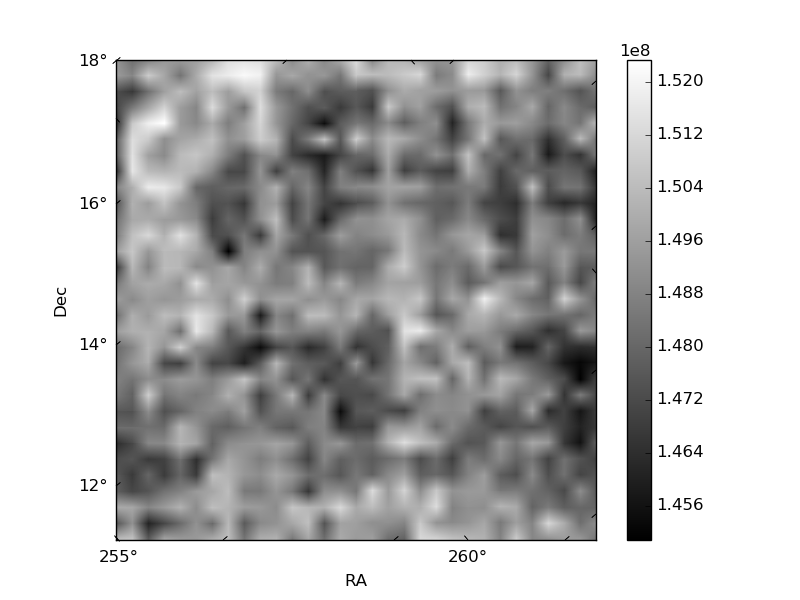

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

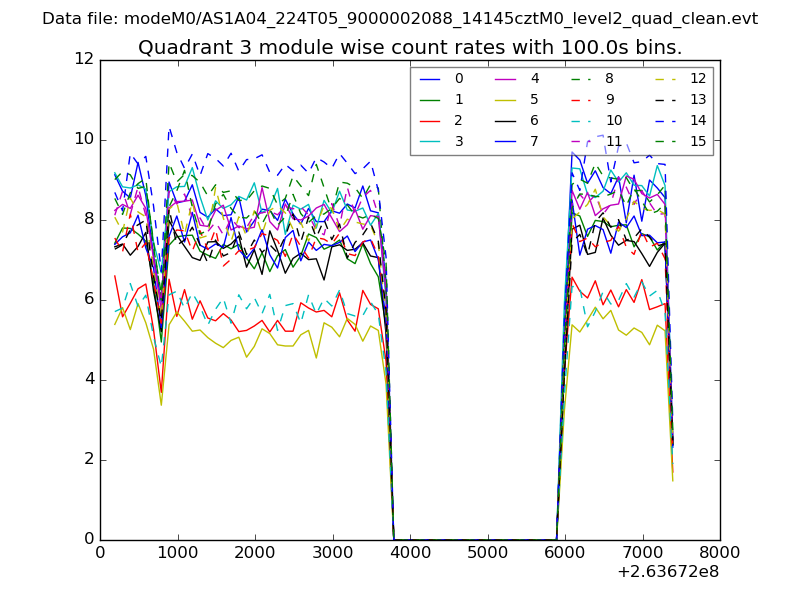

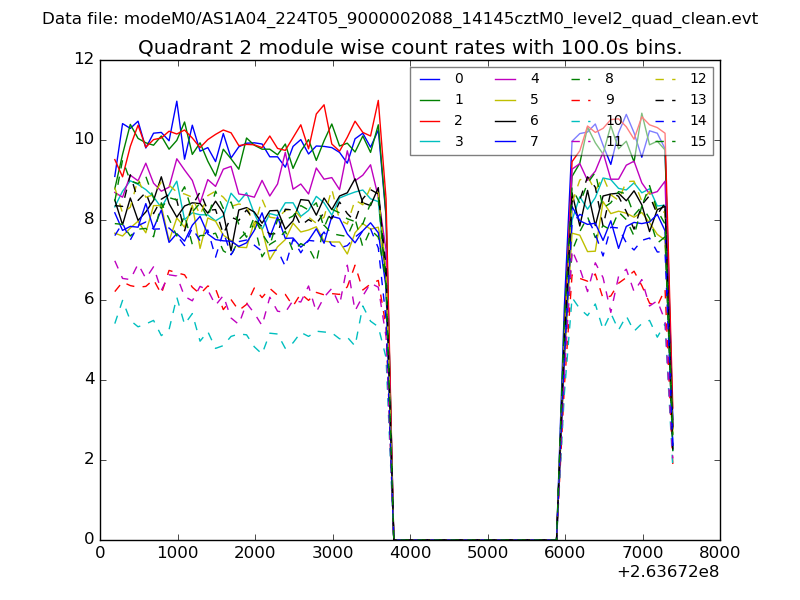

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

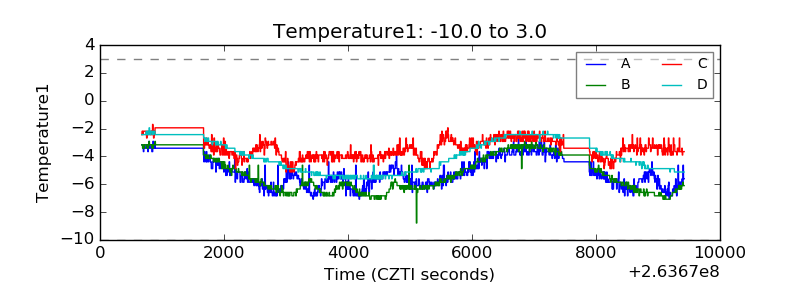

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

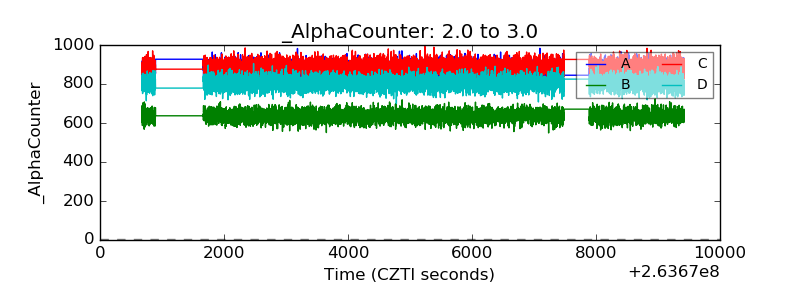

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

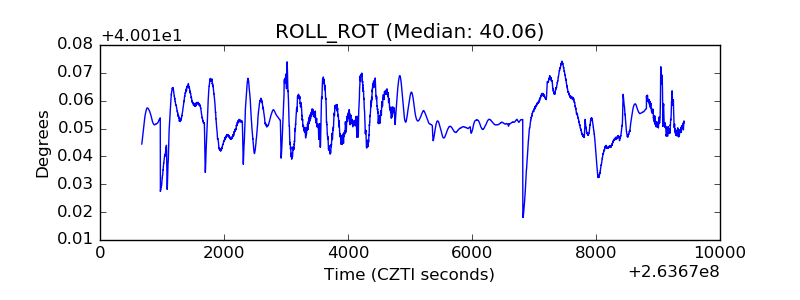

| _ROLL_ROT |  |

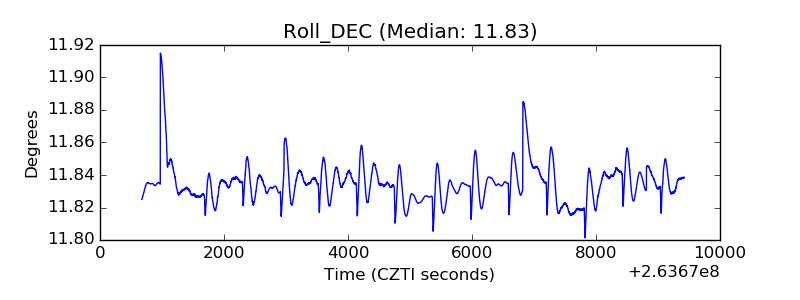

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
