| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_045T01_9000002092_14159cztM0_level2.evt | modeM0/AS1G08_045T01_9000002092_14159cztM0_level2_quad_clean.evt |
| Size (bytes) | 690,932,160 | 94,832,640 |
| Size | 658.9 MB | 90.4 MB |
| Events in quadrant A | 3,714,769 | 606,738 |
| Events in quadrant B | 7,751,514 | 614,274 |
| Events in quadrant C | 3,744,469 | 582,378 |
| Events in quadrant D | 5,212,225 | 551,583 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15741 | 3 |
| B | 0 | 28248 | 2 |
| C | 0 | 15728 | 2 |
| D | 0 | 20727 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7426 | 85 | 1.144627% |
| B | 7426 | 1133 | 15.257204% |
| C | 7426 | 31 | 0.417452% |
| D | 7426 | 99 | 1.333154% |

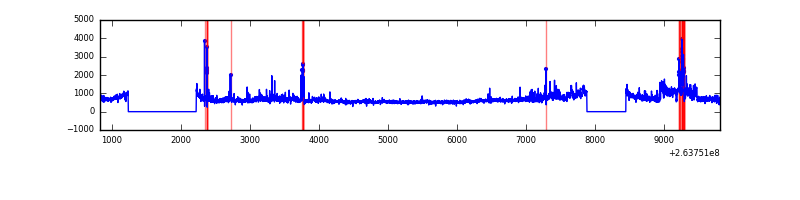

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8977 | 7429 | 3 | 3 | 0.03% | 0.04% |  |
| B | 8977 | 7429 | 609 | 609 | 6.78% | 8.20% |  |
| C | 8977 | 7429 | 5 | 5 | 0.06% | 0.07% |  |
| D | 8977 | 7429 | 33 | 33 | 0.37% | 0.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 54054 | 279.31 | 933 | 911 | 190.3 |
| A | 9 | 143 | 34568 | 176.9 | 933 | 911 | 190.3 |
| A | 12 | 189 | 19701 | 98.76 | 933 | 911 | 190.3 |
| B | 0 | 85 | 3929871 | 23404.4 | 887 | 866 | 167.9 |
| B | 0 | 189 | 149260 | 883.96 | 887 | 866 | 167.9 |
| B | 0 | 219 | 87384 | 515.37 | 887 | 866 | 167.9 |
| C | 3 | 233 | 181698 | 876.79 | 895 | 899 | 206.2 |
| C | 0 | 207 | 32211 | 151.85 | 895 | 899 | 206.2 |
| C | 10 | 22 | 24330 | 113.63 | 895 | 899 | 206.2 |
| D | 8 | 195 | 1002173 | 4559.83 | 888 | 866 | 219.6 |
| D | 1 | 52 | 503207 | 2287.6 | 888 | 866 | 219.6 |
| D | 2 | 152 | 130846 | 591.91 | 888 | 866 | 219.6 |

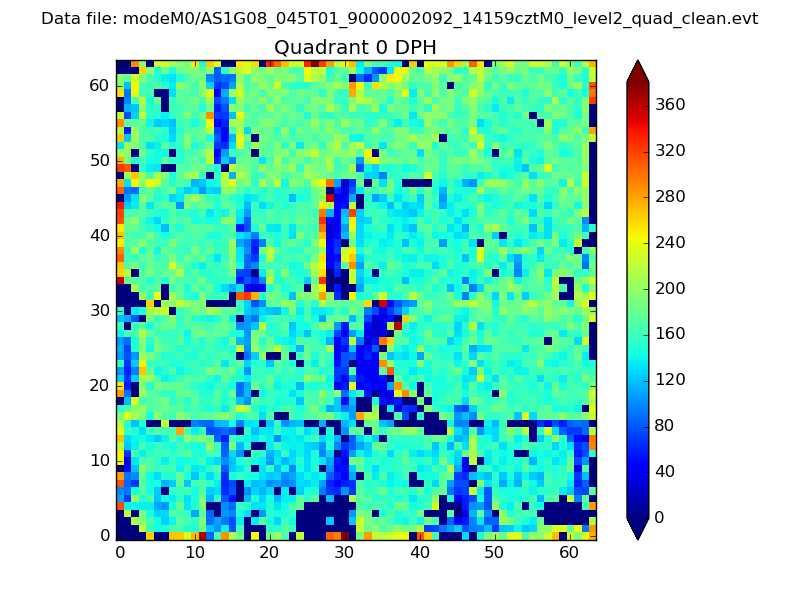

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

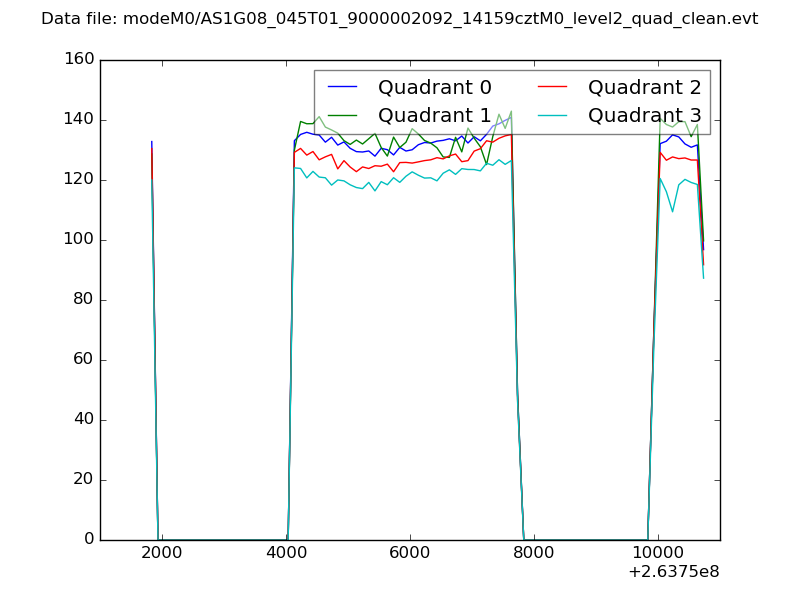

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

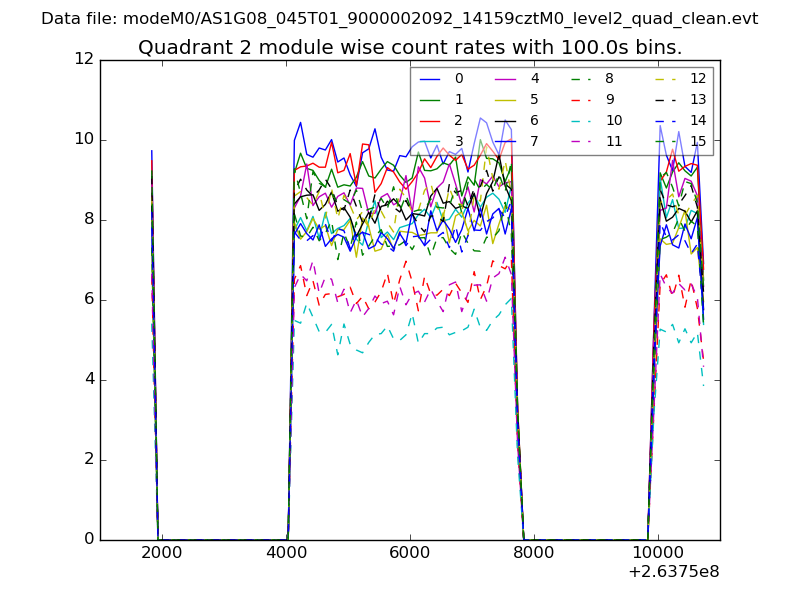

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

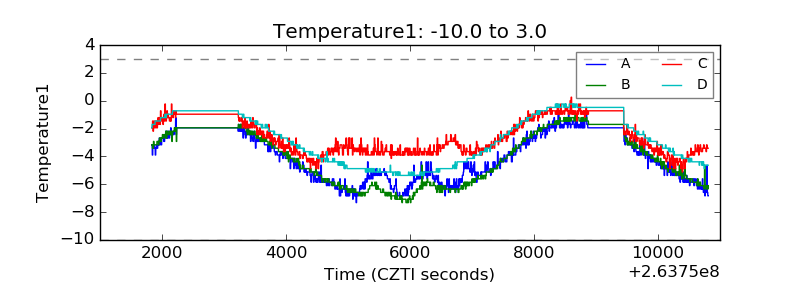

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

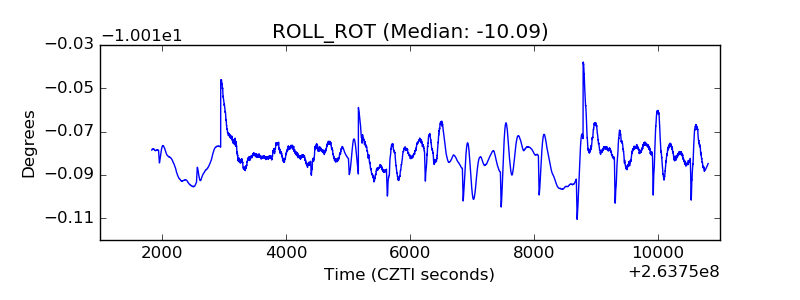

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

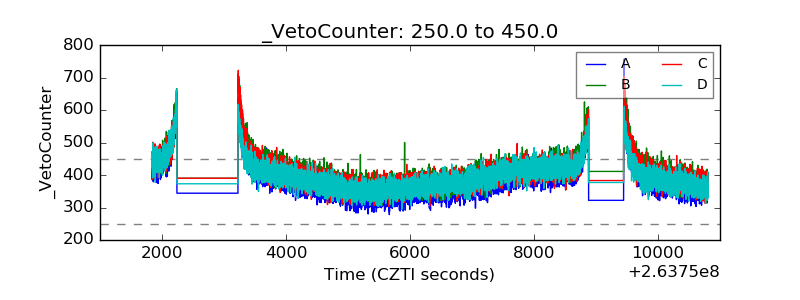

| Veto Counter |  |
