| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_229T01_9000002096_14174cztM0_level2.evt | modeM0/AS1A04_229T01_9000002096_14174cztM0_level2_quad_clean.evt |
| Size (bytes) | 351,244,800 | 65,327,040 |
| Size | 335.0 MB | 62.3 MB |
| Events in quadrant A | 2,359,956 | 413,098 |
| Events in quadrant B | 3,001,000 | 431,148 |
| Events in quadrant C | 2,438,746 | 401,057 |
| Events in quadrant D | 2,502,856 | 387,775 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10144 | 2 |
| B | 0 | 12122 | 1 |
| C | 0 | 10206 | 1 |
| D | 0 | 10693 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4910 | 12 | 0.244399% |
| B | 4910 | 181 | 3.686354% |
| C | 4910 | 11 | 0.224033% |
| D | 4910 | 25 | 0.509165% |

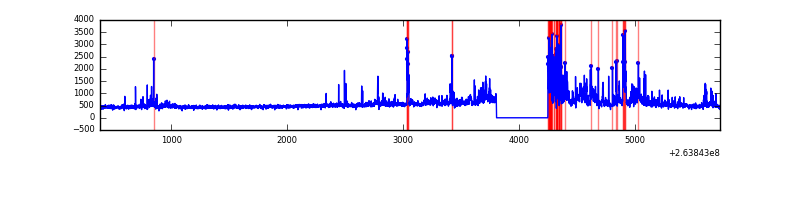

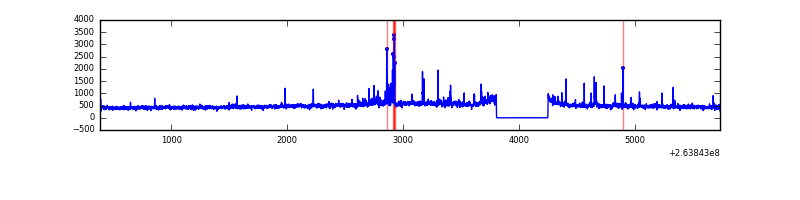

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

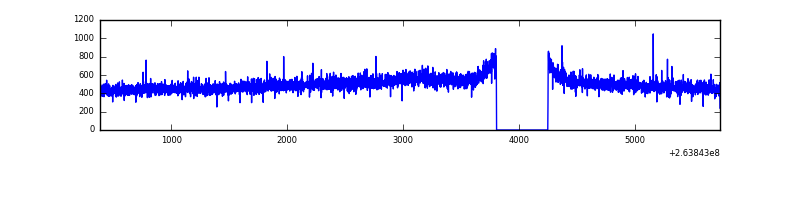

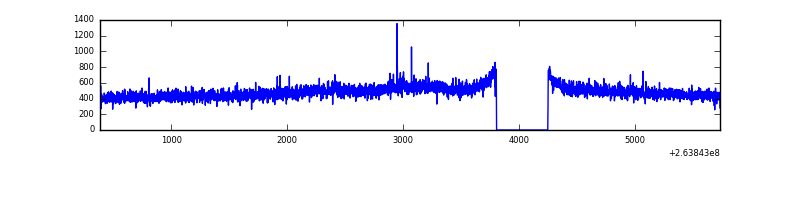

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5356 | 4912 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5356 | 4912 | 64 | 64 | 1.19% | 1.30% |  |
| C | 5356 | 4912 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5356 | 4912 | 7 | 7 | 0.13% | 0.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 17497 | 135.51 | 606 | 593 | 124.7 |
| A | 8 | 15 | 11739 | 89.35 | 606 | 593 | 124.7 |
| A | 0 | 226 | 5265 | 37.45 | 606 | 593 | 124.7 |
| B | 0 | 85 | 475915 | 4127.82 | 599 | 586 | 115.2 |
| B | 10 | 244 | 52458 | 450.46 | 599 | 586 | 115.2 |
| B | 0 | 189 | 33804 | 288.47 | 599 | 586 | 115.2 |
| C | 3 | 233 | 148838 | 1097.21 | 586 | 590 | 135.1 |
| C | 13 | 61 | 4248 | 27.07 | 586 | 590 | 135.1 |
| C | 10 | 22 | 3174 | 19.12 | 586 | 590 | 135.1 |
| D | 8 | 195 | 106833 | 765.87 | 582 | 567 | 138.8 |
| D | 2 | 152 | 46408 | 330.38 | 582 | 567 | 138.8 |
| D | 10 | 157 | 33193 | 235.14 | 582 | 567 | 138.8 |

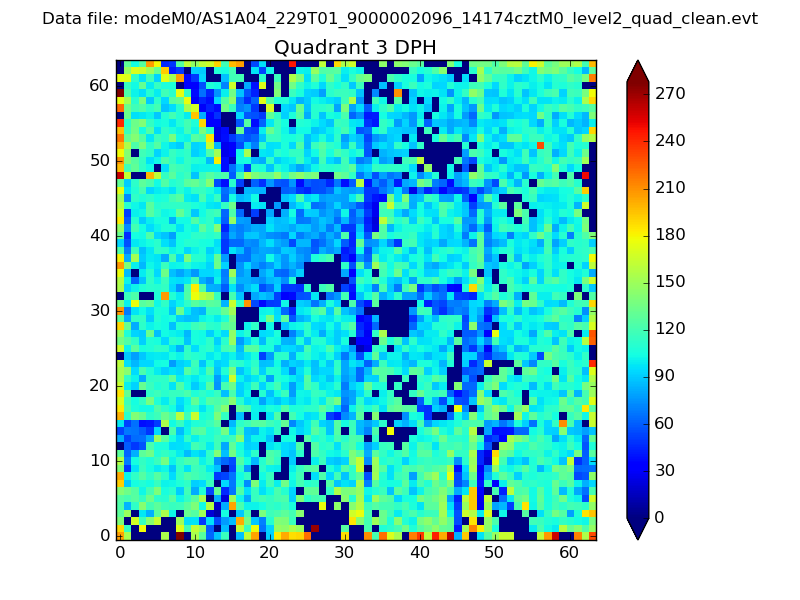

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

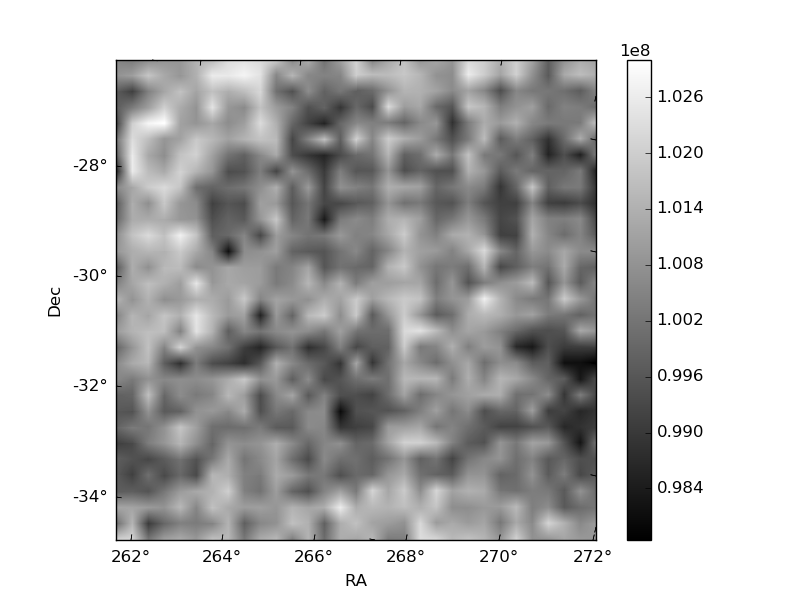

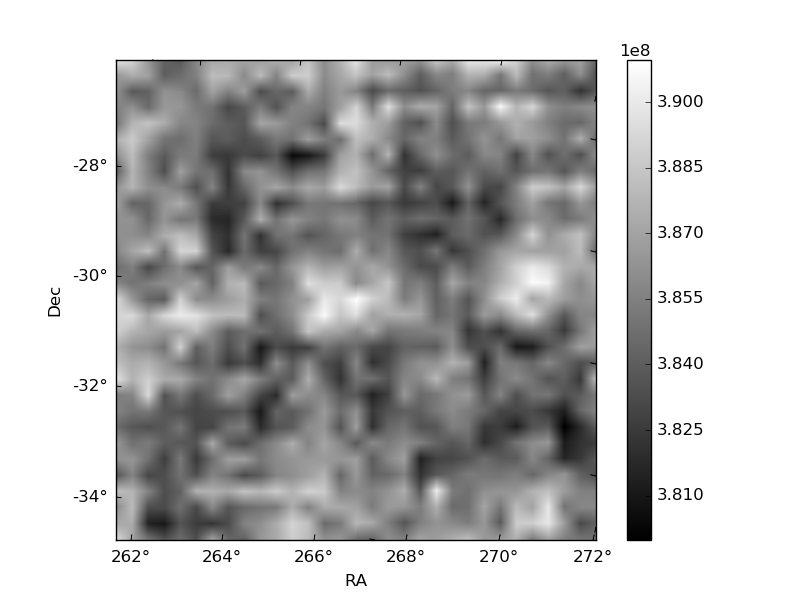

| Plot type | Count rate plots | Images |
|---|---|---|

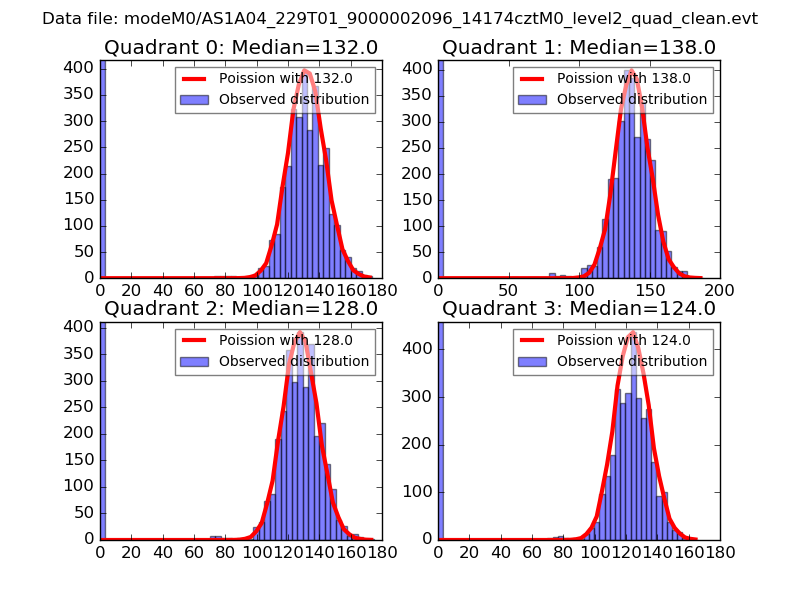

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

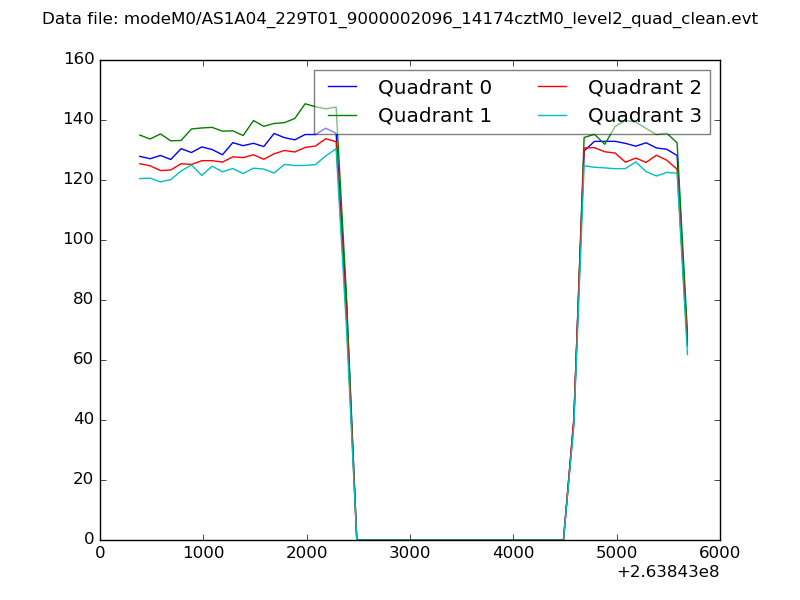

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

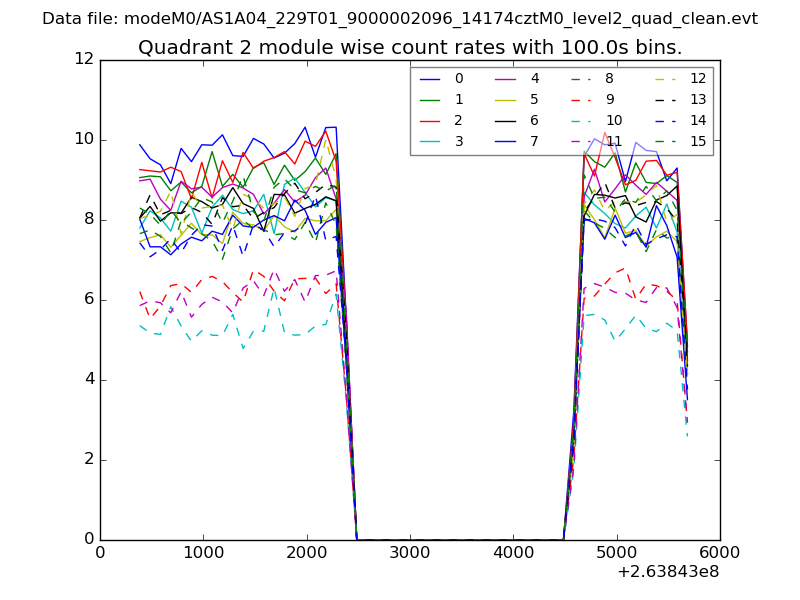

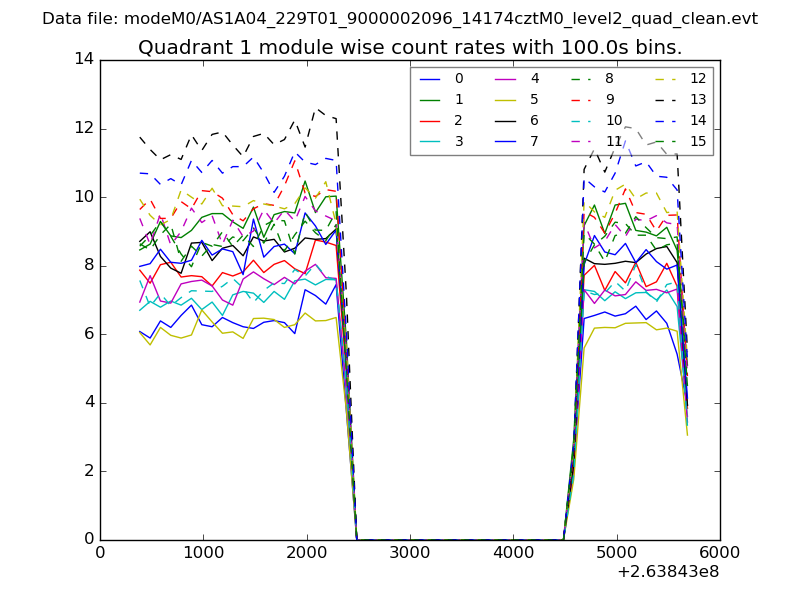

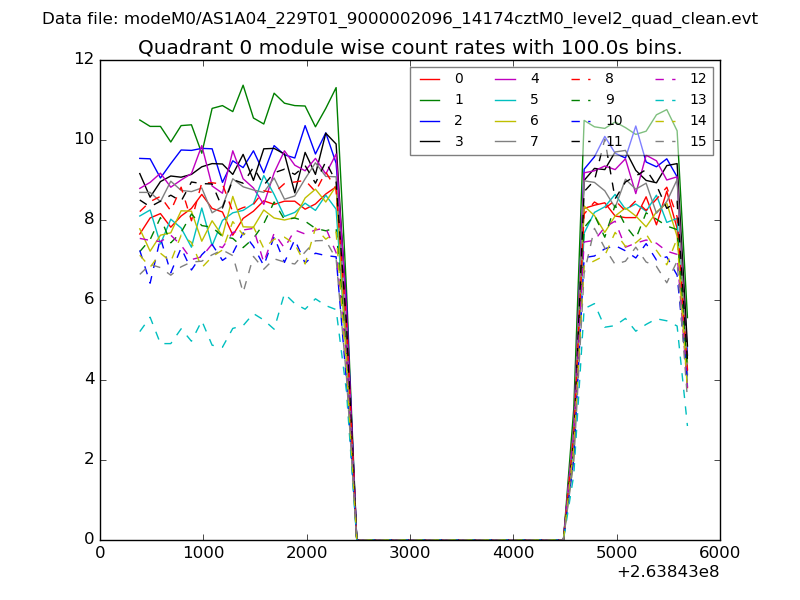

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

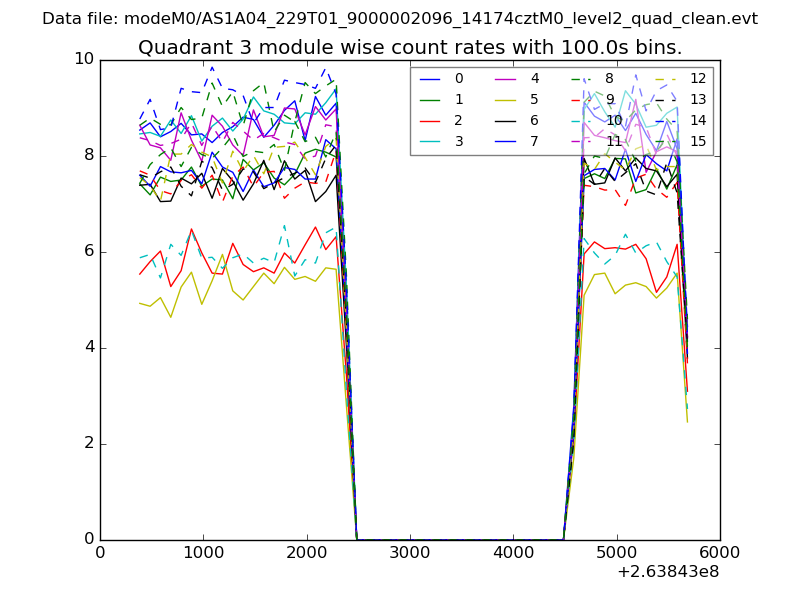

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

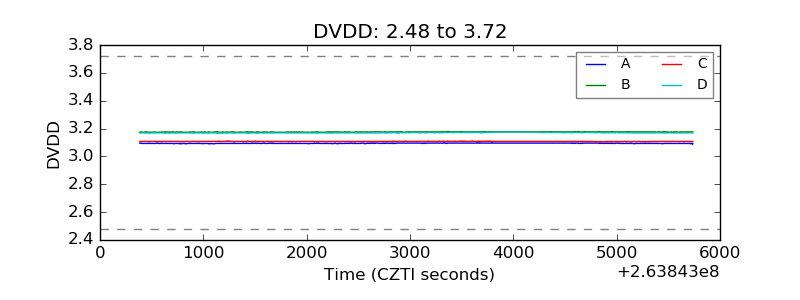

| D_VDD |  |

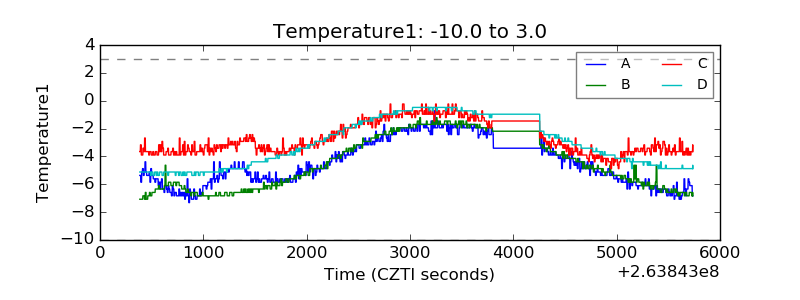

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

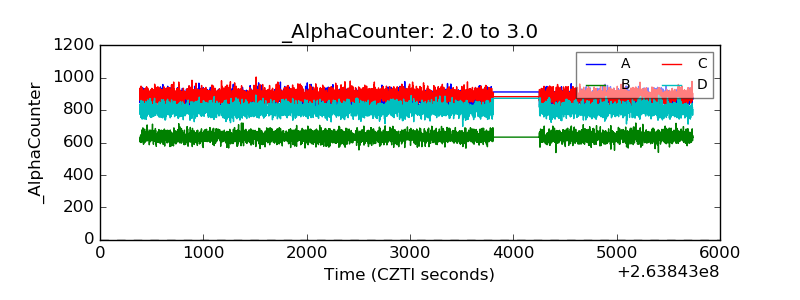

| Alpha Counter |  |

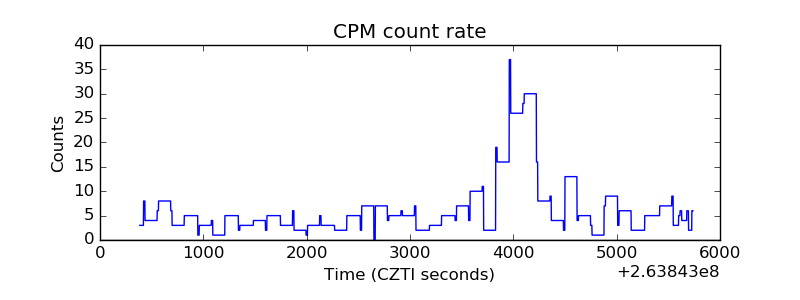

| _CPM_Rate |  |

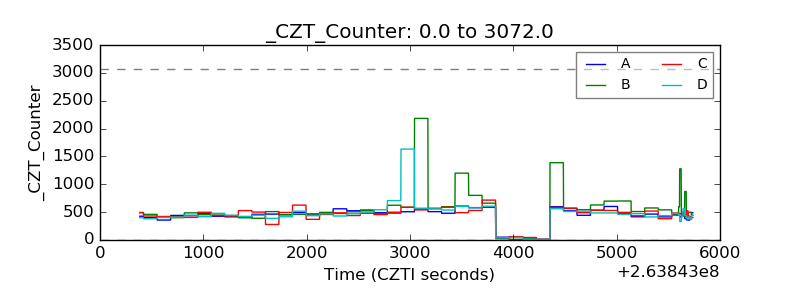

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

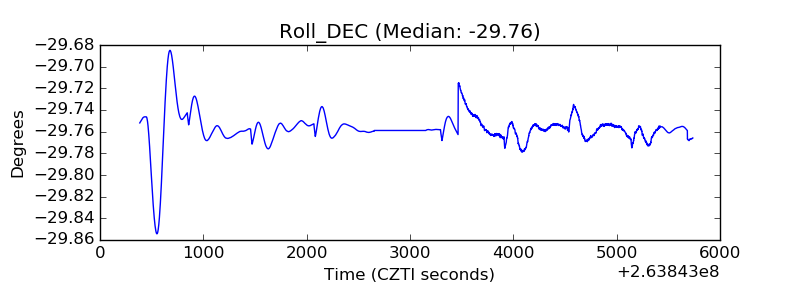

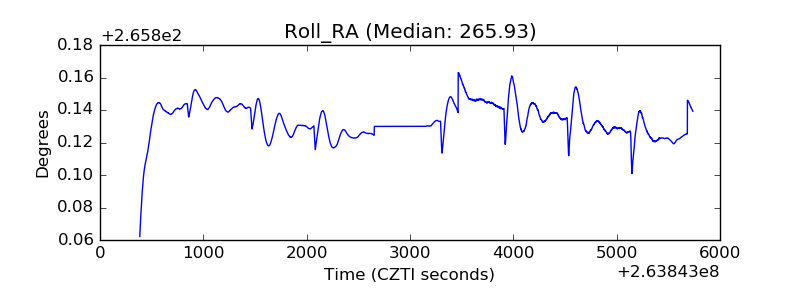

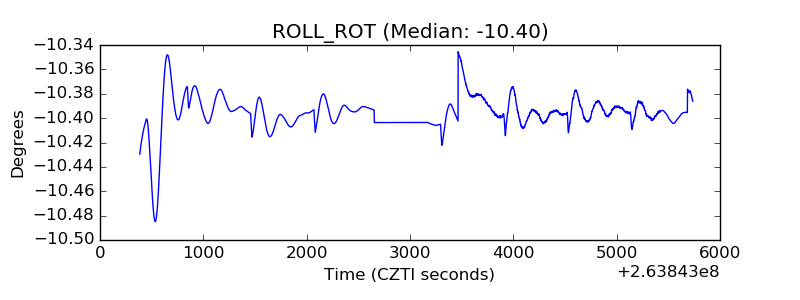

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

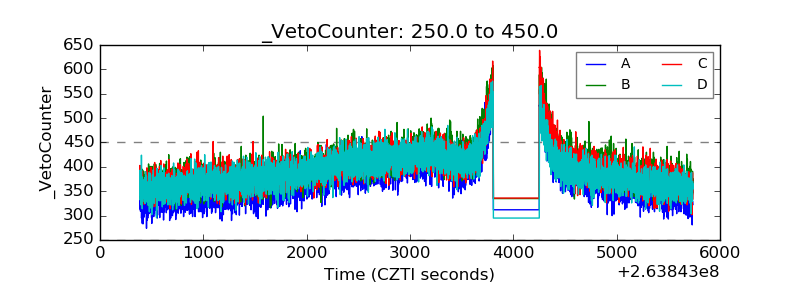

| Veto Counter |  |
