| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_229T01_9000002096_14190cztM0_level2.evt | modeM0/AS1A04_229T01_9000002096_14190cztM0_level2_quad_clean.evt |
| Size (bytes) | 617,932,800 | 108,005,760 |
| Size | 589.3 MB | 103.0 MB |
| Events in quadrant A | 4,223,858 | 678,019 |
| Events in quadrant B | 4,481,442 | 709,326 |
| Events in quadrant C | 4,399,204 | 655,659 |
| Events in quadrant D | 5,022,676 | 626,863 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18186 | 3 |
| B | 0 | 18867 | 2 |
| C | 0 | 18376 | 2 |
| D | 0 | 20774 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 176 | 0 |
| B | 0 | 176 | 0 |
| C | 0 | 176 | 0 |
| D | 0 | 176 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8662 | 54 | 0.623413% |
| B | 8662 | 114 | 1.316093% |
| C | 8662 | 47 | 0.542600% |
| D | 8662 | 208 | 2.401293% |

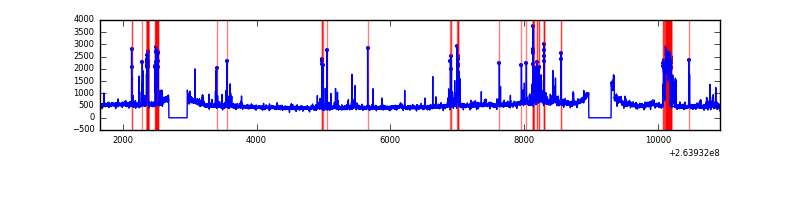

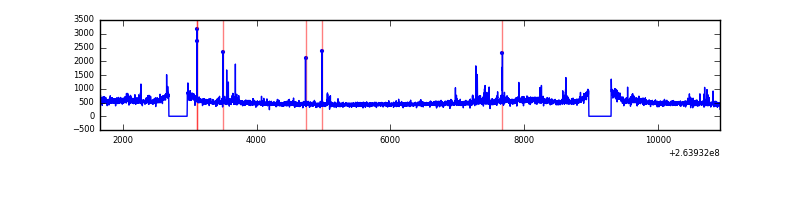

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

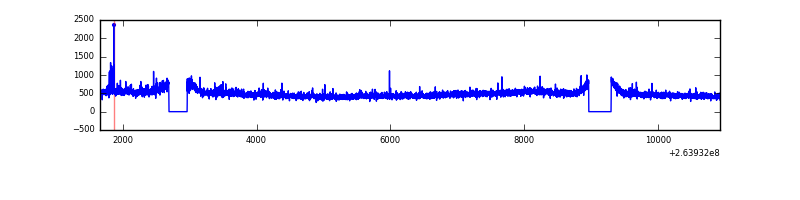

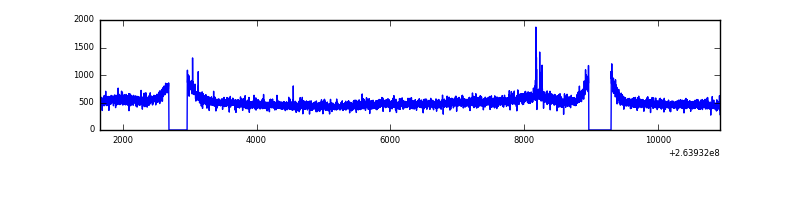

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9273 | 8665 | 1 | 1 | 0.01% | 0.01% |  |
| B | 9273 | 8665 | 6 | 6 | 0.06% | 0.07% |  |
| C | 9273 | 8665 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9273 | 8665 | 146 | 146 | 1.57% | 1.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 48062 | 214.54 | 1073 | 1050 | 219.1 |
| A | 12 | 189 | 18782 | 80.92 | 1073 | 1050 | 219.1 |
| A | 3 | 1 | 12272 | 51.21 | 1073 | 1050 | 219.1 |
| B | 0 | 219 | 90617 | 434.24 | 1082 | 1055 | 206.3 |
| B | 4 | 142 | 59686 | 284.27 | 1082 | 1055 | 206.3 |
| B | 0 | 189 | 37856 | 178.43 | 1082 | 1055 | 206.3 |
| C | 3 | 233 | 339692 | 1413.05 | 1037 | 1044 | 239.7 |
| C | 0 | 207 | 18369 | 72.29 | 1037 | 1044 | 239.7 |
| C | 13 | 61 | 7465 | 26.79 | 1037 | 1044 | 239.7 |
| D | 12 | 110 | 365929 | 1487.89 | 1025 | 1003 | 245.3 |
| D | 8 | 195 | 216399 | 878.22 | 1025 | 1003 | 245.3 |
| D | 7 | 254 | 135234 | 547.29 | 1025 | 1003 | 245.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

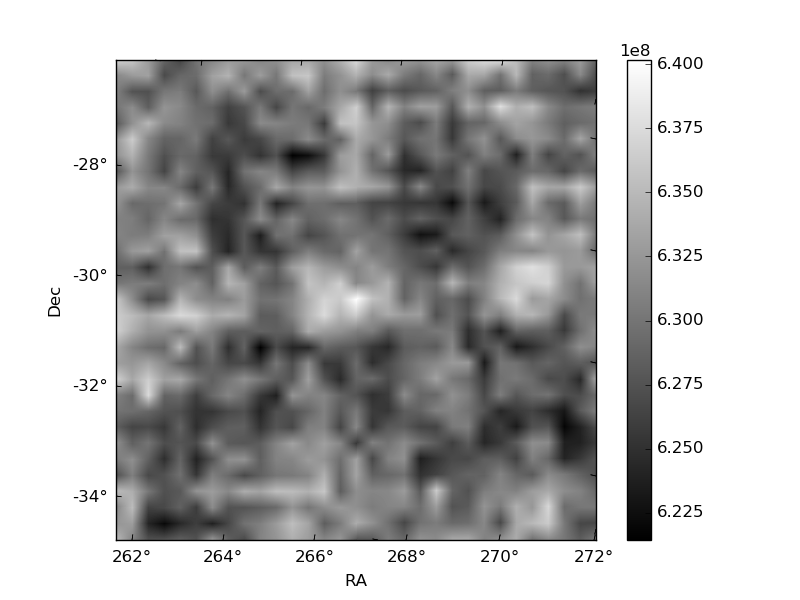

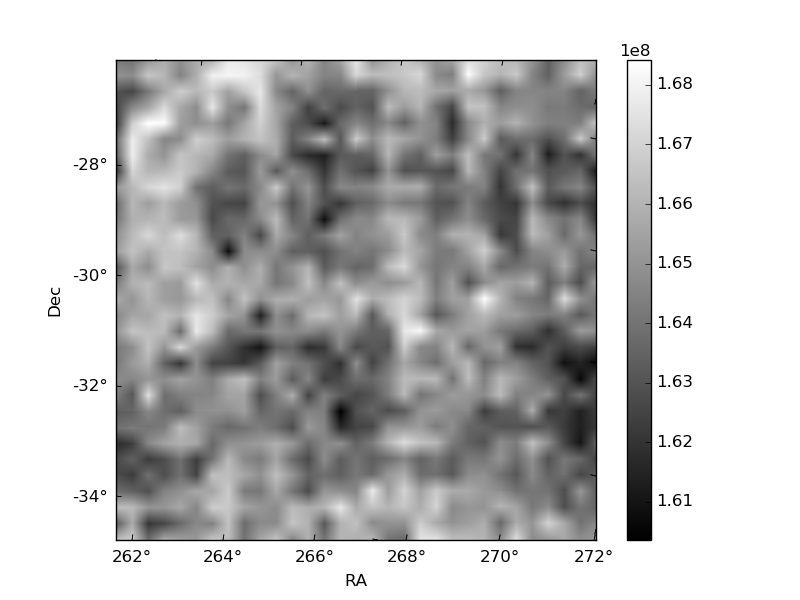

| Plot type | Count rate plots | Images |
|---|---|---|

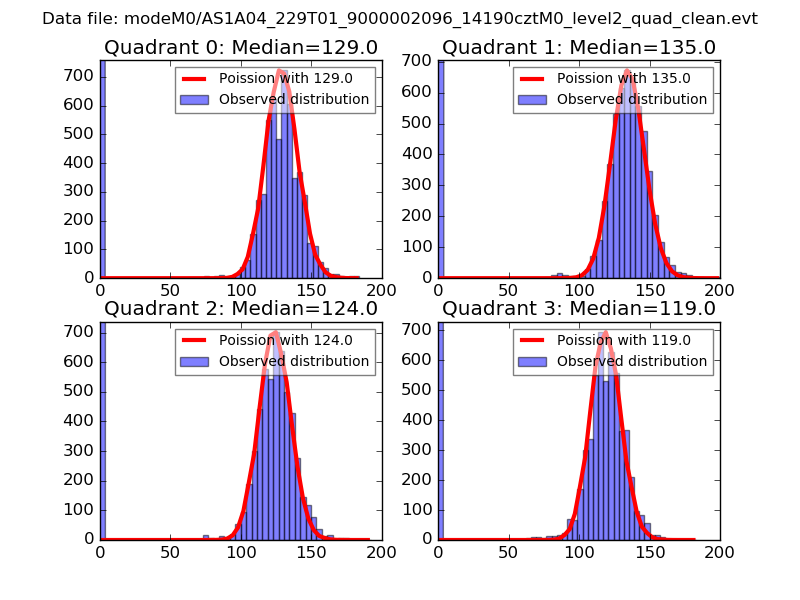

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

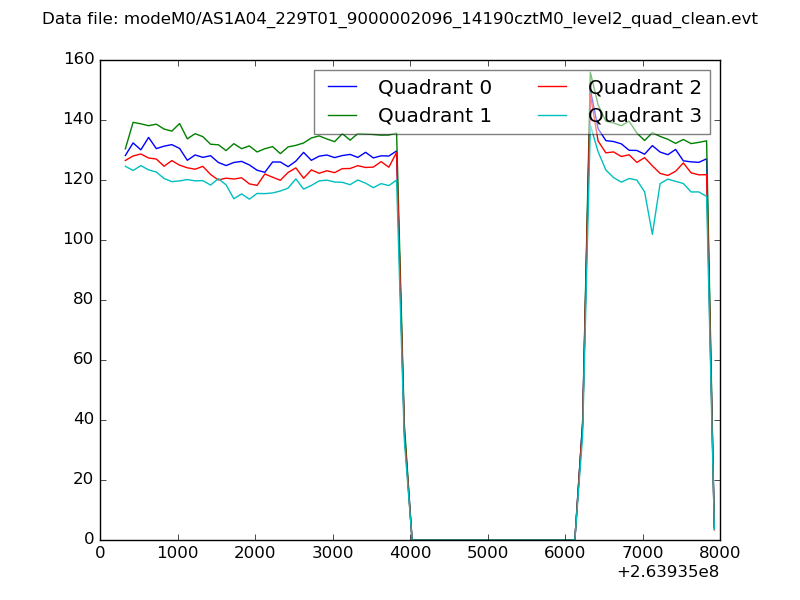

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

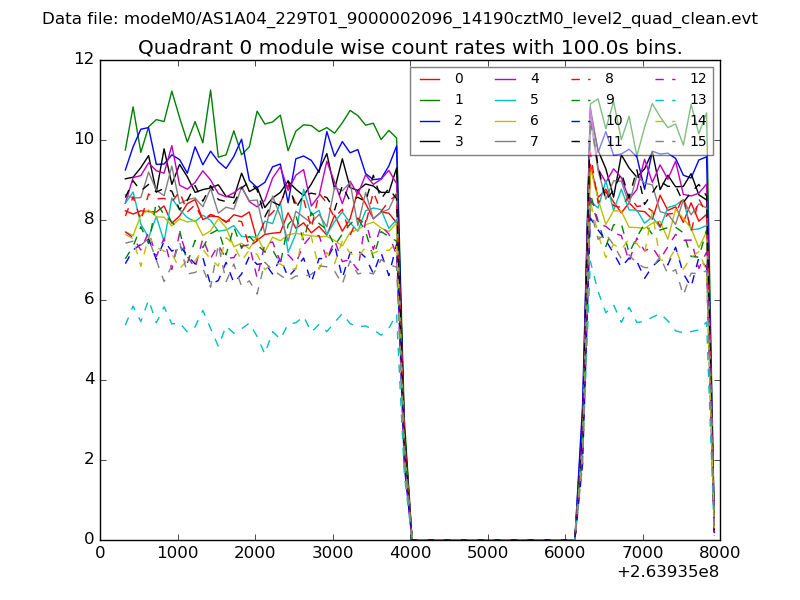

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

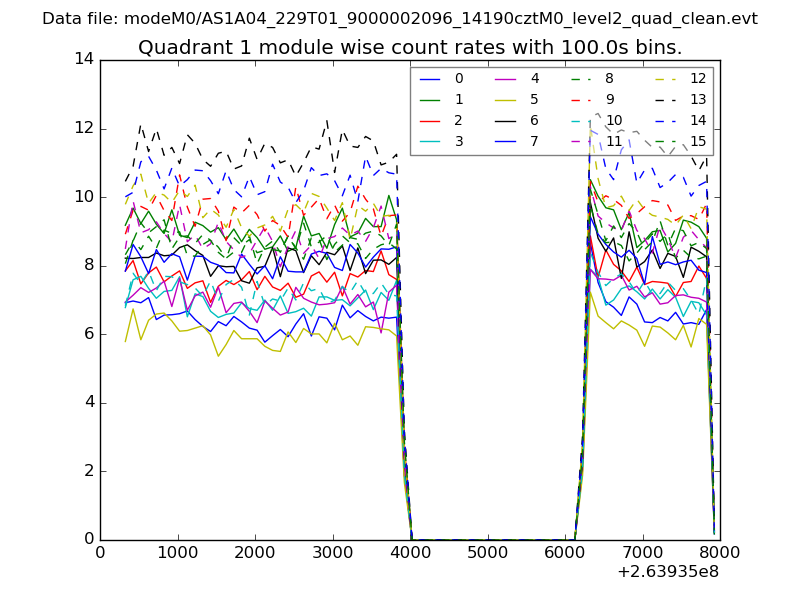

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

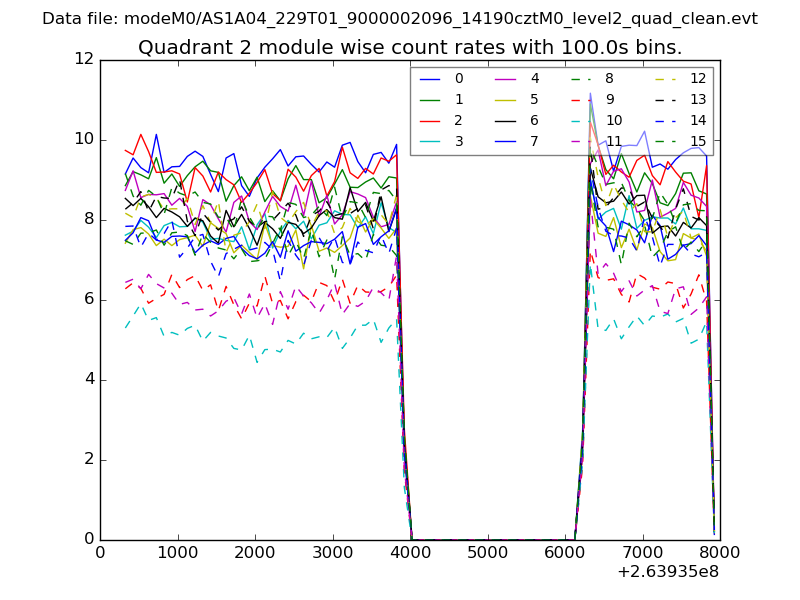

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

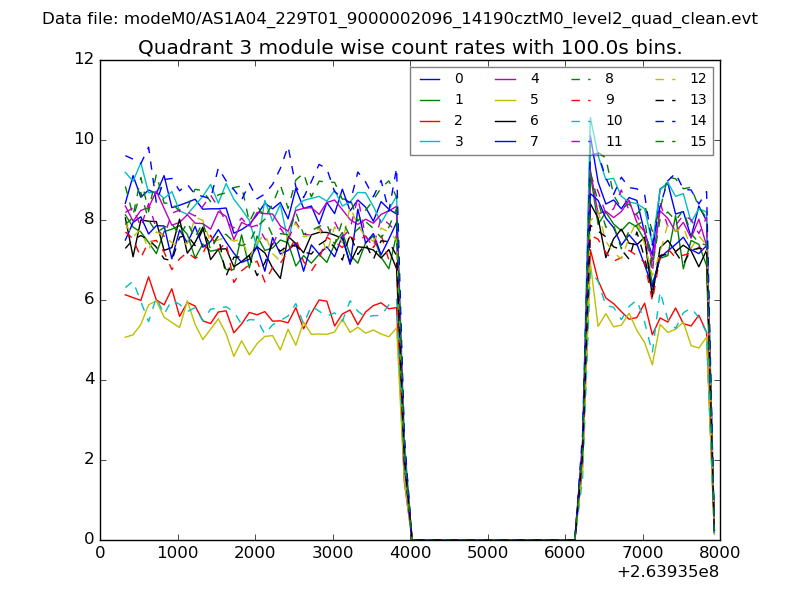

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

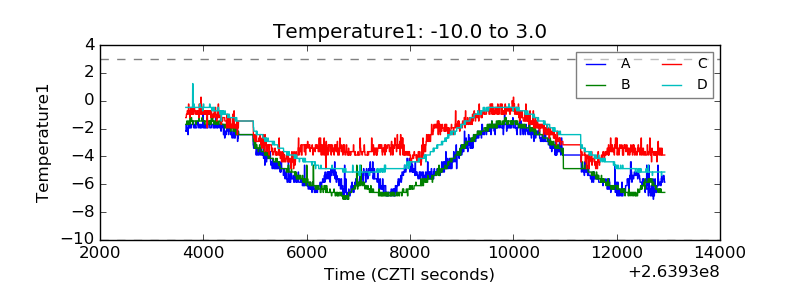

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

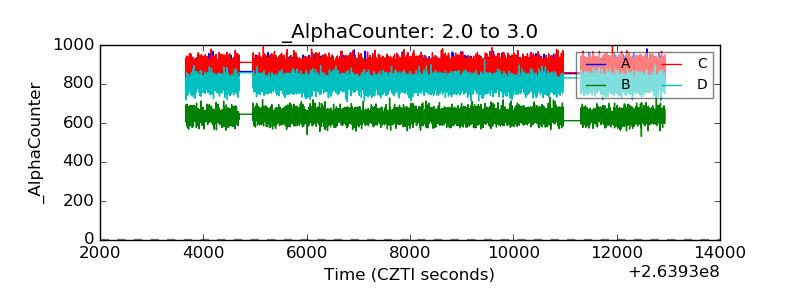

| Alpha Counter |  |

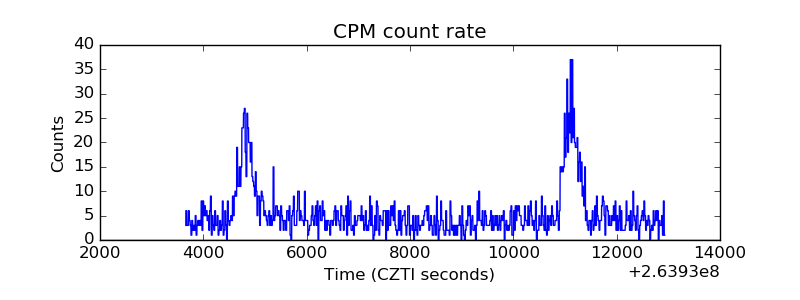

| _CPM_Rate |  |

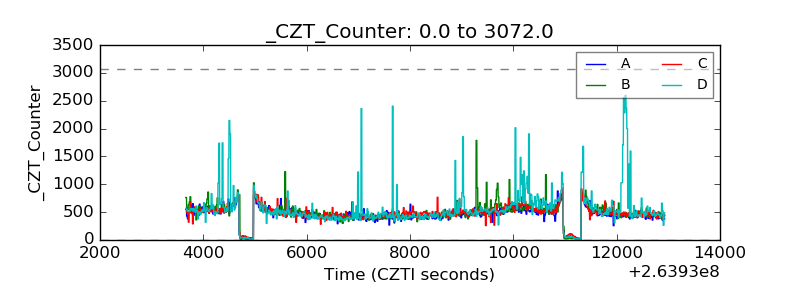

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

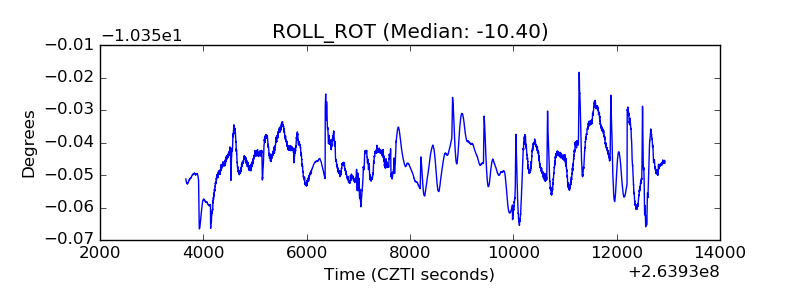

| _ROLL_ROT |  |

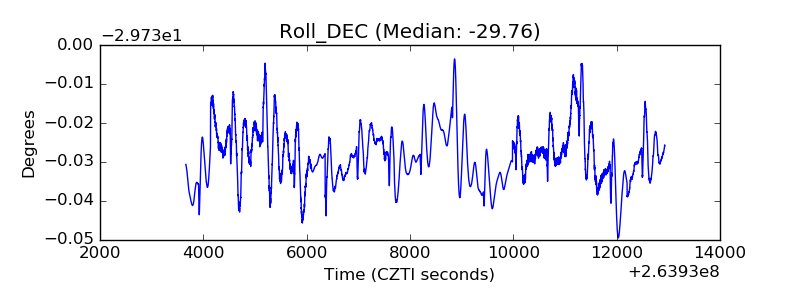

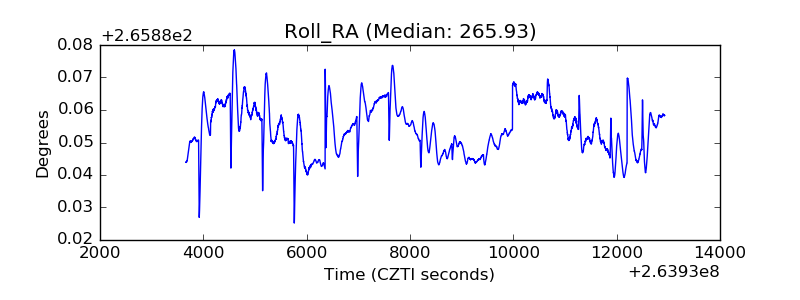

| _Roll_DEC |  |
| _Roll_RA |  |

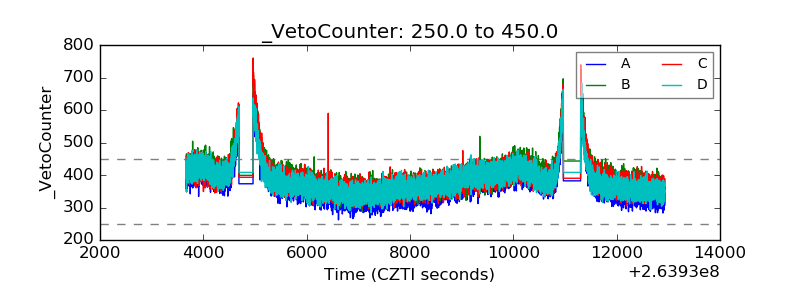

| Veto Counter |  |
