| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_024T02_9000002094_14165cztM0_level2.evt | modeM0/AS1G08_024T02_9000002094_14165cztM0_level2_quad_clean.evt |
| Size (bytes) | 497,773,440 | 89,199,360 |
| Size | 474.7 MB | 85.1 MB |
| Events in quadrant A | 3,188,264 | 545,845 |
| Events in quadrant B | 4,420,599 | 546,296 |
| Events in quadrant C | 3,272,337 | 582,352 |
| Events in quadrant D | 3,738,207 | 558,717 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13738 | 3 |
| B | 0 | 17412 | 2 |
| C | 0 | 13828 | 2 |
| D | 0 | 15491 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6723 | 45 | 0.669344% |
| B | 6723 | 228 | 3.391343% |
| C | 6723 | 36 | 0.535475% |
| D | 6723 | 35 | 0.520601% |

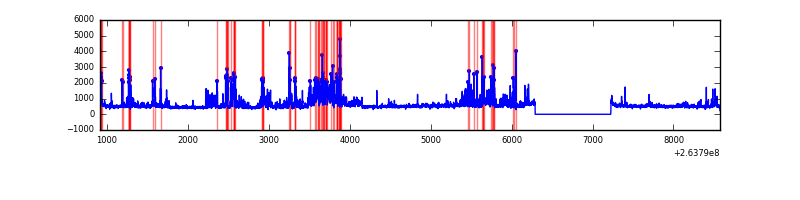

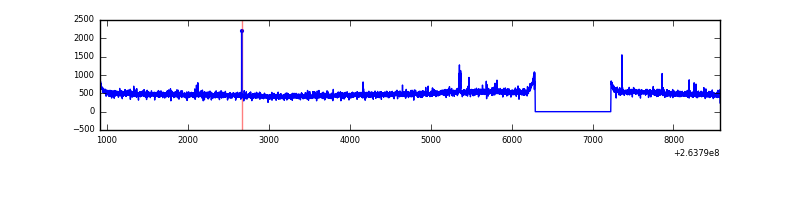

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7659 | 6725 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7659 | 6725 | 94 | 94 | 1.23% | 1.40% |  |
| C | 7659 | 6725 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7659 | 6725 | 1 | 1 | 0.01% | 0.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 68845 | 408.31 | 810 | 794 | 166.7 |
| A | 9 | 143 | 8454 | 45.96 | 810 | 794 | 166.7 |
| A | 0 | 226 | 7011 | 37.3 | 810 | 794 | 166.7 |
| B | 0 | 85 | 1251068 | 8141.49 | 800 | 780 | 153.6 |
| B | 10 | 252 | 25183 | 158.9 | 800 | 780 | 153.6 |
| B | 12 | 111 | 18594 | 116.0 | 800 | 780 | 153.6 |
| C | 3 | 233 | 149666 | 802.24 | 797 | 804 | 185.6 |
| C | 5 | 96 | 10970 | 54.79 | 797 | 804 | 185.6 |
| C | 14 | 234 | 7014 | 33.47 | 797 | 804 | 185.6 |
| D | 8 | 195 | 571103 | 3040.77 | 790 | 771 | 187.6 |
| D | 5 | 222 | 89942 | 475.42 | 790 | 771 | 187.6 |
| D | 1 | 52 | 51862 | 272.39 | 790 | 771 | 187.6 |

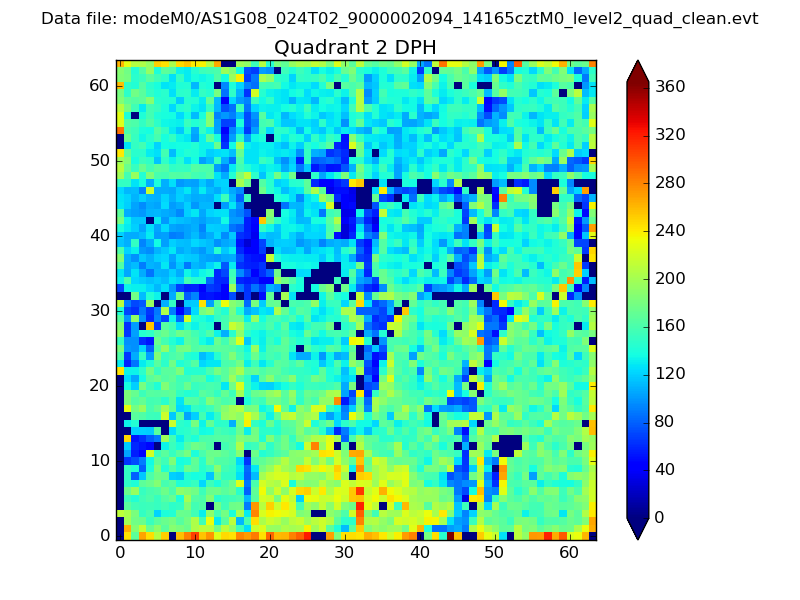

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

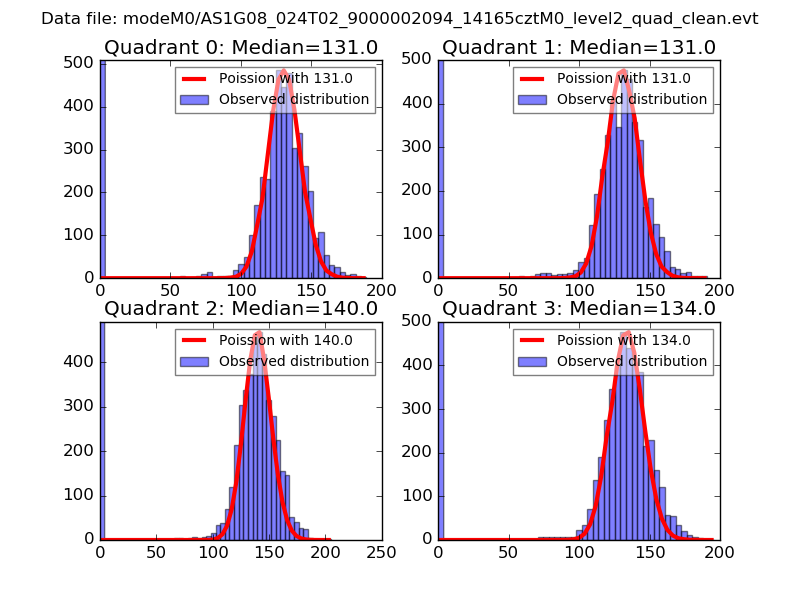

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

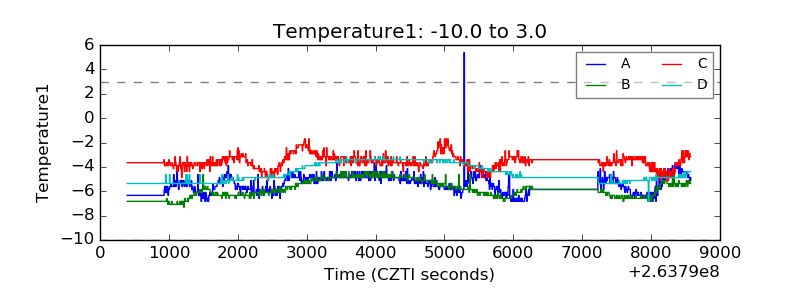

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

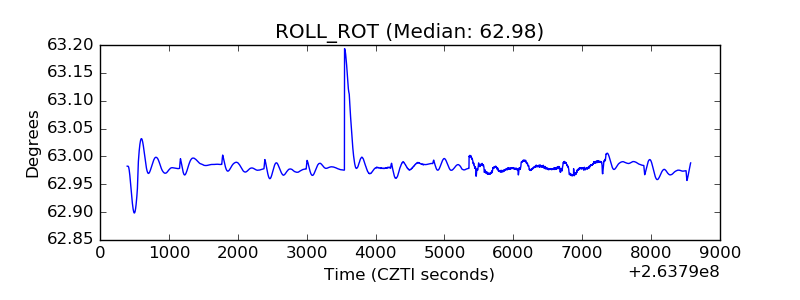

| _ROLL_ROT |  |

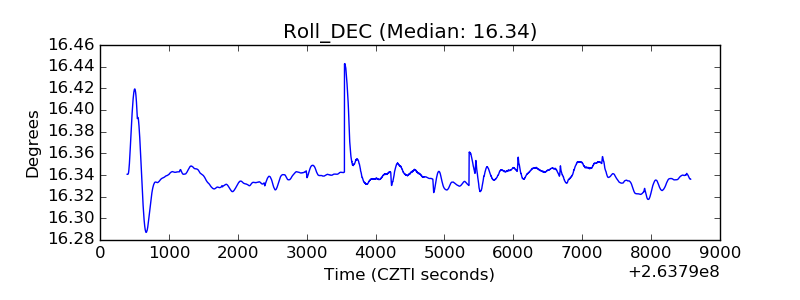

| _Roll_DEC |  |

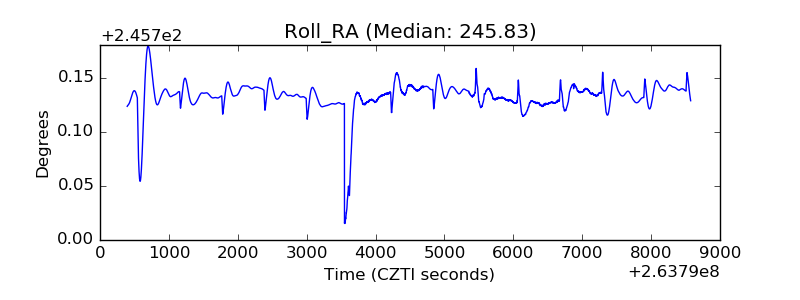

| _Roll_RA |  |
| Veto Counter |  |
