| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_024T02_9000002094_14167cztM0_level2.evt | modeM0/AS1G08_024T02_9000002094_14167cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,182,400 | 77,016,960 |
| Size | 509.4 MB | 73.4 MB |
| Events in quadrant A | 3,039,006 | 473,432 |
| Events in quadrant B | 5,663,832 | 444,753 |
| Events in quadrant C | 3,132,557 | 498,508 |
| Events in quadrant D | 3,916,546 | 476,792 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12918 | 2 |
| B | 0 | 20778 | 1 |
| C | 0 | 13005 | 1 |
| D | 0 | 15899 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6276 | 69 | 1.099426% |
| B | 6276 | 929 | 14.802422% |
| C | 6276 | 45 | 0.717017% |
| D | 6276 | 68 | 1.083493% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

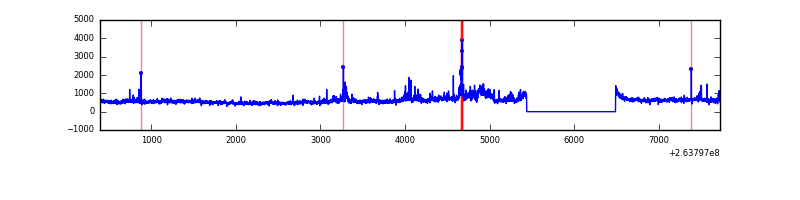

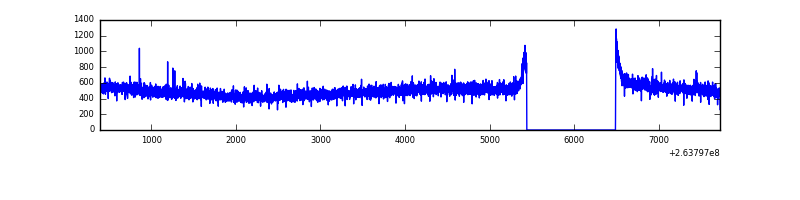

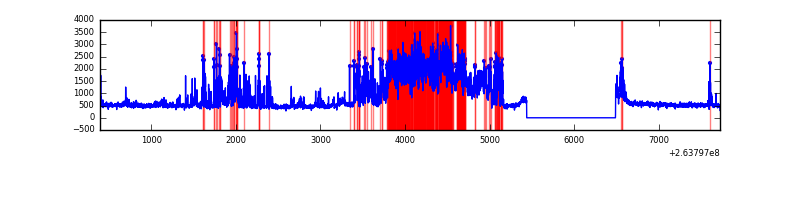

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7327 | 6278 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7327 | 6278 | 579 | 579 | 7.90% | 9.22% |  |
| C | 7327 | 6278 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7327 | 6278 | 10 | 10 | 0.14% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 13988 | 82.52 | 786 | 770 | 160.2 |
| A | 0 | 226 | 6976 | 38.74 | 786 | 770 | 160.2 |
| A | 12 | 194 | 5645 | 30.43 | 786 | 770 | 160.2 |
| B | 0 | 85 | 2709640 | 18858.78 | 752 | 735 | 143.6 |
| B | 12 | 111 | 17347 | 115.65 | 752 | 735 | 143.6 |
| B | 11 | 111 | 14793 | 97.87 | 752 | 735 | 143.6 |
| C | 3 | 233 | 139885 | 785.04 | 765 | 773 | 177.2 |
| C | 10 | 22 | 6328 | 31.35 | 765 | 773 | 177.2 |
| C | 13 | 61 | 5438 | 26.33 | 765 | 773 | 177.2 |
| D | 8 | 195 | 547204 | 3022.98 | 763 | 745 | 180.8 |
| D | 1 | 52 | 469751 | 2594.52 | 763 | 745 | 180.8 |
| D | 2 | 234 | 20055 | 106.82 | 763 | 745 | 180.8 |

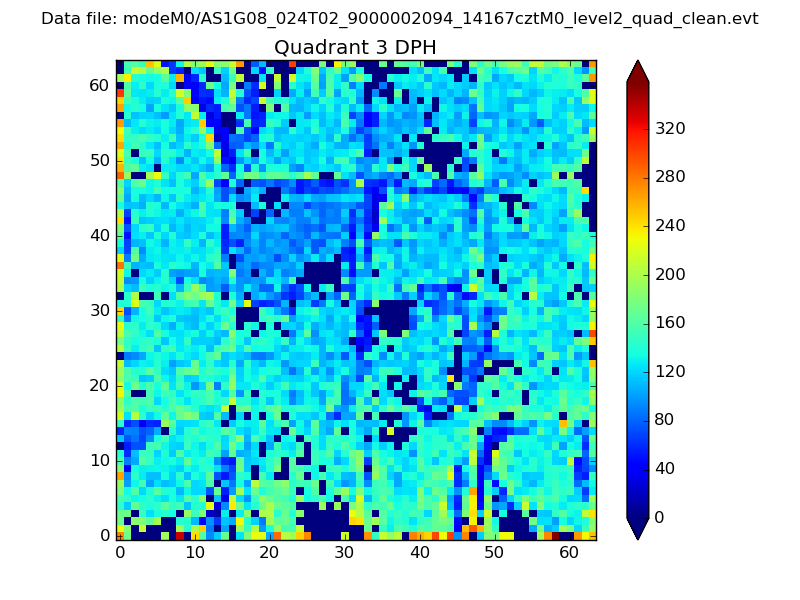

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

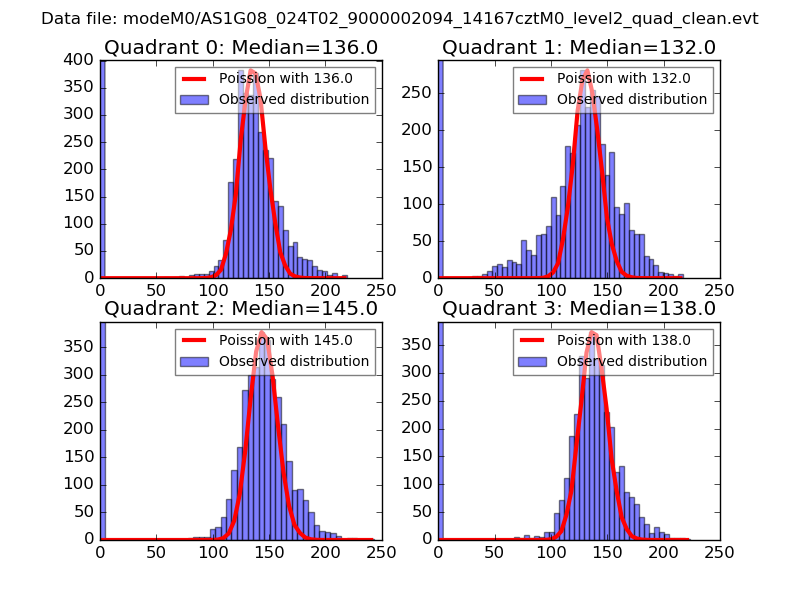

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

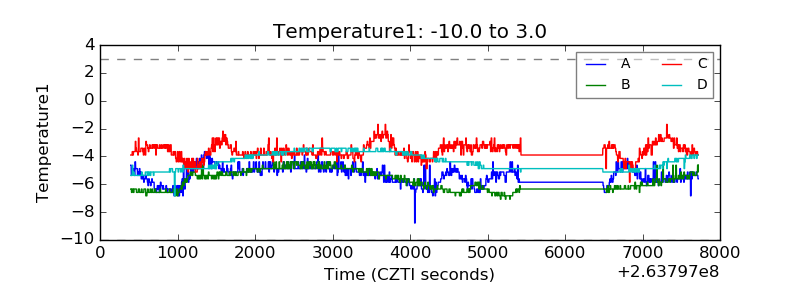

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

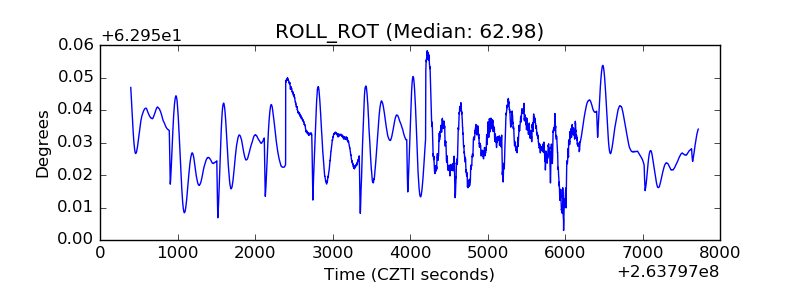

| _ROLL_ROT |  |
| _Roll_DEC |  |

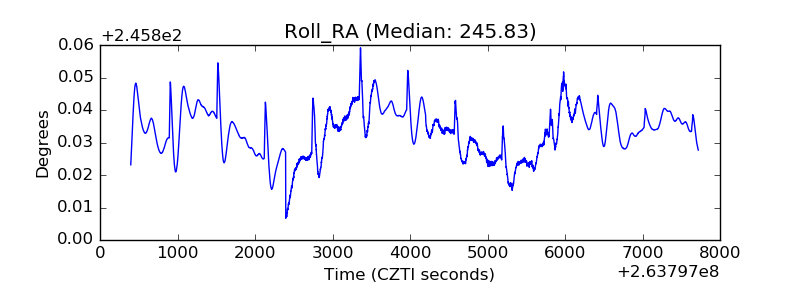

| _Roll_RA |  |
