| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_024T02_9000002094_14169cztM0_level2.evt | modeM0/AS1G08_024T02_9000002094_14169cztM0_level2_quad_clean.evt |
| Size (bytes) | 516,528,000 | 68,129,280 |
| Size | 492.6 MB | 65.0 MB |
| Events in quadrant A | 3,420,353 | 398,817 |
| Events in quadrant B | 4,162,098 | 403,300 |
| Events in quadrant C | 3,437,711 | 416,225 |
| Events in quadrant D | 4,190,402 | 399,488 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14014 | 3 |
| B | 0 | 16484 | 2 |
| C | 0 | 13906 | 2 |
| D | 0 | 16920 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6382 | 132 | 2.068317% |
| B | 6382 | 316 | 4.951426% |
| C | 6382 | 82 | 1.284864% |
| D | 6382 | 118 | 1.848950% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7618 | 6383 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7618 | 6383 | 116 | 116 | 1.52% | 1.82% |  |
| C | 7618 | 6383 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7618 | 6383 | 13 | 13 | 0.17% | 0.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 24282 | 133.51 | 883 | 868 | 175.4 |
| A | 0 | 226 | 7918 | 40.2 | 883 | 868 | 175.4 |
| A | 12 | 194 | 6587 | 32.61 | 883 | 868 | 175.4 |
| B | 10 | 244 | 569510 | 3471.14 | 864 | 845 | 163.8 |
| B | 0 | 85 | 204358 | 1242.25 | 864 | 845 | 163.8 |
| B | 12 | 111 | 19035 | 111.03 | 864 | 845 | 163.8 |
| C | 3 | 233 | 113191 | 578.12 | 852 | 861 | 194.3 |
| C | 13 | 61 | 6181 | 27.38 | 852 | 861 | 194.3 |
| C | 10 | 22 | 2862 | 10.3 | 852 | 861 | 194.3 |
| D | 1 | 52 | 537237 | 2649.1 | 854 | 836 | 202.5 |
| D | 8 | 195 | 356215 | 1755.1 | 854 | 836 | 202.5 |
| D | 7 | 254 | 29519 | 141.66 | 854 | 836 | 202.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

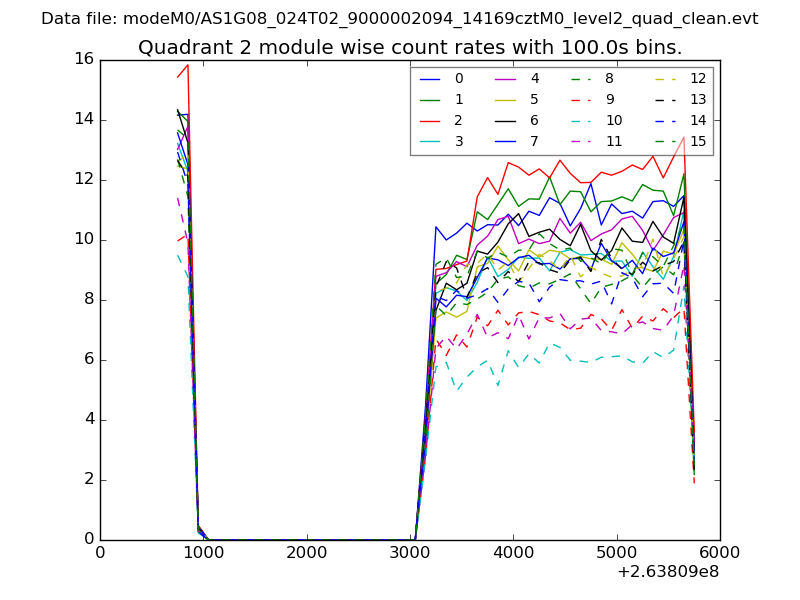

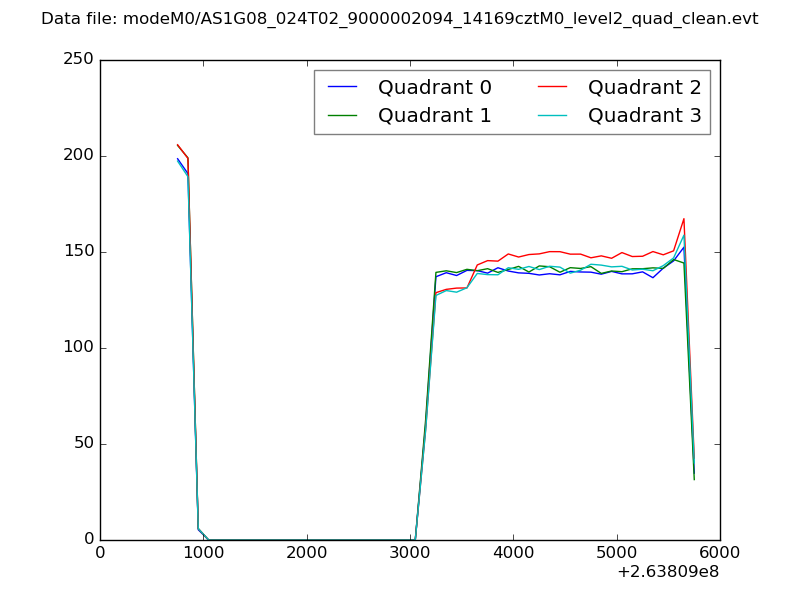

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

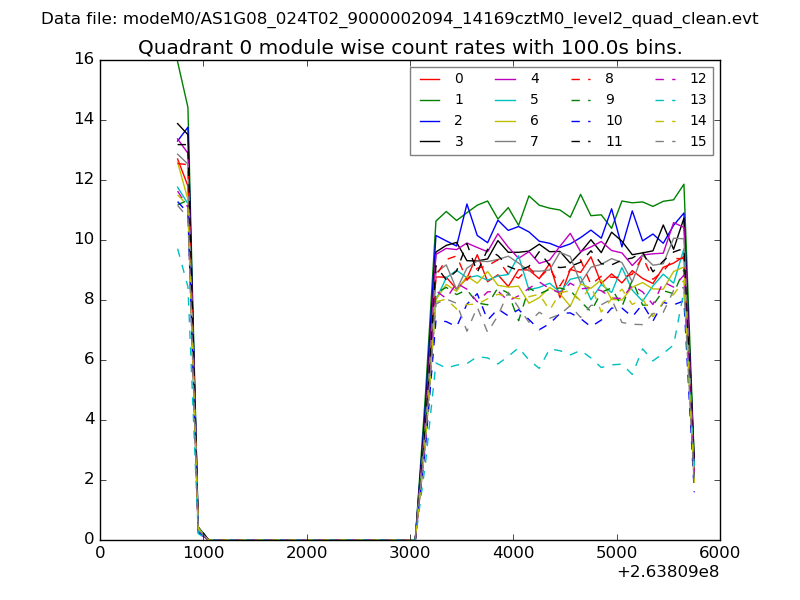

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

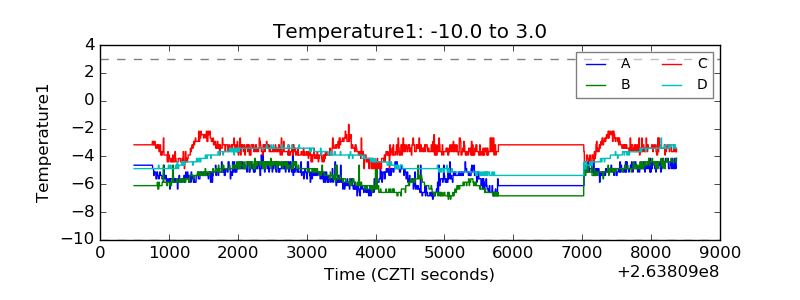

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

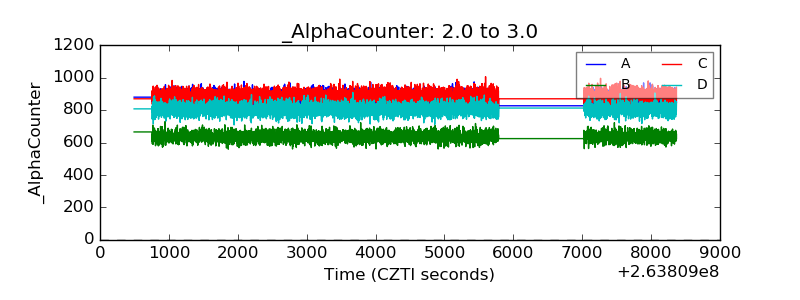

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

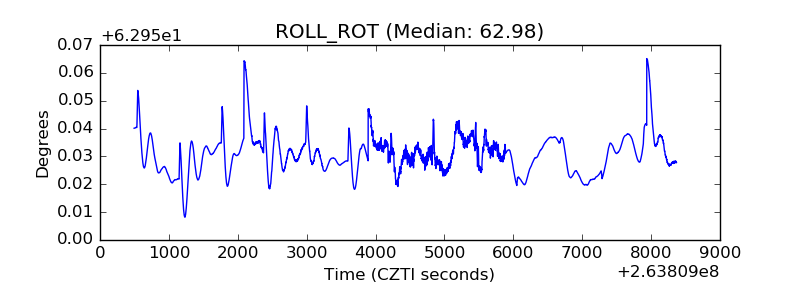

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
