| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_022T01_9000002098_14201cztM0_level2.evt | modeM0/AS1C03_022T01_9000002098_14201cztM0_level2_quad_clean.evt |
| Size (bytes) | 543,300,480 | 75,896,640 |
| Size | 518.1 MB | 72.4 MB |
| Events in quadrant A | 3,605,707 | 467,076 |
| Events in quadrant B | 5,191,352 | 464,579 |
| Events in quadrant C | 3,547,509 | 448,869 |
| Events in quadrant D | 3,650,146 | 446,086 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14575 | 3 |
| B | 0 | 19455 | 2 |
| C | 0 | 14266 | 2 |
| D | 0 | 15101 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6762 | 126 | 1.863354% |
| B | 6762 | 869 | 12.851227% |
| C | 6762 | 94 | 1.390121% |
| D | 6762 | 114 | 1.685892% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7788 | 6764 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7788 | 6764 | 536 | 536 | 6.88% | 7.92% |  |
| C | 7788 | 6764 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7788 | 6764 | 8 | 8 | 0.10% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 185919 | 1034.3 | 879 | 860 | 178.9 |
| A | 12 | 189 | 24781 | 133.7 | 879 | 860 | 178.9 |
| A | 9 | 143 | 12632 | 65.79 | 879 | 860 | 178.9 |
| B | 0 | 182 | 1707272 | 10805.55 | 825 | 804 | 157.9 |
| B | 4 | 97 | 78222 | 490.22 | 825 | 804 | 157.9 |
| B | 0 | 229 | 48047 | 299.15 | 825 | 804 | 157.9 |
| C | 3 | 233 | 281699 | 1451.77 | 835 | 840 | 193.5 |
| C | 7 | 235 | 10249 | 48.64 | 835 | 840 | 193.5 |
| C | 13 | 61 | 5974 | 26.54 | 835 | 840 | 193.5 |
| D | 5 | 222 | 140137 | 671.34 | 845 | 824 | 207.5 |
| D | 10 | 199 | 128515 | 615.34 | 845 | 824 | 207.5 |
| D | 2 | 152 | 78843 | 375.97 | 845 | 824 | 207.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

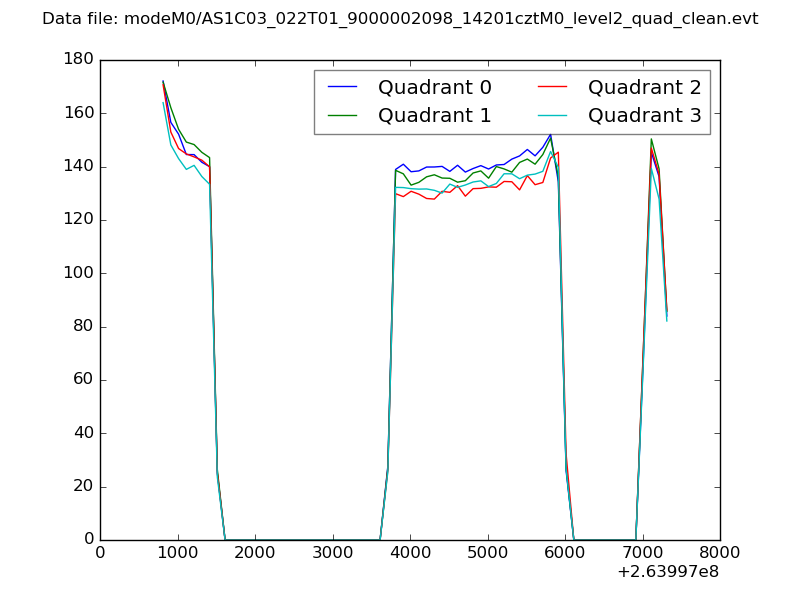

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

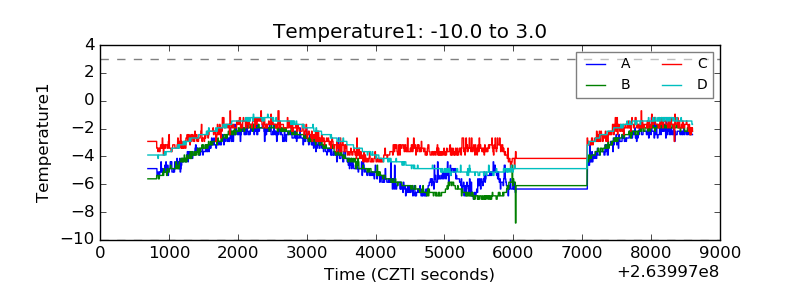

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

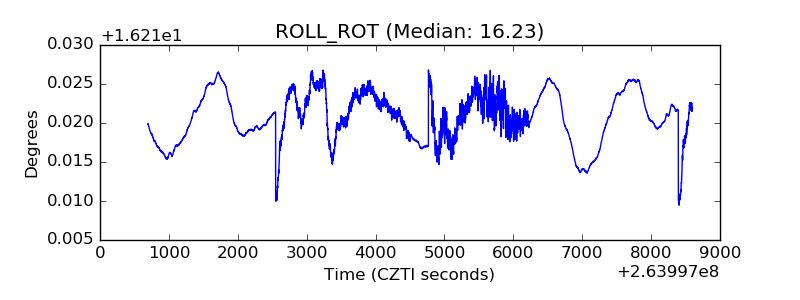

| _ROLL_ROT |  |

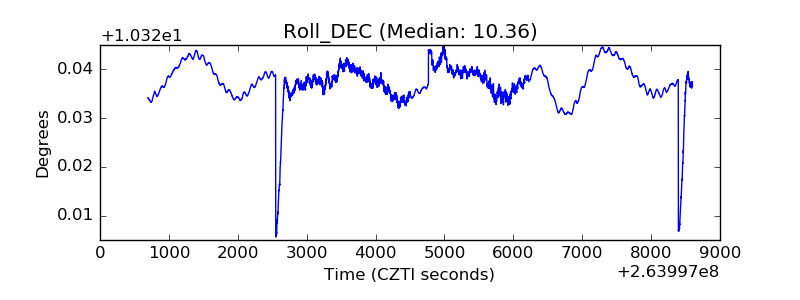

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
