| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_084T01_9000002100_14226cztM0_level2.evt | modeM0/AS1G08_084T01_9000002100_14226cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,149,760 | 105,863,040 |
| Size | 446.5 MB | 101.0 MB |
| Events in quadrant A | 3,046,076 | 702,354 |
| Events in quadrant B | 3,470,307 | 715,062 |
| Events in quadrant C | 3,336,404 | 690,826 |
| Events in quadrant D | 3,906,827 | 667,571 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12873 | 2 |
| B | 0 | 14195 | 1 |
| C | 0 | 13680 | 1 |
| D | 0 | 15726 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6164 | 21 | 0.340688% |
| B | 6164 | 71 | 1.151849% |
| C | 6164 | 27 | 0.438027% |
| D | 6164 | 71 | 1.151849% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7390 | 6166 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7390 | 6166 | 29 | 29 | 0.39% | 0.47% |  |
| C | 7390 | 6166 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7390 | 6166 | 44 | 44 | 0.60% | 0.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 33845 | 212.23 | 777 | 763 | 155.9 |
| A | 8 | 6 | 7887 | 45.7 | 777 | 763 | 155.9 |
| A | 4 | 2 | 7054 | 40.36 | 777 | 763 | 155.9 |
| B | 0 | 229 | 236706 | 1632.69 | 777 | 758 | 144.5 |
| B | 0 | 197 | 68954 | 471.9 | 777 | 758 | 144.5 |
| B | 4 | 97 | 37035 | 251.03 | 777 | 758 | 144.5 |
| C | 3 | 233 | 344953 | 1970.58 | 765 | 771 | 174.7 |
| C | 10 | 22 | 8142 | 42.2 | 765 | 771 | 174.7 |
| C | 13 | 61 | 5410 | 26.56 | 765 | 771 | 174.7 |
| D | 10 | 199 | 446741 | 2511.27 | 757 | 740 | 177.6 |
| D | 8 | 195 | 252896 | 1419.8 | 757 | 740 | 177.6 |
| D | 12 | 110 | 143326 | 802.85 | 757 | 740 | 177.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

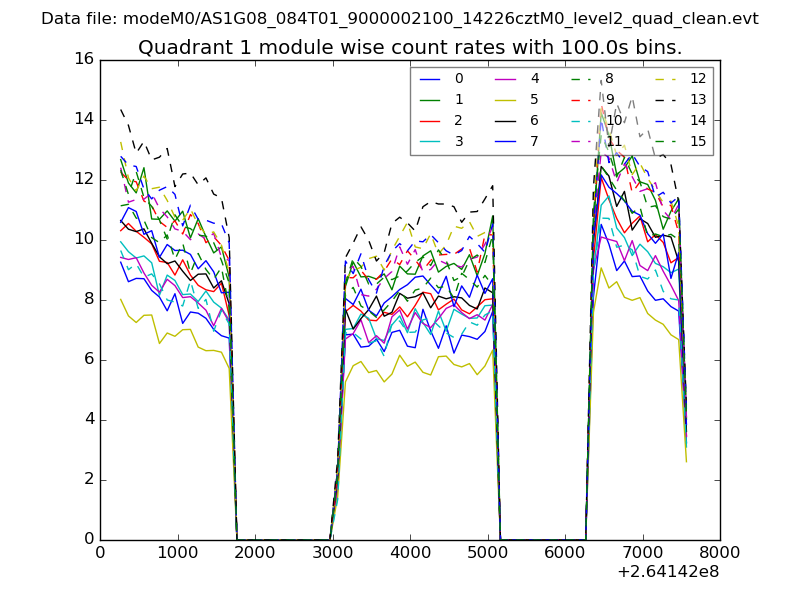

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

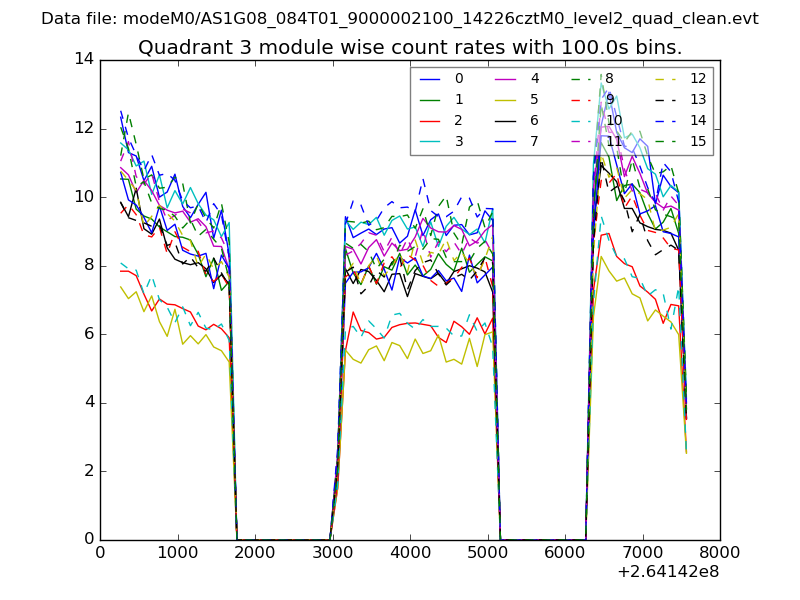

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
